Depureco PUMA FIX
PUMA FIX is a series of stationary industrial vacuum cleaners designed for centralized systems. All seven models share the same robust platform -- 840 x 1700 mm footprint, 175 L steel bin, 4 cartridge filters in class M -- and differ only in motor power and performance balance. P variants prioritise high air flow (suitable for many simultaneous suction points or long pipework), while S variants prioritise high vacuum (suitable for fine dust or long hose runs). Models 10, 18 and 25 are delivered without P/S variants -- they are optimised for balanced performance in their power class.
Download PDF datasheet ↓ Jump to comparison tableGallery
Features
- Powerful side-channel blower suitable for continuous operation (24/7)
- Ideal for installation in centralized vacuum systems
- Easy to move with a forklift truck (pallet-integrated base)

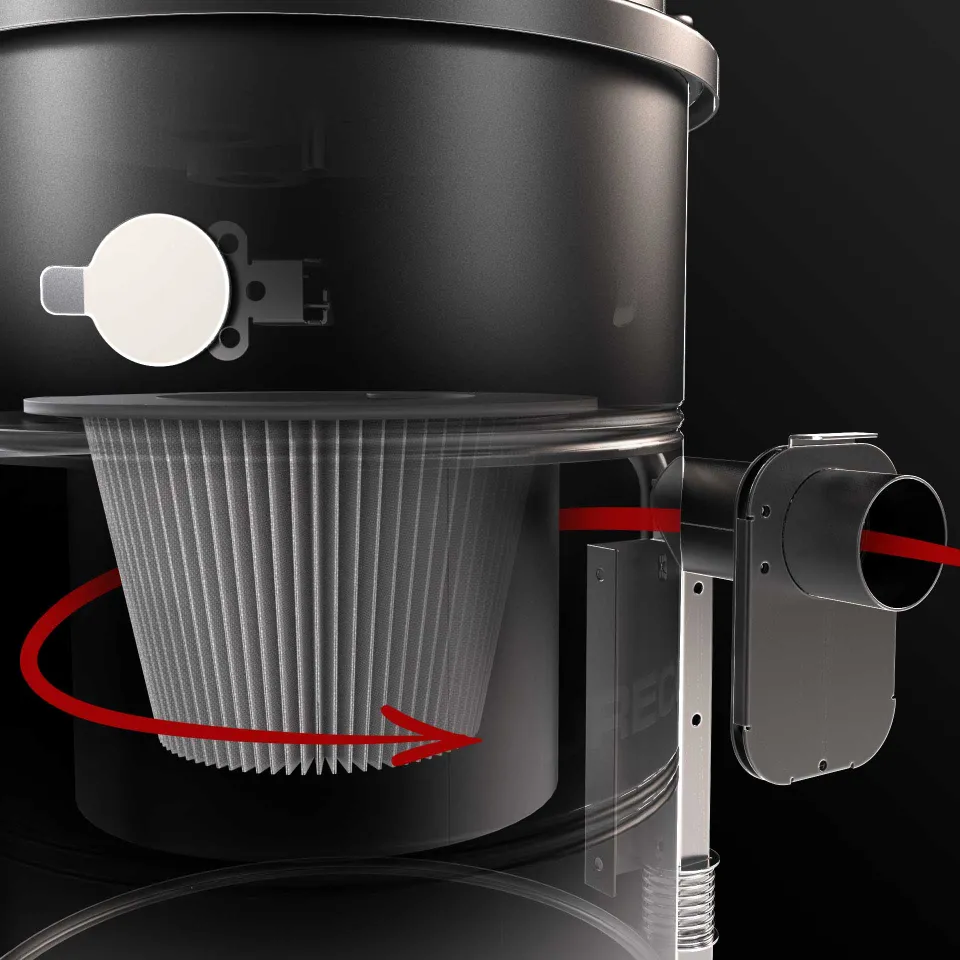

- Integrated cyclonic system extends the suction unit's service life
- Automatic SP filter cleaning at 6 bar reverse flow -- no suction interruption
Application areas
- Powders and fine dust
- Solid materials
- Metal shavings and drilling waste
- Continuous production environments with multiple suction points
- Centralized systems sized for process duration and concurrent users
Models and specifications
P variants are optimised for high air flow; S variants for high vacuum.
| Specification |
PUMA FIX 10
|
PUMA FIX 15 P
P variant: high air flow
|
PUMA FIX 15 S
S variant: high vacuum
|
|---|---|---|---|
| Max air flow | 730 m³/h | 950 m³/h | 550 m³/h |
| Vacuum (continuous) | 260 mBar | 300 mBar | 440 mBar |
| Motor | 7.5 kW | 11 kW | 11 kW |
| Motor (HP) | 10 HP | 15 HP | 15 HP |
| Motor type | Side channel blower | Side channel blower | Side channel blower |
| Voltage | 400 V | 400 V | 400 V |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Insulation class | F (IP55) | F (IP55) | F (IP55) |
| Sound pressure | 74 dB(A) | 74 dB(A) | 74 dB(A) |
| Suction inlet | 100 mm Ø | 100 mm Ø | 100 mm Ø |
| Collection system | Steel container | Steel container | Steel container |
| Container | 175 L | 175 L | 175 L |
| Dimensions (LxWxH) | 840 x 1700 x 1970 mm | 840 x 1700 x 1970 mm | 840 x 1700 x 1970 mm |
| Safety valve | Pressure relief valve | Pressure relief valve | Pressure relief valve |
| Forklift support | Included | Included | Included |
| Remote control | Free connector available | Free connector available | Free connector available |
| Electrical panel | Included | Included | Included |
| Filter count | 4 | 4 | 4 |
| Filter surface | 120.000 cm² | 120.000 cm² | 120.000 cm² |
| Filter class | M (EN 60335-2-69) | M (EN 60335-2-69) | M (EN 60335-2-69) |
| Filter media | Antistatic polyester | Antistatic polyester | Antistatic polyester |
| Cleaning system | Automatic SP (reverse air flow 6 bar) | Automatic SP (reverse air flow 6 bar) | Automatic SP (reverse air flow 6 bar) |
| Specification |
PUMA FIX 18 P
P variant: high air flow
|
PUMA FIX 18 S
S variant: high vacuum
|
PUMA FIX 20
|
PUMA FIX 25
|
|---|---|---|---|---|
| Max air flow | 1120 m³/h | 720 m³/h | 950 m³/h | 1380 m³/h |
| Vacuum (continuous) | 290 mBar | 530 mBar | 350 mBar | 320 mBar |
| Motor | 12.5 kW | 15 kW | 15 kW | 18.5 kW |
| Motor (HP) | 18 HP | 20 HP | 20 HP | 25 HP |
| Motor type | Side channel blower | Side channel blower | Side channel blower | Side channel blower |
| Voltage | 400 V | 400 V | 400 V | 400 V |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Insulation class | F (IP55) | F (IP55) | F (IP55) | F (IP55) |
| Sound pressure | 74 dB(A) | 74 dB(A) | 74 dB(A) | 74 dB(A) |
| Suction inlet | 100 mm Ø | 100 mm Ø | 100 mm Ø | 100 mm Ø |
| Collection system | Steel container | Steel container | Steel container | Steel container |
| Container | 175 L | 175 L | 175 L | 175 L |
| Dimensions (LxWxH) | 840 x 1700 x 1970 mm | 840 x 1700 x 1970 mm | 840 x 1700 x 1970 mm | 840 x 1700 x 1970 mm |
| Safety valve | Pressure relief valve | Pressure relief valve | Pressure relief valve | Pressure relief valve |
| Forklift support | Included | Included | Included | Included |
| Remote control | Free connector available | Free connector available | Free connector available | Free connector available |
| Electrical panel | Included | Included | Included | Included |
| Filter count | 4 | 4 | 4 | 4 |
| Filter surface | 120.000 cm² | 120.000 cm² | 120.000 cm² | 120.000 cm² |
| Filter class | M (EN 60335-2-69) | M (EN 60335-2-69) | M (EN 60335-2-69) | M (EN 60335-2-69) |
| Filter media | Antistatic polyester | Antistatic polyester | Antistatic polyester | Antistatic polyester |
| Cleaning system | Automatic SP (reverse air flow 6 bar) | Automatic SP (reverse air flow 6 bar) | Automatic SP (reverse air flow 6 bar) | Automatic SP (reverse air flow 6 bar) |
Options and variants
- 60 Hz version for USA/Canada and other 60 Hz grids
- 3 year warranty with simultaneous purchase of replacement filter unit
- BX: stainless AISI 304 bin
- GX: stainless AISI 304 bin and chamber
- HEPA 14 filter (EN 1822, H14 class, 110,000 cm2)
Frequently asked questions
How do I choose between P and S variants?
P variants offer higher air flow (m3/h) at lower vacuum and are optimised for many simultaneous users or long pipework. S variants offer lower air flow but higher vacuum and are suited for fine dust or long hose runs. Our team will size the system based on your project.
Can PUMA FIX be used in ATEX zones?
No, the standard version is not ATEX certified. For zone 22 dust environments, there is a sister series PUMA FIX 3D Z22 with the same base performance but certified for zone 22 (3D). See the separate category page.
How many simultaneous users can PUMA FIX support?
It depends on the model's air flow, outlet size, hose length and collected material. As a rule of thumb: PUMA FIX 10-15 supports 1-2 users, 18-20 supports 2-3 users, and 25 supports 3-4 users at DN50 outlets. Contact Particulair for project sizing.
Which filter media are available?
Standard delivery includes 4 antistatic polyester cartridges in filtration class M (EN 60335-2-69). HEPA 14 (EN 1822, H14 class, 110,000 cm2 glass fibre) is available as an option for absolutte filtration.
Is there a stainless steel version for food or chemical environments?
Yes -- two stainless variants are offered on all PUMA FIX models: BX (stainless AISI 304 bin) and GX (stainless AISI 304 bin and chamber). Both retain identical performance and dimensions.
Contact us for a quote on a system sized for your process. Contact
