Abrasion-resistant
AIRFLEX® 4500

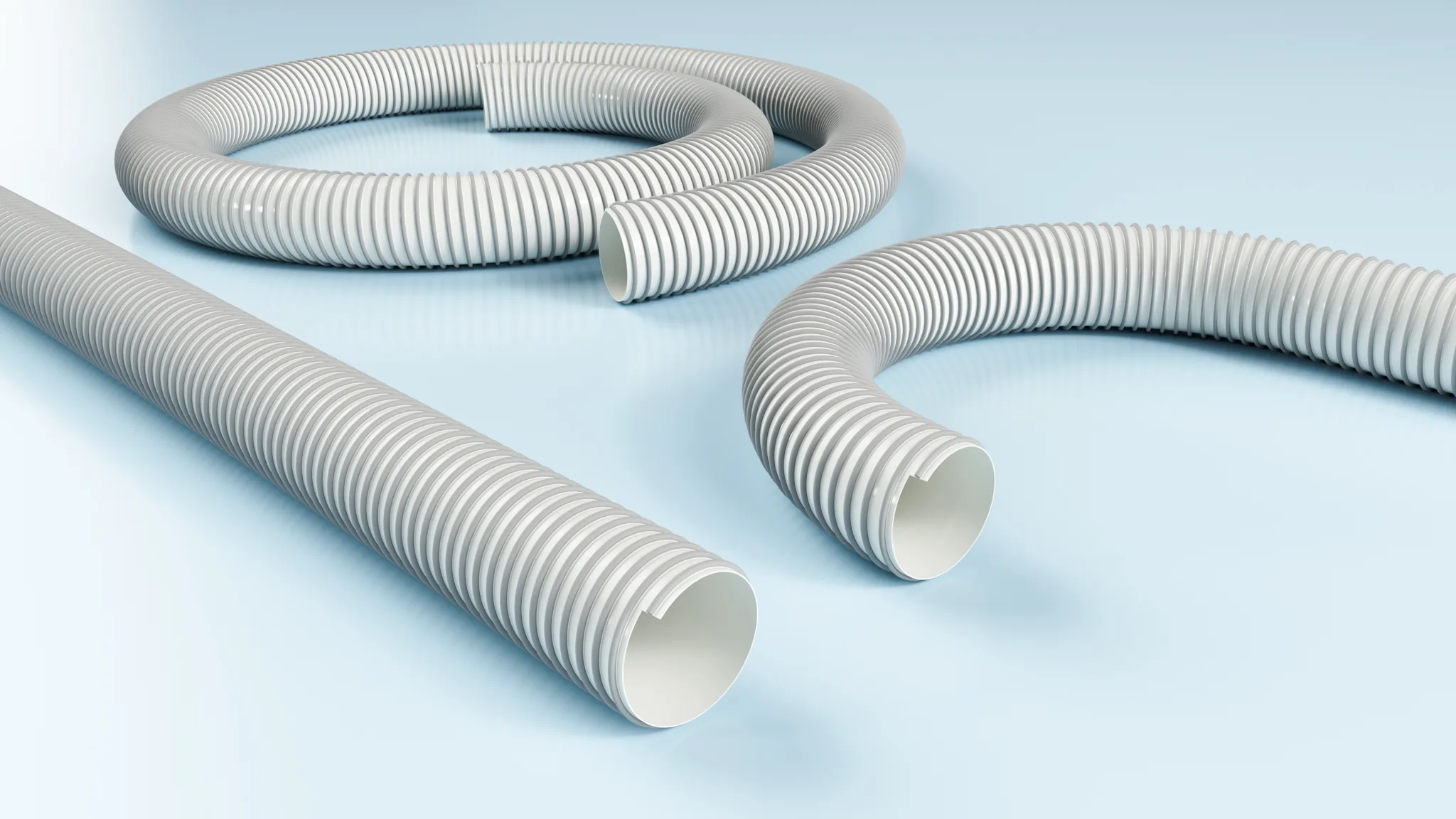

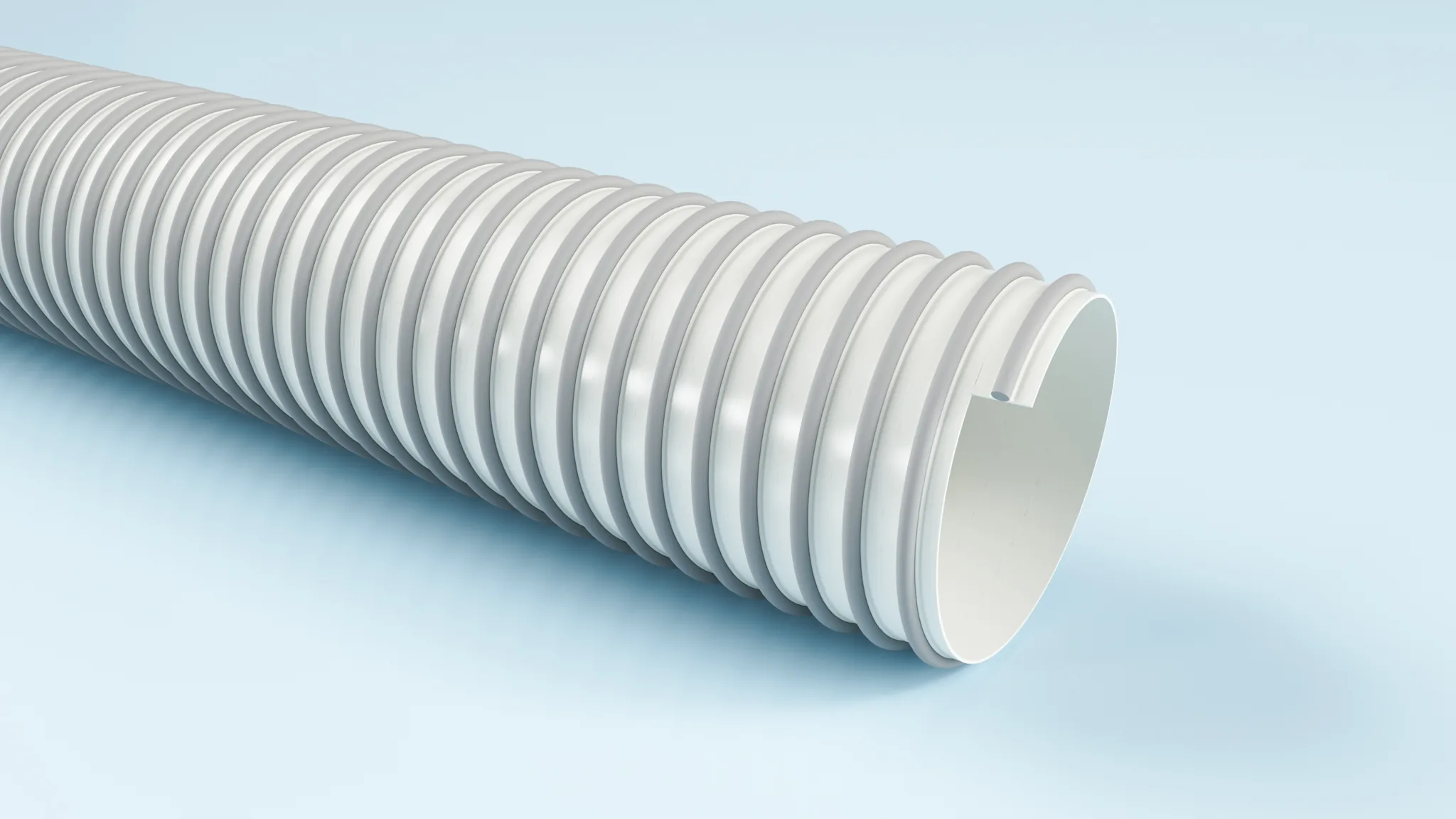

Highly flexible, kink-resistant suction hose in soft PVC with rigid PVC spiral and corrugated outer cover. For air, gas, smoke and dust, for suction, condensate drainage and cable protection. Highly abrasion-resistant, good chemical resistance and microbe-resistant. Service from −15°C to +60°C, to EN ISO 1307:2008.
- Highly flexible
- Highly abrasion-resistant
- −15 to +60°C
- Good chemical resistance
- EN ISO 1307
- Cut to length
Why this hose?

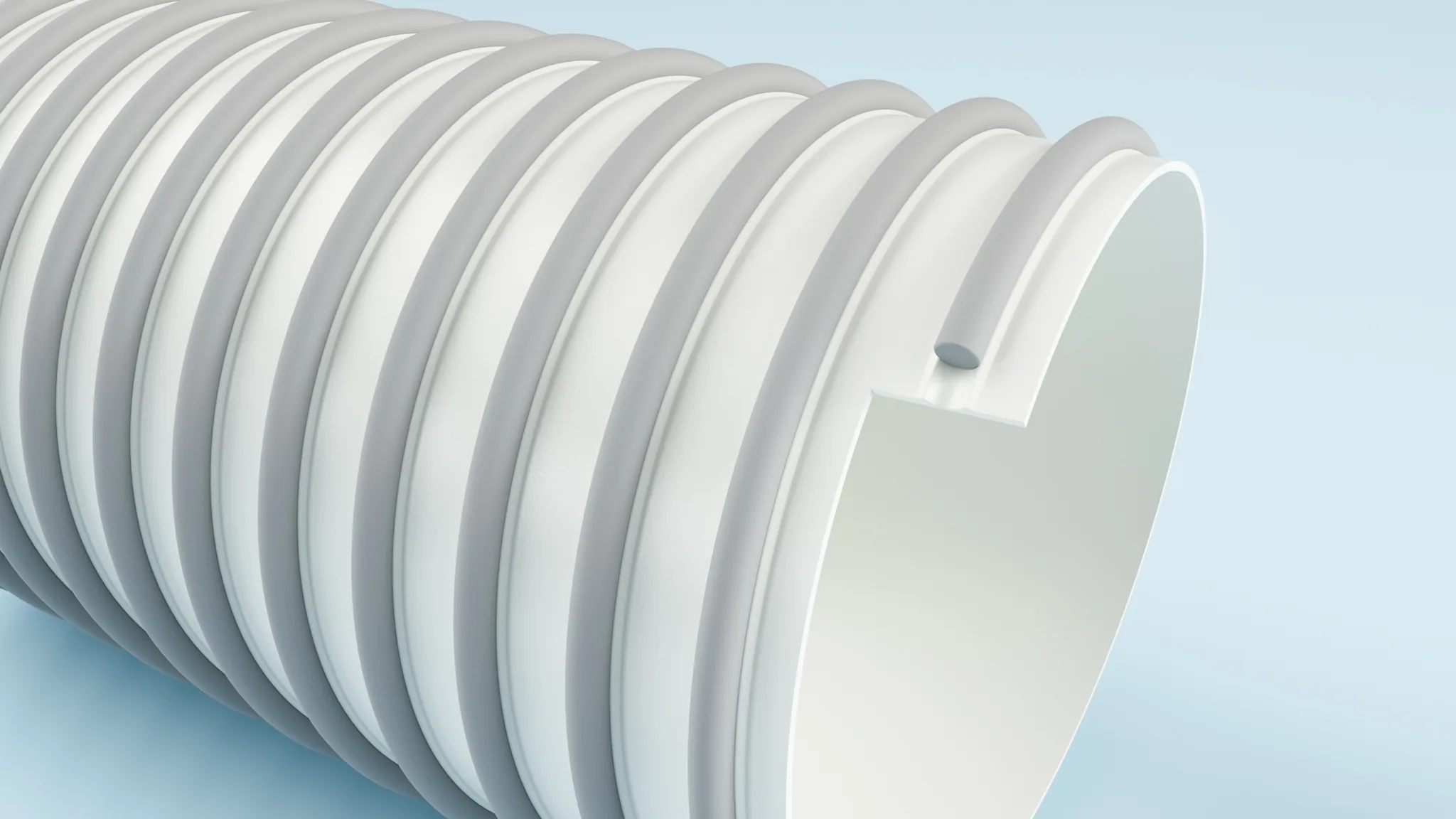

AIRFLEX® 4500 is a highly flexible and kink-resistant suction hose in soft PVC. The rigid PVC spiral keeps the hose open, and the corrugated outer cover makes it easy to bend.
The hose is highly abrasion-resistant, has good chemical resistance and is microbe-resistant. It comes in 23 sizes from 20 to 305 mm.
Where it is used
The hose is used on extraction units for waste gas, chemical vapours and dust, and in ventilation and air conditioning.
It is also used for air supply, condensate drainage and as cable protection.
In everyday talk we call it a suction hose or ventilation hose.
Technical specifications
Technical specifications for AIRFLEX® 4500.
| Material | Soft PVC (inner tube and outer cover), rigid PVC spiral |
|---|---|
| Colour | Grey |
| Temperature | −15 to +60°C |
| Media | Gas, dust |
| Abrasion resistance | Highly abrasion-resistant |
| Durability | Good chemical resistance, microbe-resistant |
| Vacuum | 0.6 to 0.1 bar depending on diameter |
| Assembly | Clamp fitting |
| Standard | EN ISO 1307:2008 |
| Manufacturer SKU | 4500 |
Dimensions and ordering
Standard dimensions for AIRFLEX® 4500.
| Inner Ø |
Outer Ø |
Vacuum |
Bend radius |
Max. length |
Weight |
Roll |
Article no. |
|---|---|---|---|---|---|---|---|
| 20 | 25 | 0.6 | 20 | 30 | 0.13 | 30 | 4500020000 |
| 25 | 31 | 0.55 | 25 | 50 | 0.2 | 50 | 4500025000 |
| 32 | 38 | 0.45 | 32 | 50 | 0.24 | 50 | 4500032000 |
| 38 | 45 | 0.45 | 38 | 50 | 0.32 | 50 | 4500038000 |
| 40 | 47 | 0.45 | 40 | 50 | 0.36 | 50 | 4500040000 |
| 45 | 52 | 0.4 | 45 | 50 | 0.41 | 50 | 4500045000 |
| 51 | 58 | 0.4 | 51 | 50 | 0.48 | 50 | 4500050000 |
| 60 | 68 | 0.4 | 60 | 50 | 0.62 | 50 | 4500060000 |
| 63 | 72 | 0.4 | 63 | 50 | 0.66 | 50 | 4500063000 |
| 70 | 79 | 0.4 | 70 | 50 | 0.76 | 50 | 4500070000 |
| 76 | 85 | 0.4 | 76 | 50 | 0.82 | 50 | 4500075000 |
| 80 | 90 | 0.4 | 80 | 50 | 0.9 | 50 | 4500080000 |
| 90 | 101 | 0.4 | 90 | 50 | 1.08 | 50 | 4500090000 |
| 102 | 112 | 0.4 | 102 | 50 | 1.16 | 50 | 4500100000 |
| 110 | 121 | 0.35 | 110 | 30 | 1.32 | 30 | 4500110000 |
| 120 | 130 | 0.35 | 120 | 30 | 1.45 | 30 | 4500120000 |
| 127 | 138 | 0.35 | 127 | 20 | 1.5 | 20 | 4500125000 |
| 152 | 164 | 0.3 | 152 | 20 | 1.9 | 20 | 4500150000 |
| 160 | 172 | 0.3 | 160 | 20 | 2.1 | 20 | 4500160000 |
| 180 | 193 | 0.25 | 180 | 20 | 2.4 | 20 | 4500180000 |
| 203 | 219 | 0.2 | 203 | 20 | 2.9 | 20 | 4500200000 |
| 254 | 270 | 0.2 | 254 | 10 | 3.8 | 10 | 4500250000 |
| 305 | 324 | 0.1 | 305 | 10 | 4.8 | 10 | 4500300000 |
Fields without a value (—) are not specified in the manufacturer's factsheet. Overpressure and underpressure values are recommended operating limits; the product can be subjected to higher loads on request. Bend radius is measured along the inside of the hose bend.
Standards and compliance
AIRFLEX® 4500 conforms to:
- EN ISO 1307:2008. Standard for dimensions and tolerances of rubber and plastics hoses.
Documentation and downloads
Additional documents about this hose, its compliance and installation. Click to download as PDF in a new tab.
Help with material selection
Although this hose isn't ATEX-relevant, these two articles provide useful background on electrical resistance and industrial safety — important if you later combine the hose with electrical equipment or work in mixed environments:
The invisible weakest link
Why a conductive or antistatic hose isn't sufficient on its own — and what grounding means for the complete system.
Know your ohm
The difference between antistatic and conductive, which resistance limits apply where, and how to measure them correctly.
Industries that use it
AIRFLEX® 4500 is used in:
The chemical industry, extraction and filtration technology and HVAC, where air, gas, smoke and dust are extracted or ventilated.
Custom lengths and assemblies
The hose comes in 10, 20, 30 or 50 m depending on the diameter. We cut it to length and fit clamp fittings as a finished assembly.
Frequently asked questions
Which media is it intended for?
Air, gas, smoke and dust. It is also used for condensate drainage and as cable protection.
How much vacuum does it withstand?
It depends on the diameter: from 0.6 bar at 20 mm to 0.1 bar at 305 mm. See the dimension table.
Is it ATEX-approved?
No. There is no ATEX documentation for the hose.
How is it assembled?
With clamp fittings. We cut the hose to length and can supply it as a finished assembly.
