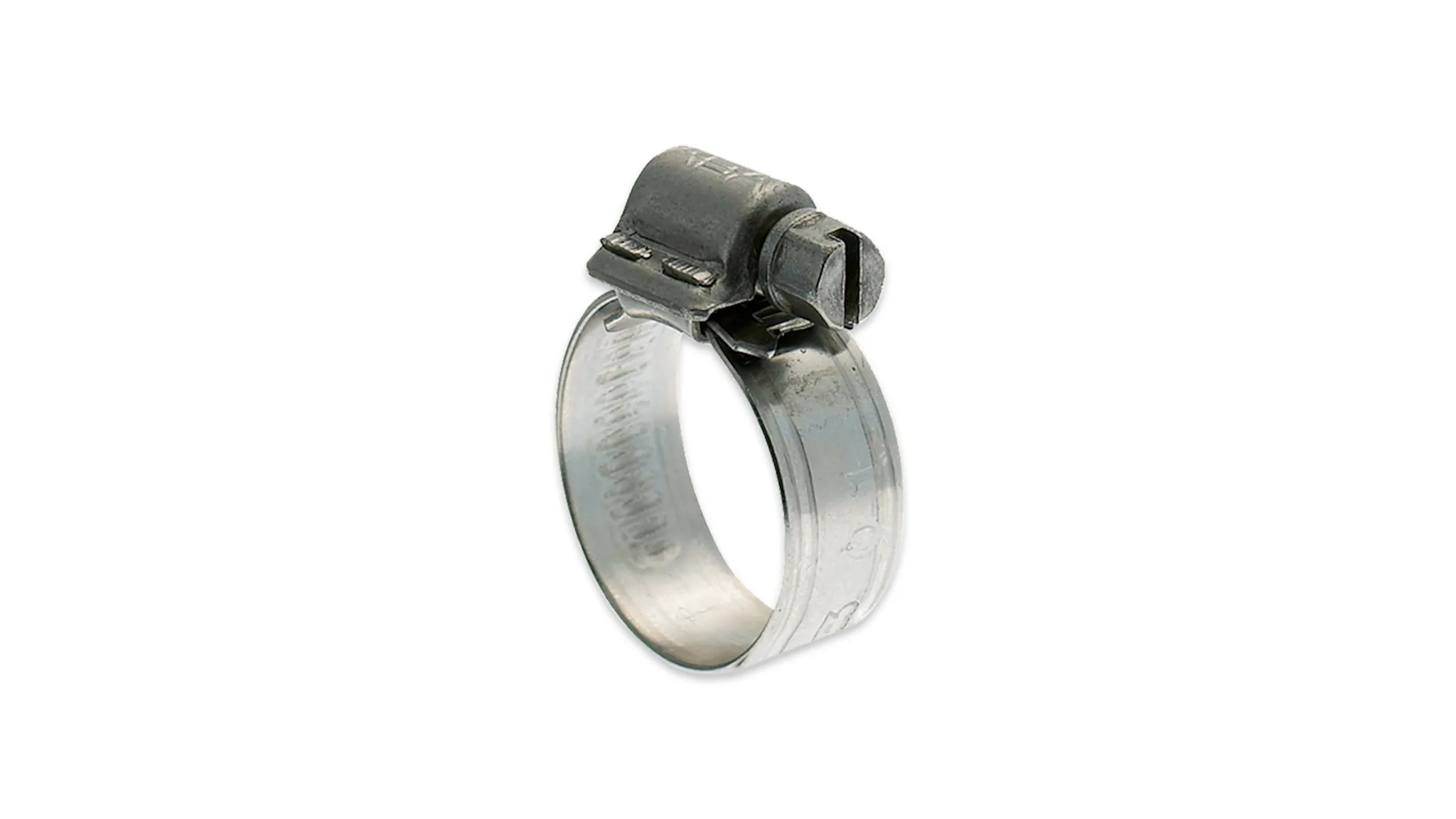

ABA worm-drive slangeklemme
ABA is a Swedish manufacturer of worm-drive hose clamps that has gained wide adoption in industrial, automotive and marine applications. The construction is a standardised screw clamp with stainless steel band tightened via an endless screw. ABA clamps are known for their durability and precise tensioning - a significant difference compared to cheap no-name worm-drive clamps where band stiffness and screw mechanics can fail.
- Stainless band
- ABA brand
- Worm-drive
- Industry standard
- Precise tensioning
- Durable
Technical specifications
The product's key specifications are briefly summarised below.
| Type | Worm-drive hose clamp |
|---|---|
| Brand | ABA (Swedish) |
| Band | Stainless steel |
| Screw | Galvanised steel |
| Manufacturer SKU | 6061 |
Dimensions and ordering
The table shows ABA worm-drive slangeklemme's standard dimensions.
| Inner Ø |
Outer Ø |
Weight |
Article no. |
|---|---|---|---|
| 10 | 16 | 0.005 | 6061010016 |
| 20 | 32 | 0.008 | 6061020032 |
| 40 | 60 | 0.014 | 6061040060 |
| 80 | 100 | 0.022 | 6061080100 |
Each dimension has its own article number from the manufacturer.
Frequently asked questions
Difference from CLAMP 211?
CLAMP 211 is a T-bolt clamp - heavy-duty with greater force transfer. ABA is a worm-drive (screw clamp) - lighter construction for normal hose installations. ABA is typically cheaper and faster to install; T-bolt is chosen where maximum clamping force is required.
Which hoses?
ABA worm-drive is qualified for nearly all our hoses with smooth outer wall - PROTAPE, AIRBRAKE, SUPERFLEX. For strongly corrugated hoses we recommend bridge clamps (CLAMP 210/212) instead.
