BOSS sikrings-klemme til damp

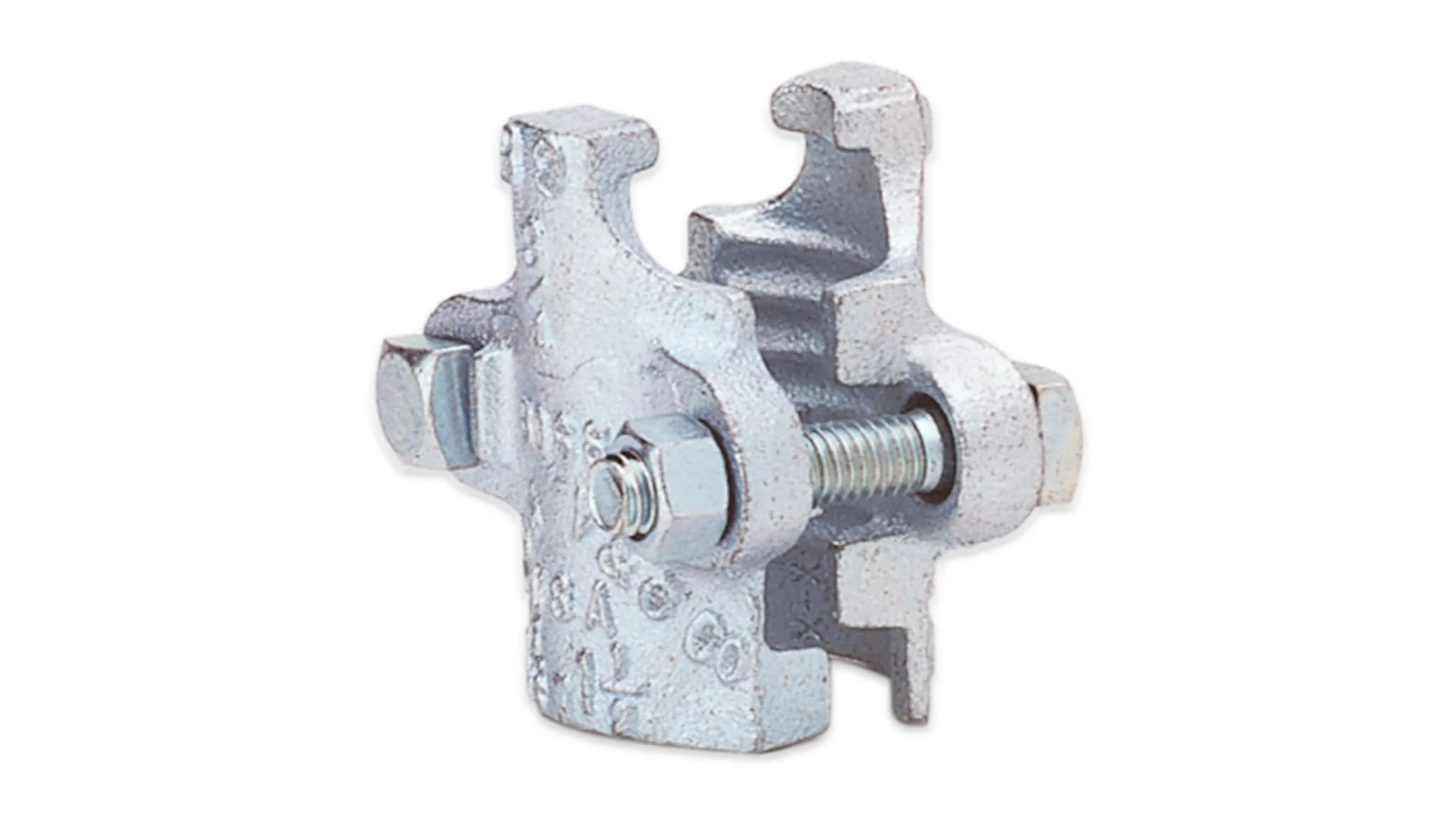

BOSS safety clamp is developed to secure BOSS steam hose couplings (SKU 5410/5411) against separation under high steam pressure. The construction has 2 safety claws gripping into the hose's outer surface and preventing the hose from slipping back even if the coupling's screw grip fails. The material is galvanised forged steel - a combination withstanding strong-steam exposure without corrosion. Max temperature 210 deg C matches the BOSS steam coupling's range. Used as mandatory secondary securing in brewery, pharma and industrial process where the steam installation must not fail.
- Forged steel
- 2 safety claws
- Steam installation
- BOSS system
- Galvanised
- Max 210 deg C
Technical specifications
The product's key specifications are briefly summarised below.
| Type | Safety clamp for steam hose |
|---|---|
| Safety claws | 2 |
| Material | Galvanised forged steel |
| Max steam temperature | 210 °C |
| Application | BOSS steam coupling secondary securing |
| Standards | RoHS + REACH |
| Manufacturer SKU | 5420 |
Dimensions and ordering
The table shows BOSS sikrings-klemme til damp's standard dimensions.
| Inner Ø |
Outer Ø |
Weight |
Article no. |
|---|---|---|---|
| 25 | 33 | 0.2 | 5420025000 |
| 32 | 42 | 0.27 | 5420032000 |
| 38 | 50 | 0.35 | 5420038000 |
Each dimension has its own article number from the manufacturer.
Frequently asked questions
Why secondary securing?
Steam installations at high pressures and temperatures are particularly vulnerable to coupling failure due to thermal expansion, vibrations and steam hammers. Single-locking is not sufficient safety - safety claws provide a secondary mechanical securing gripping into the hose wall and preventing separation even if the primary locking fails. This is mandatory in brewery and pharma applications.
For which couplings?
BOSS safety clamp is specifically designed for BOSS steam couplings (SKU 5410/5411). The clamp's dimension matches the coupling's hose tail.
Sold separately?
Yes, each dimension has its own article number. For pre-assembled steam hose sets with BOSS coupling + safety clamp on both ends, contact us.
