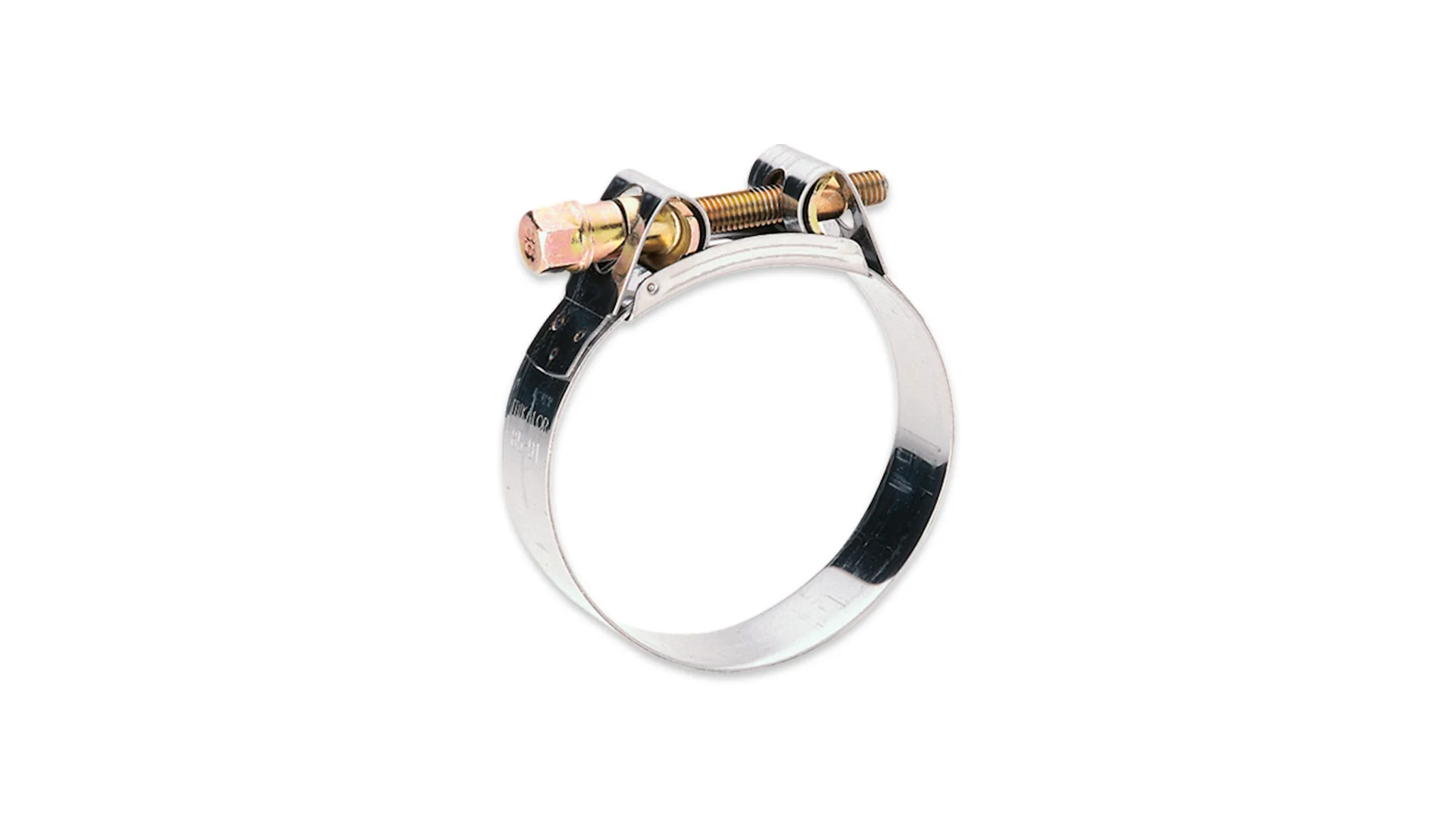

Mikalor Supra Super hose clamp
Mikalor Supra is a heavy-duty breitband clamp with notably wider band (24-30 mm) than standard worm-drive (typically 9-12 mm). The wide construction distributes clamping force evenly over the hose perimeter and prevents local material deformation - critical in high-pressure installations where standard clamps can damage the hose wall. Typically used in industrial water, fuel and chemical installations.
- Heavy-duty
- 24-30 mm band
- Precise tensioning
- High clamping force
- Mikalor brand
- Industrial standard
Technical specifications
The product's key specifications are briefly summarised below.
| Type | Breitband clamp |
|---|---|
| Band width | 24-30 mm |
| Material | Stainless band, galvanised screw |
| Brand | Mikalor Supra |
| Manufacturer SKU | 6202 |
Dimensions and ordering
The table shows Mikalor Supra Super hose clamp's standard dimensions.
| Inner Ø |
Outer Ø |
Weight |
Article no. |
|---|---|---|---|
| 40 | 60 | 0.09 | 6202040060 |
| 80 | 100 | 0.18 | 6202080100 |
| 140 | 160 | 0.29 | 6202140160 |
Each dimension has its own article number from the manufacturer.
Frequently asked questions
Why wide band?
Standard worm-drive (9-12 mm band) concentrates clamping force on a narrow area and can locally deform the hose wall. Breit-band (24-30 mm) distributes force evenly and prevents damage. This is critical in high-pressure installations where the hose wall must not be locally crushed.
Brand relation to Super-Klem?
Mikalor Supra and Super-Klem are competing breitband systems from different manufacturers (Mikalor is Spanish, Super-Klem is French). Both have wider band than standard worm-drive. Choose by price and availability.
