Accessories · Accessory

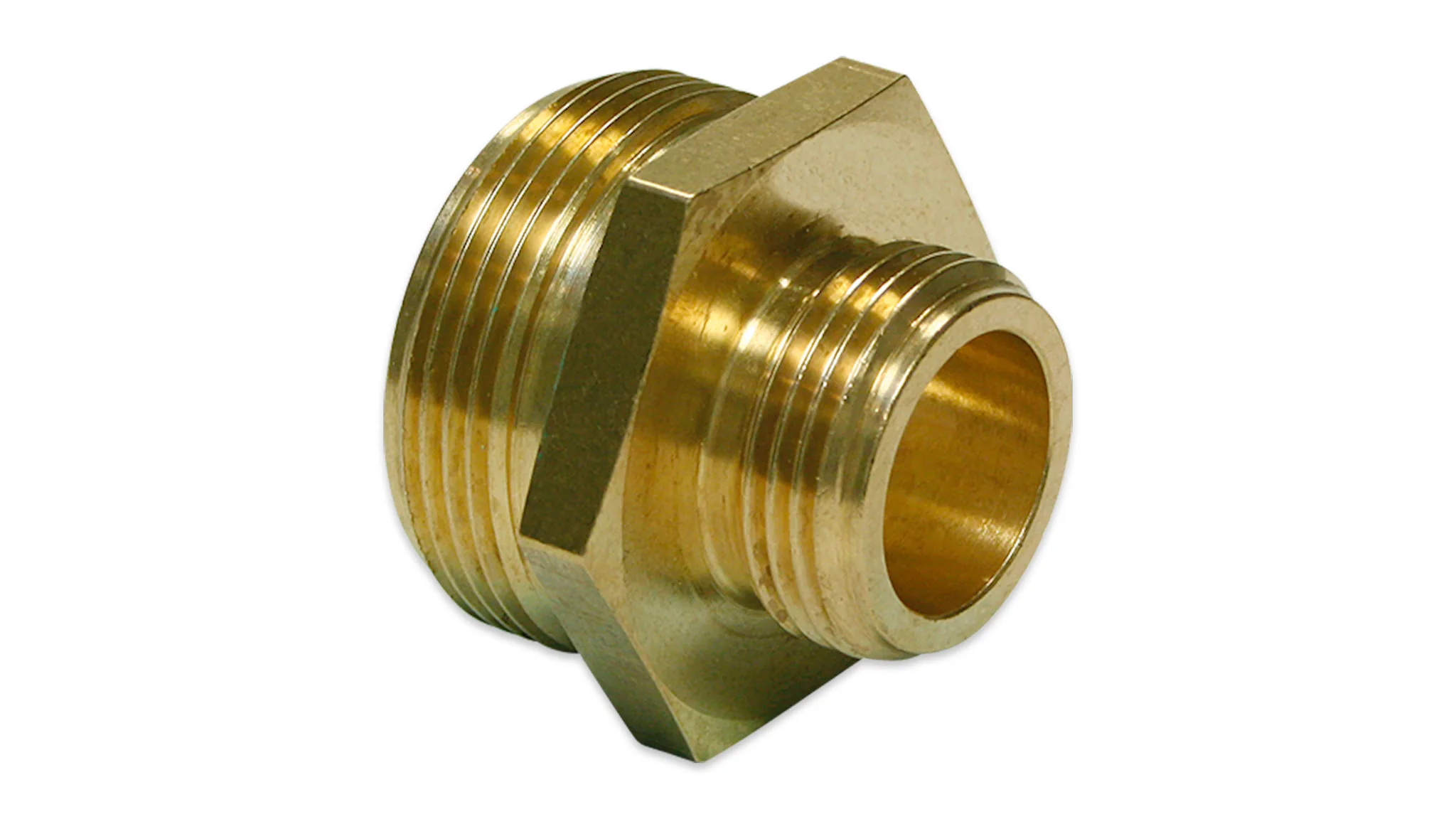

Reducerings-nippel

Reduce nipple is a male-male thread adapter where the two sides have DIFFERENT thread sizes. Used to reduce between two pipe connection systems with different standards - e.g. from 1 inch pipe connection to 1/2 inch valve. Material is typically brass or galvanised steel.

Download datasheet (PDF)

Reduction Male-male BSPP 3 sizes
  • Reduction
  • Male-male
  • Two sizes
  • BSPP
  • 3 combinations
  • Standard

Technical specifications

The product's key specifications are briefly summarised below.

Type Reduce nipple (male-male)
Function Reduction between two thread sizes
Material Brass or galvanised steel
Manufacturer SKU 5325

Dimensions and ordering

The table shows Reducerings-nippel's standard dimensions.

Dimensions, pressure and vacuum data for Reducerings-nippel
Inner Ø
[mm]		 Outer Ø
[mm]		 Weight
[kg/m]		 Article no.
13200.065325013020
20250.095325020025
25320.145325025032

Each dimension has its own article number from the manufacturer.

Frequently asked questions

Difference from double nipple?

Double nipple (5322) has SAME thread on both sides. Reduce nipple (5325) has DIFFERENT thread sizes - for reduction between two systems.
