TIMBERDUC® PUR 534 AS

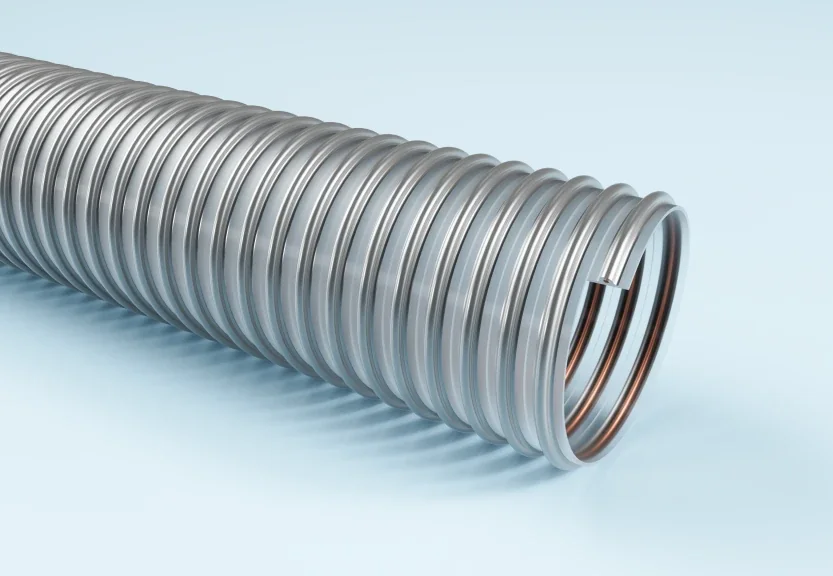

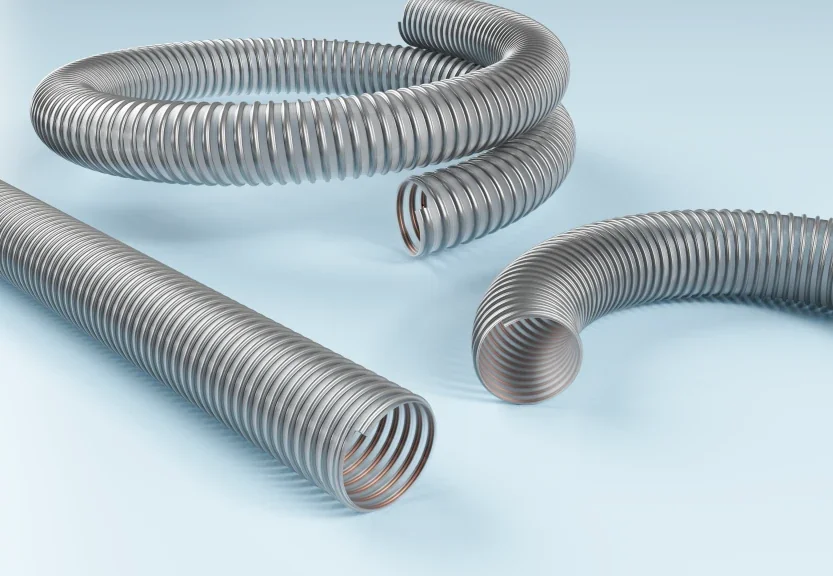

TIMBERDUC® PUR 534 AS is a hose with a permanently antistatic Pre-PUR® (polyester polyurethane) wall and spring steel spiral. The wall is 1.5 mm thick and transparent with partial silver colouring. The manufacturer states a normal temperature range from −40 to +90°C and short-term up to +125°C. It is used for gas, dust and solids and is supplied in inner Ø 101.5 mm.
- Antistatic <10⁹ Ω
- −40 to +90°C
- Pre-PUR® wall 1.5 mm
- Gas, dust, solids
- Partially silver coloured
- Cut to length
Why this hose?

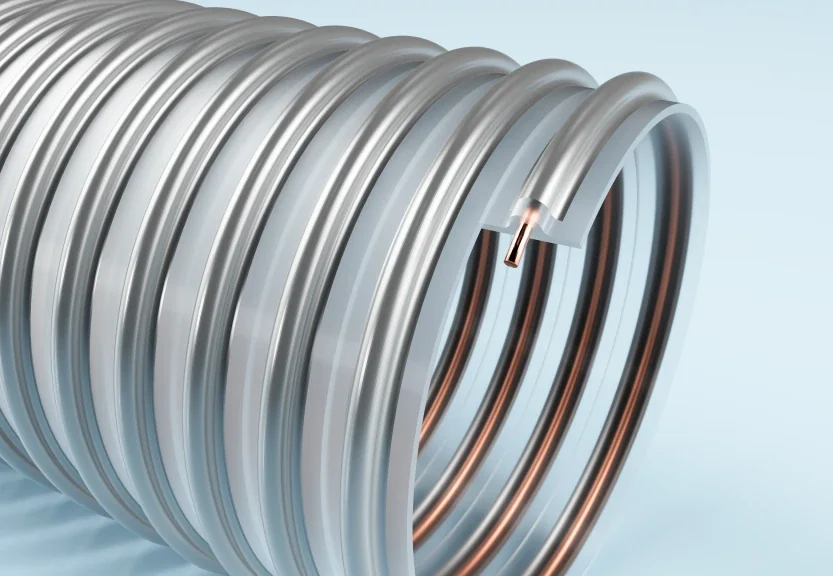

TIMBERDUC® PUR 534 AS has a 1.5 mm thick, permanently antistatic Pre-PUR® wall and a spring steel spiral. The transparent wall with partial silver colouring makes it easy to see what is flowing through the hose.
The manufacturer states a normal temperature range from −40 to +90°C and short-term up to +125°C.
The hose is one part of a system. The antistatic property only works when the whole system is correctly grounded.
Where it is used
The hose is used for conveying gas, dust and solids, for example extraction of dust and chips.
The formal name is TIMBERDUC® PUR 534 AS.
Technical specifications
Specifications are current as of 30 October 2026 and come from the manufacturer's data sheet. Fields without a value are not stated by the manufacturer.
| Material | Pre-PUR® (polyester polyurethane) |
|---|---|
| Spiral | Spring steel |
| Colour | Transparent, partially silver coloured |
| Wall thickness | 1.5 mm |
| Conveying media | Gas, dust, solids |
| Temperature range | −40°C to +90°C |
| Short-term peak | +125°C |
| Electrical resistance | Permanently antistatic <109 Ω (ISO 8031) |
| Manufacturer SKU (model group) | 5340000 |
Dimensions and ordering
The table shows the size from the manufacturer's data sheet. Fields without a value (—) are not stated.
| Inner Ø |
Outer Ø |
Wall thickness |
Working pressure |
Vacuum |
Bend radius |
Max. length |
Weight |
Article no. |
|---|---|---|---|---|---|---|---|---|
| 101.5 | 112.5 | 1.5 | 1.275 | 0.39 | 83 | 15 | 1.5 | 53401000000 |
Fields without a value (em-dash) are not specified in the manufacturer's factsheet. Overpressure and underpressure values are recommended operating limits; the product can be subjected to higher loads on request. Bend radius is measured along the inside of the hose bend.
Standards and compliance
The manufacturer documents the following:
- Permanently antistatic wall. Electrical and surface resistance below 10⁹ Ω according to ISO 8031 (below 2.5·10⁸ Ω·m according to TRGS 727, 10⁸–10⁹ Ω according to NFPA 652).
- REACH (EC 1907/2006) and RoHS 2011/65/EU. The manufacturer holds declarations of compliance.
A hose is not itself ATEX certified. It must always be grounded, and whether it suits a zone is decided in your own zone assessment.
Documentation and downloads
Additional documents about this hose, its compliance and installation. Click to download as PDF in a new tab.
Help with material selection
If you're choosing a hose and are unsure about the right resistance level or zone classification, these two articles are a good place to start:
The invisible weakest link
Why a conductive or antistatic hose isn't sufficient on its own — and what grounding means for the complete system.
Know your ohm
The difference between antistatic and conductive, which resistance limits apply where, and how to measure them correctly.
Industries that use it
The hose is used in:
The woodworking industry and other installations where gas, dust and solids are conveyed.
Custom lengths and assemblies
The hose can be cut to length and assembled with couplings and cuffs. We advise on assembly and grounding so the hose fits your installation.
Frequently asked questions
Why is there only one size?
The manufacturer lists TIMBERDUC® PUR 534 AS in inner Ø 101.5 mm. If you need another diameter, we will find an alternative in the TIMBERDUC family.
Can the hose be used in explosion hazard areas?
The manufacturer states a permanently antistatic wall according to ISO 8031 below 10⁹ Ω. A hose is not itself ATEX certified. It must always be grounded, and whether it suits a given zone is decided in your own zone assessment.
