Chemical-resistant
CORRUFLEX/BUNA/AS

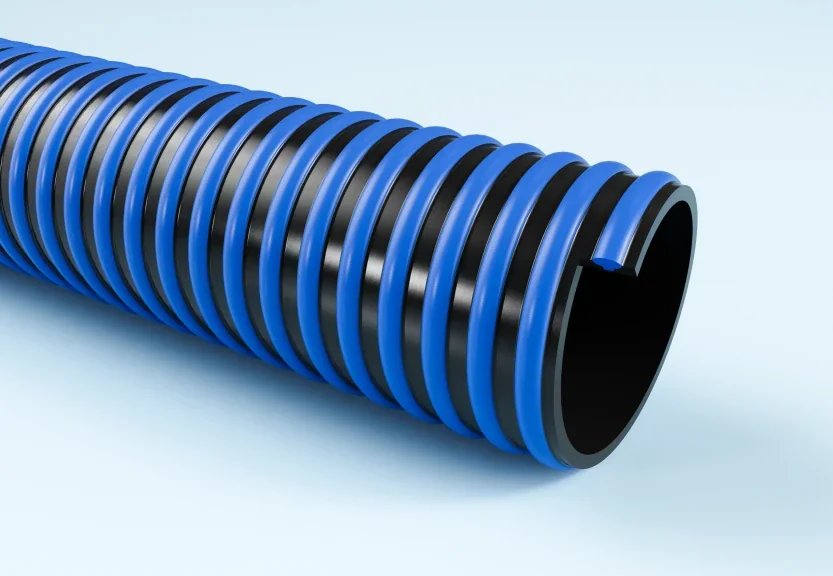

CORRUFLEX/BUNA/AS is a highly flexible suction and pressure hose in black NBR/PVC with a blue rigid PVC spiral and embedded copper wire. The manufacturer describes it as suited to conveying water, slurry and oils in industry and agriculture. The normal temperature range is −30 to +65°C. The hose is supplied in four sizes from inner Ø 51 to 152 mm with a working pressure of 2 bar and vacuum of 0.9 bar.
- Water, slurry, oil
- −30 to +65°C
- NBR/PVC
- Highly flexible
- Ø 51 to 152 mm
- Cut to length
Why this hose?

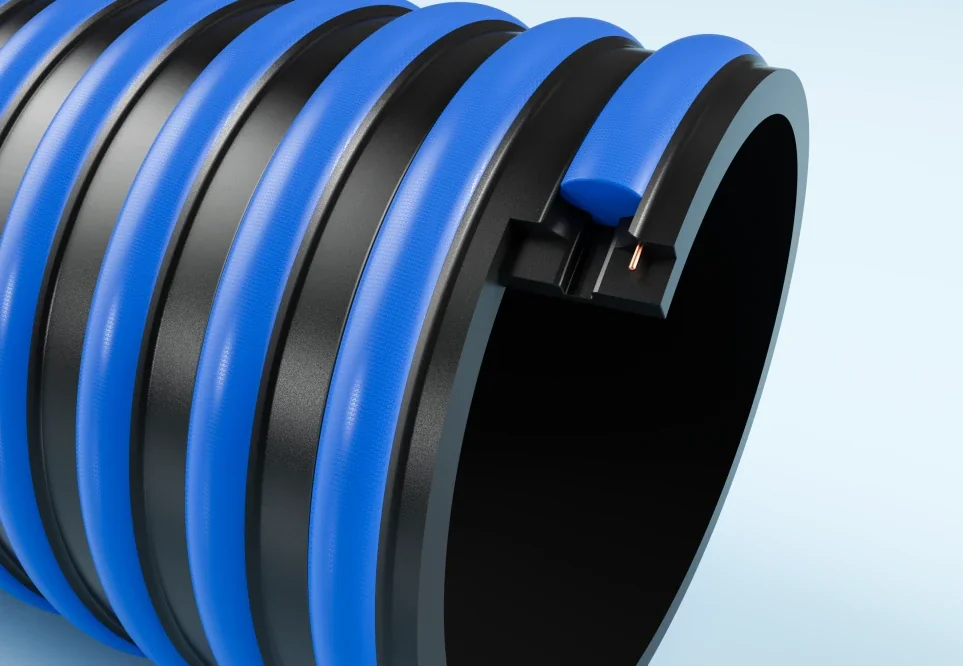

CORRUFLEX/BUNA/AS has an NBR/PVC inner tube and cover, a blue rigid PVC spiral and embedded copper wire. The manufacturer describes it as highly flexible.
The normal temperature range is −30 to +65°C, working pressure is 2 bar and vacuum 0.9 bar in all sizes.
Where it is used
The manufacturer lists conveying industrial water, industrial cleaning, and slurry and mineral oils under medium-duty conditions.
The formal name is CORRUFLEX/BUNA/AS.
Technical specifications
Specifications are current as of 30 October 2026 and come from the manufacturer's data sheet. Fields without a value are not stated by the manufacturer.
| Inner tube and cover | NBR/PVC, black |
|---|---|
| Spiral | Rigid PVC, blue |
| Wire | Copper |
| Exterior | Shallow corrugated |
| Conveying media | Gas, dust, liquid, solids |
| Temperature range | −30°C to +65°C |
| Manufacturer SKU (model group) | 4466 |
Dimensions and ordering
The table shows the standard sizes from the manufacturer's data sheet. Working pressure is stated at 20°C. Fields without a value (—) are not stated.
| Inner Ø |
Outer Ø |
Wall thickness |
Working pressure |
Vacuum |
Bend radius |
Max. length |
Weight |
Roll |
Article no. |
|---|---|---|---|---|---|---|---|---|---|
| 51 | 60 | 4.5 | 2 | 0.9 | 153 | 50 | 0.96 | 50 | 4466050000 |
| 76 | 87 | 5.5 | 2 | 0.9 | 228 | 50 | 1.6 | 50 | 4466075000 |
| 102 | 116 | 7 | 2 | 0.9 | 306 | 50 | 2.7 | 50 | 4466100000 |
| 152 | 168 | 8 | 2 | 0.9 | 456 | 20 | 4.75 | 20 | 4466150000 |
Fields without a value (—) are not specified in the manufacturer's factsheet. Overpressure and underpressure values are recommended operating limits; the product can be subjected to higher loads on request. Bend radius is measured along the inside of the hose bend.
Standards and compliance
The manufacturer documents the following:
- EN ISO 1307:2008.
The manufacturer states no electrical resistance for the hose, so it must not be used for combustible dust.
Documentation and downloads
Additional documents about this hose, its compliance and installation. Click to download as PDF in a new tab.
Help with material selection
Although this hose isn't ATEX-relevant, these two articles provide useful background on electrical resistance and industrial safety — important if you later combine the hose with electrical equipment or work in mixed environments:
The invisible weakest link
Why a conductive or antistatic hose isn't sufficient on its own — and what grounding means for the complete system.
Know your ohm
The difference between antistatic and conductive, which resistance limits apply where, and how to measure them correctly.
Industries that use it
The hose is used in:
Industry and agriculture for water, slurry and oils.
Custom lengths and assemblies
The hose can be cut to length and assembled with couplings. We advise on the assembly so the hose fits your installation.
Frequently asked questions
Is the hose antistatic?
The name contains AS and the manufacturer states an embedded copper wire, but gives no electrical resistance. The hose must therefore not be used for combustible dust. Contact us if you need a hose with documented resistance.
