Food/Pharma · EU 1935/2004 + EU 10/2011

AIRDUC® PUR-INOX 350 FOOD-AS

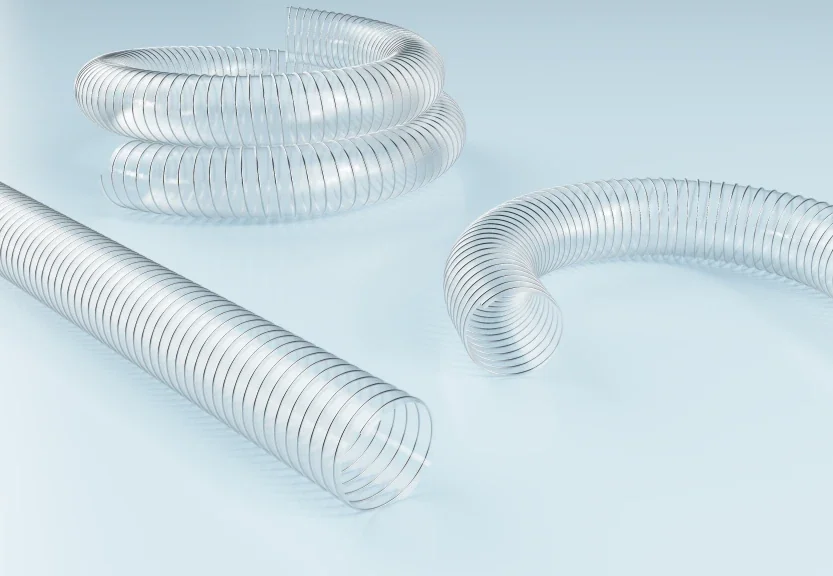

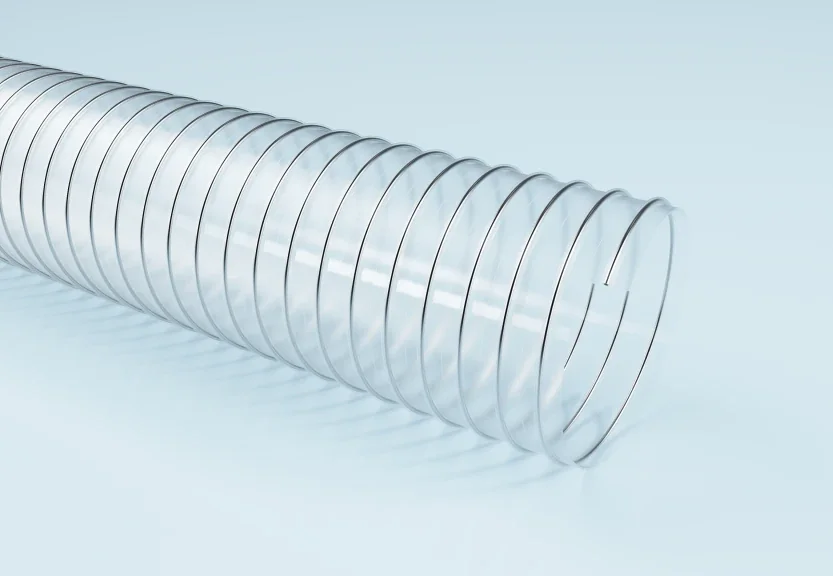

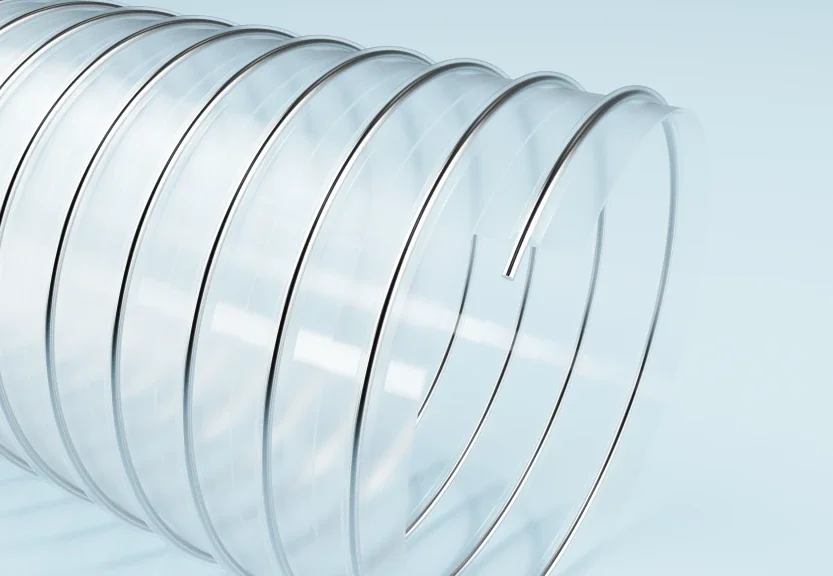

AIRDUC® PUR-INOX 350 FOOD-AS is a highly abrasion-resistant suction and delivery hose with a food-grade Pre-PUR® (polyether polyurethane) wall and stainless steel spiral. The wall is permanently antistatic below 10⁹ Ω. The manufacturer states a normal temperature range from −40 to +90°C and short-term up to +125°C. The hose is used for conveying food and pharmaceuticals and is supplied in six sizes from inner Ø 38 to 200 mm.

Download datasheet (PDF)

Food-grade wall Antistatic <10⁹ Ω Stainless steel spiral −40 to +90°C

EU 10/2011, FDA
Antistatic <10⁹ Ω
−40 to +90°C
Gas, dust, solids
Stainless steel spiral
Cut to length

Why this hose?

AIRDUC® PUR-INOX 350 FOOD-AS has a food-grade, permanently antistatic Pre-PUR® wall and a stainless steel spiral. It is highly abrasion-resistant and suited to conveying food and pharmaceuticals.

The manufacturer states a normal temperature range from −40 to +90°C and short-term up to +125°C.

Important context

The hose is one part of a system. The antistatic property only works when the whole system is correctly grounded.

Where it is used

The manufacturer lists conveying food and pharmaceuticals.

The formal name is AIRDUC® PUR-INOX 350 FOOD-AS.

Technical specifications

Specifications are current as of 30 October 2026 and come from the manufacturer's data sheet. Fields without a value are not stated by the manufacturer.

Material	Pre-PUR® (polyether polyurethane)
Spiral	Stainless steel (INOX)
Colour	Transparent
Wall thickness	0.7 mm
Conveying media	Gas, dust, solids
Temperature range	−40°C to +90°C
Short-term peak	+125°C
Electrical resistance	Permanently antistatic <10⁹ Ω (ISO 8031)
Food approval	EU 10/2011, EC 1935/2004, EU 2015/174, FDA 21 CFR 177.2600
Manufacturer SKU (model group)	3501018

Dimensions and ordering

The table shows the standard sizes from the manufacturer's data sheet. Working pressure and vacuum are stated according to DIN 26057. Fields without a value (—) are not stated.

Dimensions, pressure and vacuum data for AIRDUC® PUR-INOX 350 FOOD-AS
Inner Ø [mm]	Outer Ø [mm]	Wall thickness [mm]	Working pressure DIN 26057, 10 % elong. [bar]	Working pressure 50 % elong. [bar]	Vacuum DIN 26057 [bar]	Vacuum axially fixed [bar]	Bend radius [mm]	Max. length [m]	Weight [kg/m]	Article no.
38	45	0.7	1.635	3.64	0.495	1	31	25	0.29	35000381018
50	57	0.7	1.25	2.78	0.38	1	38	30	0.38	35000501018
60	67	0.7	1.05	2.33	0.315	0.83	44	30	0.45	35000601018
70	77	0.7	0.9	2	0.185	0.83	50	30	0.51	35000701018
100	107	0.7	0.635	1.41	0.135	0.66	68	25	0.73	35001001018
200	207	0.7	0.32	0.71	0.055	0.19	128	15	1.71	35002001018

Overpressure and underpressure values are recommended operating limits; the product can be subjected to higher loads on request. Bend radius is measured along the inside of the hose bend.

Standards and compliance

The manufacturer documents the following:

Food contact. The wall complies with EU 10/2011, EC 1935/2004 and EU 2015/174 as well as FDA 21 CFR 177.2600.
GMP (EC 2023/2006). Good manufacturing practice for materials in contact with food.
Permanently antistatic wall. Electrical and surface resistance below 10⁹ Ω according to ISO 8031 (below 2.5·10⁸ Ω·m according to TRGS 727, 10⁸–10⁹ Ω according to NFPA 652).
DIN 26057 type 2.
REACH (EC 1907/2006) and RoHS 2011/65/EU. The manufacturer holds declarations of compliance.

A hose is not itself ATEX certified. It must always be grounded, and whether it suits a zone is decided in your own zone assessment.

Documentation and downloads

Additional documents about this hose, its compliance and installation. Click to download as PDF in a new tab.

Datasheet (Particulair) Particulair-branded datasheet with all technical specifications. PDF REACH declaration REACH declaration. PDF · 2026 RoHS declaration RoHS declaration. PDF · 2025

Help with material selection

If you are choosing a hose and are uncertain about the right resistance level or zone classification, these two articles are a good place to start:

ESD

The invisible weakest link

Why a conductive or antistatic hose is not enough on its own — and what grounding means for the finished system.

Read the article

Resistance

Know your ohm

The difference between antistatic and conductive — and which level is required in which zone.

Read the article

Industries that use it

The hose is used in:

The food industry and pharmaceutical industry for conveying food and pharmaceuticals.

Custom lengths and assemblies

The hose can be cut to length and assembled with couplings and cuffs. We advise on assembly and grounding so the hose fits your installation.

See our custom hose assemblies

Related hoses

Hoses often considered alongside this one. Suggestions are based on the same category and similar properties.

Frequently asked questions

Which food approvals does the hose have?

The manufacturer states that the wall complies with EU 10/2011, EC 1935/2004, EU 2015/174 and FDA 21 CFR 177.2600, and that manufacturing follows GMP, EC 2023/2006.

Can the hose be used in explosion hazard areas?

The manufacturer states a permanently antistatic wall according to ISO 8031 below 10⁹ Ω. A hose is not itself ATEX certified. It must always be grounded, and whether it suits a given zone is decided in your own zone assessment.
