High-temperature · up to +400°C
CP HiTex 482

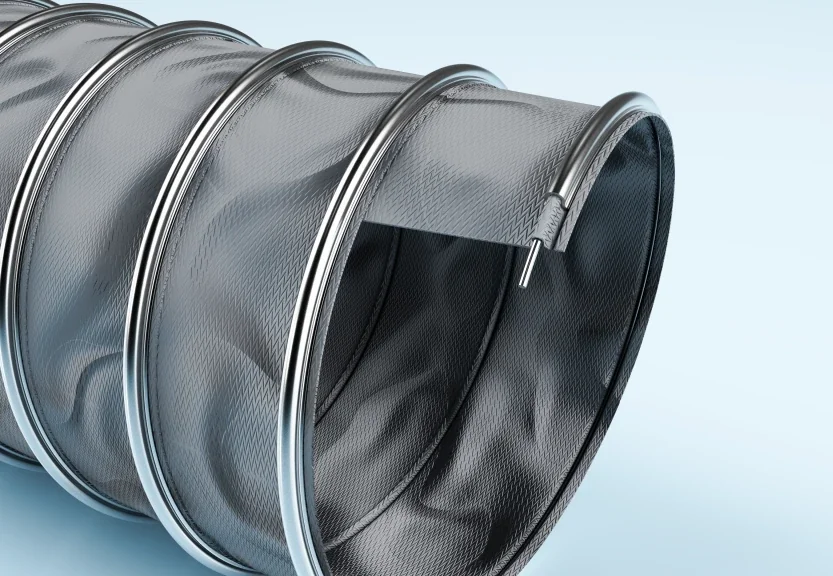

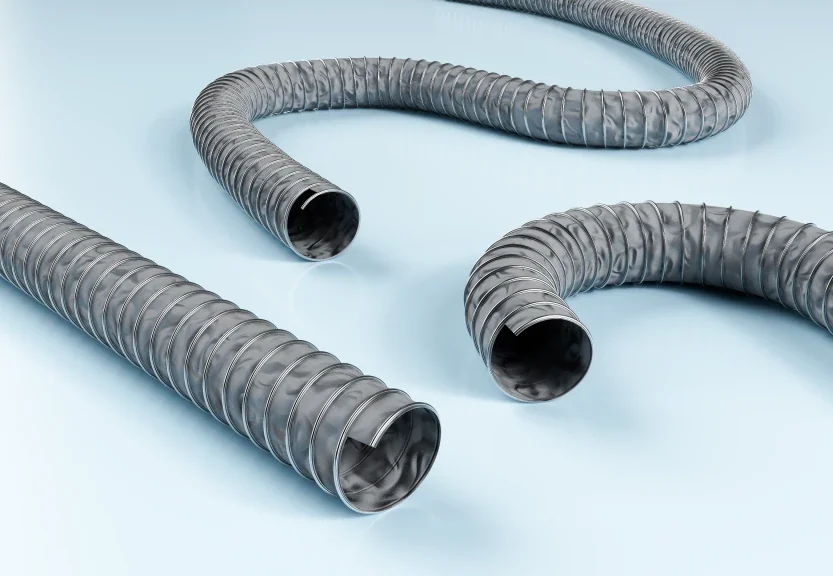

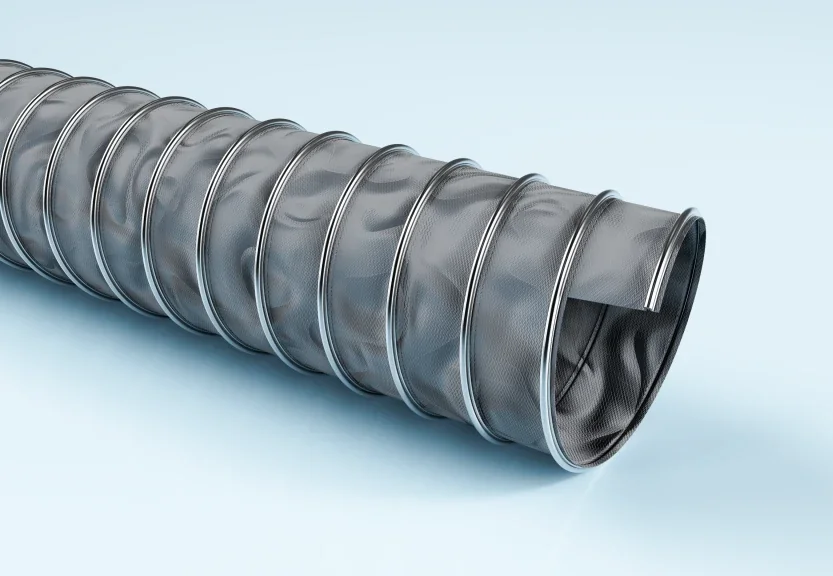

CP HiTex 482 is a high-temperature clamp profile hose for gas. Both the clamp profile and the spiral supporting it are stainless steel, and the manufacturer states a normal temperature range from −60 to +400°C. The hose is highly flexible and compresses in a 3:1 ratio. It is supplied in two sizes, inner Ø 100 and 140 mm, both special versions.
- −60 to +400°C
- Stainless steel
- Compressible 3:1
- Gas
- Special version
- Cut to length
Why this hose?
CP HiTex 482 is the version of the CP HiTex family in which both the clamp profile and the spiral are stainless steel. The manufacturer states a normal temperature range from −60 to +400°C.
The hose is highly flexible and compresses in a 3:1 ratio. It is available in two special sizes, inner Ø 100 and 140 mm.
Where it is used
The hose is used for extraction of hot and cold gases in the temperature range from −60 to +400°C.
The formal name is CP HiTex 482. In daily use: "the 482".
Technical specifications
Specifications are current as of 30 October 2026 and come from the manufacturer's data sheet. Fields without a value are not stated by the manufacturer.
| Clamp profile | Stainless steel (INOX) |
|---|---|
| Supporting spiral | Stainless steel (INOX) |
| Compressibility | Highly flexible, compressible 3:1 |
| Conveying media | Gas |
| Temperature range | −60°C to +400°C |
| Manufacturer SKU (model group) | 4820000 |
Dimensions and ordering
The table shows the main variants from the manufacturer's factsheet. Fields without a value (—) are not specified. Diameters, pressure values and bend radii are normative; weights and roll lengths are typical production values.
| Inner Ø |
Outer Ø |
Vacuum |
Bend radius |
Max. length |
Weight |
Article no. |
|---|---|---|---|---|---|---|
| 100 | 112 | 0.12 | 52 | 13 | 0.96 | 48201000000 |
| 140 | 152 | 0.06 | 67 | 15 | 1.33 | 48201400000 |
Note: Fields without a value (—) are not specified in the manufacturer's factsheet. Overpressure and underpressure are recommended operating limits; the product can be subjected to higher loads on request. Bend radius is measured along the inside of the hose. Contact us for full specifications or special variants.
Standards and compliance
The hose is certified or documented to the following standards:
- REACH (EC 1907/2006) and RoHS 2011/65/EU. The manufacturer holds declarations of compliance, available under Documentation.
The manufacturer states no electrical resistance for the hose, so it must not be used for combustible dust.
Documentation and downloads
Additional documents about this hose, its compliance and installation. Click to download as PDF in a new tab.
Industries that use it
The hose is used where hot gases are extracted:
In extraction and filtration systems it is used for gas at high and low temperatures.
Custom lengths and assemblies
The hose can be cut to length and assembled with couplings, cuffs and threaded fittings through Particulair's custom hose assemblies.
We offer guidance on material choice, coupling system and grounding, so the hose fits correctly into the overall system. If there is any doubt about zone classification or resistance requirements, a short conversation before ordering is well worth the time.
Frequently asked questions
Why are there only two sizes?
The manufacturer lists CP HiTex 482 in inner Ø 100 and 140 mm, both as special versions. If you need another diameter, we can look at an alternative in the CP HiTex family.
How do I order the hose, and where do you deliver?
The hose is ordered through Particulair (Karlslunde, Denmark). We deliver to Denmark, the EU and selected third countries such as Norway and Switzerland. Standard dimensions can typically be delivered in 1-2 weeks; custom assemblies and larger volumes require slightly longer lead time.
How is the hose best stored before use?
Store the hose dry, at room temperature (15-25°C) and out of direct sunlight. Avoid contact with ozone-generating equipment (welding equipment, engines). If stored on a reel, the bend must be larger than the specified minimum radius to avoid permanent deformation. Proper storage significantly extends shelf life.
What is the minimum bend radius, and what happens if I go below it?
Minimum bend radius is the smallest radius the hose can be bent to without permanent deformation or internal damage. The table above shows specific values for each dimension. Bending the hose below this limit can collapse the wall, kink the spiral or damage the inner coating. The result is reduced flow, increased pressure loss and shorter service life. Always use bend radius as a design constraint in installation.
