Conical Nozzle – Food & Pharma

FDA 21 CFR 177.2600 BfR Recommendation XV Wacker R 4001 80 GMP-compatible −60°C to +200°C (silicone) Ø38 – Ø70 mm

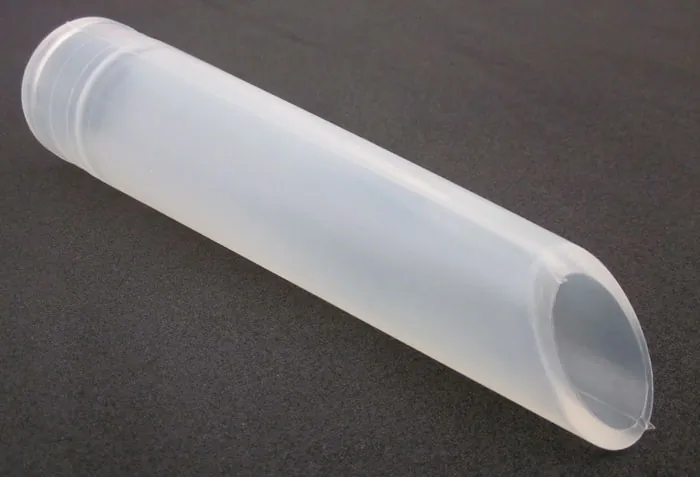

Conical nozzle in transparent FDA-compatible silicone for food and pharma environments – Ø38 to Ø70 mm
Also available in colour-coded FDA NBR Colour Line · 5 colours · FDA 21 CFR 177.2600

Used together with

Metal fittings AISI 304
Fittings
AISI 304 stainless steel · Ø38–Ø50
Curved tubes AISI 304
Curved tubes
AISI 304 stainless steel · Ø38–Ø50

Conical nozzle for precise spot extraction in food and pharma environments. Available in transparent silicone with documented compliance with FDA 21 CFR 177.2600 and BfR Recommendation XV — and in colour-coded FDA NBR rubber for colour-managed hygiene systems (Colour Line).

Silicone – White Line

Transparent silicone – FDA & BfR compliant

Material
Silicone
Wacker R 4001 80
FDA
21 CFR 177.2600
Food contact
BfR
Recommendation XV
Silicone (DE)
Temperature
−60 / +200°C
Autoclavable
Product code Ø mm Material Colour
PT38S138Silicone, Wacker R 4001 80Transparent
PT40S140Silicone, Wacker R 4001 80Transparent
PT44S44Silicone, Wacker R 4001 80Transparent
PT50S50Silicone, Wacker R 4001 80Transparent
PT70S70Silicone, Wacker R 4001 80Transparent

Colour versions: add colour letter at end — e.g. PT38S1B (blue), PT38S1V (green), PT38S1R (red), PT44SG (yellow), PT44SW (white). Colours on request.

Applications

  • Collection of food waste, crumbs, powder and granules in production lines
  • Extraction of chemical dust and particle residues in pharma environments
  • Cleaning of production equipment in cleanroom-adjacent zones
  • Flour and confectionery industries, dairy, cosmetics and chemical manufacturing
Compliance information: The silicone compound Wacker Chemie R 4001 80 complies with FDA 21 CFR 177.2600 (USA) and BfR Recommendation XV "Silicone" (Germany) for the polymers and ingredients in the material. It is the manufacturer's responsibility to ensure that the moulding and finishing process meets these standards, and the end user's responsibility to verify material compatibility with the specific intended application.
Colour Line – FDA NBR

Colour-coded FDA NBR rubber – for hygiene colour management systems

Material
FDA NBR
Oil-resistant rubber
FDA
21 CFR 177.2600
On request – F suffix
Antistatic
No
Standard version
Temperature
−20 / +120°C
Operating range

How to build the part number

PT + diameter + colour + F

Example: Ø40 mm, blue, FDA = PT401BF  ·  Ø38 mm, red, FDA = PT381RF

B = Blue R = Red G = Yellow V = Green W = White
Ø mm Blue (B) Red (R) Yellow · Green · White
38PT381BFPT381RFPT381GF / PT381VF / PT381WF – on request
40PT401BFPT401RFPT401GF / PT401VF / PT401WF – on request
44PT44BFPT44RFPT44GF / PT44VF / PT44WF – on request
50PT50BFPT50RFPT50GF / PT50VF / PT50WF – on request
70PT70BFPT70RFPT70GF / PT70VF / PT70WF – on request

F = FDA rubber per 21 CFR 177.2600. Blue and red in stock. Other colours on request.

Colour coding and hygiene

The Colour Line concept enables systematic colour coding of vacuum accessories in food and pharma environments, where visual segregation of equipment forms part of internal hygiene procedures and GMP requirements. Colour coding reduces the risk of cross-contamination by assigning specific colours to separate process zones, allergen statuses or product types:

  • Blue — allergen-free zones or dry products
  • Red — meat processing or controlled process zones
  • Green / yellow / white — additional colours adapted to internal colour coding systems
Please note: The standard Colour Line is manufactured in oil-resistant NBR rubber without FDA compliance. FDA-compatible versions carry the suffix F and must be specified at the time of ordering. It is the end user's responsibility to verify the material's suitability for the specific application.

Frequently asked questions

The silicone version (White Line) is compliant with FDA 21 CFR 177.2600 and BfR Recommendation XV in its standard form, withstands −60°C to +200°C and can be autoclaved. Colour Line is manufactured in oil-resistant NBR rubber and is available in an FDA-compatible version (F suffix) on request, with an operating range of −20°C to +120°C. Colour Line is primarily intended for colour-coded hygiene management systems.
Yes. The silicone material Wacker Chemie R 4001 80 has an operating temperature range of −60°C to +200°C, making autoclaving possible as part of a hygiene routine. It is the user's responsibility to verify that the rest of the tube system and accessories are also rated for the autoclaving temperature.
FDA 21 CFR 177.2600 is the US Food and Drug Administration's regulation for rubber materials approved for repeated contact with food. BfR Recommendation XV is the equivalent German requirement for silicone materials in food contact. For the silicone version, compliance is documented for the compound Wacker Chemie R 4001 80. The end user is responsible for verifying suitability for the specific intended use.
The part number is built as PT + diameter + colour letter + F. Example: Ø38 mm in green FDA version = PT381VF. Blue and red are stocked; other colours (yellow, green, white) are supplied on request. Contact us with the required diameter, colour and quantity.
Both variants are available in Ø38, Ø40, Ø44, Ø50 and Ø70 mm. The diameter must match the tube system on your vacuum unit. Please contact us if you are unsure of the correct size.
Yes — the conical nozzle is also available in antistatic MM019NN NBR compound for use in ATEX Zone 21 and Zone 22, with documented volume resistivity of 1.1 Ω·m (CERISIE, ISO 1853:2011). See the ATEX product page for details.
