Food / PharmaFDA silicone · Colour Line FDA NBR · 5 colours

PB GUN – Food / Pharma

FDA 21 CFR 177.2600BfR Recommendation XVWacker R 4001 80Autoclavable5 colours FDA NBR−60°C to +200°CGMP

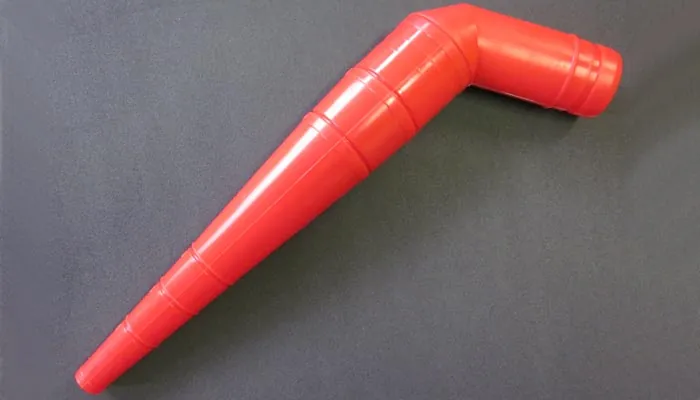

PB GUN pistol nozzle in red FDA silicone for food and pharma environments
Also in colour-coded FDA NBRColour Line · 5 colours · FDA 21 CFR 177.2600

ATEX variant

PB GUN – ATEX →

Antistatic NBR, Zone 21 and Zone 22

Used together with

Connectors AISI 304
Connectors
AISI 304 stainless steel · Ø38–Ø50
Curved tubes AISI 304
Curved tubes
AISI 304 stainless steel · Ø38–Ø50

PB GUN Food / Pharma is an ergonomic pistol nozzle for vacuuming very fine dust and powder in hard-to-reach areas in food and pharma environments. The silicone variant in Wacker R 4001 80 is autoclavable, making it suitable for sterile and hygiene-critical processes. The Colour Line FDA NBR variant is available in 5 colour-coded versions for colour-managed hygiene systems.

Compliance

FDA 21 CFR 177.2600BfR Recommendation XVWacker R 4001 80GMP
Material
Silicone / NBR
FDA-documented
Temperature
−60 / +200°C
Silicone
Ext. diameter
Ø50 mm
Handle end
Int. diameter
Ø38 / 40 / 50
Connection end

FDA silicone (autoclavable)

Product codeExt. ØInt. ØColour
PBG50S(X)Ø50 mmØ50, Ø40 and Ø38 mmRed (std.) / others on request
PBG501S(X)Ø50 mmØ50 innerRed (std.) / others on request

Material: Wacker R 4001 80 silicone · FDA 21 CFR 177.2600 · BfR Recommendation XV · Autoclavable · −60°C to +200°C. (X) = colour code on request.

Colour Line – FDA NBR (5 colours)

Product codeExt. ØInt. ØColour
PBG50BFØ50 mmØ50, Ø40 and Ø38 mmBlue
PBG50WFØ50 mmØ50, Ø40 and Ø38 mmWhite
PBG50RFØ50 mmØ50, Ø40 and Ø38 mmRed
PBG50GFØ50 mmØ50, Ø40 and Ø38 mmYellow
PBG50VFØ50 mmØ50, Ø40 and Ø38 mmGreen

Colour Line: FDA NBR compound · FDA 21 CFR 177.2600 · Colour coding in accordance with HACCP principles. Product codes are indicative — please confirm when ordering.

FDA compliance: The silicone variant complies with FDA 21 CFR 177.2600 and BfR Recommendation XV (Wacker R 4001 80). Colour Line FDA NBR complies with FDA 21 CFR 177.2600. Compliance applies to the material, not the product as a whole. It is the end user's responsibility to verify suitability for specific processes and foodstuffs.

Colour Line – FDA NBR in 5 colours

Available in colour-coded versions for hygiene systems with colour separation in accordance with HACCP principles. All colours comply with FDA 21 CFR 177.2600.

Blue
PBG50BF
White
PBG50WF
Red
PBG50RF
Yellow
PBG50GF
Green
PBG50VF

Product codes are indicative. Please confirm when ordering.

Frequently asked questions

The silicone variant (Wacker R 4001 80) is autoclavable and handles temperatures up to +200°C — ideal for sterile and hygiene-critical processes. The FDA NBR Colour Line is available in 5 colour-coded variants for colour-managed hygiene systems. Both comply with FDA 21 CFR 177.2600.
Yes, the Wacker R 4001 80 silicone variant is autoclavable with an operating range of −60°C to +200°C, covering standard autoclave temperatures. The FDA NBR variant is not autoclavable.
Colour Line FDA NBR is available in blue, white, red, yellow and green. All colours comply with FDA 21 CFR 177.2600 and are suitable for colour-coded hygiene systems in accordance with HACCP principles.
The long ergonomic pistol shape provides access to narrow gaps, cavities and machine profiles that conventional nozzles cannot reach. The handle angle allows comfortable work in hard-to-reach areas without unnatural postures.
The handle end is Ø50 mm outer diameter. The connection end fits pipes with Ø50, Ø40 or Ø38 mm outer diameter (PBG50S) or Ø50 inner (PBG501S). Choose based on your vacuum system pipe diameter.
Minimum order is 10 pcs. per variant (type and colour). Contact us for pricing and delivery time.
