BAGGERMAN NORPLAST® PVC 384 SCIROPPO® AS
Antistatic PVC food-grade hose for liquids, granulates and wood pellets

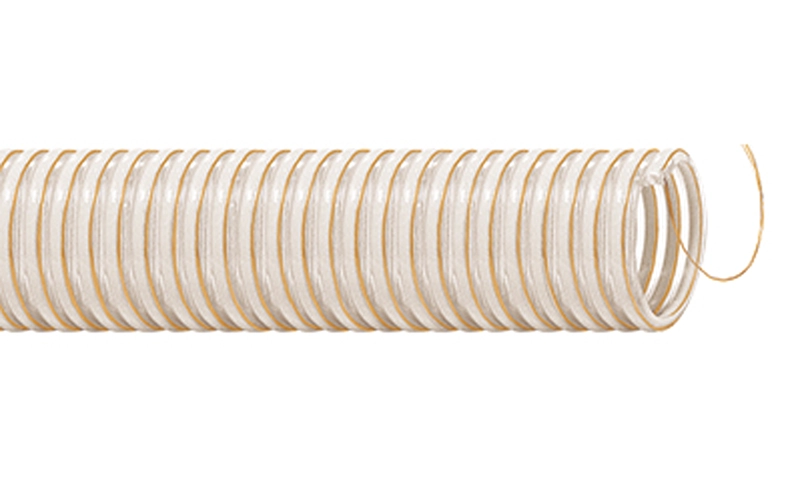

BAGGERMAN NORPLAST® PVC 384 SCIROPPO® AS is a flexible, lightweight and antistatic suction and discharge hose made of high-quality PVC. It is designed for the transport of non-fatty food products, liquids and granular materials. The hose features a smooth interior, slightly corrugated exterior and an embedded copper wire for the safe dissipation of static electricity. Suitable for food processing and conveying systems requiring hygiene, flexibility and safety.
Applications
Used for conveying and transferring liquids and granulates such as sugar, grain, coffee, flour, wood pellets and other non-fatty food materials in industrial processing, filling, and packaging lines as well as in tank and pumping systems within the food industry.
Properties and approvals
- Antistatic design with integrated copper wire for static discharge.
- Food-grade according to EU Regulation 10/2011 (A, B, C) and EC 1935/2004.
- Smooth interior for optimized flow and easy cleaning.
- Slightly corrugated exterior with rigid PVC spiral for strength and flexibility.
- Temperature range: −15 °C to +60 °C.
- Suitable for vacuum and pressure operation (vacuum up to 0.7 bar, pressure up to 7 bar).

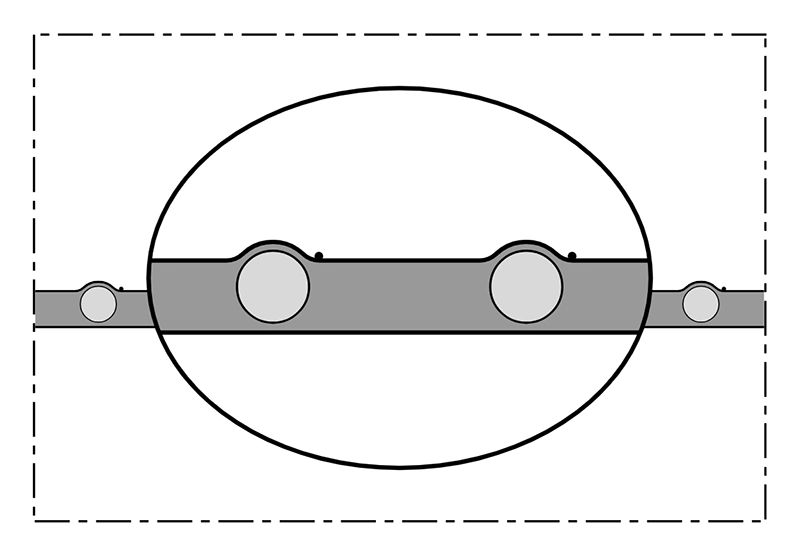

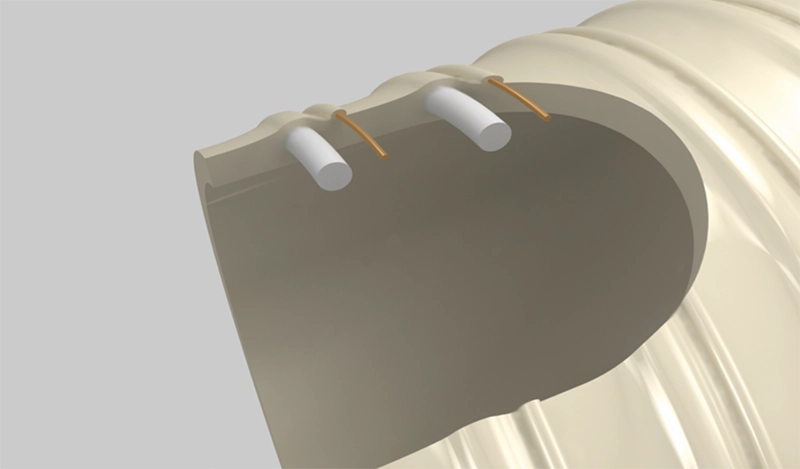

Construction
- Inner layer: smooth PVC wall
- Outer layer: slightly corrugated PVC wall with rigid spiral
- Spiral: rigid PVC spiral, ivory colour
- Conductor: embedded copper wire for antistatic discharge
Recommended accessories
- 6202 Mikalor Supra – stainless steel hose clamp
- 5510 Kamlok female type C – coupling system “Kamlok”
- 5511 Kamlok male type E – coupling system “Kamlok”
Need technical assistance?
Contact us for expert advice on correct selection, installation and use of flexible antistatic and food-grade hoses in process and transfer systems.
FAQ: BAGGERMAN NORPLAST® PVC 384 SCIROPPO® AS
What is this hose used for?
For suction and conveying of non-fatty food liquids and granulates in process and food industry applications.
Is the hose antistatic?
Yes – it includes an embedded copper wire that safely dissipates static electricity during operation.
Is it food-grade approved?
Yes – it meets the requirements of EU Regulation 10/2011 (A, B, C) and EC 1935/2004.
What is the temperature and pressure range?
Temperature range −15 °C to +60 °C. Max. pressure 7 bar (at 20 °C), vacuum up to 0.7 bar.
Which accessories are recommended?
We recommend using Mikalor Supra clamps and Kamlok couplings for safe and hygienic installation.
Related links
Technical specifications
| Inner Ø (mm) | Outer Ø (mm) | Pressure (bar) | Vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Order no. |
|---|---|---|---|---|---|---|
| 25 | 31.0 | 7.0 | 0.7 | 100 | 0.32 | 4411-025-000 |
| 30 | 37.0 | 6.5 | 0.7 | 120 | 0.37 | 4411-030-000 |
| 32 | 38.0 | 6.0 | 0.7 | 128 | 0.41 | 4411-032-000 |
| 38 | 45.0 | 6.0 | 0.7 | 144 | 0.52 | 4411-038-000 |
| 40 | 47.0 | 6.0 | 0.7 | 160 | 0.56 | 4411-040-000 |
| 45 | 53.0 | 5.5 | 0.7 | 180 | 0.67 | 4411-045-000 |
| 51 | 59.0 | 5.0 | 0.7 | 204 | 0.82 | 4411-050-000 |
| 60 | 69.0 | 4.5 | 0.7 | 240 | 1.00 | 4411-060-000 |
| 65 | 74.0 | 4.0 | 0.7 | 260 | 1.10 | 4411-065-000 |
| 80 | 92.0 | 3.5 | 0.7 | 320 | 1.60 | 4411-080-000 |
| 90 | 102.0 | 3.0 | 0.7 | 360 | 1.90 | 4411-090-000 |
Overpressure and underpressure are recommended operating limits. The bending radius is measured on the inner side of the hose arc. Technical modifications reserved. All values are approximate at 20 °C.
