HOCH – Hose connector
Product information

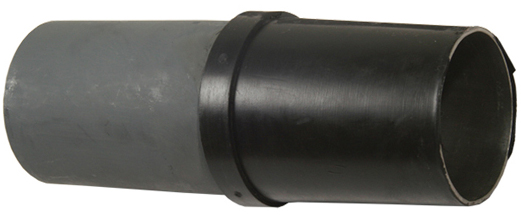

HOCH is a flexible hose connector series designed for connecting hoses to the KLVH flap valve in galvanized duct systems. The series is manufactured in primed steel combined with rubber and provides a secure and reliable connection in process extraction and central vacuum systems. HOCH covers multiple dimensions within one product series, allowing adaptation to different hose diameters and connection sizes.
Technical info – series overview:
The HOCH series consists of hose connectors with fixed lengths and varying diameters, adapted for different hose sizes and connections to KLVH flap valves.
FAQ
What is the HOCH hose connector used for?
HOCH is used for connecting hoses to KLVH flap valves in high-vacuum and process extraction systems.
What material is the HOCH hose connector made of?
HOCH is manufactured in primed steel and rubber.
Is the HOCH series available in multiple sizes?
Yes, the HOCH series includes several variants with different diameters and weights.
Is HOCH treated as one product series?
Yes, all dimensional variants are part of the same HOCH product series.
| Article no. | A (mm) | B (mm) | C (mm) | D (mm) | Weight (kg) |
|---|---|---|---|---|---|
| HOCH-076-050 | 210 | 110 | 78 | 66 | 0.7 |
| HOCH-076-060 | 210 | 110 | 78 | 66 | 0.65 |
| HOCH-076-076 | 210 | 110 | 78 | 66 | 0.8 |
| HOCH-108-100 | 210 | 110 | 110 | 105 | 1.4 |
| HOCH-108-076 | 210 | 110 | 110 | 105 | 1.3 |
| HOCH-108-060 | 210 | 110 | 110 | 105 | 1.2 |
| HOCH-108-050 | 210 | 110 | 110 | 105 | 1.2 |
