KLVM
Product information

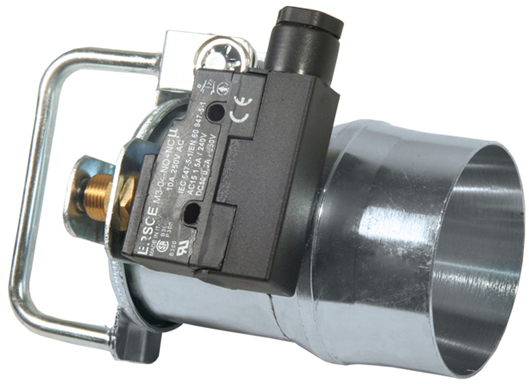

KLVM is a flap valve manufactured in galvanised steel and equipped with a micro switch that starts the system automatically when the lid is opened. The series features a self-closing spring-loaded flap and a conical design for direct mounting onto pipes or fittings without additional connections. KLVM is suitable for flexible hoses and is connected using a HOCO hose coupling. The micro switch is also available in an ATEX-approved version.
- Type: Flap valve with micro switch
- Material: Galvanised steel
- Function: Starts the system when the flap is opened
- Design: Conical, direct mounting onto pipe
- Connection: Flexible hoses via HOCO hose coupling
- Variants (A-B): 050-050, 063-050, 063-063, 076-063, 076-076
FAQ
What is KLVM?
KLVM is a galvanised steel flap valve with an integrated micro switch.
What is the purpose of the micro switch?
The micro switch automatically starts the system when the flap is opened.
How is KLVM mounted?
The valve is mounted directly onto the pipe or fitting without additional connections.
Which hoses can be used?
KLVM is suitable for flexible hoses connected using a HOCO hose coupling.
| Variant (A-B) | A outside (mm) | B outside (mm) | C inside (mm) | D (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 050-050 | 47 | 48.1 | 65 | 21.6 | 0.45 |
| 063-050 | 59.6 | 48.1 | 85 | 26.8 | 0.65 |
| 063-063 | 59.6 | 67 | 85 | 31 | 0.8 |
| 076-063 | 71.9 | 67 | 86.6 | 36 | 0.8 |
| 076-076 | 71.9 | 75.9 | 85 | 29 | 0.95 |
