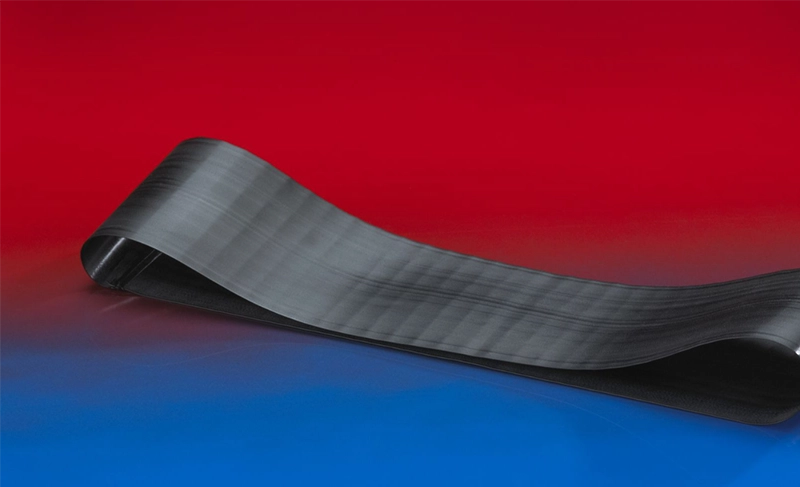

NORRES CONNECT 228
Elastic protection tape for clamps – highly durable and chemical-resistant
NORRES CONNECT 228 is a flexible and durable protection tape designed to be placed between the hose and the clamp to prevent hose damage during tightening. The tape protects the hose wall from friction, vibration and pressure marks, extending service life even under demanding industrial conditions.
Properties and construction
- Easy and quick to install – reusable.
- Highly abrasion-resistant with excellent resistance to oil, gasoline and chemicals.
- Made of high-quality polyurethane (PU).
- Temperature range: –40 °C to +90 °C (short-term up to +125 °C).
- Complies with RoHS and REACH regulations.
- Standard colour: black (other colours available on request).
Applications
Used as a protective layer between the hose and the clamp (e.g. CLAMP 212 or CLAMP 217) to prevent wear marks and pressure points on the hose surface. Especially suitable for AIRDUC®, PROTAPE® and CP hose series in extraction, ventilation and process systems.
Technical note
When mounting spiral hoses in ATEX installations, CONNECT 228 can be used as a mechanical protection layer without interrupting the electrical contact between the hose and clamp. However, the tape should not be wrapped around the entire circumference if direct metal-to-metal contact is required for equipotential bonding. Its elastic design makes it ideal for frequent service disassembly where the hose must remain intact.
Recommended accessories
- CLAMP 212 / 217 – bridge clamps for externally corrugated hoses.
- CONNECT 270–271 – couplings for process and food applications.
Want to avoid hose wear or pressure marks?
Contact us for advice on protection tapes, clamps and correct mounting of NORRES hoses.
FAQ: NORRES CONNECT 228
What is NORRES CONNECT 228 used for?
For protecting the hose from friction and pressure caused by clamps. It extends hose life and enables gentle installation.
Can CONNECT 228 be used in ATEX installations?
Yes – as long as it does not cover the full circumference and interrupt metal-to-metal contact.
What material is the tape made of?
Elastic polyurethane (PU) with high resistance to chemicals and temperature.
Which clamps are compatible with CONNECT 228?
The tape is used together with NORRES CLAMP 212, 213 or 217 – depending on hose type and application.
Which colours are available?
Standard colour is black; special colours can be supplied upon request.
Related links
Technical specifications – dimensions and variants
The table lists standard wall thicknesses and available variants of the CONNECT 228 protection tape. All values apply at approx. 20 °C and may change without prior notice.
| Wall thickness (mm) | Suitable for hose I.D. (mm) | Order No. |
|---|---|---|
| 1.5 | 38 | 228-0038-0000 |
| 2 | 50–51 | 228-0050-0000 |
| 2.36 | 60 | 228-0060-0000 |
| 2.5 | 63–65 | 228-0063-0000 |
| 3 | 75–76 | 228-0075-0000 |
| 3.5 | 89–90 | 228-0090-0000 |
| 4 | 100–102 | 228-0100-0000 |
| 4.5 | 114–115 | 228-0115-0000 |
| 5 | 125–127 | 228-0125-0000 |
| 6 | 150–152 | 228-0150-0000 |
| 6.3 | 160 | 228-0160-0000 |
| 6.5 | 165 | 228-0165-0000 |
| 7 | 178–180 | 228-0180-0000 |
| 8 | 200–203 | 228-0200-0000 |
Other dimensions and colours available on request with a minimum order of 150 pcs.
