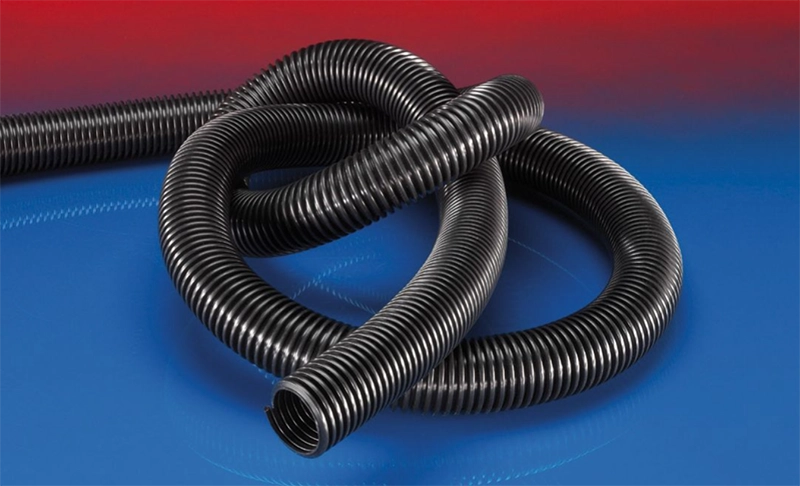

NORRES EVA 373 AS
Antistatic EVA hose for industrial vacuum cleaners and cleaning systems
NORRES EVA 373 AS is a lightweight, highly flexible and crush-resistant hose made of EVA (ethylene-vinyl-acetate) with a permanently antistatic wall <10¹¹ Ω. It is designed for use with industrial vacuum cleaners, scrubbers, and cleaning machines handling dust, powder, or fibres – also suitable for explosive atmospheres (ATEX Zone 22 inside).
Applications
Used for conveying and extraction of air, dust, powder and fibres in industrial vacuum systems, cleaning machines, floor scrubbers, swimming pool cleaners and general suction systems. Suitable for Zone 22 (dust inside) and for non-flammable liquids in Zone 0/1/2 (gases) according to ATEX.
Properties and approvals
- Lightweight and extremely flexible construction with self-supporting profile.
- Permanently antistatic wall: surface resistance <10¹¹ Ω according to ISO 8031.
- Complies with ATEX 2014/34/EU and German TRGS 727 for combustible dust extraction (Zone 22 inside).
- Good resistance to acids and alkalis.
- Floatable – suitable for wet cleaning and pool systems.
- Temperature range: −25 °C to +65 °C.
- Conforms to RoHS and REACH directives.

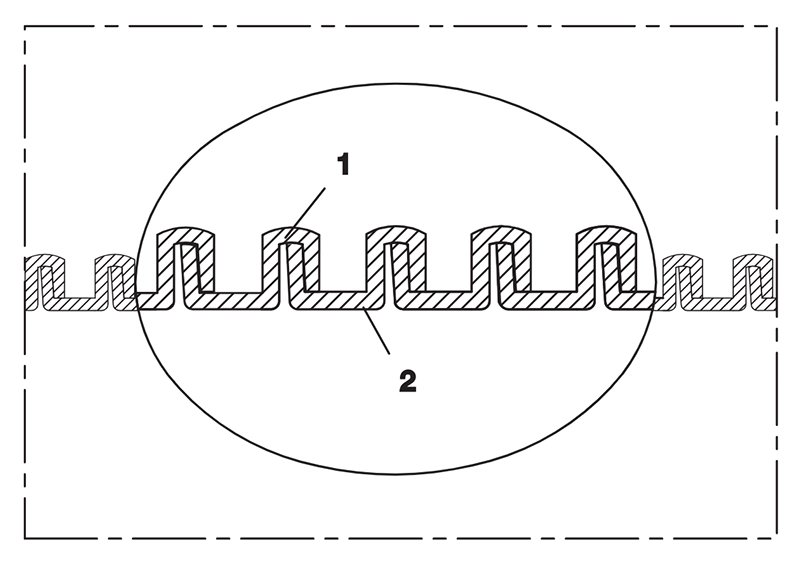

Design
1 = EVA profile with open, self-supporting geometry
2 = Antistatic EVA wall (black, standard)
Recommended accessories
- CLAMP 208 – hose clamp in galvanised or stainless steel
- CONNECT 227 / 228 – adapter and transition couplings
Need technical support?
Contact us for professional advice on selecting and installing antistatic hoses for vacuum cleaning and ATEX-compliant applications.
FAQ: NORRES EVA 373 AS
What is this hose used for?
For vacuum cleaning and suction systems in industrial environments and ATEX Zone 22.
Is the hose antistatic?
Yes – it has a permanently antistatic wall with surface resistance <10¹¹ Ω (ISO 8031).
Is it ATEX-approved?
Yes – suitable for Zone 22 (dust inside) and Zone 0/1/2 (gases) according to ATEX 2014/34/EU.
Can it be used with liquids?
Yes – for conveying non-flammable liquids in cleaning and pool systems.
What is the temperature range?
From −25 °C to +65 °C.
Related links
Technical specifications
| Inner Ø (mm) | Outer Ø (mm) | Vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Stock lengths (m) | Order no. |
|---|---|---|---|---|---|---|
| 20 | 26.8 | 0.50 | 42 | 0.13 | - | 373-0020-1002 |
| 25 | 32.2 | 0.50 | 54 | 0.15 | 30 | 373-0025-1002 |
| 30 | 38.0 | 0.50 | 62 | 0.20 | 30 | 373-0030-1002 |
| 32 | 40.4 | 0.50 | 66 | 0.24 | 30 | 373-0032-1002 |
| 35 | 43.8 | 0.50 | 71 | 0.26 | 30 | 373-0035-1002 |
| 38 | 47.2 | 0.50 | 74 | 0.31 | 30 | 373-0038-1002 |
| 40 | 49.4 | 0.50 | 80 | 0.32 | 30 | 373-0040-1002 |
| 44–45 | 55.0 | 0.50 | 89 | 0.37 | 30 | 373-0045-1002 |
| 50–51 | 60.4 | 0.50 | 97 | 0.44 | 30 | 373-0050-1002 |
| 60 | 72.0 | 0.50 | 113 | 0.67 | 30 | 373-0060-1002 |
Vacuum values are recommended operating limits. The bending radius is measured along the inner curve of the hose. Subject to technical changes. All values determined at approx. 20 °C.
