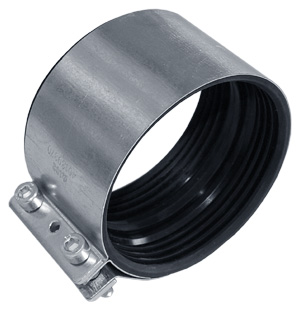

PICO – Pipe coupling
Product information
The PICO series consists of pipe couplings designed for joining pipes with straight ends in galvanized duct systems used for process extraction and point extraction. The coupling provides a tight and stable connection and is suitable for industrial installations where both mechanical strength and electrical conductivity are required.
PICO is manufactured from 1 mm galvanized steel and is equipped with conductive EPDM rubber. The electrical resistance at 1000 V is approximately 300 ohms/cm. The coupling is tightened using two M8 x 40 mm bolts. The coupling width is 65 mm, and the clamping plates are made of 3 mm galvanized steel with rivets.
Need help?
Contact our experts who are ready to assist you with knowledge and professional advice.
Technical overview: The PICO series includes multiple diameters adapted to standard pipes with straight ends and is used as a coupling solution in galvanized extraction duct systems.
FAQ
What is the PICO pipe coupling used for?
PICO is used to join pipes with straight ends in extraction systems.
What material is the PICO made of?</
| Art. no. | Ø (mm) | Weight (kg) |
|---|---|---|
| PICO-050A | 50 | 0.25 |
| PICO-063A | 63 | 0.25 |
| PICO-076A | 76 | 0.30 |
| PICO-089A | 89 | 0.30 |
| PICO-102A | 102 | 0.35 |
| PICO-108A | 108 | 0.35 |
| PICO-114A | 114 | 0.40 |
| PICO-127A | 127 | 0.40 |
| PICO-139A | 139 | 0.45 |
| PICO-152A | 152 | 0.45 |
| PICO-203A | 203 | 0.60 |
