Tiger-Vac C-10 EX (4W) EU 1/3D
ATEX Zone 20/22 vacuum cleaner for safe collection of combustible dust
The Tiger-Vac C-10 EX (4W) EU is an ATEX and IECEx certified industrial vacuum designed for the safe recovery of combustible dust in Zone 20 (internal) and Zone 22 (external) areas. It features four individually tested H14 filters, conductive recovery bags and a complete ESD-safe tool kit. The unit is ideal for general cleaning and maintenance in production areas where explosive dust may occur.
- Zone classification: II 1/3D Ex h tc IIIC T200°C (Int) / T200°C (Ext) Da/Dc IP6X.

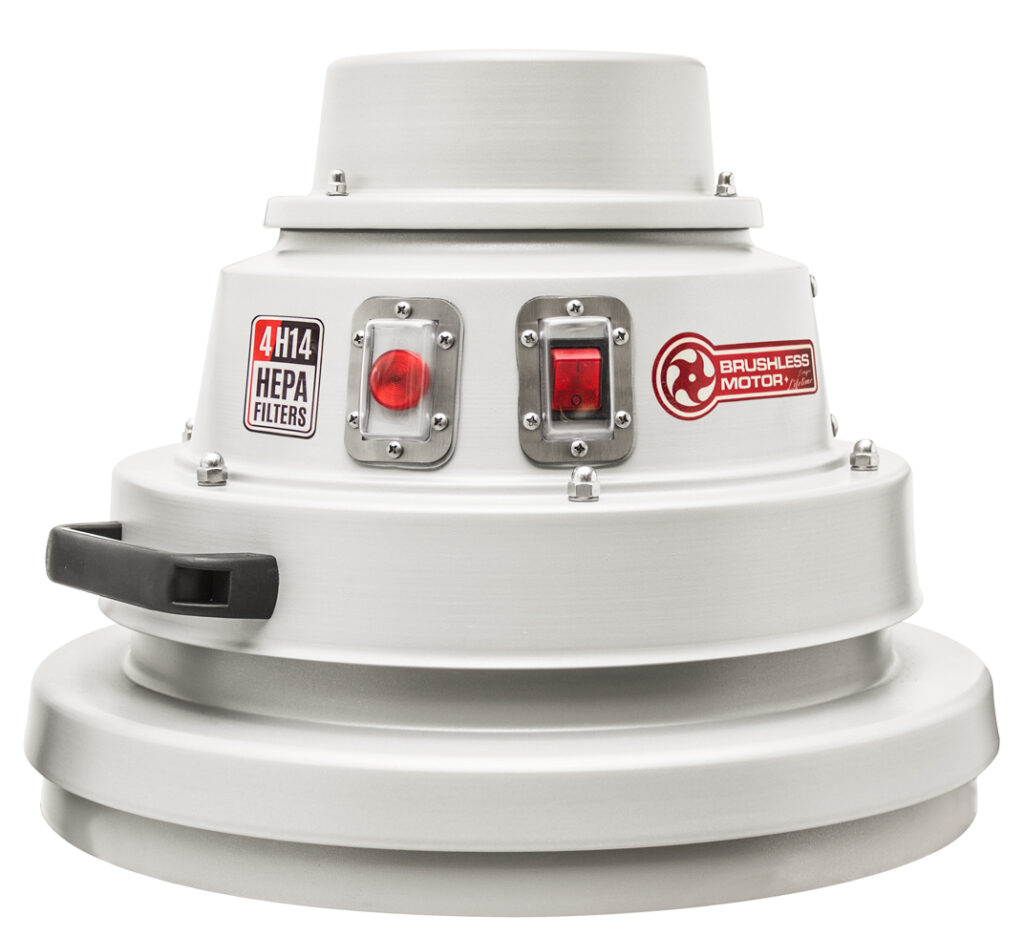

- Motor: 1.2 kW (two-stage by-pass) – brushless (BLSD) version available for continuous operation.
- Filtration: 4 × HEPA H14 filters (total surface 20,253 cm²) + conductive recovery bag and pre-filter.

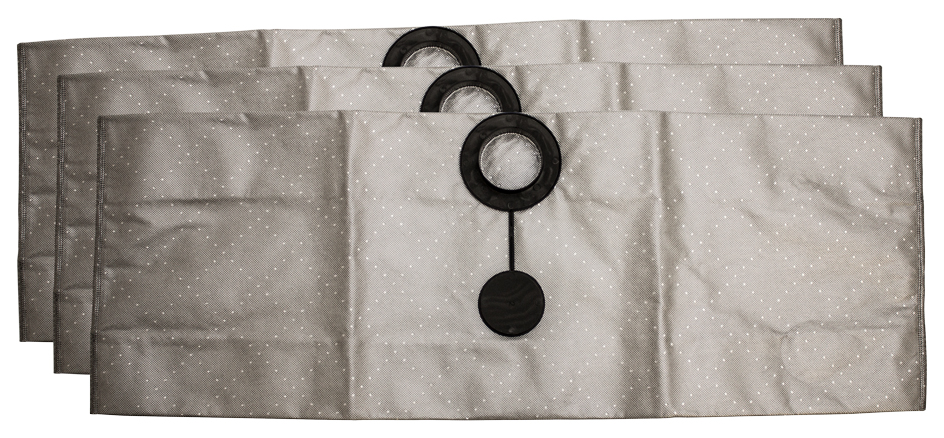

- Recovery: 19 L conductive cloth filter bag tested for ESD safety.
- Tank: stainless steel Type 430 or optional AISI 304.
- Tested according to EN 17348 for combustible dust collection (LCIE 15 ATEX 3061).
Technical design
The C-10 EX (4W) EU is mounted on a four-wheel dolly for maximum stability and mobility. The ESD-safe motor is equipped with a filter blockage indicator that signals when the recovery bag is full. The system provides high filtration efficiency and ESD-safe airflow. All H14 filters are individually factory-tested and meet EN 1822-5 with 99.995% efficiency (MPPS method).
Safety and certification
- ATEX marking: II 1/3D Ex h tc IIIC T200°C (Int) / T200°C (Ext) Da/Dc IP6X – LCIE 15 ATEX 3061.
- Zone 20 inside the vacuum (recovery tank and air path – 1D) and Zone 22 on outer surfaces (3D).
- Complies with EN 17348 (dust collection in Zone 20/22) and IECEx LCIE 15.0048.
- Temperature range: –5°C to +37°C (T200°C standard / T85°C for BLSD version).

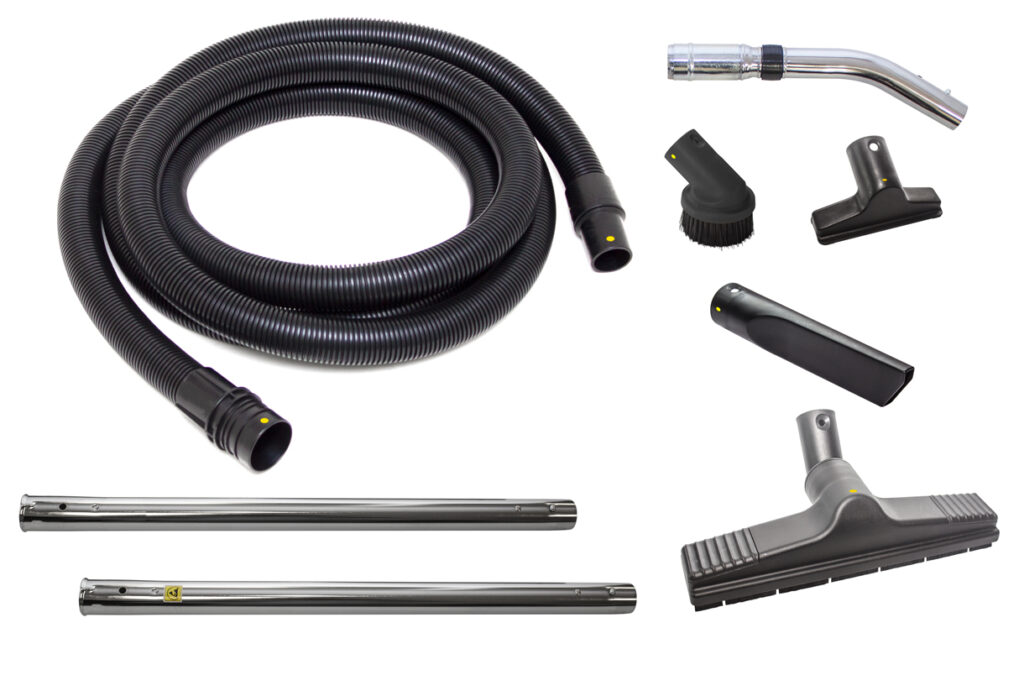

- Supplied with a complete ESD-safe tool kit – all non-metallic parts are ATEX-tested.
Technical note
When collecting combustible dust in Zone 20/22 environments, all system components must be conductive and properly grounded to avoid static build-up. The Tiger-Vac C-10 EX (4W) EU is third-party certified (ATEX and IECEx) and designed for safe dust recovery directly into the tank and filter bag. Use only the supplied ESD-tested hoses and tools and regularly verify grounding resistance (<10⁶ Ω) to maintain compliance with EN 17348.
Need guidance on Zone 20/22 vacuums?
Get advice on ATEX-certified equipment, documentation and correct installation of conductive accessories.
FAQ
What does II 1/3D (Da/Dc) mean?
The unit is certified for very high protection inside the vacuum (Zone 20 – inner chambers, filter and tank) and enhanced protection on the outer surfaces and surroundings (Zone 22).
What filter class does it have?
4 × H14 filters with 99.995% efficiency (EN 1822-5).
Is it suitable for continuous operation?
Yes – the brushless BLSD version is designed for extended operation without carbon brush maintenance.
What is the tank material?
Standard stainless steel Type 430; AISI 304 available as an option.
What accessories are included?
A complete ESD-safe ATEX-tested tool kit and conductive recovery bag.
Related links
Technical specifications
| Parameter | Value |
|---|---|
| ATEX marking (Int/Ext) | II 1/3D Ex h tc IIIC T200°C (Int) / T200°C (Ext) Da/Dc IP6X |
| Certificate no. | LCIE 15 ATEX 3061 / IECEx LCIE 15.0048 |
| Zone classification | 20 (internal) / 22 (external) |
| Voltage / Frequency | 220–240 V – 50/60 Hz (1~) |
| Power / Current | 1.2 kW / 5 A (1.1 kW BLSD) |
| Airflow | 194 m³/h (216 m³/h BLSD) |
| Vacuum | 2 504 mm H₂O (2 250 mm H₂O BLSD) |
| Noise level | 72 dB(A) |
| Suction inlet / Hose diameter | 60 mm |
| Container capacity | 19 L – conductive cloth filter bag |
| Container material | Stainless steel Type 430 / AISI 304 (optional) |

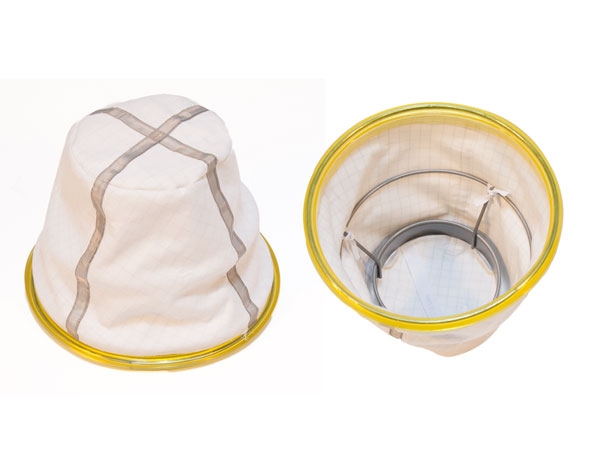

| Main filter | Antistatic cloth filter with cage – 3 480 cm² |
| HEPA final filter | 4 × H14 – 20 253 cm² – 99.995% (MPPS) |
| Conductive bag filter area | 8 217 cm² – tested for conductivity |
| Temperature range | –5°C to +37°C |
| Dimensions (L×W×H) | 43 × 43 × 93 cm |
| Weight | 24 kg (Standard) / 27 kg (SS304) |
| Accessories | Complete ESD-safe ATEX-tested tool kit with conductive hoses and nozzles |
