Tiger-Vac EXP1-10 (IT-40L) EX DT (CFE) HEPA
Zone 21 certified vacuum cleaner with liquid bath for critical areas
The Tiger-Vac EXP1-10 (IT-40L) EX DT (CFE) HEPA is designed for the most hazardous cleaning tasks in indoor shooting ranges. With Notified Body certification (LCIE 03 ATEX 6297) and H14 HEPA filtration, it neutralizes both lead and gunpowder dust in full compliance with the strictest EU ATEX and occupational health requirements.
Certified safety – ATEX Zone 21
Inside, the vacuum operates in a Zone 20 environment, where dust concentration is always high. That is why the EXP1-10 is certified for use in Zone 21 (II 2D / Db), with documented safety through liquid bath technology. Dust is immediately neutralized in inert oil, preventing sparks and heat buildup – a solution tested and certified by Notified Body 0081.
Why the liquid bath is essential
Experience from both the USA and Europe shows that standard ATEX vacuums are not enough in Zone 21. Dry collection can generate static electricity and ignite gunpowder dust. With the EXP1-10’s liquid bath, this risk is eliminated because the dust is instantly isolated, cooled, and neutralized in liquid before reaching the motor or filters.
Complete protection and efficient operation

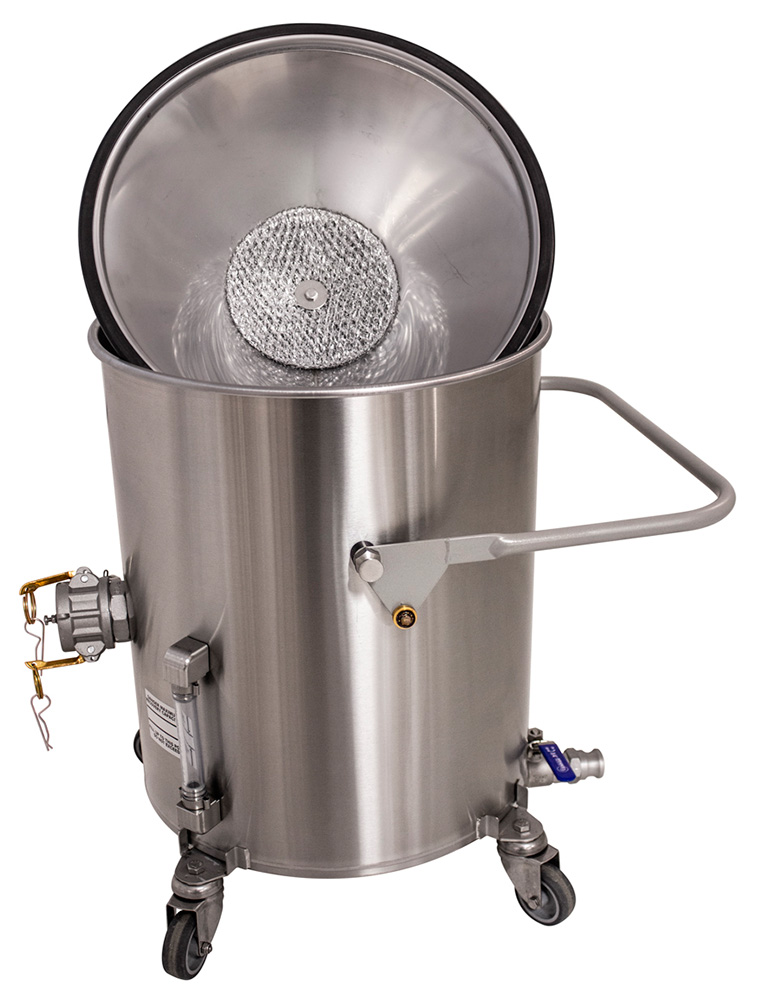

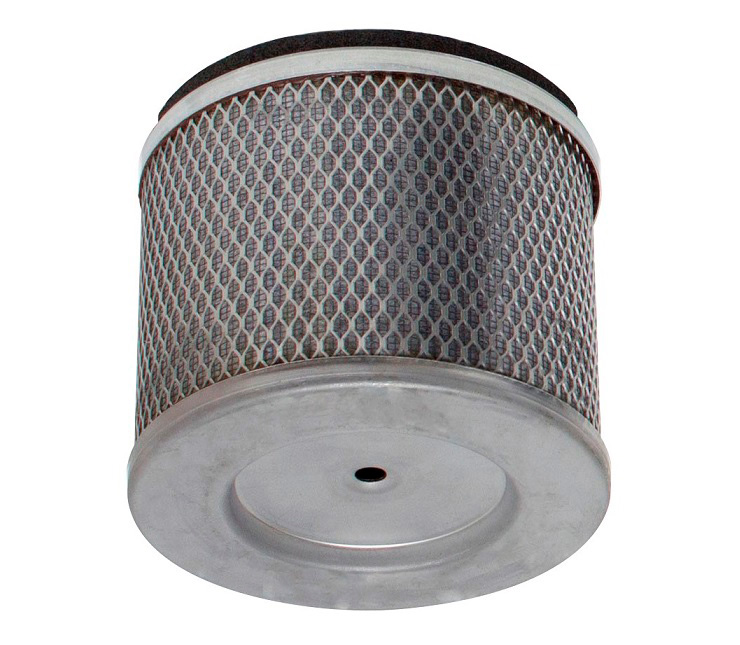

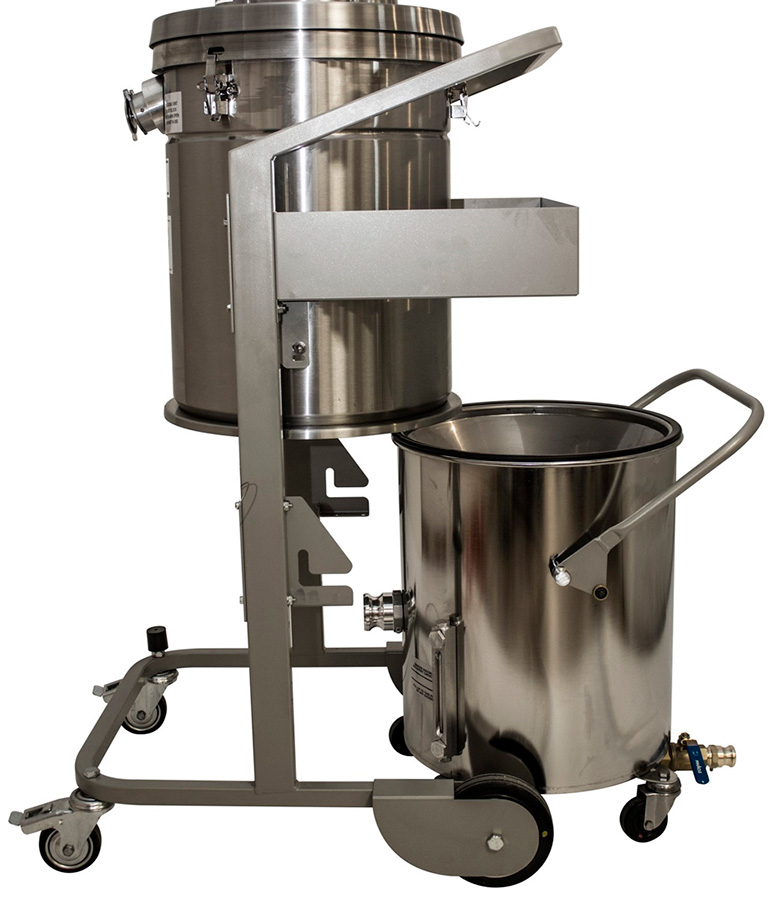

The EXP1-10 combines H14 HEPA filtration (99.995% retention at MPPS according to EN 1822) with full ESD grounding, a CFE coalescer for moisture, and a robust stainless-steel construction. The detachable 40-liter tank ensures safe disposal of contaminated material, while its compact design provides mobility even in confined facilities.
Application areas
ATEX Zone 21 (with liquid bath):
- Bullet traps and backstops with accumulated powder and metals
- Emptying of containers and filters with unknown or reactive dust
- Reloading areas with risk of spilled gunpowder
- Technical rooms and shafts where stored dust may be released
- Shooting houses and container ranges with low air circulation
Supplementary HEPA H14 protection:
- Changing rooms and exit zones to reduce lead contamination
- Corridors and storage rooms
- Workshops and maintenance areas
Neutralizing the risk
Contact us for advice on Zone 21 classification and liquid bath technology – we will help you choose the documented solution for the most critical areas of your shooting range.
Technical data for Tiger-Vac EXP1-10 (IT-40L) EX DT (CFE) HEPA
| Model Name | EXP1-10 (IT-40L) EX DT (CFE) HEPA |
|---|---|
| Type | Electric |
| TEFC Motor | Yes |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Phase | Single-phase |
| Wattage | 1000 W |
| Power | 1 kW |
| Amperage | 4.5 A |
| Airflow | 224 m³/h |
| Vacuum Pressure | 1550 mm H₂O |
| Noise Level | 78/85 dB(A) |
| Type of Power Outlet | Not included |
| Suction Inlet Port | 38 mm |
| Cart Type | Detachable Tank (DT) |
| Filter Cleaning | Liquid bath (immersion) |
| Cord Length | 15 m |
| Collection Tank | 40 L |
| Length | 66 cm |
| Width | 56 cm |
| Height | 139 cm |
| Weight (Vacuum Only) | 59 kg |
