Abrasion-resistant
NORPLAST® PUR 387 ANTIABRASIVO®

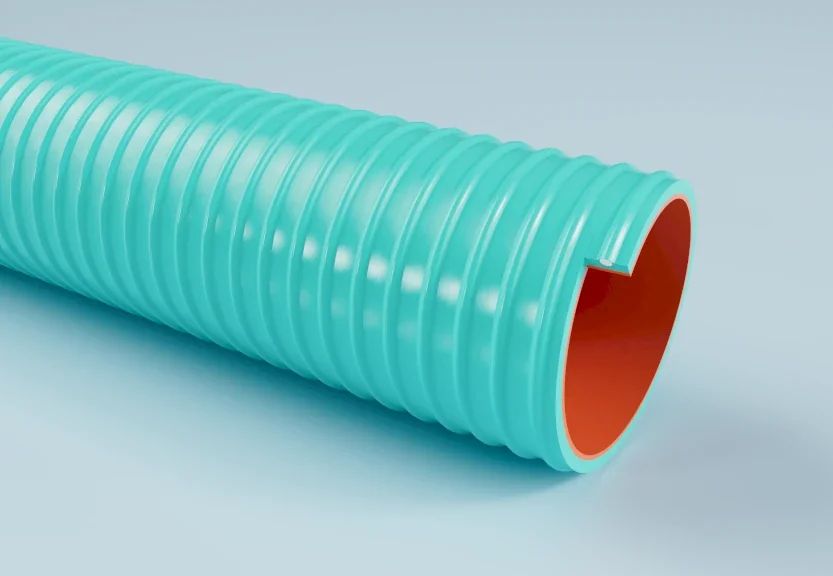

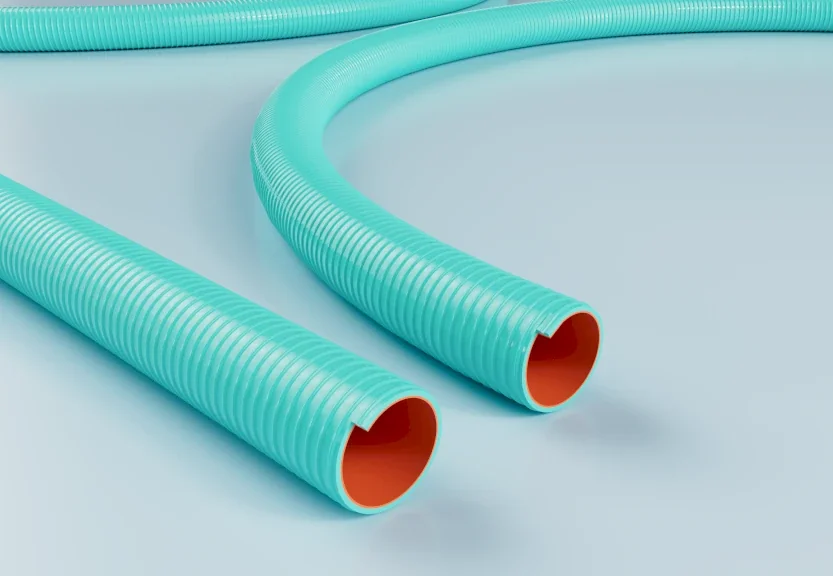

NORPLAST® PUR 387 ANTIABRASIVO® is an extremely abrasion-resistant suction and pressure hose with a red PU inner tube, green outer cover and white rigid PVC spiral. The manufacturer describes it as suited to high throughput of highly abrasive bulk material, granulate and stones. The normal temperature range is −15 to +60°C. The hose is supplied in six sizes from inner Ø 32 to 127 mm with working pressures from 8.5 to 3.5 bar.
- PU inner tube
- Up to 8.5 bar
- −15 to +60°C
- Smooth interior
- Ø 32 to 127 mm
- Cut to length
Why this hose?

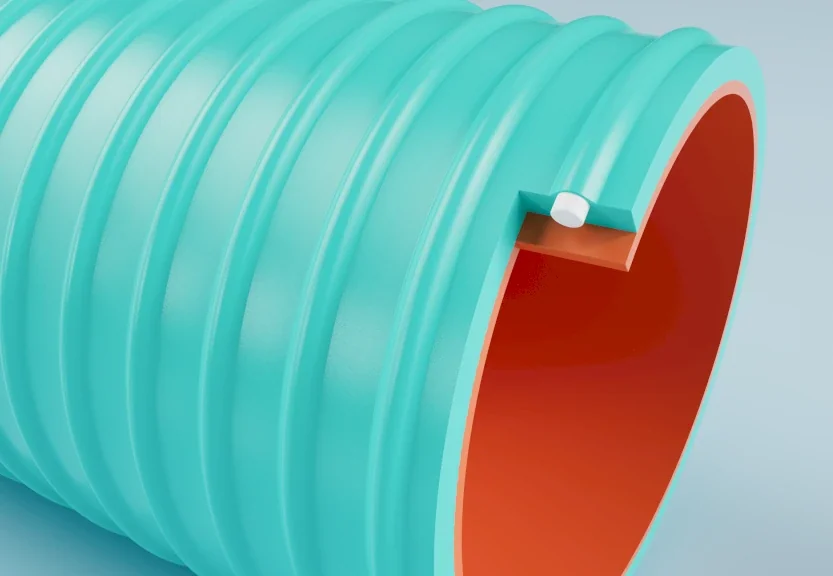

NORPLAST® PUR 387 ANTIABRASIVO® has a red PU inner tube with a smooth interior and an abrasion-resistant, shallow corrugated outer cover. The manufacturer describes the hose as extremely abrasion-resistant with very high pressure resistance.
Working pressure ranges from 8.5 bar at Ø 32 mm to 3.5 bar at Ø 127 mm, and vacuum is 0.8 bar in all sizes.
Where it is used
The manufacturer lists roof gravelling, gravel conveying, granulate conveying, sweepers, suction trucks and silo trucks, among others.
The formal name is NORPLAST® PUR 387 ANTIABRASIVO®.
Technical specifications
Specifications are current as of 30 October 2026 and come from the manufacturer's data sheet. Fields without a value are not stated by the manufacturer.
| Inner tube | PU, red |
|---|---|
| Outer cover | Green, abrasion-resistant, shallow corrugated |
| Spiral | Rigid PVC, white |
| Interior | Smooth |
| Conveying media | Bulk material, granulate, powder, stones, sand, gravel, chips, wood pellets |
| Temperature range | −15°C to +60°C |
| Manufacturer SKU (model group) | 4650 |
Dimensions and ordering
The table shows the standard sizes from the manufacturer's data sheet. Fields without a value (—) are not stated.
| Inner Ø |
Outer Ø |
Wall thickness |
Working pressure |
Vacuum |
Bend radius |
Max. length |
Weight |
Article no. |
|---|---|---|---|---|---|---|---|---|
| 32 | 43.3 | 5.65 | 8.5 | 0.8 | 192 | 50 | 0.72 | 4650032000 |
| 40 | 51.3 | 5.65 | 8 | 0.8 | 240 | 50 | 0.95 | 4650040000 |
| 51 | 63.4 | 6.2 | 7.5 | 0.8 | 306 | 50 | 1.18 | 4650050000 |
| 76 | 90.8 | 7.4 | 5.5 | 0.8 | 456 | 50 | 2.2 | 4650075000 |
| 102 | 120.2 | 9.1 | 4 | 0.8 | 612 | 30 | 3.2 | 4650100000 |
| 127 | 148 | 10.5 | 3.5 | 0.8 | 762 | 30 | 4.45 | 4650125000 |
Overpressure and underpressure values are recommended operating limits; the product can be subjected to higher loads on request. Bend radius is measured along the inside of the hose bend.
Standards and compliance
The hose is documented as follows:
- REACH (EC 1907/2006) and RoHS 2011/65/EU. The manufacturer holds declarations of compliance, available under Documentation.
The manufacturer states no electrical resistance for the hose, so it must not be used for combustible dust.
Documentation and downloads
Additional documents about this hose, its compliance and installation. Click to download as PDF in a new tab.
Help with material selection
Even though this hose is not ATEX-relevant, these two articles provide useful background on electrical resistance and industrial safety — important if you later combine the hose with electrical equipment or work in mixed environments:
Industries that use it
The manufacturer lists, among others:
Construction, municipal technology and municipal vehicles, plastics industry, the cleaning industry and silo and conveying technology.
Custom lengths and assemblies
The hose can be cut to length and assembled with couplings. We advise on the assembly so the hose fits your installation.
Frequently asked questions
What is the difference between PUR 387 and PUR 387 AS?
PUR 387 is the version without the antistatic property. The manufacturer states no electrical resistance for it, so it must not be used for combustible dust. If the hose is for combustible dust, look at NORPLAST® PUR 387 ANTIABRASIVO® AS.
