Liquid hoses
COSMO® RIGIDO

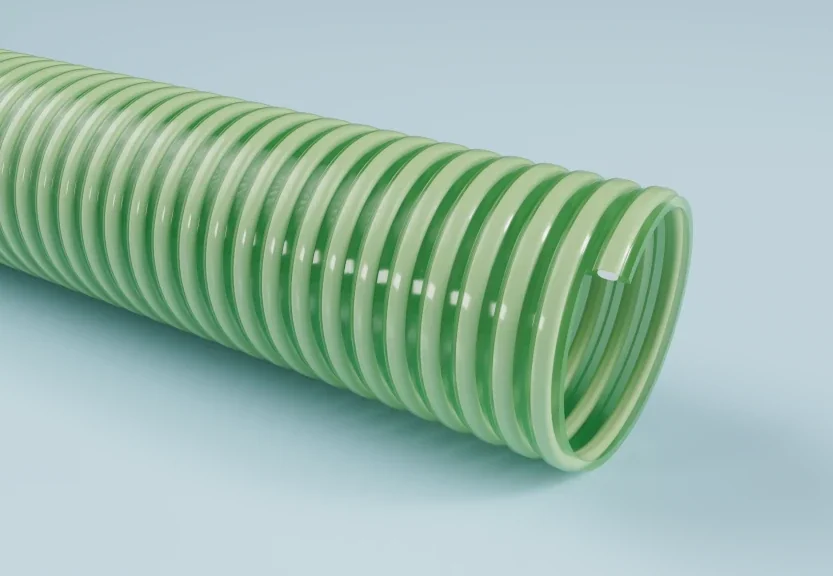

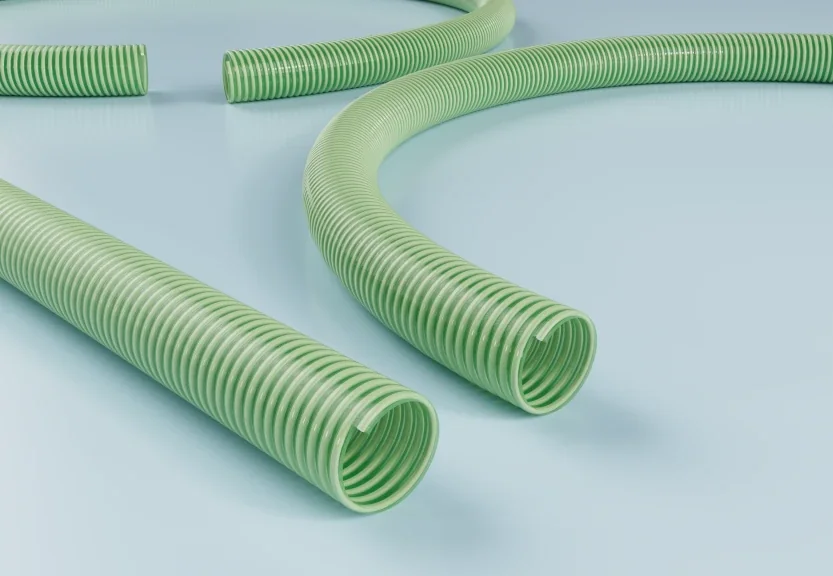

COSMO® RIGIDO is a rigid drag hose end piece, which the manufacturer specifies for slurry metering at the outlet. The hose is made of green soft PVC with a white rigid PVC spiral and a smooth exterior. The normal temperature range is −15 to +60°C, and vacuum is 0.6 bar. It is supplied in inner Ø 40 and 51 mm.
- Rigid design
- Slurry metering
- −15 to +60°C
- Smooth exterior
- Ø 40 and 51 mm
- Cut to length
Why this hose?

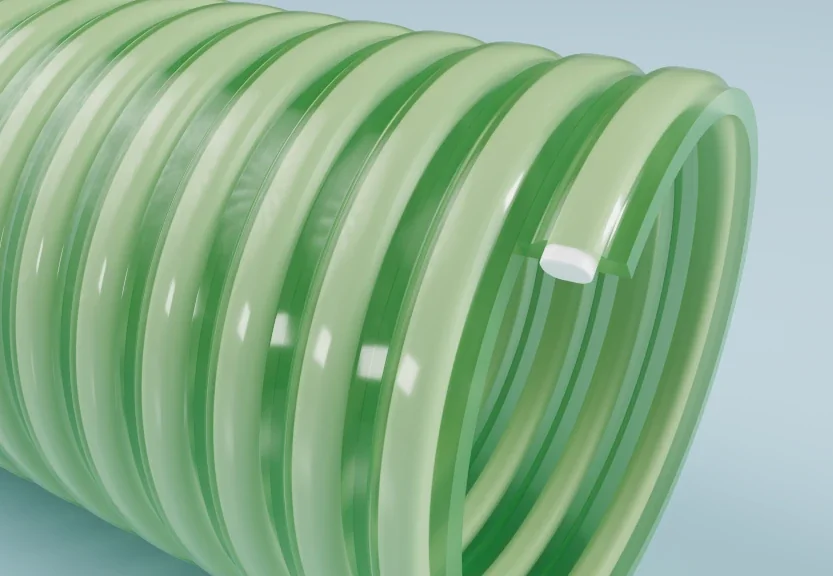

COSMO® RIGIDO is the rigid version in the COSMO family. It is made of green soft PVC with a white rigid PVC spiral and a smooth exterior.
The manufacturer specifies it as an end piece on drag hoses for slurry metering at the outlet.
Where it is used
The manufacturer specifies drag hose end pieces for slurry metering.
The formal name is COSMO® RIGIDO.
Technical specifications
Specifications are current as of 30 October 2026 and come from the manufacturer's data sheet. Fields without a value are not stated by the manufacturer.
| Material | Soft PVC |
|---|---|
| Spiral | Rigid PVC, white |
| Colour | Green |
| Exterior | Smooth |
| Conveying media | Gas, dust, liquid |
| Temperature range | −15°C to +60°C |
| Manufacturer SKU (model group) | 4404 |
Dimensions and ordering
The table shows the sizes from the manufacturer's data sheet. The manufacturer does not state pressure or bend radius. Fields without a value (—) are not stated.
| Inner Ø |
Outer Ø |
Vacuum |
Weight |
Article no. |
|---|---|---|---|---|
| 40 | 46.6 | 0.6 | 0.56 | 4404040000 |
| 51 | 59 | 0.6 | 0.85 | 4404050000 |
Fields without a value (—) are not specified in the manufacturer's factsheet. Overpressure and underpressure values are recommended operating limits; the product can be subjected to higher loads on request. Bend radius is measured along the inside of the hose bend.
Standards and compliance
The manufacturer documents the following:
- EN ISO 1307:2008.
The manufacturer states no electrical resistance for the hose, so it must not be used for combustible dust.
Documentation and downloads
Additional documents about this hose, its compliance and installation. Click to download as PDF in a new tab.
Help with material selection
Although this hose isn't ATEX-relevant, these two articles provide useful background on electrical resistance and industrial safety — important if you later combine the hose with electrical equipment or work in mixed environments:
The invisible weakest link
Why a conductive or antistatic hose isn't sufficient on its own — and what grounding means for the complete system.
Know your ohm
The difference between antistatic and conductive, which resistance limits apply where, and how to measure them correctly.
Industries that use it
The hose is used in:
Agriculture for slurry application.
Custom lengths and assemblies
The hose can be cut to length. We advise on the assembly so it fits your equipment.
Frequently asked questions
What is the difference between COSMO® RIGIDO and the other COSMO hoses?
COSMO® RIGIDO is the rigid version, which the manufacturer specifies as an end piece on drag hoses for slurry metering. The other COSMO hoses cover the flexible applications.
