BAGGERMAN NORPLAST® PVC-C 389 CORRUFLEX AS
Flexible antistatic PVC hose for water, wastewater and cleaning applications
BAGGERMAN NORPLAST® PVC-C 389 CORRUFLEX AS is a highly flexible suction and discharge hose made of high-quality PVC material with an embedded copper wire for safe static discharge. The hose is designed for the transport of industrial water, wastewater and slurry as well as for use in cleaning and pumping systems under medium-duty conditions. The orange spiral ensures high visibility and safety in the workplace.
Applications
The hose is typically used for:
- Transport of water, slurry and wastewater
- Industrial cleaning and tank emptying
- Agricultural and municipal pumping systems
- Irrigation and drainage systems
- General liquid handling in process and maintenance systems
Properties
- Made of high-quality PVC with a rigid PVC spiral – extremely flexible design.
- Integrated copper wire in the spiral ensures antistatic grounding.
- Smooth inner surface – low friction and high flow rate.
- Slightly corrugated outer wall for strength and easy handling.
- Temperature range: −15 °C to +60 °C.
- Colour: grey wall with orange spiral for high visibility.
Construction

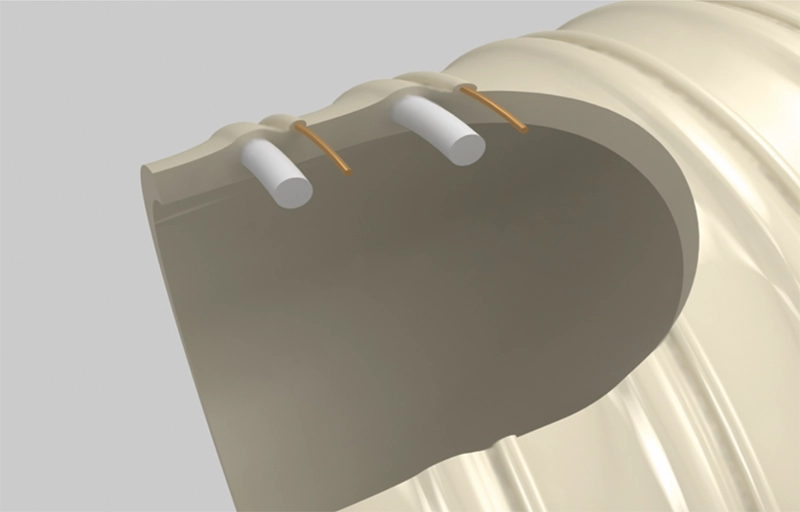

1 = Inner wall – grey PVC (smooth) 2 = Outer wall – lightly corrugated PVC for flexibility 3 = Reinforcement – rigid PVC spiral with copper wire (antistatic)
Recommended accessories
- Perrot 5721 C78 – coupling for water and pumping systems
- Mikalor Supra 6202 – stainless-steel hose clamp
- Bauer S77 5710 – coupling for agricultural and cleaning systems
Need technical advice?
Contact us for professional assistance in selecting and installing flexible PVC hoses for water, pumping and cleaning applications.
FAQ: BAGGERMAN NORPLAST® PVC-C 389 CORRUFLEX AS
What is this hose used for?
For the transport of water, slurry and wastewater in agricultural, industrial and municipal systems.
Is it antistatic?
Yes – the hose contains a copper wire for safe static discharge.
Is it suitable for oil?
No – it is intended for water and liquid transport, not for oil or chemicals.
What is the temperature range?
From −15 °C to +60 °C.
Which accessories are recommended?
Perrot and Bauer couplings or Mikalor Supra clamps depending on the application.
Related links
Technical specifications
| Inner Ø (mm) | Outer Ø (mm) | Pressure (bar) | Vacuum (bar) | Bending radius (mm) | Weight (kg/m) | Order no. |
|---|---|---|---|---|---|---|
| 51 | 60.0 | 2.0 | 0.9 | 160 | 0.96 | 4456-050-000 |
| 76 | 87.0 | 2.0 | 0.9 | 230 | 1.60 | 4456-075-000 |
| 102 | 116.0 | 2.0 | 0.9 | 310 | 2.70 | 4456-100-000 |
| 127 | 142.0 | 2.0 | 0.9 | 390 | 3.45 | 4456-125-000 |
| 152 | 168.0 | 2.0 | 0.9 | 460 | 4.70 | 4456-150-000 |
Pressure and vacuum values are recommended operating limits. The bending radius is measured through the inner curve of the hose. Subject to technical modifications. All values determined at approx. 20 °C.
