Tiger-Vac CD/EUR-36L EX DT (MFS) ULPA WITH SS CART
Explosion proof pharmaceutical vacuum (ATEX II 1/2 GD) with ULPA U15 filter included as standard, manual filter shaking (MFS) via conductive star-shaped cage cartridge, and detachable 36 L tank on stainless steel cart with ESD wheels. Vertical CSMT mount. Stainless steel muffler included. Classified for Zone 1 gas and Zone 21 dust. Available in 400 V three-phase and 230 V single-phase.
- ATEX II 1/2 GD – Zone 0/20 internal + Zone 1/21 external
- ULPA U15 included (99.9995% at 0.18 micron MPPS)
- Manual filter shaking (MFS) – conductive star-shaped cage cartridge
- 36 L detachable tank on stainless steel cart with ESD wheels
About Tiger-Vac CD/EUR-36L EX DT (MFS) ULPA WITH SS CART
The CD/EUR-36L EX DT (MFS) ULPA is designed for pharmaceutical processes where explosion protection and ULPA filtration must be combined with robust manual filter shaking. The unit is ATEX II 1/2 GD certified for both Zone 0/20 (high-risk zone internally) and Zone 1/21 (normal process zone externally), making it well suited for tablet manufacturing, powder filling and cleaning operations in highly controlled environments.
Filtration is based on a conductive star-shaped cartridge with cage – not a traditional cartridge. Manual filter shaking (MFS) means the operator briefly closes the inlet and allows airflow to reverse across the filter, causing collected dust to fall back into the tank. This method is particularly well suited for intermittent use and inventory vacuuming where compressed air is not always available on site.
The ULPA U15 filtration (99.9995% at 0.18 micron MPPS) is the highest filter class for dry exhaust and delivers the extreme high-potency safety margin that modern pharmaceutical manufacturing demands. The entire machine – tank, motor mount, stainless steel cart with ESD wheels – is fully antistatic with resistivity below 10 ohm, eliminating the risk of static ignition in explosive atmospheres.
With a 2.2 kW (400 V three-phase) or 1.5 kW (230 V single-phase) TEFC motor, the unit delivers 212 m³/h airflow with a maximum vacuum of 2,540 mmH₂O. The detachable 36 L tank (DT) allows easy changeover between products without cross-contamination. Noise level is 72 dB(A) with the integrated stainless steel muffler, making it suitable for daily operation in pharmaceutical production.
Technical Specifications
| Parameter | Value |
|---|---|
| ATEX Certification | LCIE 03 ATEX 6295 X |
| ATEX Marking | II 1/2 GD |
| External Gas | Ex db h IIB T4 Gb |
| External Dust | Ex h tb IIIC T135°C Db IP65 |
| Internal Gas | Ex h IIC T6 Ga |
| Internal Dust | Ex h IIIC T50°C Da |
| Temperature Range | –5°C to +37°C |
| Standard | EN 17348 DT – IECEx LCI 10.0040X |
| Motor Type | TEFC, continuous duty |
| Power (400 V) | 2.2 kW, 4.8 A, 3-phase |
| Power (230 V) | 1.5 kW, 12.3 A, single-phase |
| Frequency | 50 Hz |
| Airflow | 212 m³/h |
| Max Vacuum | 2,540 mmH₂O |
| Vacuum (VRV) | 1,780 mmH₂O |
| Filter Class | ULPA U15 – included |
| Filter Efficiency | 99.9995% at 0.18 µm (MPPS) |
| Primary Filter | Conductive star-shaped cartridge with cage – 8,584 cm² |
| Filter Cleaning | Manual filter shaking (MFS) |
| Noise Level | 72 dB(A) with muffler |
| Inlet | Ø50 mm |
| Recovery Tank | 36 L, detachable (DT) |
| Cart | Stainless steel cart with ESD wheels |
| Mounting | Vertical CSMT |
| Dimensions (400 V) | L78 x W61 x H191 cm |
| Dimensions (230 V) | L76 x W61 x H191 cm |
| Weight | 113 kg |
| Power Cord | 10 m |
Accessories and Connections

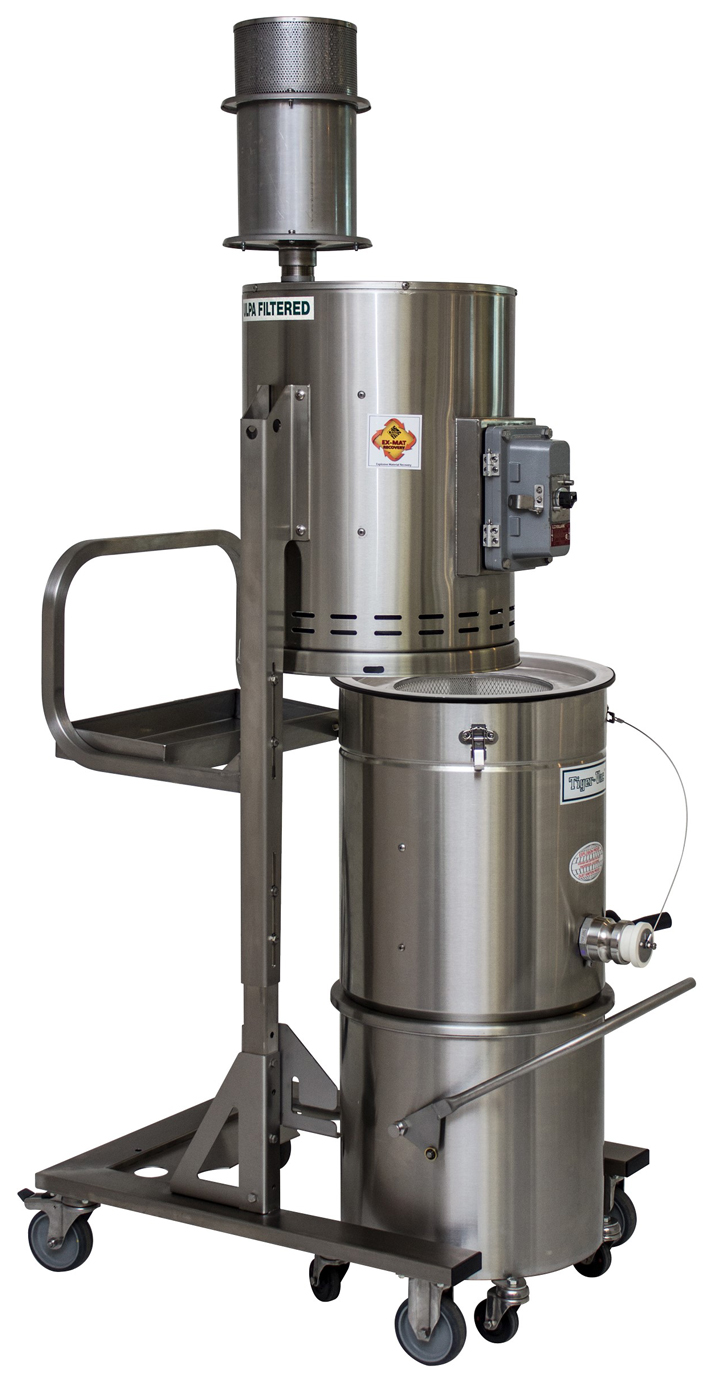

Detachable Tank & Filter Chamber
Recovery tank
ULPA U15 Filter
Exhaust filter, included

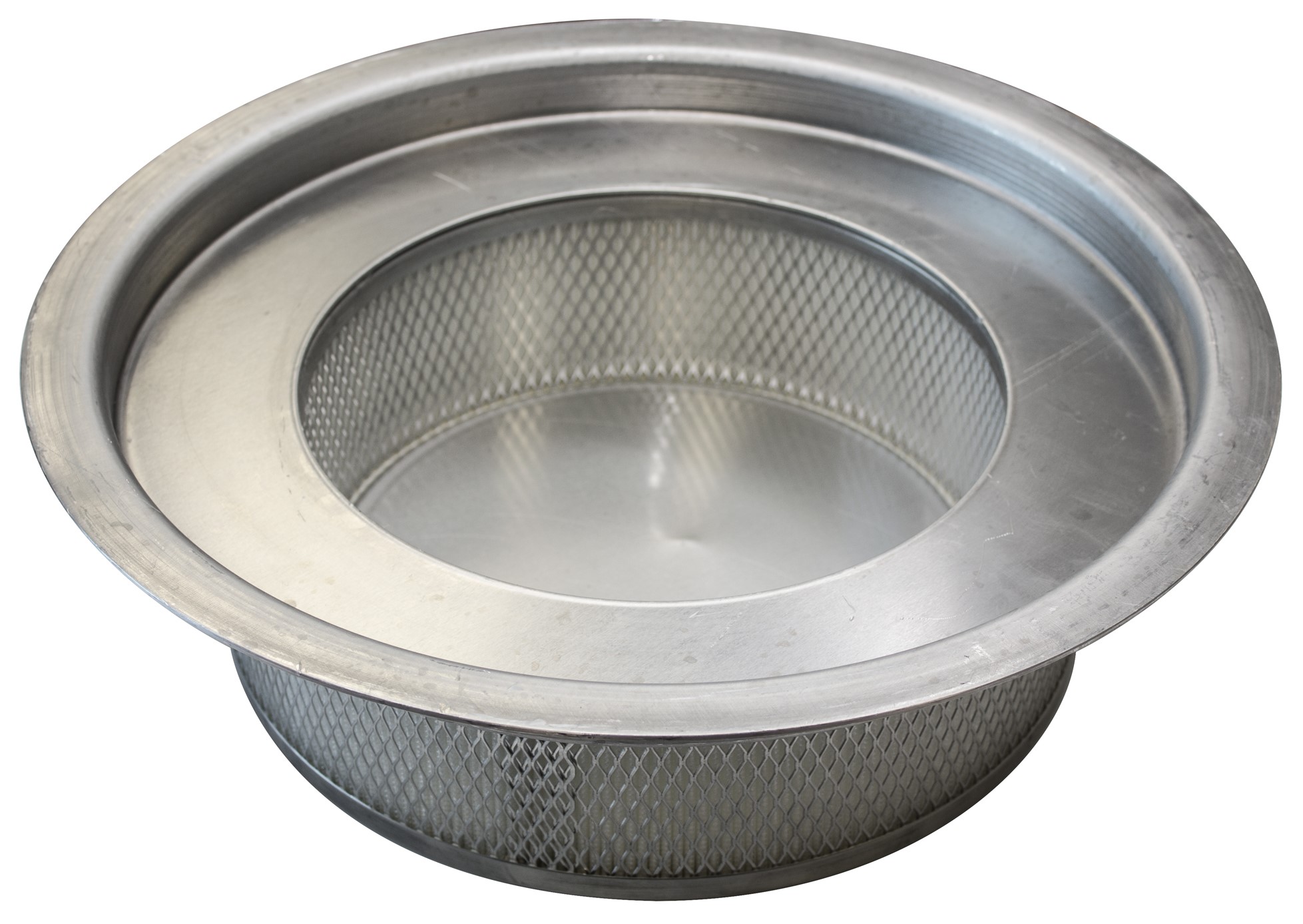

Internal Upstream HEPA
Option (factory-installed)

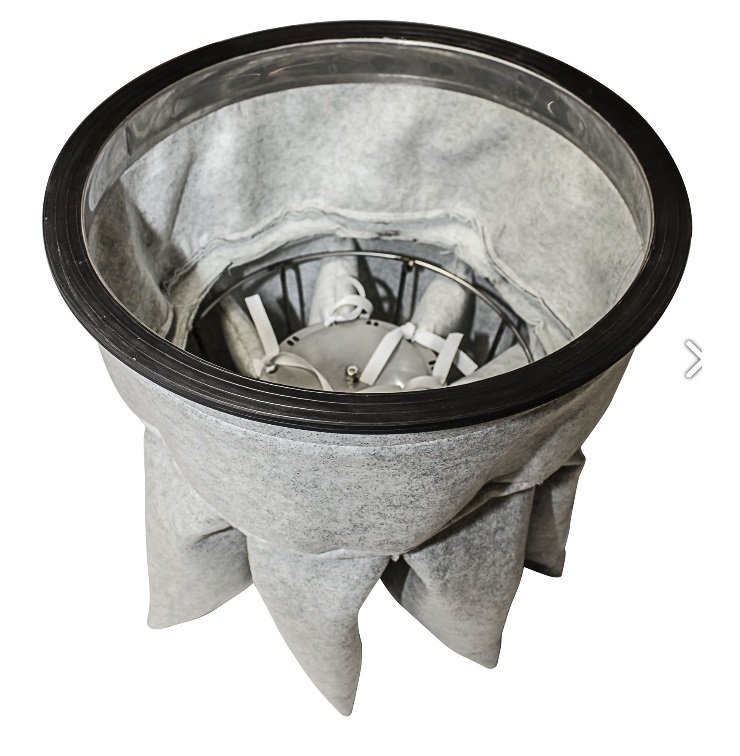

Star-Shaped Cartridge
With cage, included
38 mm ESD Tool Set
OE1-5, included
50 mm ESD Tool Set
OE2, optional
Frequently Asked Questions
ATEX II 1/2 GD means the machine meets both gas and dust requirements for explosion protection. Internally, it can operate in Zone 0 (gas) and Zone 20 (dust) – the highest classification. Externally, it is rated for Zone 1–2 (gas) and Zone 21–22 (dust). The “GD” indicates both Gas and Dust protection.
MFS (Manual Filter Shaking) uses manual agitation – the operator briefly closes the inlet and allows airflow to reverse. MRP (Manual Reverse Pressure) uses compressed air to reverse-purge a cartridge. MFS is suited to situations where compressed air is not available, or for intermittent use. The star-shaped cage cartridge with MFS has a slower cleaning cycle but requires less supporting infrastructure.
The 400 V three-phase variant (2.2 kW) is designed for industrial installations with three-phase supply. The 230 V single-phase variant (1.5 kW) is suited to facilities where only single-phase power is available. Both share the same ATEX certification and filter system. The 400 V version offers slightly higher power output.
ULPA U15 achieves 99.9995% efficiency at 0.18 micron (MPPS), tested per EN 1822 / IEST-RP-CC001. HEPA H14 achieves 99.995% at 0.3 micron. ULPA therefore provides a tenfold improvement in particle penetration, which is critical for high-potency API handling and pharmaceutical cleanrooms.
Yes. With ULPA U15 filtration, the exhaust meets ISO 4 cleanroom requirements per ISO 14644-1. The fully antistatic construction and ESD-conductive wheels ensure no particle generation from the machine itself. The stainless steel cart is designed for cleanroom-grade cleaning.
The integrated stainless steel muffler reduces the noise level to 72 dB(A), making the vacuum acceptable for daily use in pharmaceutical production areas. Without the muffler, noise levels would be considerably higher. The stainless steel construction ensures compatibility with cleanroom hygiene requirements.
Ready to get started?
Contact Particulair for consultation or quote on Tiger-Vac CD/EUR-36L EX DT (MFS) ULPA WITH SS CART
