ATEX Zone 22 • Delfin • Stationary

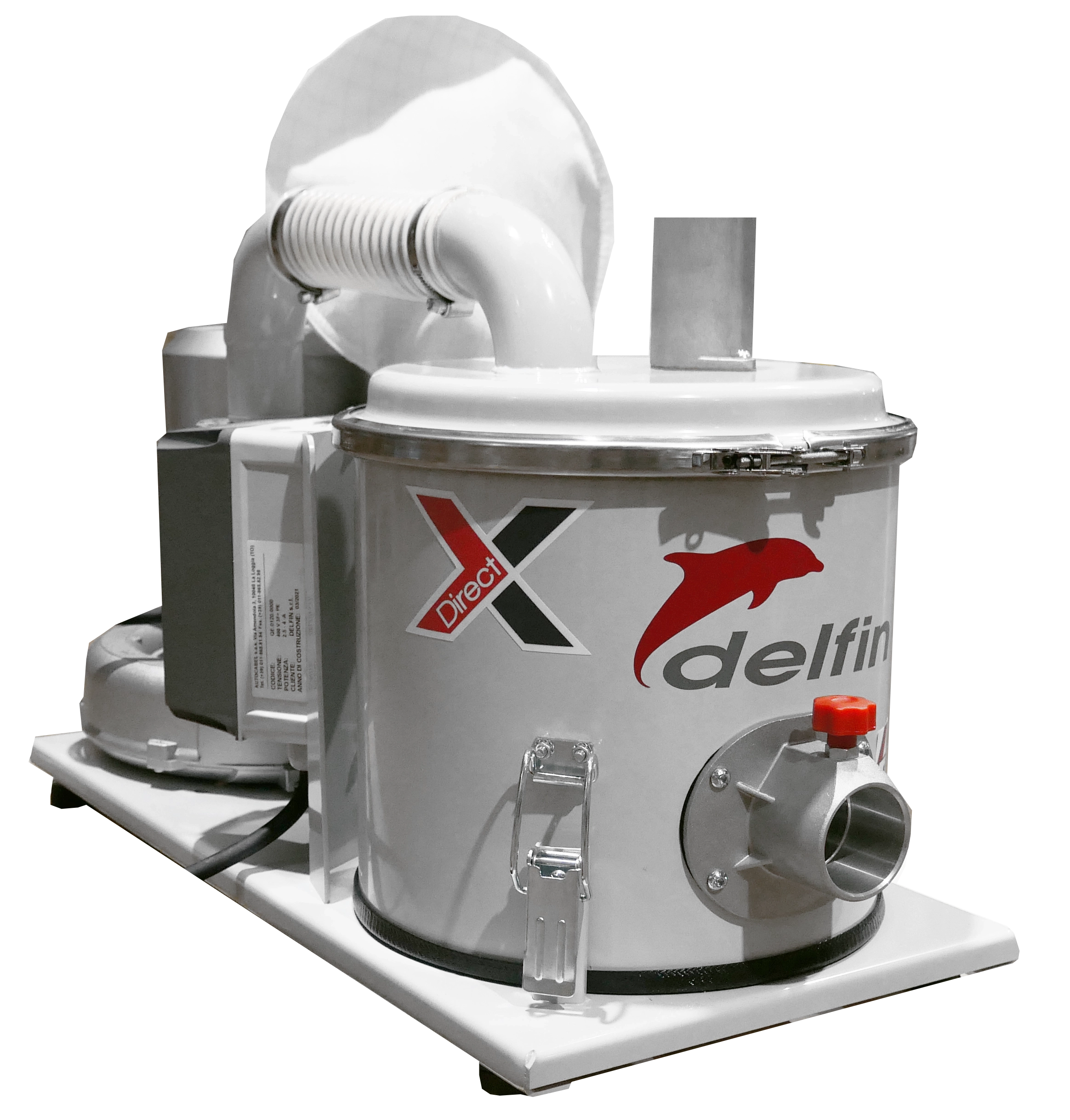

Delfin DBF 05/10 Z22
Stationary extraction unit certified to ATEX Zone 22. Maintenance-free side channel blower with H14 HEPA absolute filter as standard. Complete steel construction, IP65, 15 L capacity.
- ATEX II 3D certified
- Maintenance-free motor
- H14 HEPA filter included
- Continuous 24/7 operation
Product Overview
Delfin DBF 05/10 Z22 is a robust, stationary dust collector designed specifically for ATEX-certified applications in Zone 22. With its maintenance-free side channel blower and durable steel construction, this unit is ideal for pharmaceutical companies, chemical manufacturers, and other industries dealing with explosive dust atmospheres.
The system comes standard with H14 HEPA absolute filter, delivering extreme high particle retention essential for cleanroom environments and GMP certifications. The 15 L collection tank minimizes downtime during emptying, making it an economical choice for continuous operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Motor Type | Side channel blower — maintenance-free |
| Power | 0.4–0.85 kW |
| Current Draw | 1.8–0.75 A |
| Voltage | 400 V, 50 Hz, 3-phase |
| Max Airflow | 100–150 m³/h |
| Max Waterlift | 2,000 mmH₂O |
| Noise Level | 65–70 dB(A) |
| Capacity | 15 L |
| Weight | 30–35 kg |
| IP Rating | IP65 |
| Filter Type | H14 HEPA absolute filter |
| ATEX Certification | II 3D Ex h tc IIIC T80°C(int)/T165°C(ext) Dc |
| ATEX Category | 3D – Zone 22 |
Filter Equipment
All ATEX models come standard with H14 HEPA absolute filter. This filter meets the highest particle retention requirements and ensures compliance with pharmaceutical standards including GMP and FDA regulations. The filter can be inspected or replaced as needed.
Options and Accessories
DBF 05/10 Z22 can be supplied with various custom configurations:
- Stainless steel upgrades – for enhanced corrosion protection
- Additional filters – for quick turnaround service
- Sealed bag system – for containment of toxic dust
- Mounting kits – for production line integration
- Custom connections – per customer specification
Compliance Certifications
This unit complies with EU Directive 2014/34/EU for ATEX certification and is tested according to EN 17348:2022. ATEX II 3D means the unit is approved for Zone 22, where explosive dust atmospheres are not expected to occur under normal conditions.
Frequently Asked Questions
ATEX II 3D Zone 22 means the unit is certified for areas where explosive dust atmospheres are unlikely to occur (less than 10 hours per year). It is the least restrictive ATEX zone classification for dust.
Side channel blowers have no brushes or wearing parts, making them maintenance-free and ideal for continuous operation. They are also highly reliable in high-pressure applications.
Yes, H14 removes 99.995 percent of particles greater than or equal to 0.3 micrometers, meeting pharmaceutical standards such as GMP, USP, and FDA requirements for cleanroom and isolation scenarios.
Yes, it is designed for continuous 24/7 operation thanks to its maintenance-free motor. The only service task is periodic filter replacement.
IP65 means dust-tight and water-resistant. The unit is protected against dust and can withstand direct water spray, ideal for wash areas and humid environments.
DBFV features an integrated vortex pre-filter that increases efficiency and reduces filter clogging. Choose DBFV if your dust is particularly heavy or sticky.
