ATEX Zone 22 • Delfin • Stationary

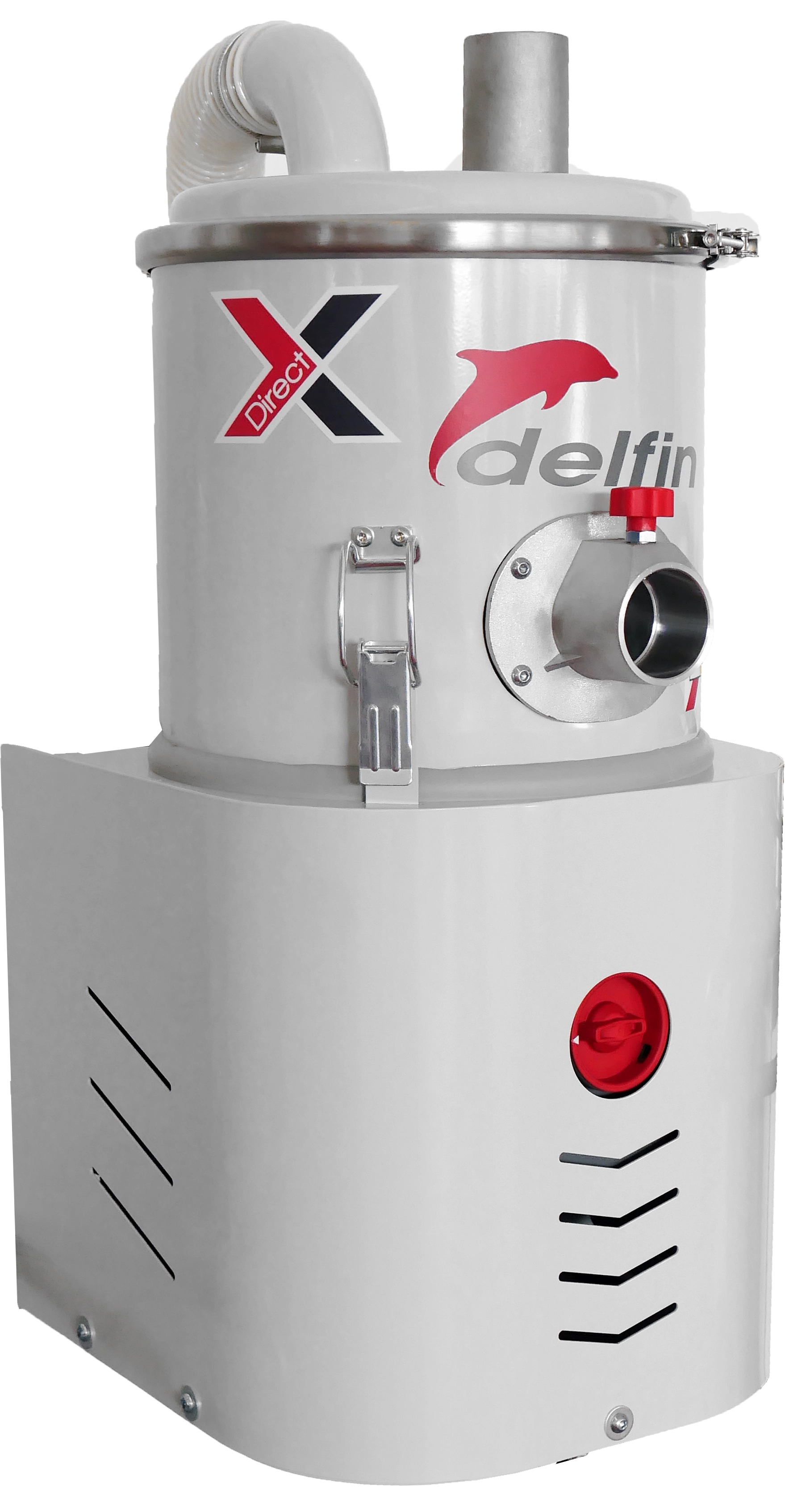

Delfin DBFV 05/10 Z22
Stationary extraction unit certified for ATEX Zone 22 with integrated vortex pre-filter. Maintenance-free side channel blower, H14 HEPA filter included. Complete steel construction, IP65, 15 L capacity.
- ATEX II 3D certified
- Vortex pre-filter included
- Extended filter life
- Continuous 24/7 operation
Product Overview
Delfin DBFV 05/10 Z22 is engineered for applications featuring particularly heavy, sticky, or agglomerating dust. The integrated vortex pre-filter separates these large particles before they reach the main filter, significantly extending filter life and reducing maintenance costs.
Like all Delfin ATEX models, DBFV Z22 comes with H14 HEPA absolute filter, maintenance-free side channel blower, and robust steel construction for Zone 22 certification. The integrated vortex technology makes it the optimal choice for dust types that cause rapid filter clogging.
Technical Specifications
| Parameter | Value |
|---|---|
| Motor Type | Side channel blower with vortex pre-filter |
| Power | 0.4–0.85 kW |
| Current Draw | 1.8–0.75 A |
| Voltage | 400 V, 50 Hz, 3-phase |
| Max Airflow | 100–150 m³/h |
| Max Waterlift | 2,000 mmH₂O |
| Noise Level | 65–69 dB(A) |
| Capacity | 15 L |
| Weight | 30–35 kg |
| IP Rating | IP65 |
| Filter Type | H14 HEPA absolute filter |
| ATEX Certification | II 3D Ex h tc IIIC T80°C(int)/T165°C(ext) Dc |
| ATEX Category | 3D – Zone 22 |
Vortex Pre-Filter Technology
The integrated vortex system creates a cyclonic airstream that separates heavy particles and directs them directly to the collection tank without burdening the main filter. This is especially important for oily, fatty, and sticky dust types.
Options and Accessories
DBFV 05/10 Z22 can be supplied with various custom configurations:
- Stainless steel construction – for aggressive dust and moisture
- Extra filter sets – for 24/7 operation without downtime
- Advanced control system – with filter indicators
- Sealed bag system – for containment
- Custom connections – per customer specification
Compliance Certifications
This unit complies with EU Directive 2014/34/EU for ATEX certification and is tested according to EN 17348:2022. DBFV is certified for Zone 22, just like the DBF model.
Frequently Asked Questions
V stands for vortex - an integrated vortex pre-filter that separates large and heavy particles before the main filter, extending filter life.
The vortex pre-filter increases overall system efficiency, reduces filter clogging, and significantly extends operation time between service intervals - often doubling filter life.
DBFV is ideal for heavy, sticky, or agglomerating dust types where a pre-filter creates significant operational savings.
Yes, DBFV can be used for all dust types. For purely fine dust, DBF (without pre-filter) may be more economical.
With the vortex pre-filter, filter lifetime can double compared to DBF depending on dust type and volume.
No, DBFV is fully maintenance-free like DBF thanks to its side channel blower with no wearing parts. The vortex section requires no maintenance.
ATEX-certified dust collection for hazardous areas
We provide design, installation, and certification assistance for dust collection systems in Zone 20/21/22 environments. DBFV with vortex is ideal for heavy dust loads.
