ATEX Zone 21 • Delfin • High-Capacity Stationary

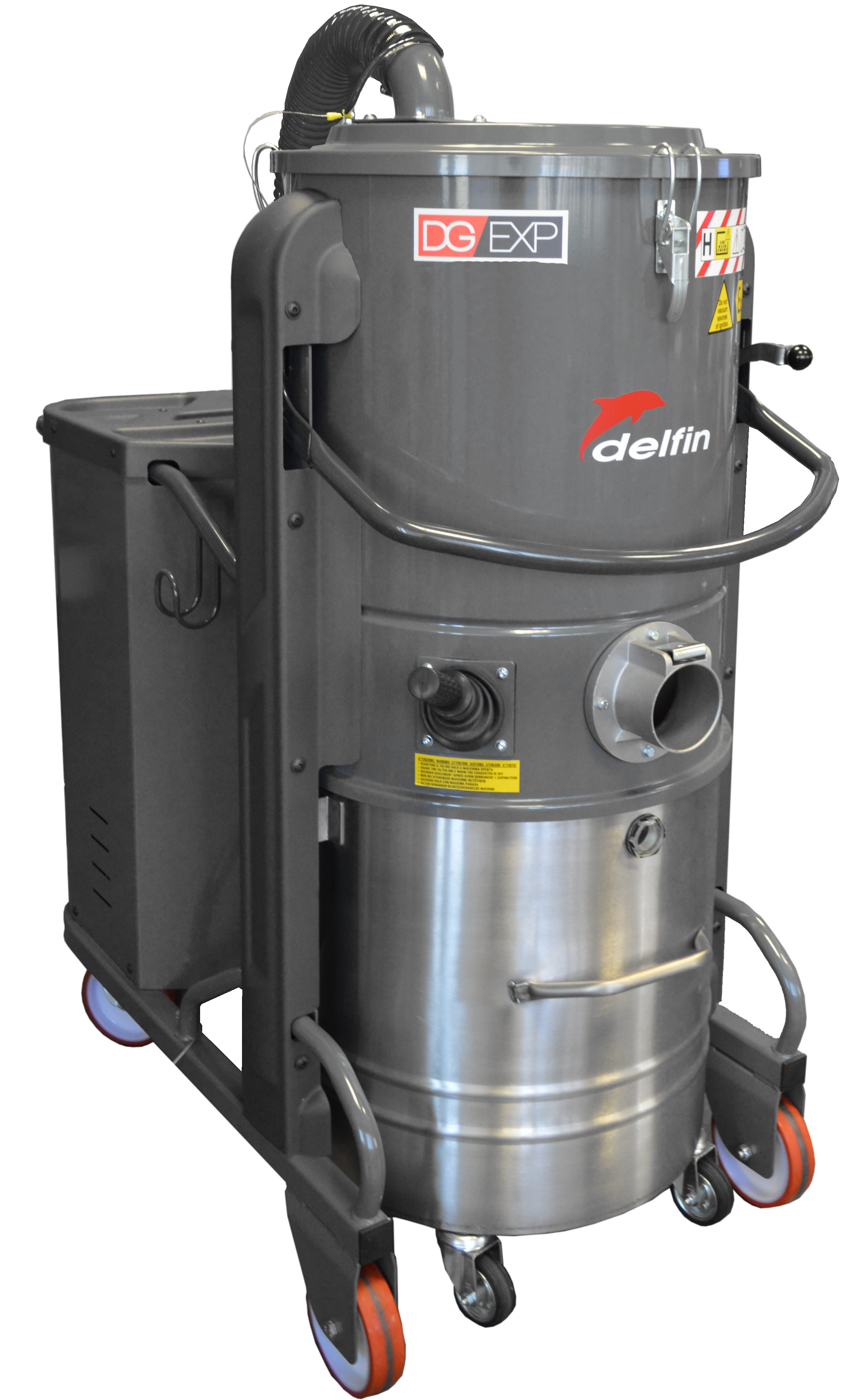

Delfin DG30 EXP EX1/2D
Stationary dust collector certified for ATEX Zone 21 and 22 with powerful side channel blower. AISI304 stainless steel as standard. H14 HEPA filter included. Third-party certified for pharmaceutical and chemical industry.
- ATEX Zone 21 and 22 third-party certified to EN 17348:2022
- Category 1/2D — approved for both Zone 1 gas and Zone 21/22 dust
- H14 HEPA absolute filter for 99.995% particle retention
- Powerful side channel blower maintenance-free without carbon brushes
- Large 100 L tank with stainless steel as standard
- 420 m³/h airflow — ideal for intensive processes
Features and Technology
The Delfin DG30 EXP EX1/2D is a stationary dust collector designed for permanent installation in ATEX Zone 21 and Zone 22 areas. The equipment is third-party certified to EN 17348:2022 and EU Directive 2014/34/EU as category 1/2D, meaning it is approved for both gas (Zone 1) and dust (Zone 21/22) explosive atmospheres. Triple capacity (100 L) and higher airflow make the DG30 EXP EX1/2D ideal for larger industrial, pharmaceutical, and chemical processes.
The side channel blower is a premium motor type designed for continuous 24/7 operation without maintenance. There are no carbon brushes, ball bearings, or mechanical wear parts. It delivers 420 m³/h airflow with 2,400 mmH₂O maximum vacuum — a perfect balance of power and stability. The H14 HEPA filter guarantees 99.995% particle retention even at very high particle concentrations, perfect for pharmaceutical and cleanroom production.
AISI304 stainless steel as standard ensures maximum corrosion resistance in aggressive factory environments with chemicals and organic dust. Manual filter cleaning means short downtime. IP65 classification provides protection against moisture and particulates. The 100 L collection tank offers high flexibility for high dust production volumes.
Technical Specifications
| Parameter | Value |
|---|---|
| ATEX Certification | II 1/2 D Ex h IIIC T160°C Da/Db |
| ATEX Category | 1/2D — Zone 21/22 External |
| Zone Approval | Zone 20 Internal / Zone 21 and 22 External |
| Standard | EN 17348:2022 DRY TYPE DUST COLLECTOR |
| Motor Type | Side channel blower — maintenance-free |
| Power | 4 kW / 7.4 A |
| Voltage | 400 V, 50 Hz, 3-phase |
| Max Airflow | 420 m³/h |
| Max Vacuum | 2,400 mmH₂O* |
| Filter Type | H14 HEPA absolute filter — 99.995% at MPPS |
| Primary Filter Medium | Star/pocket polyester ANT M |
| Primary Filter Area | 30,000 cm² |
| HEPA Filter Area | 26,000 cm² |
| Filter Cleaning | Manual |
| Noise Level | 72 dB(A) at EN ISO 3744 |
| Collection Capacity | 100 L |
| Construction | AISI304 Stainless Steel |
| IP Class | IP65 |
| Dimensions (L×W×H) | 60×103×170 cm |
| Weight | 145 kg |
| Suction Inlet | Ø80 mm |
| *Max vacuum with safety valve mounted | |
Options
The Delfin DG30 EXP EX1/2D can be customized with several options for specialized Zone 21/22 applications:
- AISI 304 Stainless Steel Collection Tank (X) — standard option
- AISI 304 Stainless Steel Tank and Filter Chamber (XX) — enhanced corrosion resistance
- AISI 304 Stainless Steel Tank, Filter, Frame and Cover (XXX) — full premium construction
- Recommended Antistatic Dry Accessory Kit D50 (TA.0201.0000) — ensures ESD safety
- Antistatic Dry Accessory Kit D50 in Stainless Steel (TA.0200.0000) — premium ESD solution
- Other Voltages and Frequencies — available on request
Frequently Asked Questions
ATEX Zone 21 means explosive dust-air mixtures may occur 10 to 1,000 hours per year under normal operating conditions. Zone 21 is a higher risk classification than Zone 22 and requires more robust construction. The DG30 EXP EX1/2D is certified for Zone 21 and can also be used in Zone 22. Zone selection depends on installation and operating conditions.
II 1/2D means the equipment is certified for both Zone 1 (explosive gases) and Zone 21 (explosive dust) at ATEX category 1/2 — the highest safety level. This ensures the DG30 EXP EX1/2D can operate in very aggressive environments with both gas and dust explosive atmospheres.
The side channel blower has no carbon brushes, ball bearings, or mechanical wear parts. It is designed for continuous 24/7 operation without maintenance. Compared to centrifugal blowers, it delivers higher vacuum and stability at high particle concentrations, making it ideal for aggressive dust types in pharmaceutical and chemical environments.
Yes, the H14 HEPA filter (99.995% at MPPS) is included as standard. The filter has 26,000 cm² of filtration surface area and guarantees extreme particle retention for pharmaceutical, cleanroom, and chemical production. The primary filter provides 30,000 cm² of additional filtration capacity.
Options include: standard AISI304 stainless steel collection tank (X), tank and filter chamber in stainless steel (XX), and full AISI304 stainless steel construction with frame and cover (XXX). All variants ensure maximum corrosion resistance in aggressive industrial and chemical environments.
Yes. The DG30 EXP EX1/2D is third-party certified by IMQ, an accredited notified body for ATEX equipment. You receive full EU documentation, technical dossier, and original certification confirming Zone 21/22 classification and EN 17348:2022 compliance. Installation must be carried out according to ATEX guidelines by qualified personnel.
