ATEX Zone 1/2D • Delfin • Stationary high-capacity

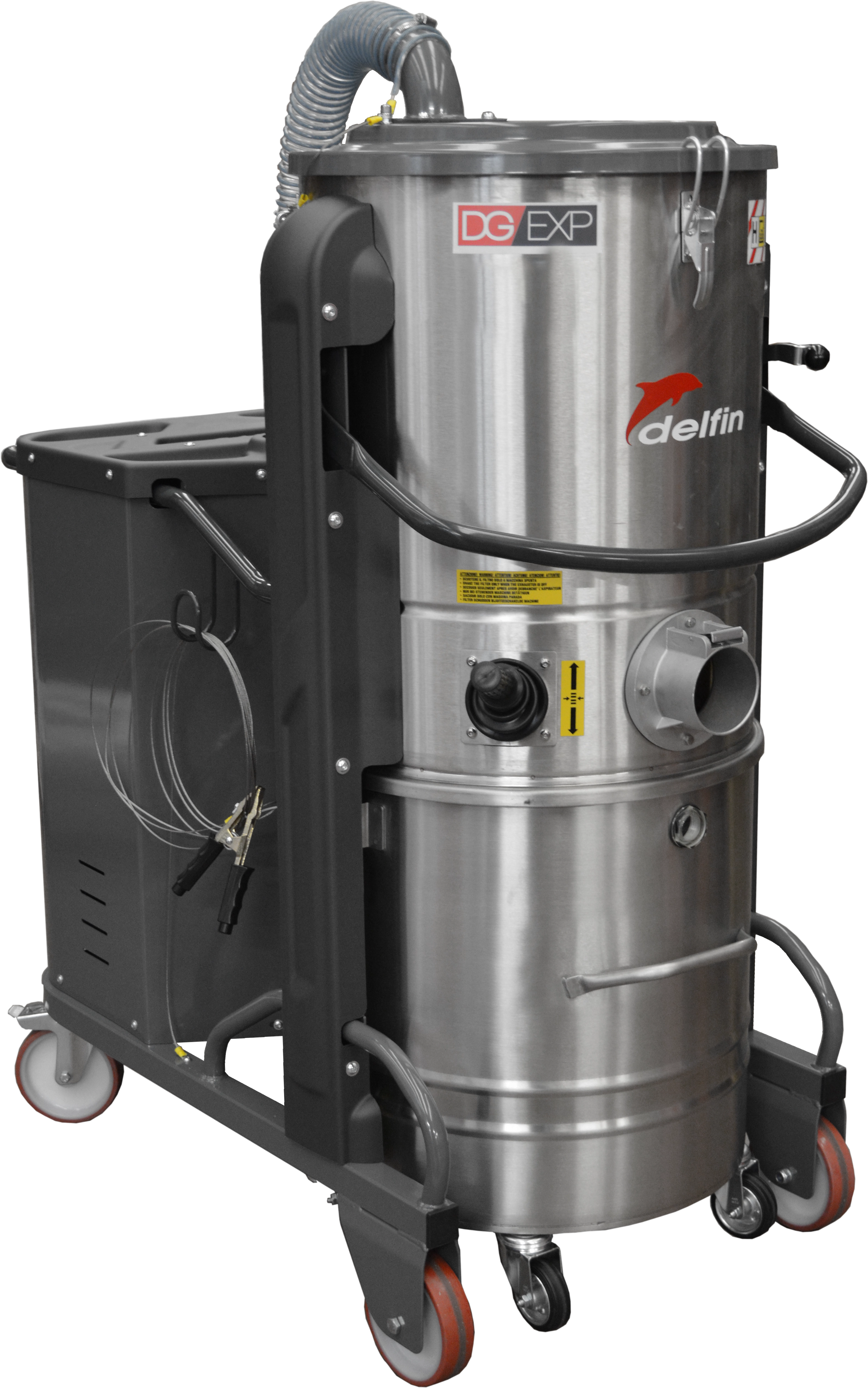

Delfin DG70 EXP EX1/2D
Stationary dust collector certified for ATEX Zone 21 and 22 with three-phase side channel blower. H14 HEPA filter included with double filter area (52,000 cm²). 100 L tank. Continuous operation — ideal for demanding industrial dust types and explosive processes.
- ATEX Zone 1/2D third-party certified per EN 17348:2022
- Side channel blower — maintenance-free 24/7 continuous operation
- H14 HEPA absolute filter with double filter area (52,000 cm²) for 99.995% retention
- 100 L stainless steel tank — large capacity without frequent emptying
- 560 m³/h airflow — high-demand applications
- 5.5 kW three-phase motor — powerful suction and performance
Features and Technology
Delfin DG70 EXP EX1/2D is a larger dust collector designed for permanent installation in ATEX Zone 21 and 22 external environments. The unit is third-party certified per EN 17348:2022 and EU Directive 2014/34/EU as category 1/2D. Zone 21 means explosive dust-air mixtures can occur 10-1,000 hours per year under normal operating conditions — this is higher risk than Zone 22 and requires more robust construction.
The three-phase side channel blower delivers 560 m³/h and 2,000 mmH₂O vacuum for high-demand applications. The blower is maintenance-free without brushes or mechanical wear, making it ideal for continuous 24/7 operation. The H14 HEPA filter with double filter area (52,000 cm²) provides 99.995% particle retention — significantly larger than the DG30 model (26,000 cm²). Stainless steel AISI304 construction is standard for maximum corrosion resistance.
The 100 L collection tank provides very large capacity for intensive operation without frequent emptying. DG70 EXP EX1/2D is ideal for larger industrial processes, pharmaceutical and cleanroom production, and explosive dust silos and collection systems. A noise level of 72 dB(A) and IP65 rating ensure robust operation in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| ATEX certification | II 1/2 D Ex h IIIC T160°C Da/Db |
| ATEX category | 1/2D — Zone 20 internal / Zone 21 external |
| Zone approval | Zone 20 internal / Zone 21 external |
| Standard | EN 17348:2022 DT |
| Motor type | Side channel blower — 3-phase maintenance-free |
| Power | 5.5 kW / 11.1 A |
| Voltage | 400 V, 50 Hz, 3-phase |
| Max airflow | 560 m³/h |
| Max vacuum | 2,000 mmH₂O* |
| Inlet | 80 mm diameter |
| Filter type | H14 HEPA absolute filter — 99.995% at MPPS |
| Primary filter medium | Star/pocket, polyester ANT M |
| Primary filter area | 30,000 cm², 500 mm diameter |
| HEPA filter area | 52,000 cm² (double vs DG30) |
| Filter cleaning | Manual |
| Noise level | 72 dB(A) per EN ISO 3744 |
| Tank capacity | 100 L |
| Construction | Stainless steel AISI304 standard |
| IP class | IP65 |
| Dimensions (H x W x D) | 170 x 60 x 103 cm |
| Weight | 145 kg |
| *With safety valve mounted | |
Options
Delfin DG70 EXP EX1/2D can be configured with several options for specialized Zone 21 applications:
- Stainless steel AISI 304 collection tank (X) — standard
- Stainless steel tank and filter chamber (XX) — premium stainless construction
- Stainless steel tank, filter, frame and cover (XXX) — full AISI 304 construction
- Antistatic dry accessory kit D50 (TA.0201.0000) — ESD protection
- Antistatic dry accessory kit D50 in stainless steel (TA.0200.0000) — premium ESD solution
- Other voltages and frequencies — contact us for custom configurations
Frequently Asked Questions
ATEX Zone 21 means explosive dust-air mixtures can occur for 10-1,000 hours per year under normal operating conditions. This is a higher risk level than Zone 22 and requires more robust construction. Delfin DG70 EXP EX1/2D is certified for both Zone 20 internal and Zone 21 external, meaning it can be used in the most demanding factory environments with aggressive dust types.
The side channel blower has no brushes, bearings, or mechanical parts that wear out. This means maintenance-free operation and very long runtime sequences without shutdown. The blower is recommended for continuous 24/7 operation in hazardous environments, intensive industrial processes, and explosive dust applications.
DG70 EXP EX1/2D features double HEPA filter area (52,000 cm²) compared to DG30 (26,000 cm²). This means significantly longer filter lifespan, better performance under intense dust loads, and less frequent maintenance. The H14 HEPA filter achieves 99.995% particle retention at MPPS even at very high dust concentrations.
Yes. DG70 EXP EX1/2D is designed for uninterrupted 24/7 operation without shutdown or maintenance. The side channel blower is maintenance-free with no wear parts, brushes, or bearings. The 100 L tank provides large storage capacity for long-duration runs in intensive processes and demanding industrial applications.
DG70 EXP EX1/2D can be delivered in three AISI 304 stainless steel configurations: (X) collection tank as standard, (XX) tank and filter chamber, or (XXX) tank, filter, frame, and cover. Stainless steel ensures maximum corrosion resistance in aggressive chemical and humid factory environments, pharmaceutical production, and aggressive dust types.
Yes. DG70 EXP EX1/2D is third-party certified by IMQ, an accredited notified body. You receive full EU documentation, technical dossier, and original certification. The certification confirms ATEX 1/2D, EN 17348 DT (combustible dust collection), and IECEx Da/Db classification for international approval.
