Clean Room • Dry recovery

Tiger-Vac CR-1 ULPA

ISO Class 4 compatible cleanroom vacuum with ULPA U15 filter and three-stage filtration. Designed for pharmaceutical manufacturing, laboratories and all environments where even minimal particle leakage is critical.

ULPA U15 — 99.9995 % at MPPS, aerosol leak tested
Three-stage filtration: disposable filter bag + cloth filter + ULPA
Only 9 kg — lightweight and mobile on 4-wheel stand
60 dB(A) — low noise for prolonged use
Easy-to-clean white ABS body — stainless steel as option
Thru-Flow motor — all air filtered before exhaust
Designed for Life Science and cleanroom environments

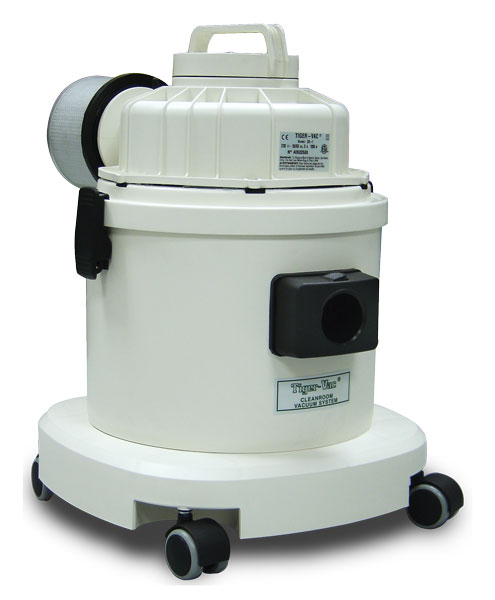

Tiger-Vac CR-1 ULPA cleanroom vacuum with ULPA filter for pharmaceutical manufacturing

ULPA U15 — EN 1822 / IEST-RP-CC001

ISO Class 4 (ISO 14644-1)

CE — Machinery Directive 2006/42/EC

CE — Low Voltage Directive 2014/35/EU

EMC Directive 2014/30/EU

What is the Tiger-Vac CR-1 ULPA?

The CR-1 ULPA is a compact, mobile cleanroom vacuum cleaner from Tiger-Vac, designed specifically for contamination-controlled environments in pharmaceutical manufacturing, laboratories and the semiconductor industry. The model is compatible with ISO Class 4 (formerly US Fed. Std. 209E Class 10) and therefore meets the requirements for cleaning in the most stringently classified production zones.

The vacuum's three-stage filtration system consists of a synthetic disposable filter bag, a primary cloth filter and a ULPA U15 final filter. The ULPA filter retains at least 99.9995 % of all particles at MPPS (Most Penetrating Particle Size) and is individually aerosol leak tested before leaving the factory. This is a guarantee that few competitors routinely offer.

The Thru-Flow motor ensures that all air — including the cooling air — passes through the ULPA filter before being exhausted into the room. There are therefore no uncontrolled particle sources in the vacuum's airstream. The noise level is just 60 dB(A) at 2 metres, which is markedly lower than comparable models and important in environments with prolonged use.

Important use restriction: The CR-1 ULPA is designed exclusively for the collection of dry particles and dust. The model must not be used for liquids, slurry or wet material, as the suction motor is not protected against moisture. For combined dry and wet recovery in cleanroom environments, the CR-1300WD or an equivalent wet/dry model is recommended.

Technical specifications

Parameter	Value
Filter class	ULPA U15 (EN 1822 / IEST-RP-CC001)
Filter efficiency	99.999 % at 0.12 µm • 99.9995 % at 0.18 µm (MPPS)
Cleanroom compatibility	ISO Class 4 (ISO 14644-1)
Filtration	3-stage: disposable filter bag + primary cloth filter + ULPA
Motor type	Thru-Flow, heavy-duty
Power	1 kW / 1000 W
Voltage	240 V, 50 Hz, single phase
Current	4.3 A
Air flow	163 m³/h
Vacuum pressure	2,510 mmH₂O
Noise level	60 dB(A) at 2 m
Suction inlet	Ø38 mm
Recovery tank	15.1 L (plastic standard • stainless steel SAE 430 option)
Disposable bag capacity	8 L
Wheel system	4-wheel stand
Dimensions	H 56 × W 41 × L 41 cm
Weight (vacuum only)	9 kg
Cord length	10 m
Recovery type	Dry only

CE marking based on: EN 60204-1:2018 • EN 60335-1:2012 (A11:2014, A13:2017, A15:2021) • EN 60335-2-69:2012 • EN 60335-2-2:2010 (A11:2012, A1:2013) • EN 61000-6-1:2007 • EN 61000-6-3:2007 (A1:2011)

Included accessories

The CR-1 ULPA is supplied complete with all necessary filters and a full accessory kit. All components are designed for cleanroom use.

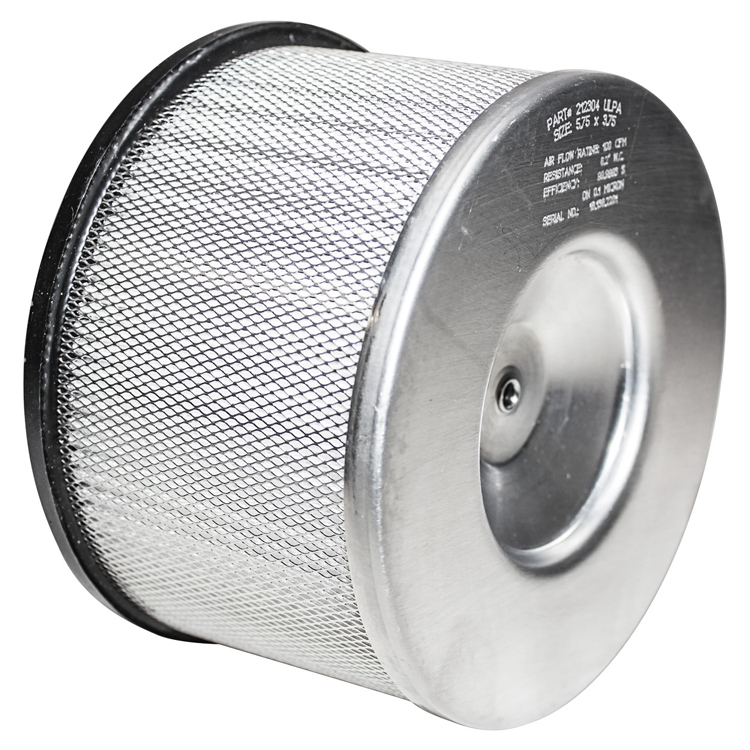

ULPA U15 filter

Part no. 212304 • Included

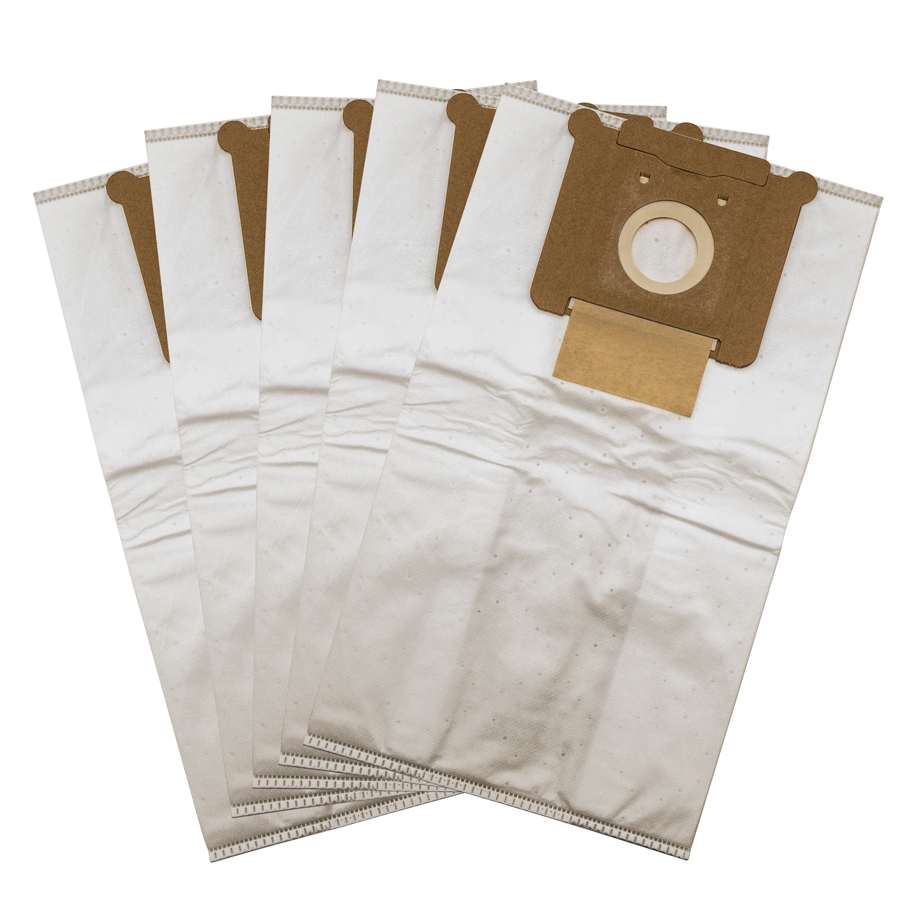

Synthetic disposable filter bags for CR-1 ULPA, pack of 5, part no. 212500

Synthetic filter bags (5 pcs.)

Part no. 212500 • Included

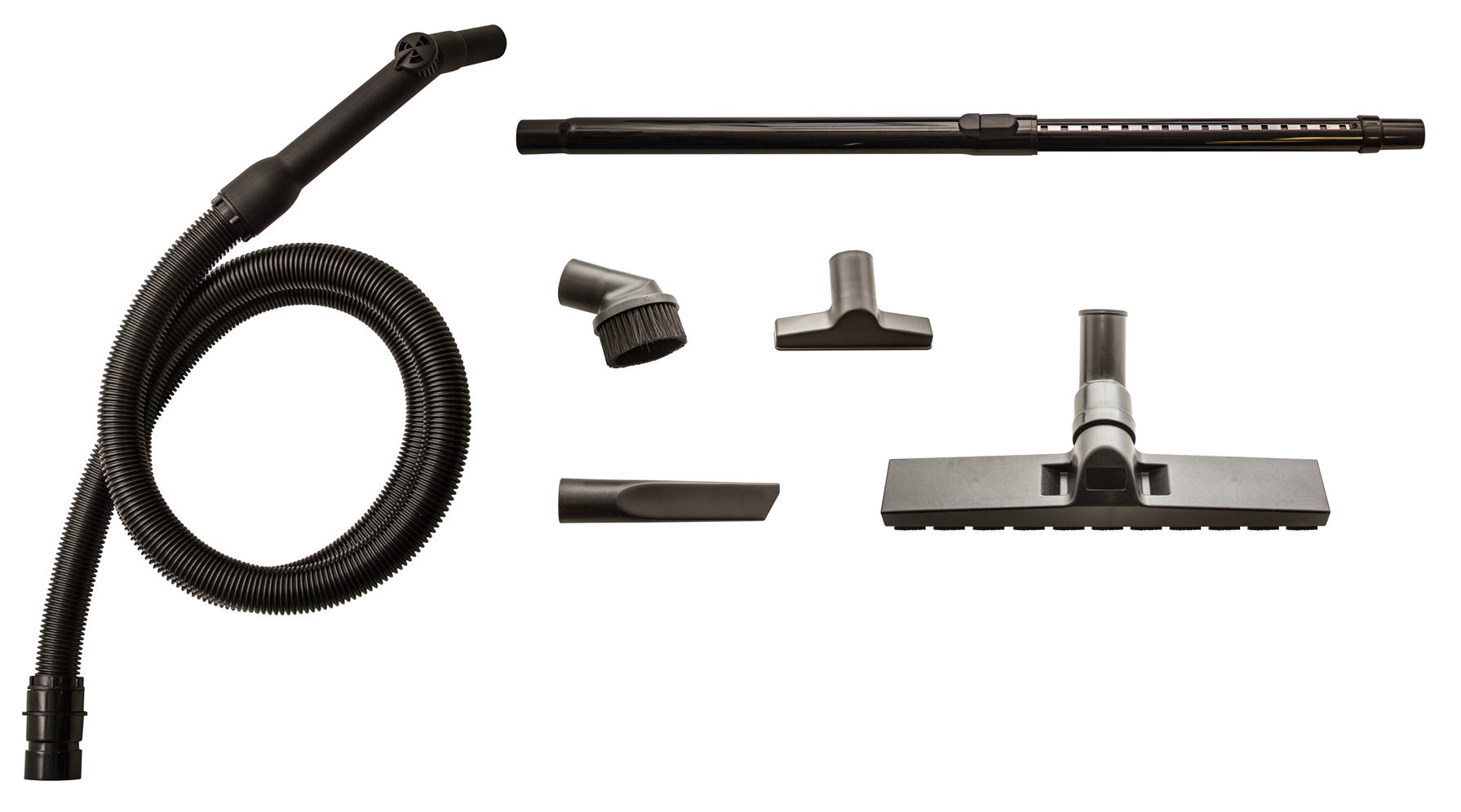

Complete accessory kit

Part no. 323495 • Included

Stainless steel tank (SAE 430)

Option

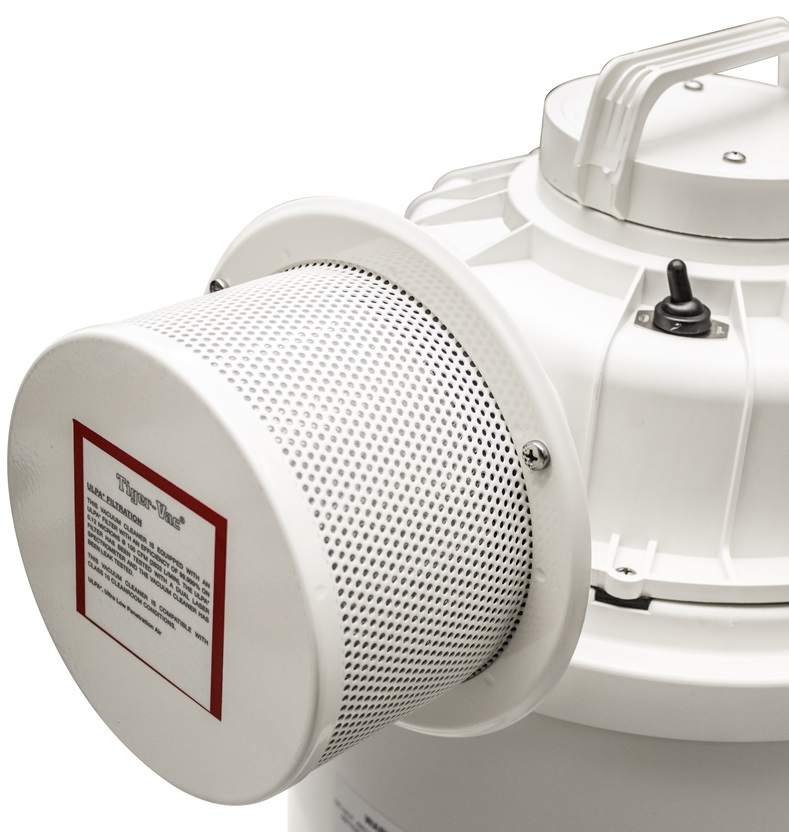

ULPA filter housing

Part no. 214860 • Option

Options and upgrades

The CR-1 ULPA can be supplied with a stainless steel tank (SAE 430) instead of the standard plastic tank — relevant when the cleaning protocol requires aggressive chemical disinfection or autoclaving of the tank. The filter housing (part no. 214860) is also available as an option; it encloses the ULPA filter, provides better protection and makes replacement more secure.

Questions and answers

What is the difference between HEPA H14 and ULPA U15?

HEPA H14 retains at least 99.995 % of particles at MPPS (the particle size that penetrates a filter most easily, typically 0.1–0.3 µm). ULPA U15 goes one step further, retaining at least 99.9995 % at MPPS — a factor of 10 better than HEPA H14. In practice, for every million particles in the intake air, at most 0.5 particles pass through a ULPA U15 filter, compared to up to 5 with HEPA H14. ULPA is required from ISO Class 4 upwards, and is always recommended when handling highly potent substances regardless of ISO class.

What does it mean that each ULPA U15 filter is individually leak tested?

Tiger-Vac tests each individual ULPA filter with an aerosol test before it is installed in the vacuum unit. The test result is noted directly on the filter. In addition, Tiger-Vac performs an aerosol leak test on the complete vacuum unit before it leaves the factory — a test that checks not only the filter but also the gaskets and all joints in the airpath. This is a service that few competitors routinely offer, and it provides documented assurance that the vacuum's actual performance matches the filter classification.

Can the CR-1 ULPA be used in pharmaceutical manufacturing under GMP?

Yes. The CR-1 ULPA is designed for pharmaceutical applications and is compatible with ISO Class 4, which is sufficient for most GMP-classified production zones (Grade B–D). The vacuum's CE marking is based on the Machinery Directive 2006/42/EC, the Low Voltage Directive 2014/35/EU and the EMC Directive 2014/30/EU. Validation documentation (EU Declaration of Conformity and filter test report) is available on request.

Why must the CR-1 ULPA not be used for liquids?

The CR-1 ULPA is designed exclusively for dry recovery. The suction motor is not protected against moisture, and liquid reaching the motor will damage it or compromise the ULPA filter's function. Moisture in the filter medium would also reduce filter efficiency. For environments with both dry and wet material, the CR-1300WD is a relevant alternative with an approved wet/dry motor and ULPA filtration.

When should I choose the stainless steel tank over the standard tank?

The standard tank is made of white ABS plastic and is easy to clean with standard cleaning agents. The stainless steel variant (SAE 430) is appropriate when the cleaning protocol requires aggressive chemical disinfection or autoclaving of the tank, when there is a risk of strong colour staining from the collected material, or when the aesthetic requirements of the environment favour a stainless steel appearance. The stainless steel tank does not change the filter class or any other specifications.

How do I change the disposable bag hygienically?

The CR-1 ULPA uses synthetic microfilter disposable bags (part no. 212500, pack of 5). The synthetic collection bag seals tightly when removed from the tank, so the collected material is not dispersed. In environments with highly potent substances (OEB 3), the bag should also be handled with gloves and disposed of in accordance with the facility's waste procedure for contaminated material. Contact us if your facility requires BIBO-compatible filter changeout — we can advise on the right solution.

Is the Tiger-Vac CR-1 ULPA the right model for you?

We help you select the right vacuum cleaner for your ISO class, OEB level and cleaning protocol. Call or write — the advice is free and without obligation.
