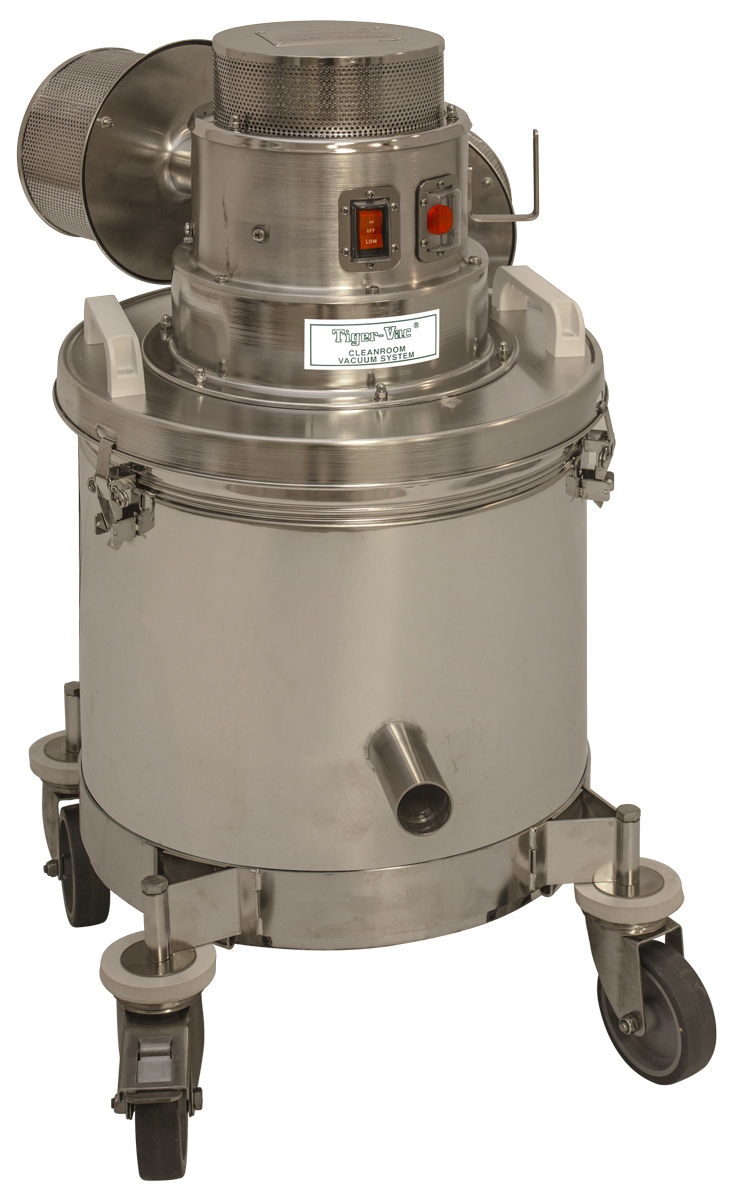

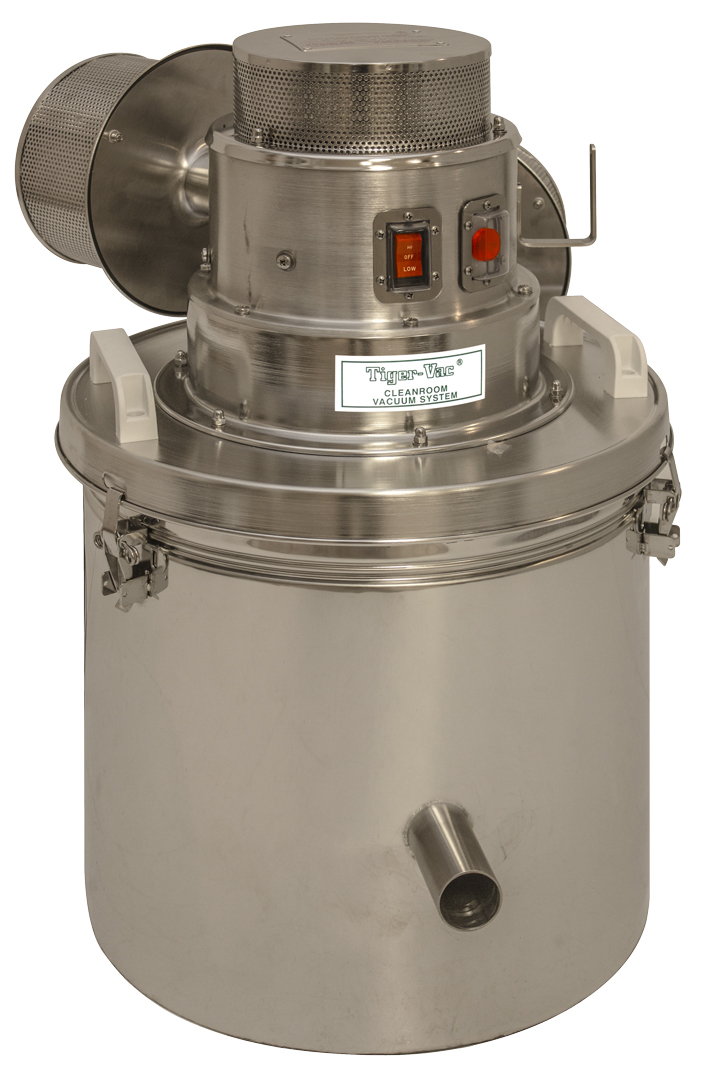

Tiger-Vac CWR-10 EX (CV)
Sealed stainless steel AISI 430 single-use canister with dual ULPA U15 filtration, ATEX II 3D certification and EMI/RFI shielding — engineered for the safe collection of highly potent compounds in pharma and cleanroom environments.

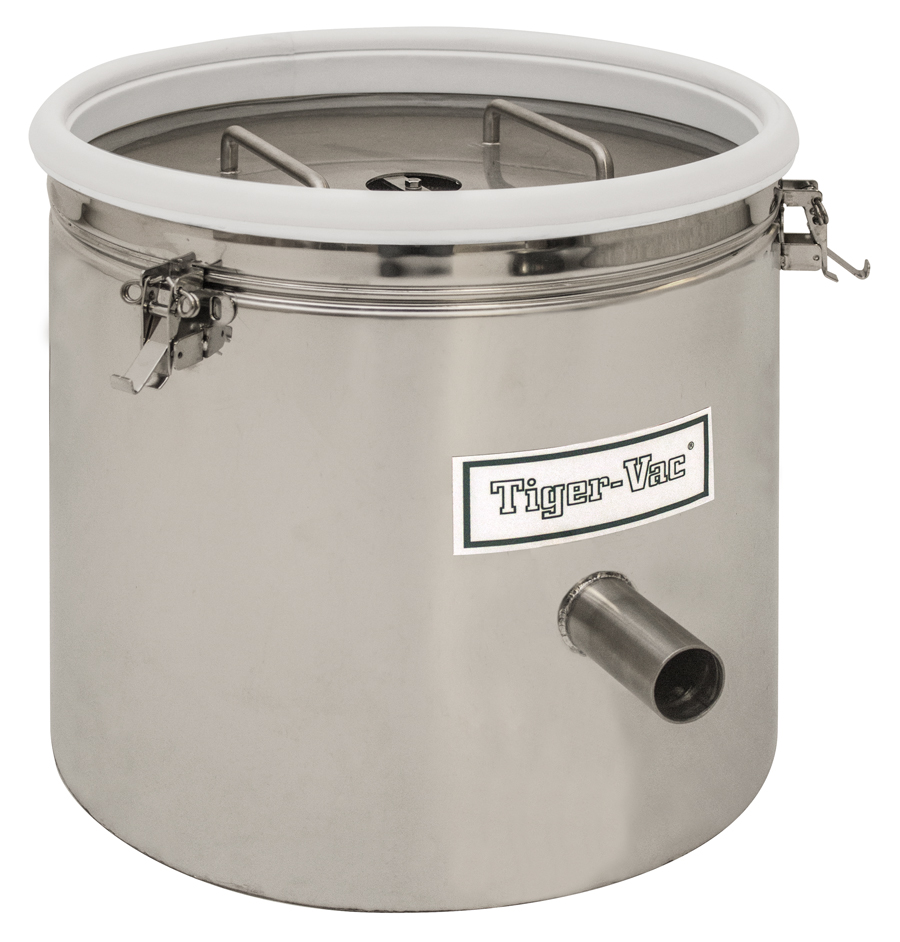

- Sealed single-use canister in AISI 430 — 12, 20 or 40 L — disposed of whole, no contact with contents
- 5-stage filtration with dual ULPA U15 — one for working air, one for cooling air
- ATEX II 3D — Zone 22 — first-party certified (EN 17348:2022)
- ISO Class 4 (ISO 14644-1) — OEB 4–5
- EMI/RFI shielded and ESD-safe — for electronics-sensitive production environments

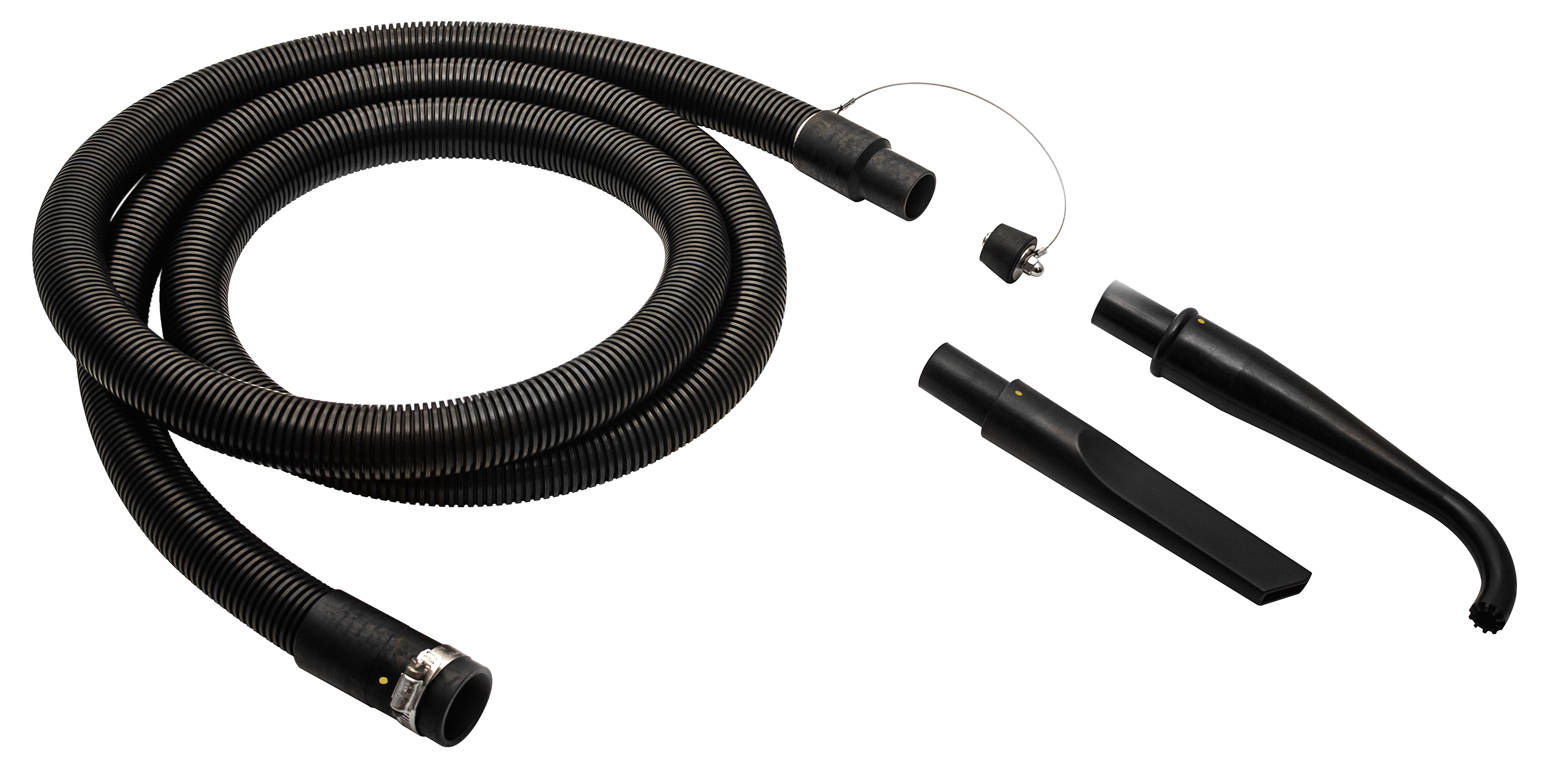

- Filter blockage indicator and included static dissipative suction hose
A containment system without equal in pharma
The CWR-10 EX (CV) is Tiger-Vac’s answer to one of pharmaceutical manufacturing’s most fundamental challenges: how do you collect extremely potent compounds without ever coming into direct contact with the collected material? The solution is a closed containment system in which the collection canister itself — a single-use vessel in stainless steel AISI 430 — is disposed of whole when full. No bag change. No filter exchange. The canister is not emptied. It is discarded in its entirety.
This means the operator never touches the collected material at any point in the process — not during operation, not during canister replacement, and not during disposal. This is not merely a procedural advantage. It is a fundamental design decision that makes the CWR-10 EX (CV) one of the most effective containment tools in the pharmaceutical sector for OEB 4–5 compounds.
The containment system — how it works
From collection to disposal without contact
The airstream enters the sealed single-use canister, where the material is collected. The air then passes through a dual pre-filter stage and on to two separate ULPA U15 filters — one for the working air and one for the cooling air.
The critical point is that the material never leaves the canister. When the canister is full, it is sealed and disposed of whole.
Vacuum connected. Single-use canister mounted in the machine.
Material collected directly into the sealed single-use canister.
Filter blockage indicator activates as the canister approaches capacity.
Canister removed and disposed of whole — no bag change, no exposure.

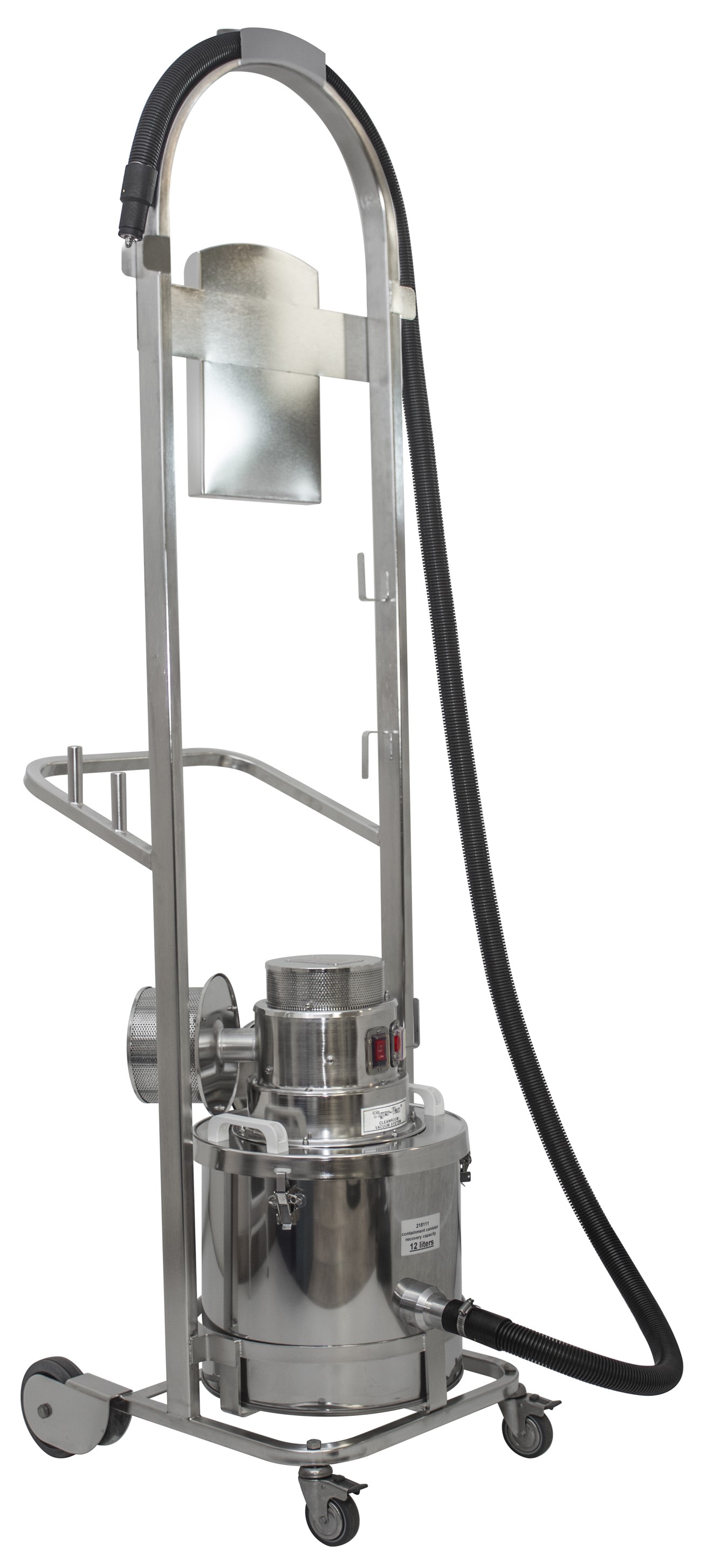

Optional hose stand #216932A — contamination-free hose storage
Electropolished AISI 304 stand with hose hanger extension. Developed for Novartis. In pharmaceutical production, the floor is the most contaminated surface in the room — the stand ensures the suction hose never touches the floor and introduces particles to the product at the next point of use.
Technical specifications
| Parameter | Value |
|---|---|
| Motor type | Bypass (Ametek® long life) |
| Power | 1,050 W (1 kW) |
| Voltage | 240 V, 50 Hz, single phase |
| Current | 5 A |
| Airflow | 189 m³/h |
| Vacuum pressure | 2,180 mm H₂O |
| Noise level | 75 dB(A) |
| Suction inlet | Ø38 mm |
| Cable length | 10 m |
| Dimensions (W×L) | 46×76 cm |
| Enclosure rating | IP6X |
| ATEX marking | II 3D — Ex h tc IIIB T200°C Dc IP6X |
| ATEX zone | Zone 22 (dust, external) |
| Certification | First-party (EN 17348:2022), ATEX Directive 2014/34/EU, EMC Directive 2014/30/EU |
| Operating temperature | −5°C to +37°C |
| Filtration | 5 stages: pre-filter ×2 + ULPA U15 (working air) + ULPA U15 (cooling air) |
| EU filter class | Class H (EN 60335-2-69) |
| US filter class | ULPA U15 (EN 1822 / IEST-RP-CC001) |
| Collection system | Sealed single-use canister, AISI 430, 12 / 20 / 40 L |
| Cleanroom compatibility | ISO Class 4 (ISO 14644-1) |
| OEB suitability | OEB 4–5 |
| Material — filter housing | Stainless steel AISI 430, electropolished |
| Material — single-use canister | AISI 430 (40L) / AISI 304 (12L and 20L) |
| EMI/RFI | Shielded |
| ESD | Safe (all accessories in static dissipative material) |
| Filter indicator | Filter blockage indicator (LED) |
| Collection type | Dry only |

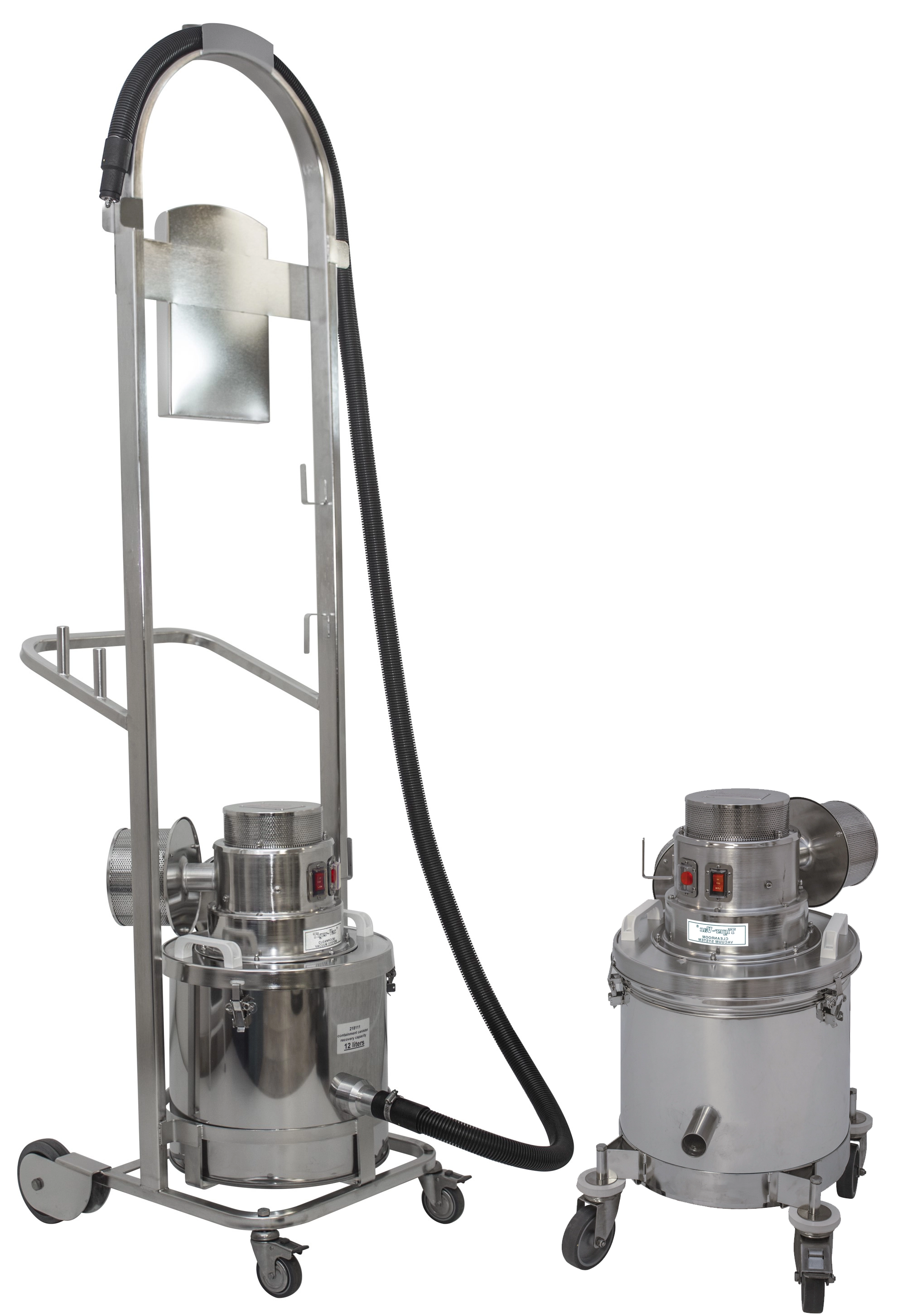

Models and part numbers
| Model | Part no. | Canister | Dimensions (W×L) | Airflow | Vacuum |
|---|---|---|---|---|---|
| CWR-10 EX (CV) 12L | 110542B | 12 L | 46×76 cm | 189 m³/h | 2,180 mm H₂O |
| CWR-10 EX (CV) 20L | 110543B | 20 L | 46×76 cm | 189 m³/h | 2,180 mm H₂O |
| CWR-10 EX (CV) 40L | 110544B | 40 L | 46×76 cm | 189 m³/h | 2,180 mm H₂O |
Optional accessories
| Hose stand in SS 304 (art. 216932A) | Electropolished AISI 304 stand with hose hanger extension. Developed for Novartis. Ensures contamination-free hose storage. |
| 4-wheel cart in SS 316 (art. 211688C) | Electropolished AISI 316, grey conductive wheels. |
| Short suction hose (art. 323427-5) | Static conductive crushproof, Ø32 mm × 1.5 m. |
Product images
