White Line • Delfin • Mobile industrial waste collection — largest model

Delfin AS 70

Mobile industrial waste collection unit for high-volume collection of production scraps, textile waste and packaging material. Maintenance-free motor for continuous 24/7 operation. 5.5 kW, 530 m³/h. Complete painted steel construction. 210 L collection tank.

Maintenance-free motor — no brushes, no service stops
Continuous 24/7 operation — 3,000 mmH₂O continuous lift
530 m³/h air flow — high capacity
210 L tank — extra large capacity for many hours without emptying
5.5 kW motor — largest power in the AS series
IP65 — protected from dust and water spray

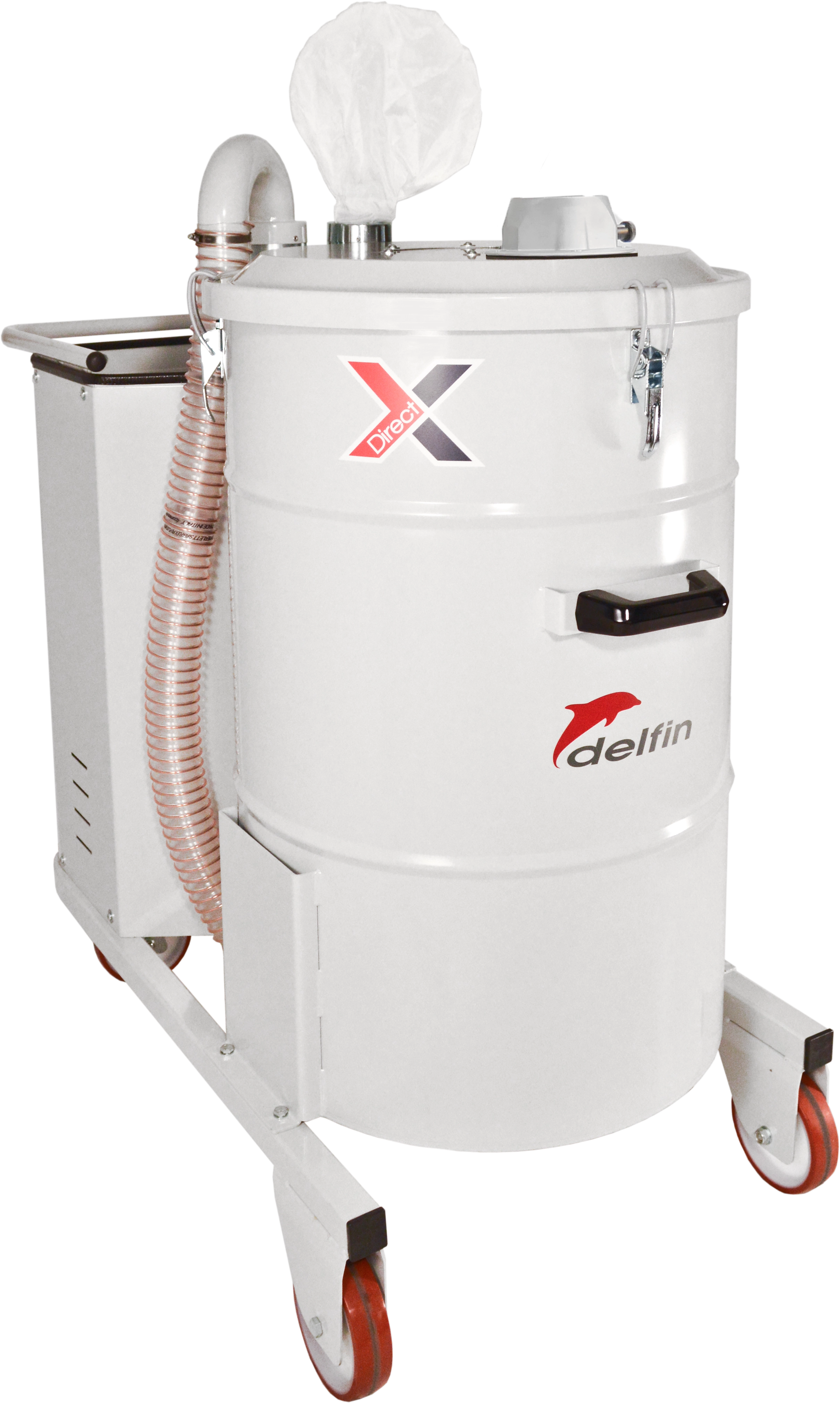

Delfin AS 70 largest mobile industrial waste collection unit

CE — Machinery Directive 2006/42/EC

IP65 — water and dust ingress protection

Continuous 24/7 operation

Stainless steel as option

What is the Delfin AS 70?

The Delfin AS 70 is the largest model in the AS series, designed for high-volume collection of production waste, textile scraps and packaging material from factories with high throughput. With a 5.5 kW motor, 530 m³/h maximum air flow and 3,000 mmH₂O continuous lift, the AS 70 can handle permanent, heavy waste collection tasks without breaks. The 210 L collection tank means fewer empties and more efficient operation.

Construction is complete painted steel with IP65 rating for full protection against dust and water spray. The motor is maintenance-free and designed for continuous 24/7 operation without service stops. Like all AS models, it is mobile with 4 wheels and pull handles for manual movement, although it is naturally heavier (125 kg) and is often placed as a fixed unit in a work area.

Largest power in the AS series: The AS 70 with 5.5 kW and 530 m³/h is optimized for high-load operation where you need to collect large volumes of waste continuously. If you have smaller tasks or variable operation, the AS 10, AS 20 or AS 30 may be more economical.

Technical specifications

Parameter	Value
Voltage	400 V, 50 Hz, 3-phase
Power / Current	5.5 kW / 11 A
IP class	IP65
Max lift	3,600 mmH₂O
Continuous lift	3,000 mmH₂O
Max air flow	530 m³/h
Inlet opening	Ø 80 mm
Collection tank	210 L
Filter	Nylon bag
Filter surface	560-820 mm
Sound level (EN ISO 3744)	71 dB(A)
Dimensions (W x D x H)	63 x 100 x 125 cm
Weight	125 kg
Motor type	Maintenance-free for continuous operation
Operation	Continuous 24/7
Construction	Complete painted steel
Mobility	4 wheels with manual pull handle

CE marking based on: EN 60335-2-2 • Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU

Options

The AS 70 can be configured with a range of options that adapt the unit to specific environmental requirements — from improved filtration to full stainless steel construction.

Earth grounding — ESD protection against electrostatic discharge
Sieve basket — for separating larger particles from fine waste
Polyester filter bag — alternative to standard nylon
Various 90-degree connections — 40, 50, 63 or 80 mm

Questions and answers

What makes the AS 70 different from AS 10/20/30?

The AS 70 is the largest model in the AS series and differs significantly from the smaller models. With a 5.5 kW motor, 530 m³/h air flow and 3,000 mmH₂O continuous lift, the AS 70 is designed for high-volume waste collection. Tank capacity is 210 L (vs 130 L) and it weighs 125 kg. Choose AS 70 when you need to handle large volumes of production waste continuously.

What size work area can the AS 70 cover?

With 530 m³/h maximum air flow and 3,600 mmH₂O maximum lift, the AS 70 can cover large areas and work with long suction hose runs. The design allows you to place the unit centrally on the factory floor and cover entire sections or multiple production areas simultaneously.

Is the AS 70 suitable for continuous industrial operation?

Yes. The motor is maintenance-free and designed for continuous 24/7 operation without service stops. The 3,000 mmH₂O continuous lift means the unit can run under full load all the time without dropping out.

What does the AS 70 weigh and how is it moved?

The AS 70 weighs 125 kg, making it significantly heavier than the smaller AS models. It has larger wheels and more robust pull handles for manual movement. Due to its size, it is best suited for stationary placement in a production area or workspace, although it can still be moved when necessary.

Can the AS 70 be upgraded with stainless steel?

As standard, the AS 70 is made in painted steel. It can be upgraded with a stainless steel AISI 304 tank and cover for environments requiring chemical resistance. Earth grounding and other options are also available.

What options are available for the AS 70?

Options include: antistatic class M polyester filter, stainless steel AISI 304 tank and cover, earth grounding (ESD), sieve basket and various 90-degree connections (40-80 mm). Sets of nylon bags (5 pc) can be ordered as consumables.

Is the AS 70 the right high-capacity solution for you?

We help you evaluate whether the AS 70 or a smaller model suits your waste volume and operation. Call or email — consultation is free and without obligation.
