White Line • Clean Room • Dry Recovery Only

Tiger-Vac CD-1500 CR (PFB) WHITE LINE

Cleanroom-compatible vacuum with TEFC motor for continuous 24/7 operation. ISO Class 4. HEPA H14 and ULPA U15 optional. Single-phase and three-phase versions. Disposable filter bag (PFB) system. White powder coat or optional stainless steel.

  • TEFC motor — continuous 24/7 operation without service interruptions
  • ISO Class 4 compatible — designed for cleanrooms and pharmaceutical environments
  • HEPA H14 and ULPA U15 optional — 99.995% and 99.999% filtration
  • 19 L collection tank with 15 L disposable filter bag
  • Single-phase (230V) and three-phase (400V) — same performance
  • High-purity recovery — ideal for tablet recovery in pharma
Contact us All White Line vacuums
Tiger-Vac CD-1500 CR (PFB) cleanroom vacuum with TEFC motor
HEPA H14 — 99.995% at 0.3 micron (optional)
ULPA U15 — 99.999% at 0.12 micron (optional)
ISO Class 4 — cleanroom compatible
CE — Machinery Directive 2006/42/EC

What is Tiger-Vac CD-1500 CR (PFB) WHITE LINE?

Tiger-Vac CD-1500 CR (PFB) WHITE LINE is a cleanroom-compatible vacuum designed for pharmaceutical, medical, and food industries. With a TEFC motor (Fully Enclosed Fan Cooled), it runs uninterrupted 24/7 without maintenance or brush wear. The Pre-Filter Bag (PFB) system uses disposable filter bags of 15 L, making maintenance simple: discard and replace without calibration.

The machine meets ISO Class 4 requirements and can be equipped with HEPA H14 filter (99.995% at 0.3 micron) or ULPA U15 filter (99.999% at 0.12 micron) for even cleaner exhaust. It is supplied in white powder coat construction and can be upgraded to full stainless steel (AISI 304) or mixed white/stainless for chemical-resistant environments. The Carriage Base trolley with 4 wheels makes it easy to move between work areas or production lines.

High-purity recovery for pharmaceutical industry: Tiger-Vac CD-1500 CR is ideal for tablet recovery from production lines or tablet presses. It protects valuable products while ensuring efficient collection in an open environment.

Technical specifications

ParameterThree-Phase (400V)Single-Phase (230V)
Voltage / Frequency400 V, 50 Hz230 V, 50 Hz
Power / Current0.9 kW / 1.9 A0.9 kW / 9 A
Max Air Flow187 m₃/h
Max Suction2540 mmH₂O
Noise Level (EN ISO 3744)64 dB(A)
Motor TypeTEFC — continuous duty
OperationContinuous 24/7
Suction InletØ50 mm
Collection Tank19 L
Disposable Filter Bag (PFB)15 L
Standard Filter TypePre-Filter Bag — disposable bag
HEPA H14 (optional)99.995% at 0.3 micron
ULPA U15 (optional)99.999% at 0.12 micron
ISO Class ComplianceISO Class 4 cleanroom compatible
Dimensions (H x W x L)94 x 50 x 34 cm
Weight49 kg
Cord Length10 m
CarriageCarriage Base (CB) with 4 wheels
ConstructionWhite powder coat — optional full or half stainless steel
Vertical MountingPossible for space constraints
RecoveryDry recovery only

CE marking based on: EN 60335-2-2 • Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU

Options and configurations

Tiger-Vac CD-1500 CR (PFB) can be customized to specific environmental and production requirements. Choose from these options:

  • HEPA H14 filter — 99.995% filtration at 0.3 micron for classified cleanrooms
  • ULPA U15 filter — 99.999% filtration at 0.12 micron for ultra-clean exhaust
  • Full stainless steel (AISI 304) — entire machine in AISI 304 for chemical-resistant environments
  • Half stainless steel / half white powder coat — mixed construction as needed
  • Vertical mounting — reduction of floor space with vertical placement
  • Suction arm as option — flexible collection directly from production lines
  • Disposable filter bags — replacement bags (15 L) as consumables
  • Poly liner recovery bags — clear polyethylene inserts for easy collection

Accessories

Selection of authorized accessories improves functionality and flexibility:

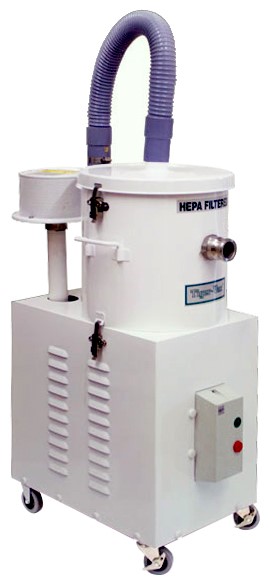

Tiger-Vac CD-1500 CR STD WHITE LINE alternative machine
Tiger-Vac CD-1500 CR STD
HEPA H14 filter 99.995% at 0.3 micron
HEPA H14 Filter
Clear polyethylene recovery bags
Poly Liner Recovery Bags

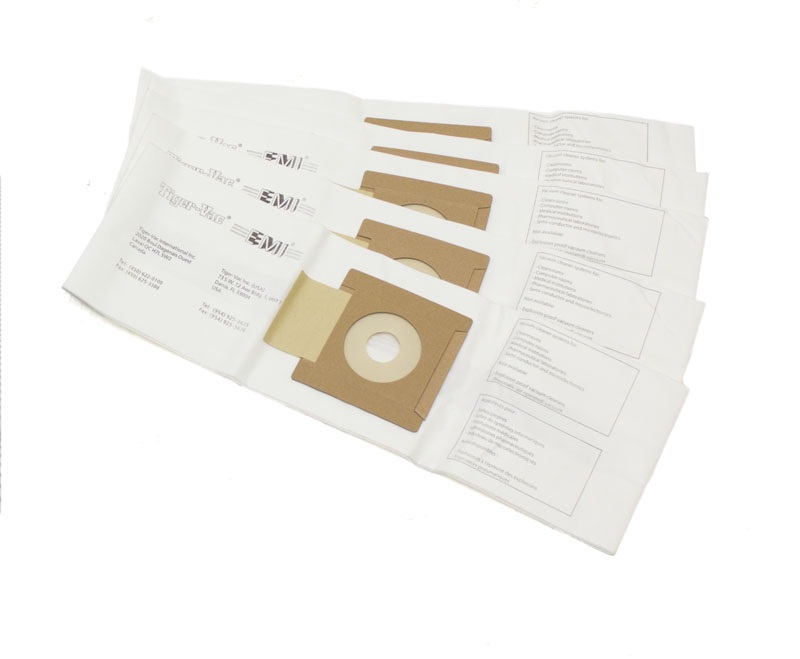

Disposable filter bag 15 L for Tiger-Vac CD-1500
Disposable Filter Bag (15 L)

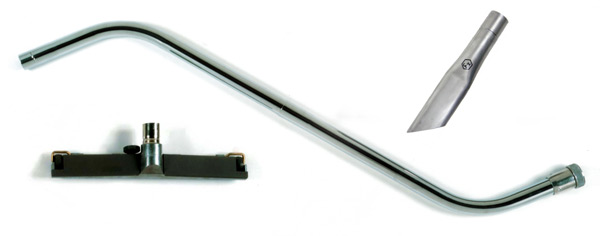

Tools and Accessories Toolkit
Tools & Accessories Toolkit

Questions and answers

PFB stands for Pre-Filter Bag - a disposable filter system that simplifies maintenance and operation. Instead of having to clean and maintain a reusable filter, the CD-1500 CR is equipped with disposable bags of 15 L that can be discarded and replaced without calibration or adjustment. This reduces machine downtime and ensures that filtration remains optimal at all times.
Yes. Tiger-Vac CD-1500 CR is specifically designed for cleanroom compatibility and meets ISO Class 4 requirements. It can be supplied with HEPA H14 filter (99.995% at 0.3 micron) or ULPA U15 filter (99.999% at 0.12 micron) for even cleaner exhaust, and is often used in pharmaceutical and medical manufacturing.
Both versions deliver the same performance: 0.9 kW, 187 m₃/h air flow, 2540 mmH₂O suction, and 64 dB(A) noise. Choose single-phase (230V) if your laboratory or production facility only has single-phase power available. Choose three-phase (400V) if you have three-phase installed - it is more energy efficient for larger installations.
TEFC means Fully Enclosed Fan Cooled - a robust motor type with no exposed parts or brush wear. This design allows the machine to run 24/7 without maintenance or thermal throttling. It makes CD-1500 CR ideal for pharma production where uninterrupted operation is critical.
Standard is the disposable filter bag system (PFB) at 15 L. As an optional upgrade, you can get HEPA H14 filter (99.995% at 0.3 micron) or ULPA U15 filter (99.999% at 0.12 micron) for classified cleanrooms. Filter choices do not affect the base machine, only the exhaust purity.
Yes. The machine is designed for high-purity tablet recovery without damaging products. The 19 L collection tank combined with soft suction characteristics makes it ideal for collecting valuable pharmaceutical components from production lines or tablet presses.
Yes. Tiger-Vac CD-1500 CR can be mounted vertically, making it ideal for small laboratories or cleanrooms with limited floor space. Vertical mounting does not change performance or operating patterns, but requires proper installation conditions.
WHITE LINE indicates that the machine is supplied with white powder coat finish and is designed for cleanroom and clean-room environments. It can also be supplied in full stainless steel (AISI 304) or mixed white/stainless construction depending on your chemical resistance and environmental requirements.

Is the Tiger-Vac CD-1500 CR (PFB) right for your production?

We help you choose the right version - single-phase or three-phase - as well as options such as HEPA/ULPA filters, stainless steel or vertical mounting. The consultation is free and without obligation.
