White Line • Clean Room • Process Extraction

Tiger-Vac CD-2600 CR (ARP) WHITE LINE

Powerful stationary dust collector with Automatic Reverse Purge system for continuous filter cleaning without downtime. Two 3-phase motor sizes: 2.2 kW or 3.7 kW. 36 L detachable recovery tank. ISO Class 4. HEPA H14 and ULPA U15 optional. White powder coat or optional stainless steel.

  • TEFC motor - continuous 24/7 operation without service stops
  • Automatic Reverse Purge (ARP) - automatic filter cleaning without user intervention
  • Two motor sizes - 2.2 kW or 3.7 kW - both 3-phase only
  • 36 L detachable recovery tank - easy to empty and handle
  • High vacuum - 3300-3560 mmH₂O for process extraction
  • ISO Class 4 compatible - ideal for pharmaceutical and food industry
Contact us All White Line vacuums

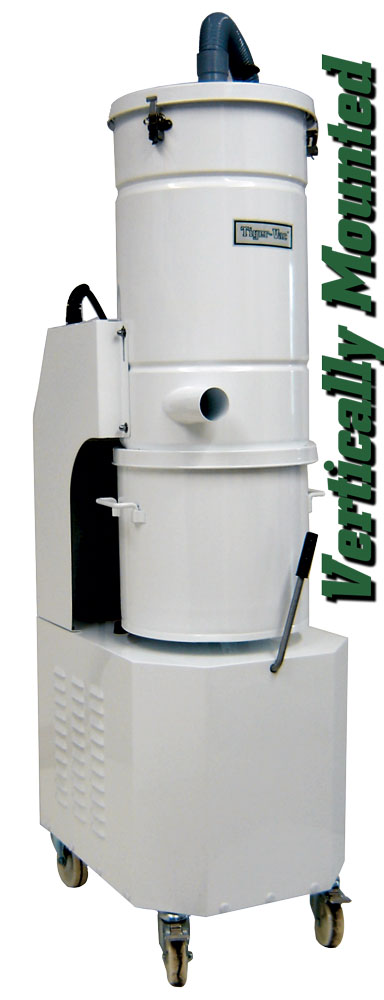

Tiger-Vac CD-2600 CR (ARP) process extraction with Automatic Reverse Purge
ARP System - Automatic Reverse Purge for continuous filter cleaning
HEPA H14 - 99.995% at 0.3 micron (optional)
ULPA U15 - 99.999% at 0.12 micron (optional)
ISO Class 4 - cleanroom compatible
CE - Machinery Directive 2006/42/EC

What is Tiger-Vac CD-2600 CR (ARP) WHITE LINE?

Tiger-Vac CD-2600 CR (ARP) WHITE LINE is a powerful stationary dust collector with an Automatic Reverse Purge system designed for process extraction, machine exhaust, and material handling in pharmaceutical, medicinal, and food industries. With continuous automatic filter cleaning through reverse air pulse technology, the filter is cleaned continuously during operation - without downtime, manual intervention, or filter maintenance.

The machine offers two 3-phase motor sizes (400V, 50Hz only): 2.2 kW at 330 m³/h or 3.7 kW at 340 m³/h. Both deliver exceptionally high vacuum - up to 3560 mmH₂O - for heavy process extraction. The 36 L recovery tank is completely detachable for easy handling and disposal, and includes a conductive aluminized spun bond polyester cartridge with static dissipative properties to protect sensitive or explosive materials.

The machine complies with ISO Class 4 requirements and can be equipped with HEPA H14 filter (99.995% at 0.3 micron) or ULPA U15 filter (99.999% at 0.12 micron) for even cleaner exhaust air. At H191 cm × W51 cm × D66 cm and 112 kg weight, with Carriage Base cart and 4 wheels for easy transport. White powder coat construction with optional full stainless steel (AISI 304) or mixed white/stainless for chemical environments.

ARP system - automatic filter cleaning without downtime: Unlike manual or semi-automatic systems, the ARP system keeps the filter constantly clean through regular reverse air pulse cycles. Filter capacity remains optimal, vacuum levels stay stable, and the machine can run continuously 24/7 without manual cleaning or maintenance.

Technical Specifications

Parameter2.2 kW Motor3.7 kW Motor
Voltage / frequency3-phase 400 V, 50 Hz3-phase 400 V, 50 Hz
Power / current2.2 kW / 6 A3.7 kW / 7.4 A
Airflow330 m³/h340 m³/h
Maximum vacuum3.300 mmH₂O3.560 mmH₂O
Noise level (EN ISO 3744)68 dB(A)
Motor typeTEFC - continuous duty
OperationContinuous 24/7
Filter cleaningAutomatic Reverse Purge (ARP)
Filter cartridgeConductive aluminized spun bond polyester - static dissipative
Suction inletØ50 mm
Recovery tank36 L detachable
HEPA H14 (optional)99.995% at 0.3 micron
ULPA U15 (optional)99.999% at 0.12 micron
ISO Class complianceISO Class 4 cleanroom-compatible
Dimensions (H×W×D)191 × 51 × 66 cm
Weight112 kg
Cord length10 m
CartCarriage Base (CB) with 4 wheels
ConstructionWhite powder coat - optional full or half stainless steel
Vertical mountingPossible for space constraints
RecoveryDry recovery only

CE marking based on: EN 60335-2-2 • Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU

Options and Configurations

Tiger-Vac CD-2600 CR (ARP) can be customized for specific environmental and production requirements. Choose from these options:

  • HEPA H14 filter - 99.995% filtration at 0.3 micron for classified cleanrooms
  • ULPA U15 filter - 99.999% filtration at 0.12 micron for ultra-clean exhaust
  • Full stainless steel (AISI 304) - entire machine in AISI 304 for chemical-resistant environments
  • Half stainless steel / half white powder coat - mixed construction as needed
  • Vertical mounting - floor space reduction with vertical placement
  • Process extraction hoses - flexible hoses for direct machine connection
  • Noise dampening enclosure - acoustic protection for lower dB(A) levels
  • Enhanced separate filter tank - extra filter capacity for longer operation cycles

Accessories

A selection of authorized accessories improves functionality and flexibility:

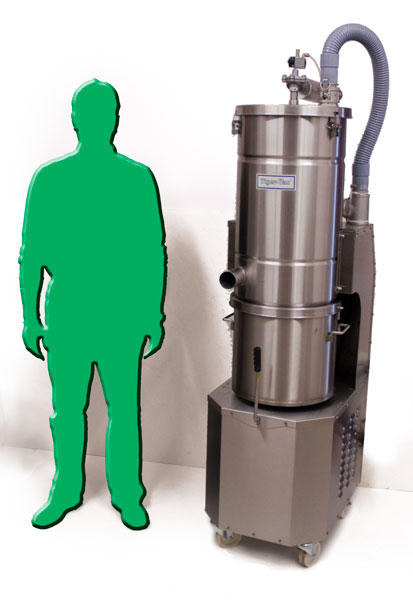

Tiger-Vac CD-2600 size comparison with man
Size Comparison

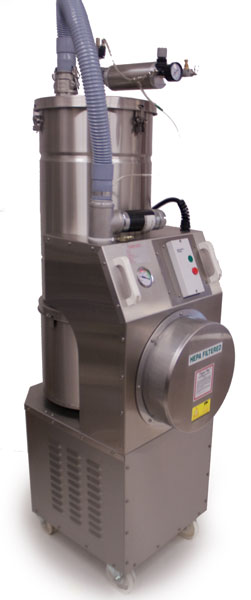

Tiger-Vac CD-2600 CR rear view with exhaust filter
Rear View with Exhaust Filter

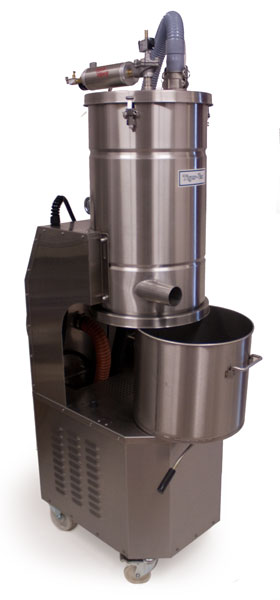

Tiger-Vac CD-2600 with detachable recovery tank removed
Detachable Recovery Tank Removed
Conductive aluminized spun bond reverse purge cartridge
Conductive Aluminized Spun Bond Cartridge

Questions and Answers

ARP stands for Automatic Reverse Purge - an automatic filter cleaning system that continuously purges the filter during operation without requiring manual intervention or downtime. A reverse air pulse propels precipitated dust back into the recovery tank, keeping the filter perfectly clean at all times and maintaining constant vacuum and efficiency.
The ARP system provides continuous, automatic filter cleaning without downtime. With manual systems, operators must stop the machine and shake or tap the filter to remove dust. With ARP, cleaning occurs automatically in the background, meaning the machine never loses suction efficiency and all dust is constantly collected without manual intervention.
The CD-2600 is a large stationary machine designed for industrial and process extraction where 3-phase power is standard. With two motor sizes (2.2 kW and 3.7 kW), 3-phase power (400V, 50Hz) is required to deliver the necessary performance - 330 to 340 m³/h airflow and 3300-3560 mmH₂O vacuum. Single-phase would be insufficient for this power level.
The recovery tank is 36 L and completely detachable from the machine, making it extremely easy to empty and handle dust without opening or servicing the machine. The detachable tank is ideal for pharmaceutical and food production where handling and disposal are critical. When the tank is full, it is simply removed, emptied, and reused.
Yes, absolutely. The CD-2600 CR (ARP) is designed specifically for high-value products and sensitive materials in pharmaceutical, medicinal, and food industries. The machine complies with ISO Class 4 and can be equipped with HEPA H14 or ULPA U15 filters. The conductive aluminized spun bond polyester cartridge is static dissipative, protecting products from electrostatic discharge.
The 2.2 kW motor delivers 330 m³/h and 3300 mmH₂O vacuum, while the 3.7 kW motor delivers 340 m³/h and 3560 mmH₂O vacuum. Both have the same noise level (68 dB(A)). Choose 2.2 kW if you have smaller process extraction needs, or choose 3.7 kW for heavy-duty or high-volume machine extraction.
Yes, that is exactly what the machine is designed for. With both high airflow (up to 340 m³/h) and high vacuum (up to 3560 mmH₂O), the CD-2600 CR can be connected directly to production machinery to collect dry materials, chips, or dust from manufacturing processes without external collection points or interruptions.
WHITE LINE means the machine is sealed with white powder coat finish, making it highly resistant to scratches, chemicals, and normal wear in cleanroom environments. The machine can also be supplied in full stainless steel (AISI 304) for extra resistance to corrosive chemicals, or as half stainless/half white to balance price and functionality.
Yes. The Tiger-Vac CD-2600 CR can be mounted vertically, making it ideal for small laboratories or production areas with limited floor space. Vertical mounting does not change the machine's performance or operation pattern.
ISO Class 4 means the machine is designed to operate in cleanroom environments classified as ISO 14644 Class 4 - typically pharmaceutical production and medicinal manufacturing. With HEPA H14 or ULPA U15 filters, maximum cleanliness assurance is ensured in exhaust air.

Is Tiger-Vac CD-2600 CR (ARP) the right choice for your production?

We help you choose the right motor size - 2.2 kW or 3.7 kW - as well as options like HEPA/ULPA filters, stainless steel, or vertical mounting. Consultation is free and without obligation.
