White Line • Depureco • Stationary dust collector
Depureco DF FIX 55 / 75
Stationary dust collector with 175 L bin in two motor variants (5.5 and 7.5 kW). Up to 3,900 m³/h, 575 mmH₂O and 175 L capacity. Class M star filter with pneumatic shaker cleaning (PSC) as standard. Integrated control panel with remote control. IP55.
- Two motor variants — 5.5 and 7.5 kW
- Up to 3,900 m³/h airflow
- Up to 575 mmH₂O vacuum (static 539)
- Pneumatic PSC shaker standard — 45,000 cm² star filter
- Integrated control panel with remote, safety valve and silencer
- 175 L bin — IP55 and insulation class F

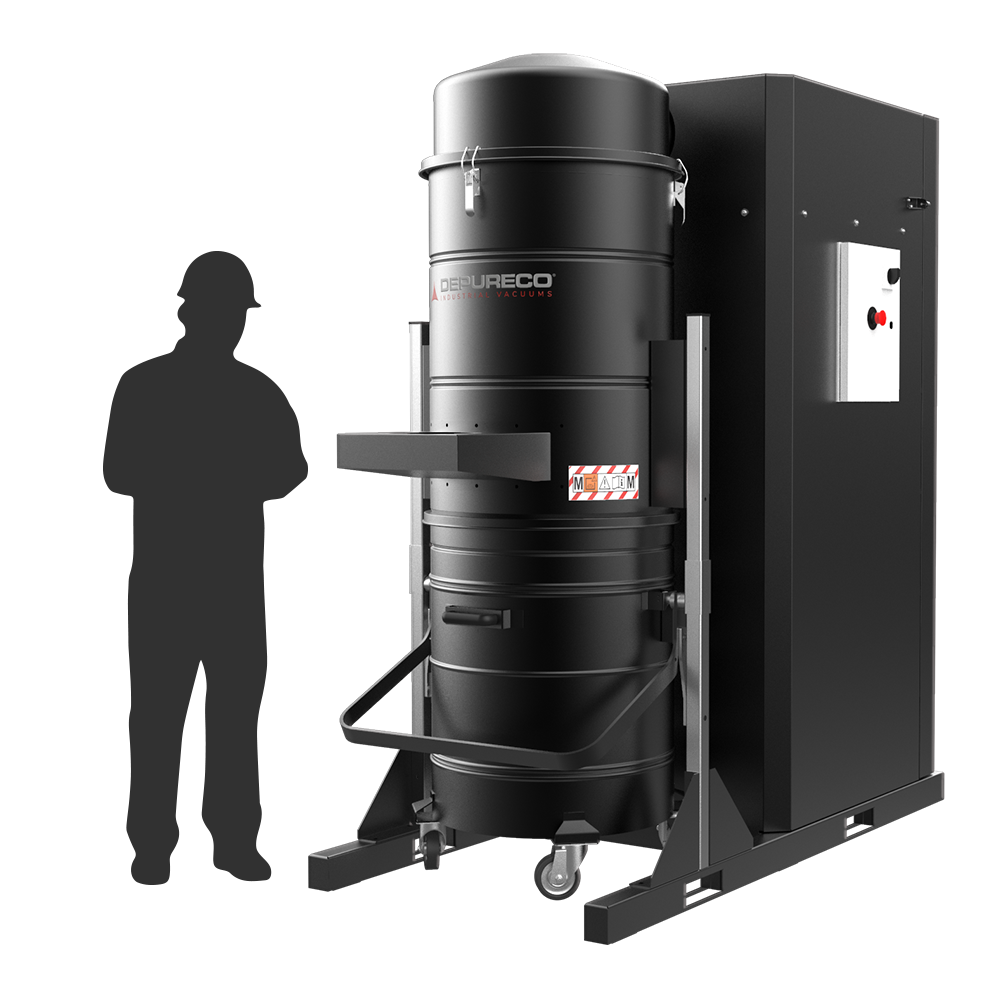

What is the Depureco DF FIX 55 and 75?
The Depureco DF FIX 55 and DF FIX 75 are stationary dust collectors with a collection bin, designed for permanent installation in production environments where large airflow volumes and continuous duty are essential. Both units share the same chassis and 175 L bin; the difference lies in motor performance. The DF FIX 55 delivers 2,700 m³/h at 517 mmH₂O, while the DF FIX 75 delivers 3,900 m³/h at 575 mmH₂O.
The primary filter is a polyester star filter in class M with a 45,000 cm² surface area, and a pneumatic filter shaker (PSC) is fitted as standard. The integrated control panel includes a remote control, safety valve and inlet silencer. Options include automatic reverse-jet cartridge cleaning (SP), a HEPA H14 absolute filter and stainless-steel construction.
Technical specifications
| Parameter | DF FIX 55 | DF FIX 75 |
|---|---|---|
| Motor type | Centrifugal fan | |
| Power | 5.5 kW (7.5 HP) | 7.5 kW (10 HP) |
| Voltage / frequency | 400 V, 50/60 Hz, 3-phase | |
| IP rating / insulation | IP55 — insulation class F | |
| Max vacuum | 517 mmH₂O | 575 mmH₂O |
| Static depression | 480 mmH₂O | 539 mmH₂O |
| Max airflow | 2,700 m³/h | 3,900 m³/h |
| Inlet | Ø200 mm | |
| Noise level | 74 dB(A) | |
| Bin capacity | 175 L | |
| Dimensions (L×W) | 1,670 × 850 mm | |
| Height | 1,980 mm | |
| Weight | 220 kg | |
| Primary filter | Star — Polyester class M (IEC 60335-2-69) — 45,000 cm² | |
| Filter cleaning (std.) | PSC — pneumatic filter shaker | |
| Auto cleaning (option) | SP — 4× cartridge, 120,000 cm² antistatic polyester, reverse-jet | |
| HEPA option | H14 — 160,000 cm² fibreglass (EN 1822) | |
| Control panel (included) | Remote control, safety valve, inlet silencer, 5 m cable | |
| Construction | Powder-coated steel — stainless steel as option | |
CE marking based on: EN 60335-2-69 • IEC 60335-2-69 • Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU
Options
The DF FIX can be configured with an extensive range of filter, construction and control panel options that tailor the machine to specific environmental and process requirements.
- H14 absolute filter (HEPA) — secondary filter, 160,000 cm² fibreglass (P12829)
- ANT M — class M antistatic filter — star filter
- PTFE — class M PTFE-coated filter — 38,000 cm²
- PTFE ANT — antistatic PTFE class M filter — 38,000 cm²
- SP — automatic reverse-jet cartridge cleaning — 4× antistatic polyester cartridge, 12 m²
- BX — stainless steel bin — AISI 304
- GX — stainless steel bin and filter chamber — AISI 304
- GRD — earth grounding — ESD protection against electrostatic charging
- LR — local remote control — wired remote start/stop
- WRLS — wireless remote control — range from the operator station
- SP cleaning control on the filter unit — control panel extension
- Discharge system control — control panel extension
- Pressure stabiliser with touch display — constant vacuum regardless of filter state
- Level sensor on the filter / collection unit — control panel extension
- Inverter — variable motor speed (on request)
Accessories
The extensive accessory programme makes the DF FIX flexible in combination with suction hoses, spare filters and alternative inlet sizes.
- P12300/150, /180, /200 — flanged connection for flexible suction hose, Ø150, 180 and 200 mm
- P12359, P12360, P12503 — metal hose clamps, Ø150, 180 and 200 mm
- P09120 — spare M filter (star filter)
- P09577 — spare cartridge filter for SP version (1 pcs)
