White Line • Depureco • Mobile dust collector

Depureco DF 075

Mobile dust collector with a centrifugal fan for fine airborne particles. 0.75 kW, up to 800 m³/h depending on inlet size (Ø70, 100 or 120 mm). 65 L bin, class M star filter and optional automatic reverse-jet cartridge cleaning. HEPA H13 available as option.

0.75 kW centrifugal fan — robust and quiet operation
Three selectable inlet sizes — Ø70, 100 or 120 mm
Up to 800 m³/h airflow
Class M star filter with 24,000 cm² surface
Optional reverse-jet cartridge cleaning (SP)
IP55 with insulation class F — ready for demanding environments

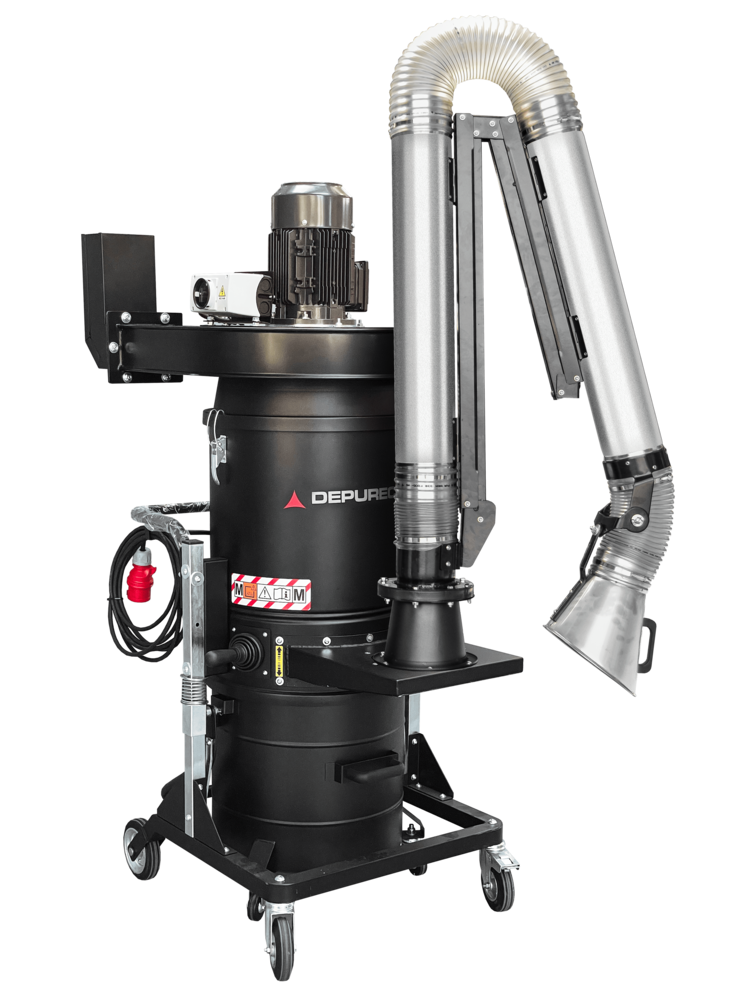

Depureco DF 075 mobile dust collector with centrifugal fan and articulated extraction arm

CE — Machinery Directive 2006/42/EC

EN 60335-2-69

IP55 — Insulation class F

Class M star filter

H13 absolute filter available as option

What is the Depureco DF 075?

The Depureco DF 075 is a mobile dust collector with a centrifugal fan, developed for capturing fine airborne particles in production environments with moderate air volumes. The machine is supplied with three selectable inlet diameters (Ø70, 100 and 120 mm), which affect both the airflow and the available vacuum: the smallest Ø70 version reaches 185 mmH₂O at 300 m³/h, while the largest Ø120 version delivers up to 800 m³/h at 180 mmH₂O. The 0.75 kW drivetrain is IP55 rated with insulation class F.

The primary filter is a polyester class M star filter with 24,000 cm² surface and manual shake cleaning. Available as options are an automatic reverse-jet cartridge system (SP) with 90,000 cm² antistatic polyester, and a H13 absolute filter adding 120,000 cm² of fibreglass filtration as a secondary stage. The chassis is painted steel, and the machine is mounted on wheels.

Three inlets — one machine: The DF 075 is a single model that can be supplied with three different suction inlets. Choose Ø70 mm when you need higher vacuum, and Ø120 mm when the task demands maximum airflow. Ø100 mm is a good compromise between the two.

Technical specifications

Parameter	Ø70 mm	Ø100 mm	Ø120 mm
Motor type	Centrifugal fan
Power	0.75 kW (1 HP), 3-phase
Voltage / frequency	400 V, 50/60 Hz
IP rating / insulation	IP55 — insulation class F
Max vacuum	185 mmH₂O	200 mmH₂O	180 mmH₂O
Static depression	180 mmH₂O	192 mmH₂O	170 mmH₂O
Max airflow	300 m³/h	600 m³/h	800 m³/h
Noise level	70 dB(A)
Collection bin	65 L (100 L optional)
Dimensions (L×W)	660 × 800 mm
Height	1,630 mm
Weight	110 kg
Primary filter	Star — Polyester class M (IEC 60335-2-69) — 24,000 cm²
Filter cleaning (std.)	Manual
Automatic cleaning (option)	SP — 3× cartridge, 90,000 cm² antistatic polyester, reverse-jet
HEPA option	H13 — 120,000 cm² fibreglass (EN 1822)
Construction	Painted steel — stainless steel optional

CE marking based on: EN 60335-2-69 • IEC 60335-2-69 • Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU

Options

The DF 075 can be configured with a wide range of options and additional filters that tailor the machine to specific environmental and process requirements.

H13 absolute filter (HEPA) — secondary filter, 120,000 cm² fibreglass, EN 1822-5 (P12819)
BFL — class M filter — additional filter medium, 38,000 cm²
ANT M — class M antistatic filter — 38,000 cm²
NOMEX heat-resistant filter — up to 250 °C
PTFE — class M PTFE-coated filter — 38,000 cm²
PTFE ANT — PTFE antistatic class M filter — 38,000 cm²
SP — automatic reverse-jet cartridge cleaning — 3× antistatic polyester cartridges, 9 m²
PSC — pneumatic filter shaker — pneumatic cleaning system
ACB — activated carbon filter — odour reduction and gas filtration
BX — stainless steel bin — AISI 304
GX — stainless steel bin and filter chamber — AISI 304
TX — full stainless steel construction — AISI 304 (fan excluded)
SIL — silencer kit — reduces operating noise
100LT — 100 L bin — larger collection capacity
FX — stainless steel fan — AISI 304
GRD — earth grounding — ESD protection against electrostatic charging
UL/CSA — UL/CSA certification (on request)

Accessories

The accessory programme includes flexible hoses, couplings, extraction arms and spare filters.

P12300/70, /100, /120 — flanged connections for flexible hoses, Ø70, 100 and 120 mm
P09697, P10095, P12358 — metal hose clamps, Ø70, 100 and 120 mm
P12334/100 — flanged coupling for articulated extraction arm Ø100 mm
P12336/100 — articulated extraction arm Ø100 mm, 2.7 m reach
P11718 — spare star filter class M
P09577 — spare cartridge filter for the SP version (1 pc)

Questions & answers

Why are there three different inlet diameters on the DF 075?

The DF 075 can be supplied with Ø70, 100 or 120 mm suction inlets, and the choice affects both airflow and available vacuum. The smallest Ø70 version reaches 185 mmH₂O at 300 m³/h; the Ø100 version delivers 200 mmH₂O at 600 m³/h; and the Ø120 version gives 180 mmH₂O at up to 800 m³/h. Pick the smallest diameter when you need higher vacuum, and the largest when you need maximum airflow.

What is the difference between manual and automatic filter cleaning?

The standard version uses a star filter with 24,000 cm² polyester class M, cleaned manually via a shake mechanism. As an option, the SP system adds 3 antistatic cartridge filters (90,000 cm² in total) with automatic reverse-jet cleaning. Automatic cleaning is a real benefit during continuous operation, where stopping to shake the filter manually is impractical.

Can the DF 075 be fitted with a HEPA filter?

Yes. An optional H13 absolute filter with 120,000 cm² fibreglass surface is available, installed as a secondary stage after the primary star filter. This gives significantly higher particle retention for applications where the exhaust air must be especially clean.

How much can the bin hold?

The standard collection bin holds 65 L. As an option, a 100 L bin (100LT) is available if you need longer run time between emptying cycles. The bin sits on wheels and detaches quickly from the filter unit.

Is the DF 075 suitable for ATEX environments?

The standard version of the DF 075 is not ATEX-certified. The machine can, however, be ordered with earth grounding (GRD) as an option, reducing the risk of electrostatic charging. For full ATEX certification, please refer to the DF ATEX range. Contact us for guidance on the right configuration.

What accessories are available?

The accessory programme includes flanged connections for flexible hoses in Ø70, 100 and 120 mm, metal hose clamps, a flanged coupling for an articulated extraction arm (P12334/100), an articulated arm d100 with 2.7 m reach (P12336/100), a spare class M star filter (P11718) and a spare cartridge filter for the SP version (P09577). All accessories can be ordered from us.

Is the Depureco DF 075 the right dust collector for your task?

We help you pick the right inlet size, filter configuration and accessories for your production environment. Call or write — our advice is free and without obligation.
