White Line • Delfin • Heavy-duty Industrial Vacuum

Delfin DM3 EL LP

Powerful industrial vacuum with Longopac endless bag system and 540 m³/h airflow. 3.45 kW single-phase motor. Adjustable height for easy transport. Polyester ANT M star filter with manual cleaning.

  • Longopac endless bag system — dust-free safe emptying of fine dust
  • 540 m³/h airflow — powerful suction for large volumes
  • 3.45 kW single-phase bypass motor — 2,500 mmH₂O suction
  • Adjustable height — easy transport in van or truck
  • Polyester ANT M star filter — antistatic, 30,000 cm²
  • H14 HEPA absolute filter as option — 26,500 cm²
Contact us All White Line models

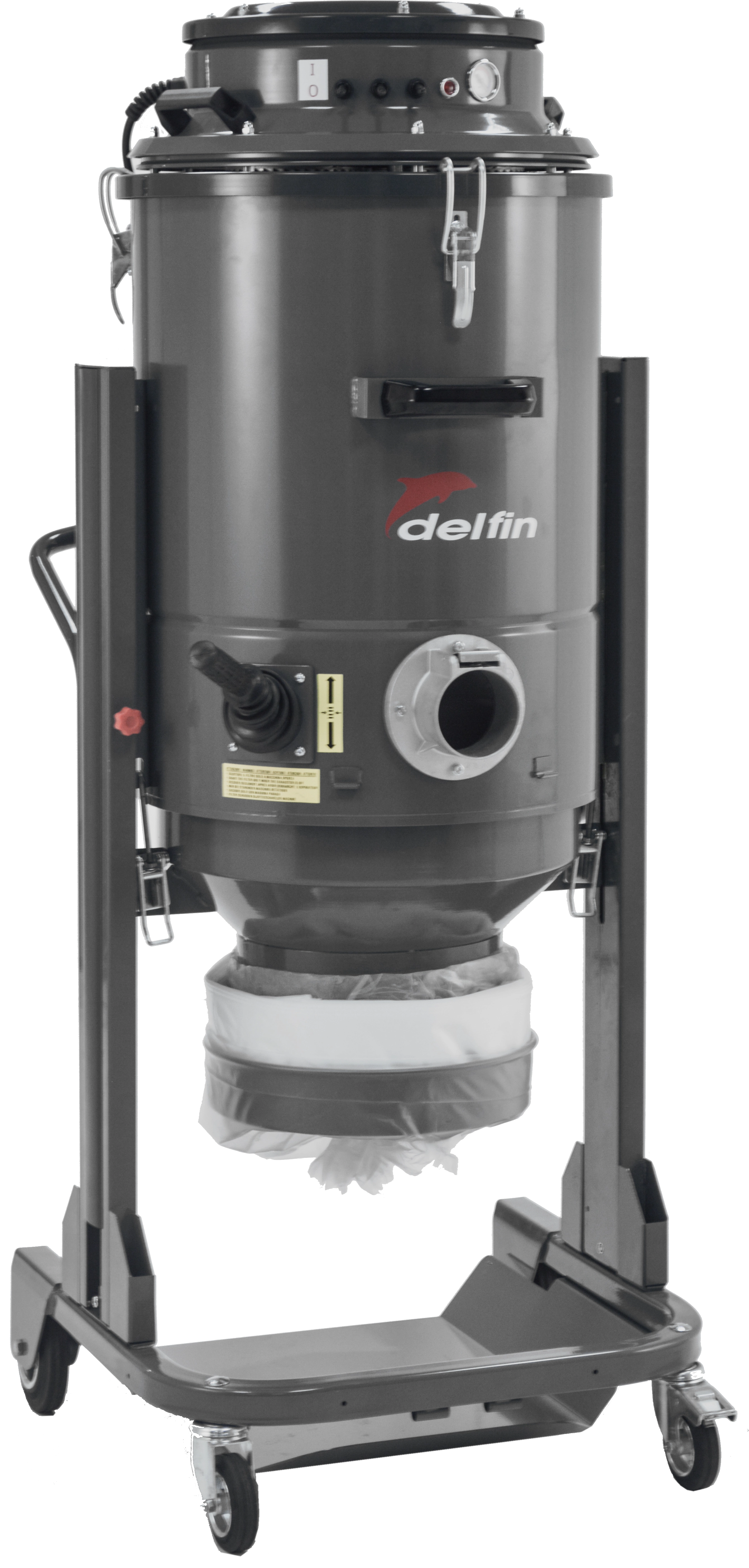

Delfin DM3 EL LP heavy-duty industrial vacuum with Longopac endless bag system and adjustable height
CE — Machinery Directive 2006/42/EC
EN 60335-2-69
Antistatic Polyester ANT M
Longopac endless bag system
H14 HEPA as option

What is Delfin DM3 EL LP?

The Delfin DM3 EL LP is a powerful industrial vacuum designed for large work areas, construction sites, workshops, and production facilities. The 3.45 kW single-phase bypass motor delivers 540 m³/h airflow and achieves 2,500 mmH₂O suction. The machine is equipped with the Longopac endless bag system — a patented system that makes emptying dust-free and safe. The primary filter is a Polyester ANT M star filter with 30,000 cm² filtration surface and manual cleaning.

The adjustable height via retractable column enables the DM3 EL LP to be placed in a van for transport between locations — ideal when work areas change. When parked, the column folds down, reducing vehicle space during transit. The construction is fully painted steel, robust and suited for industrial and building environments.

Longopac system — high containment safety: Instead of handling single-use bags, dust is rolled up in an endless bag inside the machine. As the bag fills, it is forced out through a sealed emptying point at the top and automatically cut off. This means minimal exposure to fine dust, no air release during bag changes, and safe handling of chemicals and sensitive materials.

Technical specifications

ParameterValue
Motor typeBypass
Voltage230 V, 50 Hz, 1-phase
Power / Current3.45 kW / 15 A
Max suction2,500 mmH₂O
Max airflow540 m³/h
Suction inletØ80 mm
Capacity20 m Longopac endless bag
Filter typePolyester ANT M star filter
Primary filter surface30,000 cm²
H14 filter surface26,500 cm² (as option)
Filter cleaningManual
Noise level (EN ISO 3744)76 dB(A)
Dimensions (L×W×H)80 × 66 × 155 cm
Weight70 kg
ConstructionFully painted steel
Air load on filter180 m³/m²/h

CE marking based on: EN 60335-2-69 • IEC 60335-2-69 • Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU

Options

The DM3 EL LP can be configured with options that adapt the machine to specific work environments and dust types.

  • M PTFE ANT filter — PTFE-coated polyester filter bag with antistatic property
  • MT earth grounding — ESD protection against electrostatic charge
  • MT/ANT FILTER earth grounding + filter + chain — combined option
  • H14 HEPA absolute filter — upgrade to 26,500 cm² (99.995% MPPS)

Questions and answers

Longopac is a patented system where dust is rolled up in an endless bag inside the machine. As the bag fills, it is forced out through a sealed opening at the top and automatically cut off. This means: no dust exposure during bag changes, no air release when replacing bags, and safe handling of fine dust and powders. A 20-meter Longopac roll typically provides 5-10 bag cycles, dramatically reducing operator workload compared to traditional single-use bags.
The adjustable height feature (via retractable column) allows the DM3 EL LP to be placed in a van or truck for transport between job sites. When not in use, the column folds down, reducing the footprint during transport. This makes it economical to run a single DM3 EL LP across multiple locations instead of purchasing several fixed units, and it saves time when handling at job sites, workshops, or facilities.
ANT M stands for 'Antistatic, Polyester, Class M' according to European filter classifications. The polyester material provides high filtration and durability. The antistatic property means the filter is coated or designed to reduce electrostatic charge, preventing dust clumping during operation. Class M rating means the filter and system are approved for collecting low-explosive materials—typically Class M substances such as wheat, sugar, and iron oxide dust.
Yes. The DM3 EL LP can be equipped with an H14 HEPA absolute filter with 26,500 cm² filtration surface as an option. This filter is typically mounted after the primary Polyester ANT M star filter, creating a two-stage filtration setup. With the H14 filter, the machine achieves 99.995% particle retention at MPPS, making it suitable for pharmaceutical production, medicine manufacturing, laboratories, and other critical applications. Contact us for advice on the correct H14 installation.
The DM3 EL LP requires significantly less maintenance than many competitors. The primary maintenance item is Longopac bag roll replacement (after the 20-meter roll is used) and occasional manual filter cleaning if dust loading is high. There are no motor brushes or carbon elements to replace, and the bypass motor requires no periodic lubrication. An annual system check (seals, plugs, guides) is recommended to keep the machine in top condition.
Yes, absolutely. This is one of the DM3 EL LP's primary strengths. The combination of the antistatic Polyester ANT M star filter (30,000 cm² surface) and especially the Longopac system makes it ideal for fine dust, powders, and chemicals. The Longopac system drastically reduces exposure when the bag is changed, and it ensures all dust remains sealed during emptying. For very fine particles or handling in pharmaceutical environments, the H14 HEPA filter is recommended as an upgrade.

Ready for heavy-duty dust handling?

The DM3 EL LP combines endless bag safety with industrial power. Contact us for a quote or technical advice.

Contact us All White Line models
