White Line • Delfin • High-capacity

Delfin MTL 202 LP

Compact industrial vacuum with integrated cyclone and Longopac endless bag system for safe, dust-free disposal. 360 m³/h airflow and 2,500 mmH₂O suction. Dustop filter cleaning. PTFE class M cartridge filter.

Integrated cyclone — improved pre-separation before the filter
Longopac endless bag system — safe, dust-free disposal
Dustop automatic filter cleaning — during operation
PTFE class M cartridge filter — 30,000 cm², 120 m³/m²/h
2,500 mmH₂O suction — 360 m³/h airflow
Compact and mobile — 50 × 48 × 125 cm, 55 kg

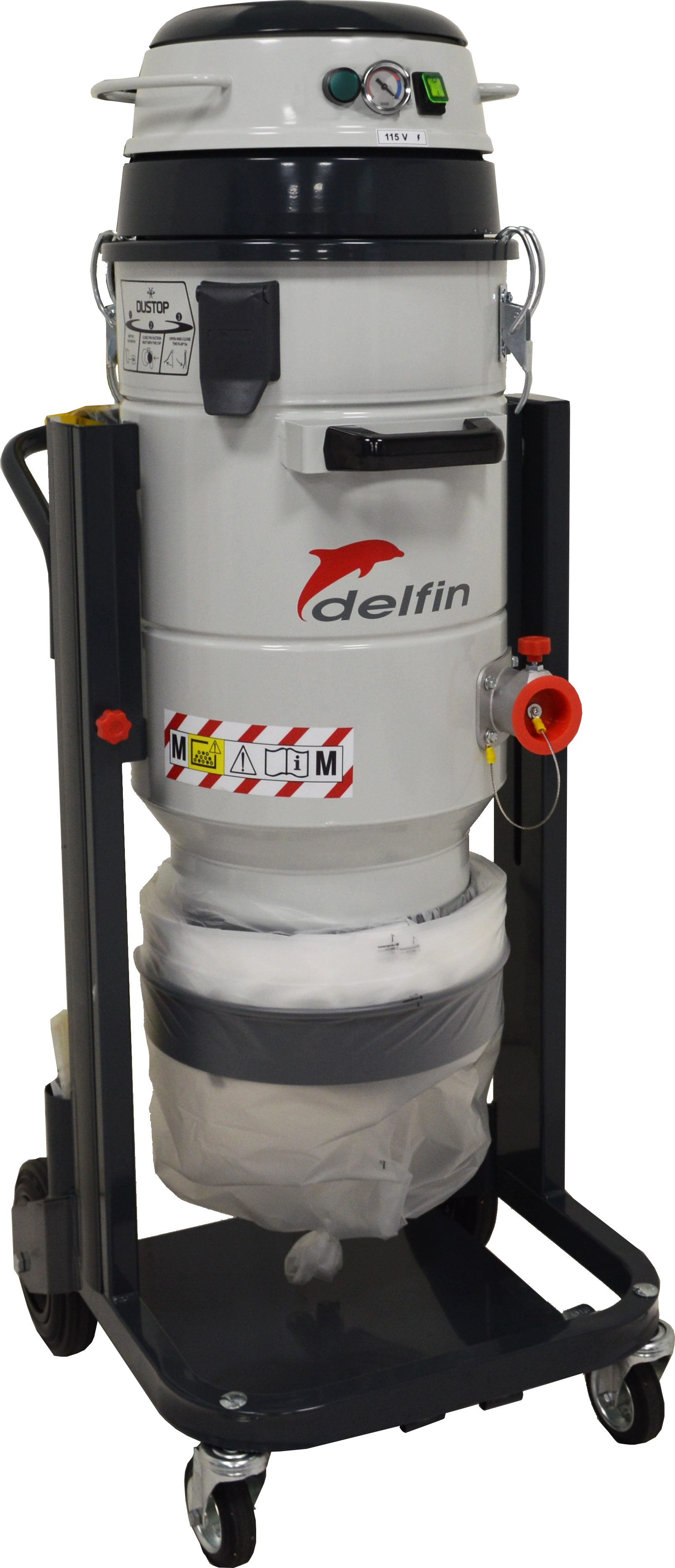

Delfin MTL 202 LP compact dust collector with Longopac endless bag system

CE — Machinery Directive 2006/42/EC

Integrated cyclone

Dustop filter cleaning

Longopac bag system

H14 HEPA as option

What is the Delfin MTL 202 LP?

The Delfin MTL 202 LP is a compact, high-capacity industrial dust collector that combines three key technologies: a bypass motor for high airflow, an integrated cyclone pre-separator for initial particle stratification, and the innovative Longopac endless bag system for dust-free disposal. With 360 m³/h airflow and a suction capacity of 2,500 mmH₂O, it is suitable for heavy dust and particle capture in industrial production environments.

Dustop filter cleaning works automatically during operation: when filter pressure rises, the system automatically sends an air pulse through the filter to dislodge accumulated dust. The Longopac system empties without opening the tank — a 20-meter bag cuts off automatically, and the next rolls into place. This virtually eliminates dust during emptying and significantly improves the work environment.

Endless operational safety: With the bypass motor and Dustop cleaning, the MTL 202 LP can run continuously with no planned downtime for filter changes. The automatic systems also mean lower operational complexity and fewer errors from manual intervention.

Technical specifications

Parameter	Value
Voltage	230 V, 50 Hz, single-phase
Power	2.3 kW / 10 A
Motor type	Bypass
Max airflow	360 m³/h
Max suction	2,500 mmH₂O
Suction inlet	Ø50 mm
Collection	20 m Longopac endless bags
Primary filter	Cartridge filter — Polyester PTFE class M (30,000 cm², Ø360 mm)
Filter load	120 m³/m²/h
Filter cleaning	Dustop — automatic pneumatic
Noise level (EN ISO 3744)	76 dB(A)
Dimensions (W × D × H)	50 × 48 × 125 cm
Weight	55 kg
Construction	Painted steel
Integrated cyclone	Yes — pre-separates large particles
H14 HEPA	Optional (99.995 % MPPS)

CE marking based on: Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU

Options

The MTL 202 LP can be equipped with a range of options that adapt the unit to specific safety and quality requirements.

H14 absolute filter (HEPA) — secondary filter for 99.995 % MPPS retention
Class M antistatic filter — ESD protection against electrostatic buildup
Grounding (MT) — ensures proper earth connection for ESD control
Grounding + antistatic filter (MT/ANT FILTER) — complete ESD package with chain
Accessory basket (BSK) — convenient storage for small parts
3 m hose holder (HOOK) — organized hose management
Differential pressure alarm system (DEPR) — filter condition monitoring

Questions and answers

What is the Longopac endless bag system?

The Longopac endless bag system is an intelligent solution for safe, dust-free emptying of the dust collector's collection tank. Instead of replacing a full bag every time, the next bag in a continuous 20-meter roll can be pulled down. When one bag fills up, it cuts off automatically and the next bag rolls into place. The system seals each bag individually, preventing dust escape during emptying.

How does Dustop filter cleaning work?

Dustop is an automatic filter cleaning system that operates continuously during operation without stopping the vacuum pump. When filter pressure rises above a set threshold, a pneumatic valve opens and sends a brief air pulse through the filter to create an inward blast that dislodges accumulated dust from the filter surface. The system repeats automatically as long as the vacuum lid is closed and the unit is running. This means fewer filter blockages, longer filter life, and reduced pressure loss.

What role does the cyclone play?

The integrated cyclone pre-separates large particles from the incoming airstream before the air reaches the filter. Gravity forces heavy particles to fall into the cyclone's collection cone, while finer particles pass on to the cartridge filter. This reduces filter load, extends filter life, and improves overall filtration efficiency. The cyclone operates automatically with no moving parts or maintenance.

Can the filter be upgraded to HEPA?

Yes. As an option, the MTL 202 LP can be equipped with an H14 absolute filter (HEPA, 99.995 % MPPS). This secondary filter is positioned after the cartridge filter and captures even the finest particles. The H14 version is particularly suitable for pharmaceutical production, chemicals, or very fine dusts where particle control is critical.

Is the MTL 202 LP suitable for pharmaceutical production?

In standard configuration, the MTL 202 LP is well-suited for high-volume dry dust collection. For pharmaceutical environments with OEB or GMP requirements, upgrade with H14 absolute filter (HEPA) and grounding against electrostatic buildup is recommended. The Longopac system also ensures minimal dust exposure during emptying. Contact us for consultation on the right configuration.

What options are available?

The MTL 202 LP is offered with the following options: H14 HEPA absolute filter, class M antistatic filter, grounding (ESD), grounding plus antistatic filter plus chain, accessory basket, 3 m hose holder, differential pressure alarm system. All options are customized at the time of order to meet specific production and safety requirements.

Is the Delfin MTL 202 LP the right solution for your production?

We help configure and implement the right dust collector for your specific process. Call or write — consultation is free and obligation-free.
