White Line • Delfin • Industrial Wet Vacuum

Delfin MTL 802 WXP

Industrial wet and dry vacuum with integrated immersion pump for continuous liquid discharge. 80-litre stainless steel container. 2,500 mmH₂O suction power. Compact and mobile — 230 V.

Integrated immersion pump — 135 l/min at 6.89 m head
Simultaneous suction and discharge — no production downtime
80-litre stainless steel container — AISI 304
2,500 mmH₂O suction — 360 m³/h airflow
Compact and mobile — 230 V single-phase, 50 kg
Drain valve and immersion pump — two emptying methods

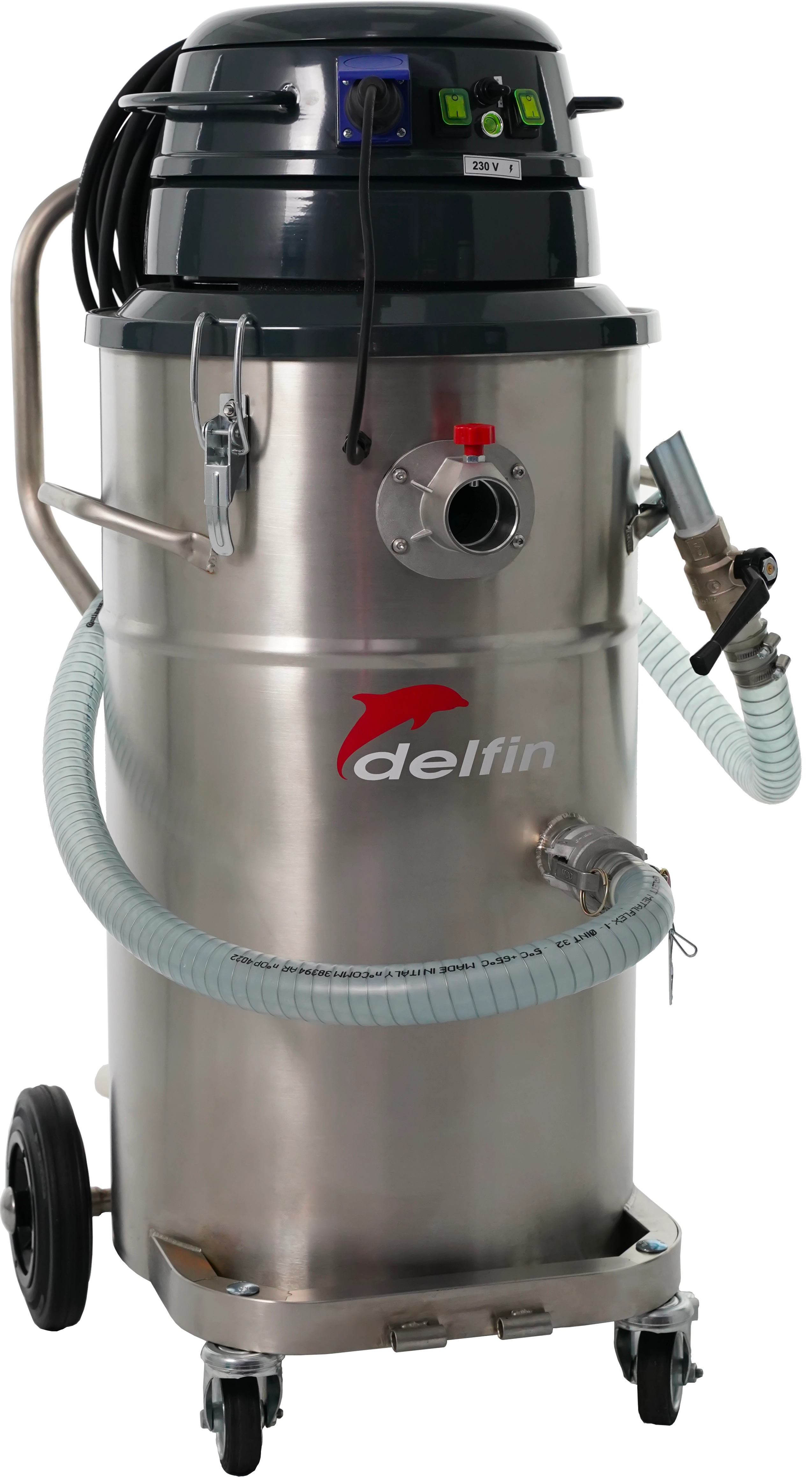

Delfin MTL 802 WXP industrial wet vacuum with immersion pump and stainless steel container

CE — Machinery Directive 2006/42/EC

EN 60335-2-69

Stainless steel AISI 304 container

Immersion pump — 135 l/min, 6.89 m

230 V single-phase

What is the Delfin MTL 802 WXP?

The Delfin MTL 802 WXP is an industrial wet vacuum with an integrated immersion pump, engineered for collecting and continuously discharging liquids in production environments. The 80-litre container is manufactured from stainless steel AISI 304, and the immersion pump delivers 135 litres per minute at up to 6.89 metres of pressure head. This enables simultaneous suction and discharge — without production downtime.

The 2.30 kW bypass motor provides 2,500 mmH₂O of suction power and 360 m³/h airflow, making the machine well suited for everything from spilt liquids and coolants to process fluids in industrial production. The construction is compact (53 × 59 × 105 cm) and mobile with castors, allowing easy relocation between workstations.

Two emptying methods: The container can be emptied via the integrated immersion pump (135 l/min) or via the built-in drain valve at the bottom. The container is not detachable, but the two emptying methods eliminate the need to lift or move the machine during discharge.

Technical specifications

Parameter	Value
Voltage	230 V, 50 Hz, single-phase
Power / current	2.30 kW / 10 A
Max waterlift	2,500 mmH₂O
Max airflow	360 m³/h
Suction inlet	Ø50 mm
Capacity	80 L
Discharge system	Immersion pump 135 l/min
Pressure head	6.89 m
Noise level (EN ISO 3744)	76 dB(A)
Dimensions (L×W×H)	53 × 59 × 105 cm
Weight	50 kg
Motor type	Bypass
Motor protection filter	Polypropylene — 300 µm
Filter surface / diameter	5,000 cm² / Ø420 mm
Construction	Painted steel with AISI 304 container

CE marking based on: EN 60335-2-69 • IEC 60335-2-69 • Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU

Options

The MTL 802 WXP is supplied as standard with a stainless steel container and integrated immersion pump. The following options are available:

115 V version — for markets with 115 V supply
Earth grounding — ESD protection against electrostatic charge

Questions and answers

What is the difference between MTL 802 WD and MTL 802 WXP?

The MTL 802 WD is the standard model with a painted steel container and discharge hose. The MTL 802 WXP is the pump version featuring a stainless steel AISI 304 container and an integrated immersion pump delivering 135 l/min at up to 6.89 metres of pressure head. The WXP can vacuum and discharge simultaneously, making it ideal for processes involving large volumes of liquid.

How does the immersion pump work?

The immersion pump is mounted inside the stainless steel container and activates when the liquid level reaches a set point. It delivers 135 litres per minute and can lift liquid up to 6.89 metres. This allows collected liquid to be routed directly to a drain or a separate collection tank elsewhere in the facility — without interrupting the suction process.

Can the MTL 802 WXP handle industrial process liquids?

Yes, the stainless steel AISI 304 container provides good chemical resistance to many industrial liquids. The polypropylene motor protection filter (300 µm) prevents liquid from reaching the motor. For particularly aggressive liquids, chemical compatibility should always be verified before use.

How is the container emptied?

The MTL 802 WXP offers two emptying methods: the integrated immersion pump, which can run simultaneously with suction, and a drain valve at the bottom of the container. The container is not detachable, but these two methods make it unnecessary to lift or move the machine during emptying.

Is the MTL 802 WXP suitable for continuous production use?

The MTL 802 WXP is built for intensive industrial use with a powerful 2.30 kW bypass motor. With the immersion pump, the machine can operate for extended periods without stopping, as liquid is continuously discharged from the container. For true 24/7 continuous duty, Delfin’s side channel models with maintenance-free motors are recommended.

What maintenance does the MTL 802 WXP require?

Routine maintenance primarily involves checking and replacing the motor protection filter (polypropylene bag) and cleaning the float mechanism. The immersion pump is virtually maintenance-free. The carbon brushes in the bypass motor should be inspected at scheduled service intervals.
