White Line • Delfin • Battery-powered • Large unit

Delfin MTL 45 BT

Battery-powered industrial vacuum for wet, dry and solid materials. 24V DC with batteries included — completely cable-free. 45 litres. 215 m³/h and 1,200 mmH₂O. Polyester ANT M star filter.

24V DC battery-powered — completely cable-free, full mobility
Wet, dry and solid materials — three applications in one machine
215 m³/h airflow — 1,200 mmH₂O suction
45-litre collection tank — removable container
Polyester ANT M star filter — anti-static, 20,000 cm²
Batteries included — ready to use without additional accessories

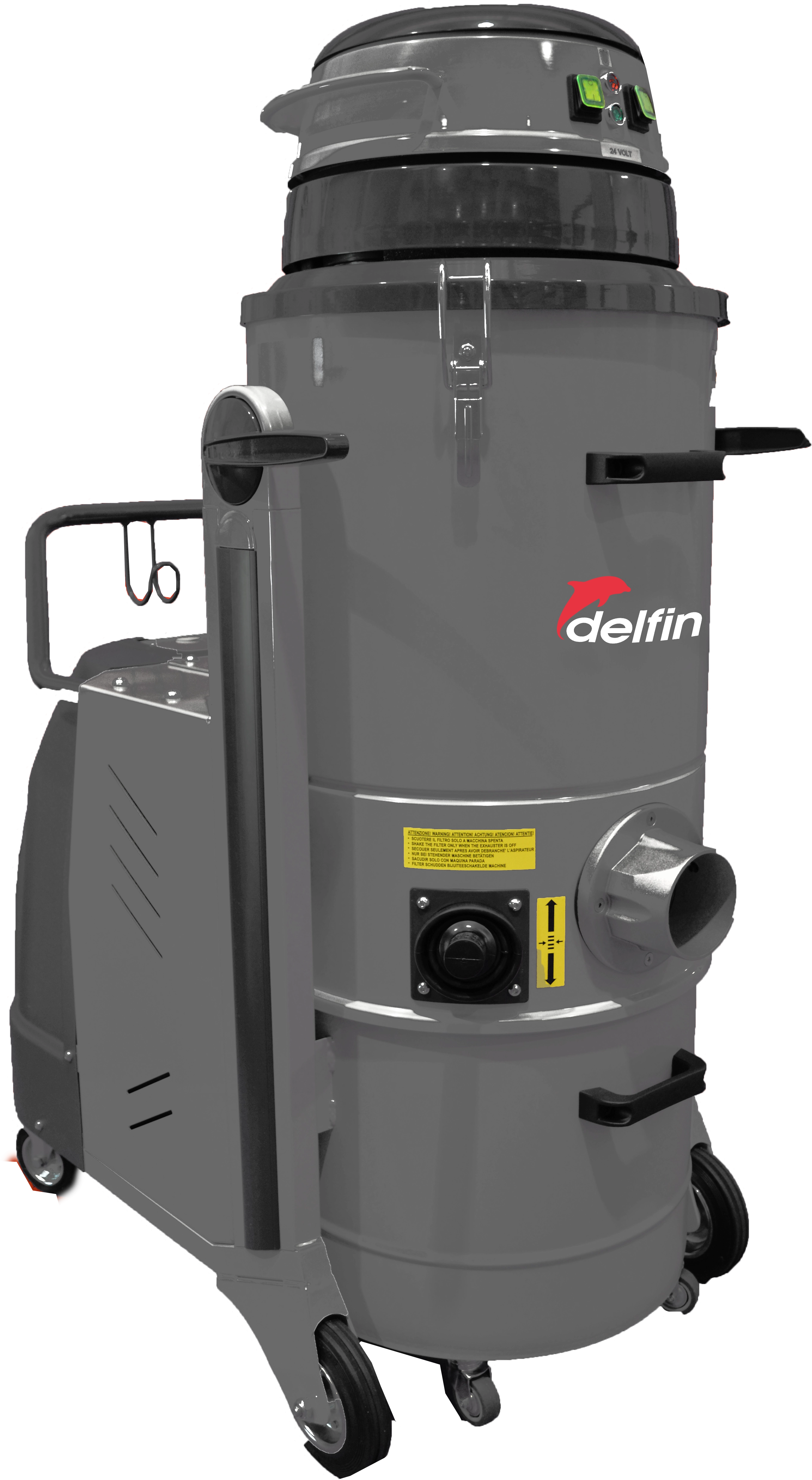

Delfin MTL 45 BT battery-powered vacuum for wet, dry and solid materials

CE — Machinery Directive 2006/42/EC

24V DC battery-powered

Wet, dry & solids

Batteries included

Polyester ANT M star filter

What is the Delfin MTL 45 BT?

The Delfin MTL 45 BT is a large, battery-powered vacuum for wet, dry and solid materials — completely cable-free. The motor is a 24V DC unit powered by two 12V 100A batteries supplied in series. Working flexibility means you can operate anywhere without being tied to power cords or extension leads. The 45-litre collection tank enables handling of larger job volumes, and manual filter cleaning means minimal maintenance dependency.

The star filter in Polyester ANT M media resists moisture and chemical attack, making the MTL 45 BT suitable for both dry dust collection (metal, wood and cement dust) and wet or semi-wet recovery (waste water, wet sawdust, damp matter). High suction capacity at 1,200 mmH₂O ensures powerful suction even with tight filter loads.

Battery runtime — important information: Runtime depends on load level. Under normal operation at approximately 50% maximum suction, you can expect 2–4 hours of continuous operation. At full load, runtime reduces to 1–2 hours. Spare battery sets are recommended for extended continuous work shifts.

Technical specifications

Parameter	Value
Motor	24V DC battery — 0.8 kW
Batteries	2 × 12V 100A (series)
Airflow max	215 m³/h
Suction max	1,200 mmH₂O
Primary filter	Star filter — Polyester ANT M, 20,000 cm²
Cleaning system	Manual
Suction inlet	Ø80 mm
Collection tank	45 L — removable
Noise level (EN ISO 3744)	68 dB(A)
Dimensions (L×W×H)	58 × 93 × 116 cm
Weight (without batteries)	118 kg
Application	Wet, dry & solid materials
Standard configuration	MTL45 C/BT 2X12V 100A 2MOTOR KIT040

CE marking based on: Machinery Directive 2006/42/EC • Low Voltage Directive 2014/35/EU • EMC Directive 2014/30/EU

Options

The MTL 45 BT can be configured with the following option, depending on your specific work requirements.

24V 15A battery charger — supplied separately (KT.2790.0000)

Questions & answers

How long does the battery last on a single charge?

Battery runtime depends on airflow and suction level during operation. The MTL 45 BT comes with two 12V 100A batteries in series (24V total). Under normal operation at approximately 50% load, you can expect 2–4 hours of continuous runtime. Under high load (maximum suction), runtime reduces to 1–2 hours. For longer operations, spare battery sets are recommended.

What types of materials can the MTL 45 BT handle?

The MTL 45 BT is engineered for wet, dry and solid materials. This means the machine can collect: dry dusts (metal dust, wood dust, cement), wet materials (wet sawdust, semi-wet matter), and larger particles/waste pieces (trimmings, scrap). The star filter with Polyester ANT M media resists moisture and chemical attack.

Is the battery charger included?

The standard kit MTL45 C/BT 2X12V 100A 2MOTOR KIT040 includes two 12V 100A batteries and connection cables, but does NOT include a dedicated charger. A 24V 15A battery charger (KT.2790.0000) is supplied separately. It is recommended that you purchase the charger at the same time to enable charging between shifts.

Is the machine still mobile at 118 kg?

The MTL 45 BT weighs 118 kg without batteries installed. This is a substantial weight, but the machine is mounted on a 4-wheel stand with swivel castors, making it fully mobile within the working area. For transport across larger distances or up stairs, 2–3 people or a small lifting device is recommended. The removable batteries can be mounted/removed to reduce total weight for manual handling.

What maintenance does the battery motor require?

The DC battery motor requires minimal maintenance compared to traditional AC motors. There are no brushes or carbon to replace. Primary maintenance includes: checking battery terminals (clean and secure connections), regular battery charging after use, and monitoring the dust filter (manual cleaning or replacement as needed). The motor itself has no scheduled service intervals.

Can the MTL 45 BT be used in ATEX zones?

No. The MTL 45 BT is NOT ATEX-certified and must NOT be used in explosive atmospheres (Zone 20, 21 or 22). It is designed for standard industrial environments without explosion risk. If you require a battery-powered vacuum for ATEX environments, please contact us to discuss alternative solutions.

Is the Delfin MTL 45 BT the right battery-powered vacuum for you?

We help you choose the right configuration and battery set for your work tasks. Call or email — our advice is free and without obligation.
