ATEX Areas • Zone 1 gas • Zone 21 dust • Pharma

Tiger-Vac CD/EUR-36L EX DT (MRP) ULPA WITH SS CART

Explosion proof pharmaceutical vacuum (ATEX II 1/2 GD) with ULPA U15 filter included and manual reverse pressure cleaning (MRP). Compressed air briefly reverse-purges a conductive aluminized spun-bond cartridge, cleaning it without physical handling. Detachable 36 L tank on stainless steel cart with ESD wheels. Available in four EU variants with full or limited zone coverage.

  • ATEX II 1/2 GD – Zone 0/20 internal + Zone 1/21 external
  • ULPA U15 included (99.9995% at 0.18 micron MPPS)
  • Manual reverse pressure cleaning (MRP) with compressed air
  • Conductive aluminized spun-bond cartridge
  • 36 L detachable tank on stainless steel cart with ESD wheels
  • Multimeter (ground continuity tester) included
Contact us All ATEX vacuums

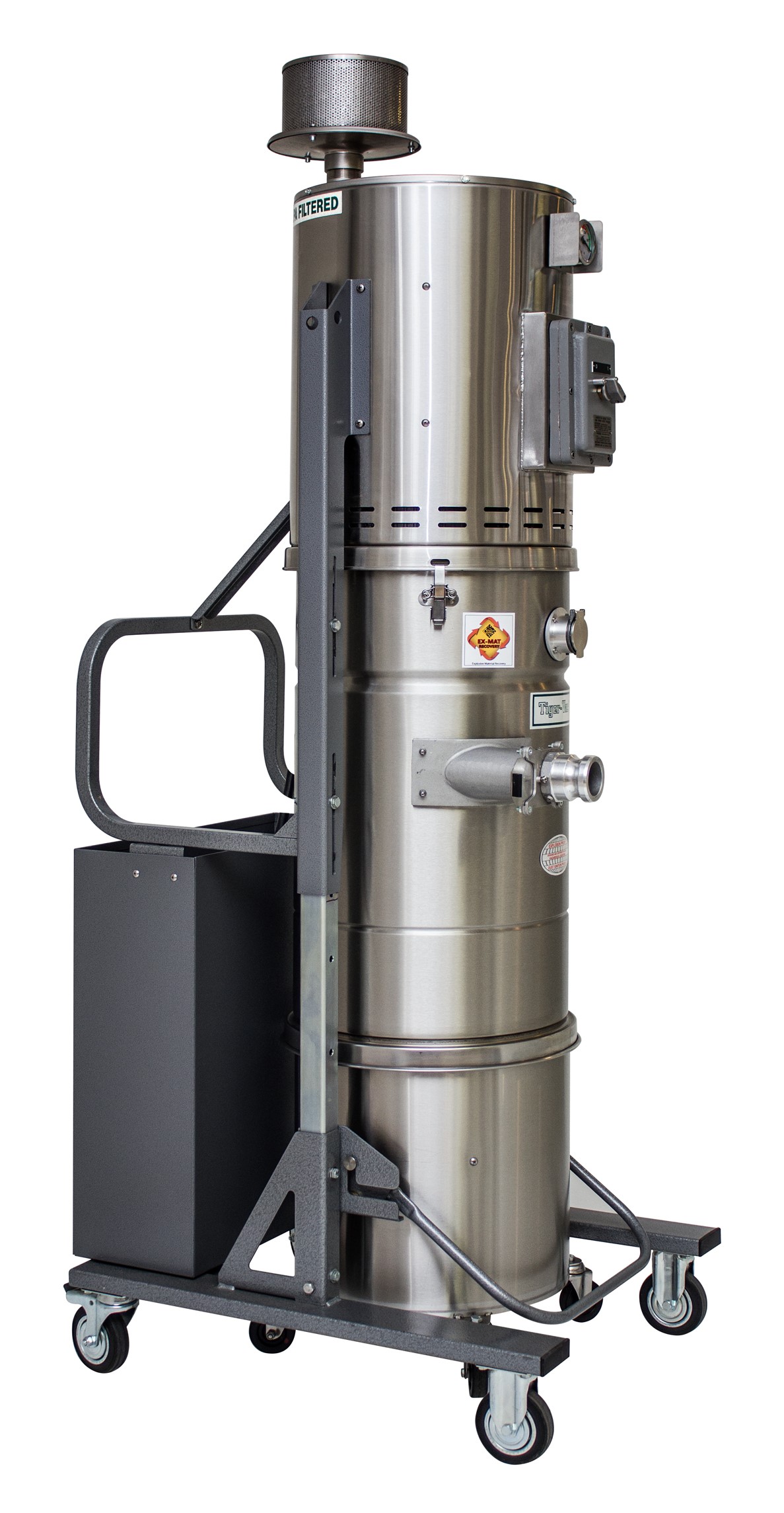

Tiger-Vac CD/EUR-36L EX DT (MRP) ULPA WITH SS CART – explosion proof ATEX vacuum
II 1/2 GD – ATEX Directive 2014/34/EU
LCIE 03 ATEX 6295 X – Notified body 0081
IECEx LCI 10.0040X
Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP65
EN IEC 60079-0:2018 / EN 60079-1:2014 / EN 60079-31:2014
EN 17348 DT – Combustible dust collection
IP65

About Tiger-Vac CD/EUR-36L EX DT (MRP) ULPA WITH SS CART

The CD/EUR-36L EX DT (MRP) ULPA is designed for pharmaceutical manufacturing where manual reverse pressure cleaning (MRP) is combined with ULPA U15 filtration in a robust ATEX II 1/2 GD certified platform. The model is available in four EU variants: 112160B1-SS (400 V 2.2 kW, Zone 1-2-21-22), 112160B3-SS (230 V 1.5 kW, Zone 1-2-21-22), 112157B1-SS (400 V, Zone 21 only), and 112157B3-SS (230 V, Zone 21 only). The 112160 series with full zone coverage is the primary choice for pharmaceutical use.

The MRP system uses compressed air to briefly reverse-purge a conductive aluminized spun-bond cartridge, cleaning it without physical handling or filter removal. This method is particularly well suited for continuous operation in production environments where downtime must be minimized and filter efficiency must be maintained. The conductive cartridge material ensures that static charge is safely dissipated.

ULPA U15 filtration (99.9995% at 0.18 micron MPPS) delivers the extreme safety margin required by modern high-potency API production. The entire structure – stainless steel tank, cart, motor mount – is fully antistatic with resistivity below 10 ohm. The system is therefore safe even in Zone 0 and Zone 20 (high-risk explosive atmosphere internally).

With a 2.2 kW (400 V) or 1.5 kW (230 V) TEFC motor, the unit delivers 212 m³/h airflow at a maximum vacuum of 2,540 mmH₂O. The detachable 36 L tank (DT) ensures easy handling and batch separation. A multimeter for ground continuity testing is included. Noise level is approximately 70–72 dB(A) with the integrated muffler.

Technical Specifications

ParameterValue
ATEX CertificationLCIE 03 ATEX 6295 X
ATEX MarkingII 1/2 GD
External GasEx db h IIB T4 Gb
External DustEx h tb IIIC T135°C Db IP65
Internal GasEx h IIC T6 Ga
Internal DustEx h IIIC T50°C Da
Temperature Range–5°C to +37°C
StandardEN 17348 DT – IECEx LCI 10.0040X
Motor TypeTEFC, continuous duty
Power (400 V, 112160B1-SS)2.2 kW, 4.8 A, 3-phase – Zone 1-2-21-22
Power (230 V, 112160B3-SS)1.5 kW, 12.3 A, single-phase – Zone 1-2-21-22
Frequency50 Hz
Airflow212 m³/h
Max Vacuum2,540 mmH₂O
Vacuum (VRV)1,780 mmH₂O
Filter ClassULPA U15 – included
Primary FilterConductive aluminized spun-bond cartridge – included
Filter CleaningManual reverse pressure (MRP)
InletØ50 mm
Recovery Tank36 L, detachable (DT)
DimensionsL78 x W56 x H178 cm
Weight99 kg
Power Cord10 m
MufflerStainless steel with sound insulation – included
MultimeterGround continuity tester – included

Accessories and Connections

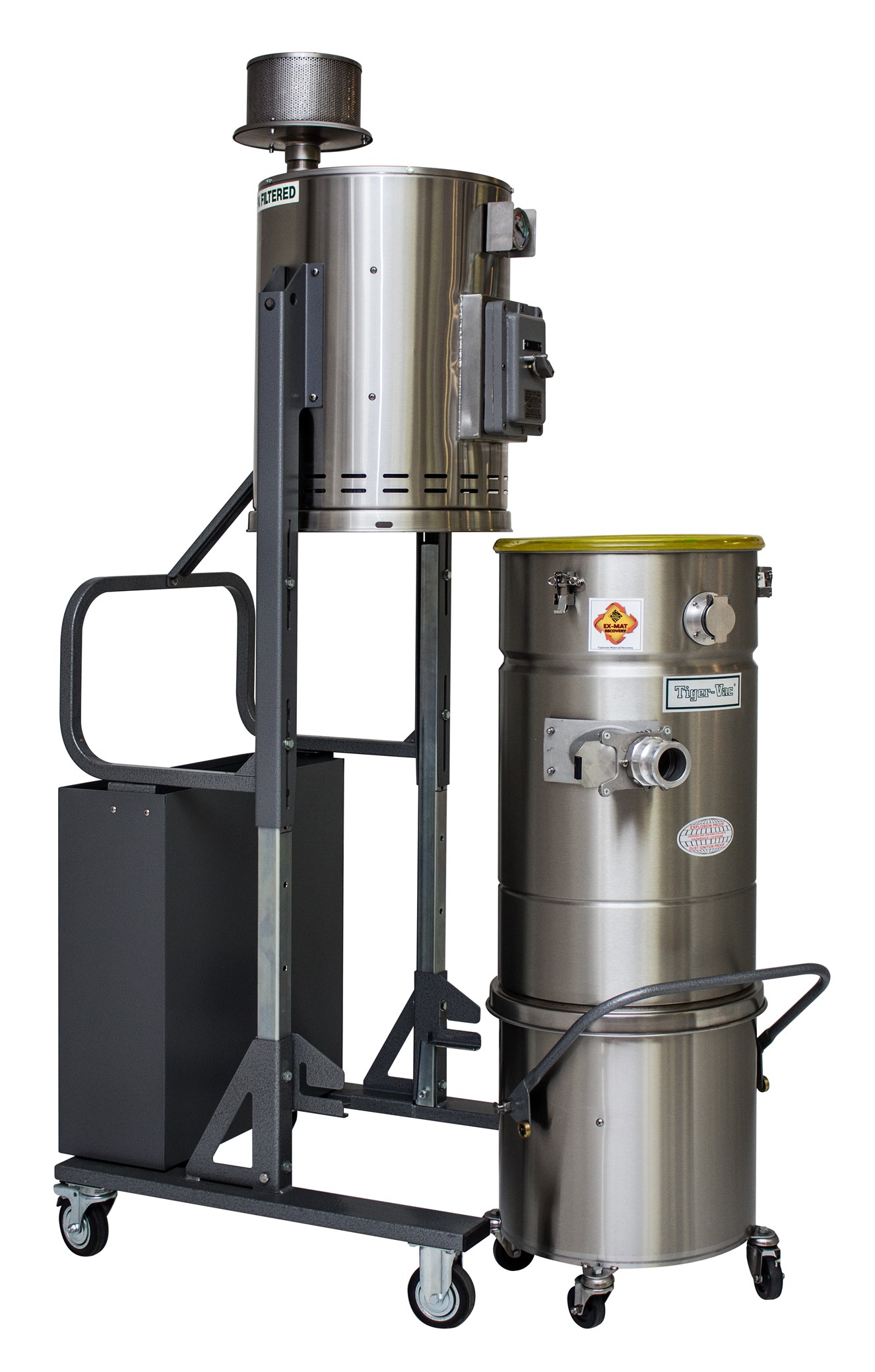

Detachable recovery tank and filter chamber

Detachable Tank & Filter Chamber

Recovery tank

ULPA U15 exhaust filter included

ULPA U15 Filter

Exhaust filter, included

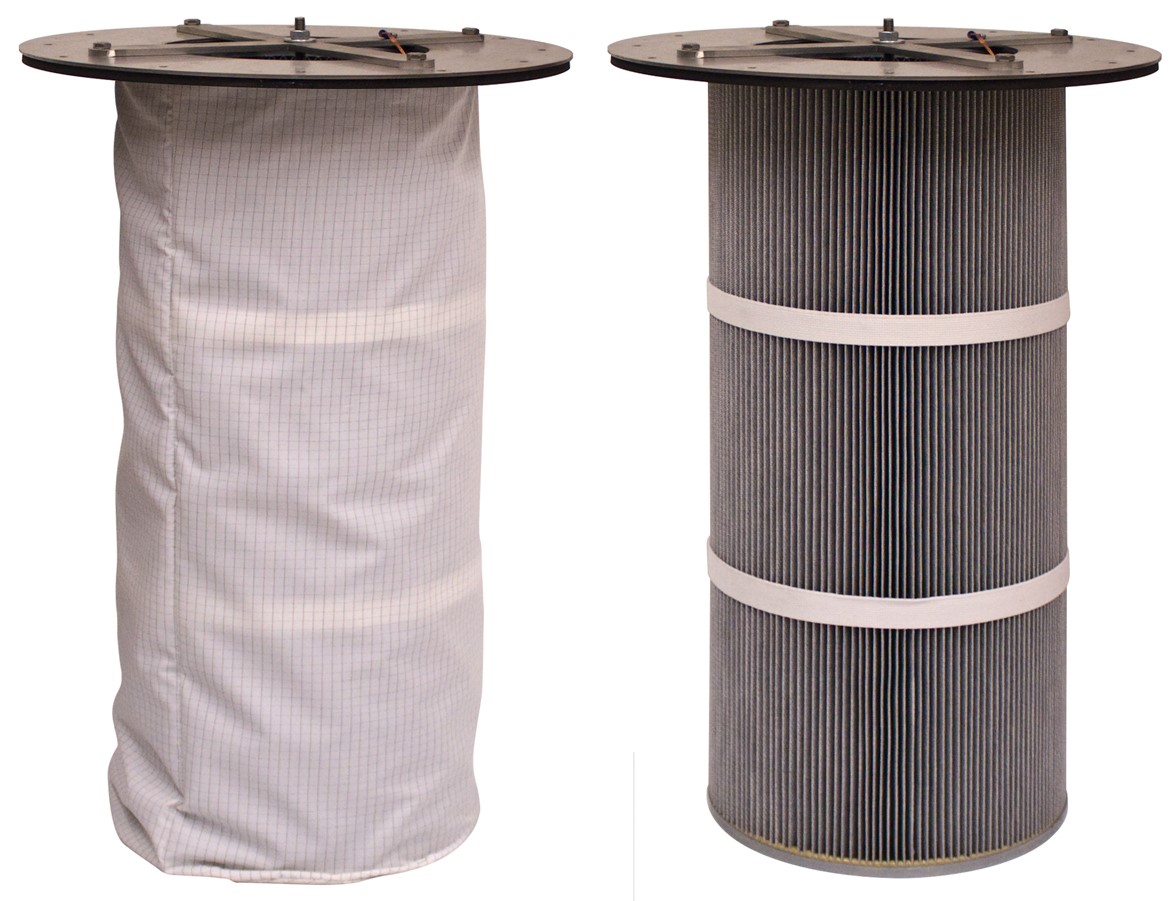

Conductive aluminized spun-bond reverse purge cartridge

MRP Cartridge

Conductive spun-bond, included

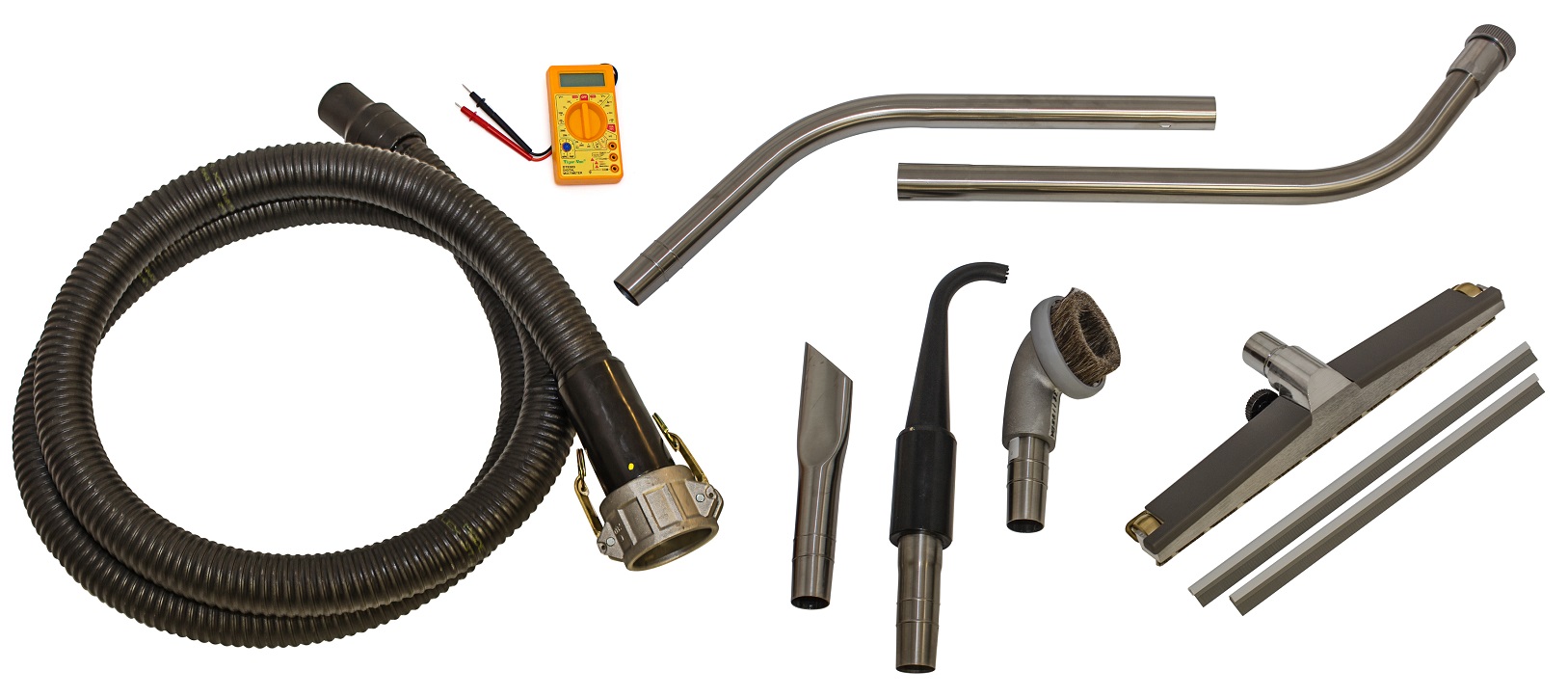

38 mm ESD tool set

38 mm ESD Tool Set

OE1-5, included

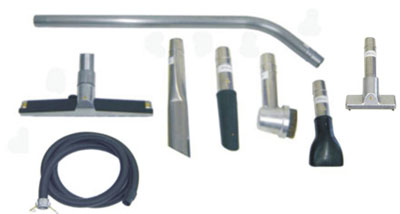

50 mm ESD tool set

50 mm ESD Tool Set

OE2, optional
