Hot media and exhaust gases

High-temperature hoses

Hoses for hot air, smoke, vapours and engine exhaust. Materials that hold their shape at temperatures where ordinary hoses melt or lose mechanical strength.

Temperature is the single parameter most often under-specified on a factsheet. The manufacturer lists two numbers: a continuous service temperature and a peak temperature. The difference is round-the-clock versus minutes, and running close to peak for hours degrades the material faster than anyone expects.

On high-temperature installations, material choice must reflect the actual thermal profile across the entire duty cycle, not just the peak number. We distribute hoses in silicone, glass-fibre-reinforced silicone, and stainless steel, where the manufacturer's factsheet specifies both continuous and peak verbatim.

On this page you will find the hoses we recommend for hot media — from hot air in ovens through steam treatment to engine exhaust. Filter on max temperature and material in the left column to narrow the list to those hoses that match your temperature requirement.

up to +125 °C

AIRDUC® PUR 351 HT (MD)

Abrasion-resistant high-temperature PUR hose — up to +150 °C peak, flexible at low temperatures

Inner Ø: 25.1-350 mm
Temp: -40 to +125 °C

Abrasion-resistant

AIRDUC® PUR 355 HT (HD)

Heavy-duty PUR hose for abrasive media at elevated temperatures

Inner Ø: 25.1-400 mm
Temp: -40 to +100 °C
Standards: DIN 26057

up to +125 °C

AIRDUC® PUR 356 HT (XHD)

Heavy-duty high-temperature PUR hose — XHD construction for hot abrasive media at high throughput

Inner Ø: 32-127 mm
Temp: -40 to +125 °C

up to +125 °C

AIRDUC® TPE 363 (MD)

Suction and pressure hose for hot and cold gases — TPE up to +150 °C, for granulate dryers

Inner Ø: 25-300 mm
Temp: -40 to +125 °C

up to +95 °C

CALORFORM

Highly flexible hot water hose — chemical-resistant, for construction sites, industry and marine

Inner Ø: 10-25 mm
Temp: -40 to +95 °C

Chemical-resistant

CP ARAMID 461

High-temperature clamp profile with aramid wall — up to +300 °C, flame-retardant M1/B1

Inner Ø: 38-508 mm
Temp: -60 to +260 °C
Standards: REACH, RoHS

up to +300 °C

CP ARAMID 461 PROTECT

High-temperature clamp profile hose — engine exhaust extraction up to +300 °C, M1 fire class

Inner Ø: 75.6-250 mm
Temp: 0 to +300 °C

Chemical-resistant

CP HYP 450

Vibration-resistant HYP clamp profile hose — chemical-resistant, heat-resistant up to +170 °C

Inner Ø: 38-1000 mm
Temp: -40 to +150 °C
Standards: REACH, RoHS

up to +200 °C

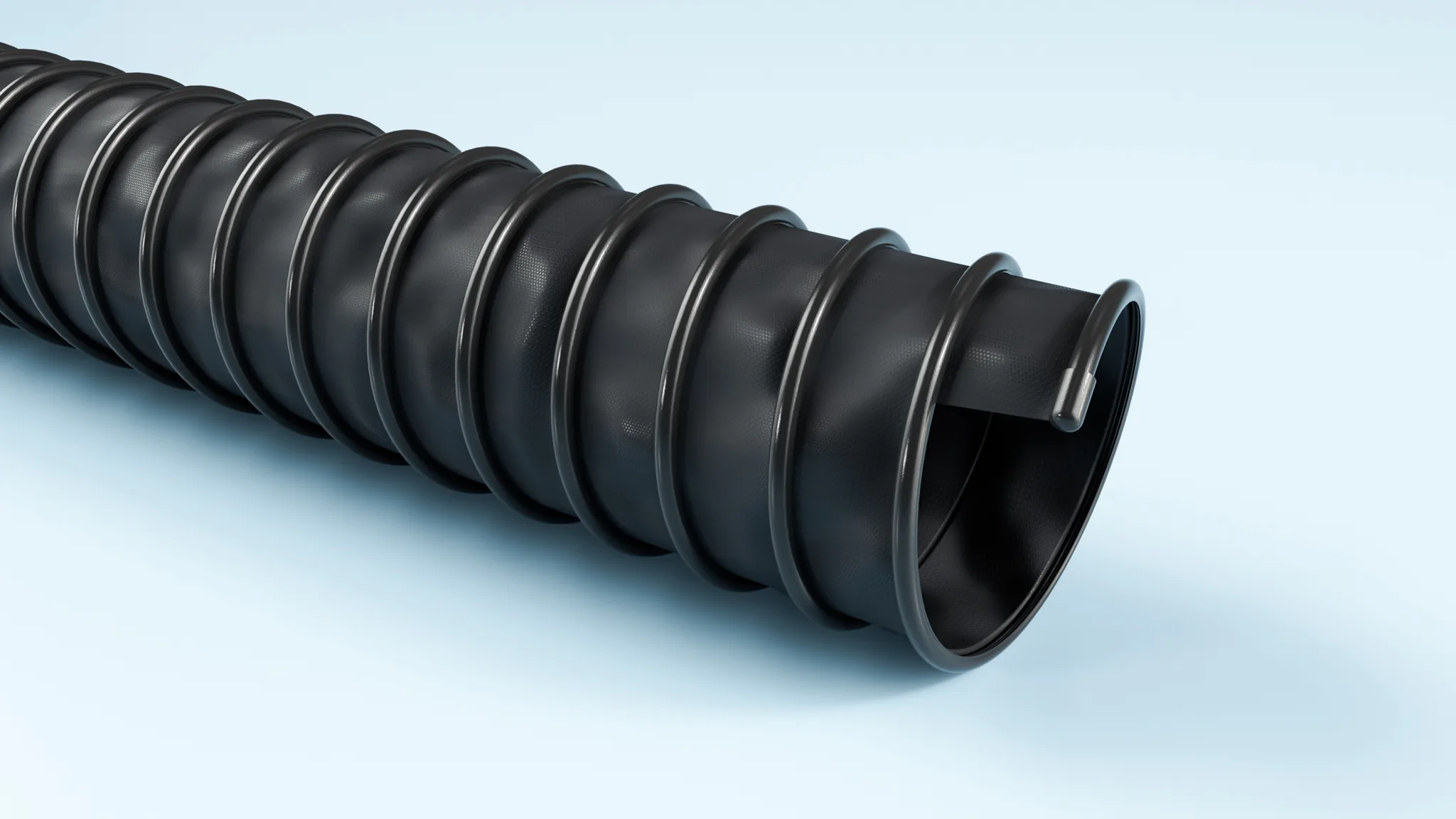

CP HYP 450 PROTECT

Vibration-resistant exhaust hose — protection profile, up to +200 °C

Inner Ø: 75.6-254 mm
Temp: 0 to +200 °C

High-temperature

CP HiTex 481

Double-layered high-temperature hose with clamp profile up to 700 °C peak

Inner Ø: 50.5-800 mm

up to +900 °C

CP HiTex 483

Multi-layered extra-high-temperature hose with clamp profile up to 1100 °C peak

Inner Ø: 101.5-500 mm
Temp: -60 to +900 °C

up to +280 °C

CP HiTex® 467 WELDING

Specialised high-temperature hose for welding fume extraction

Inner Ø: 50-200 mm
Temp: -60 to +280 °C

up to +280 °C

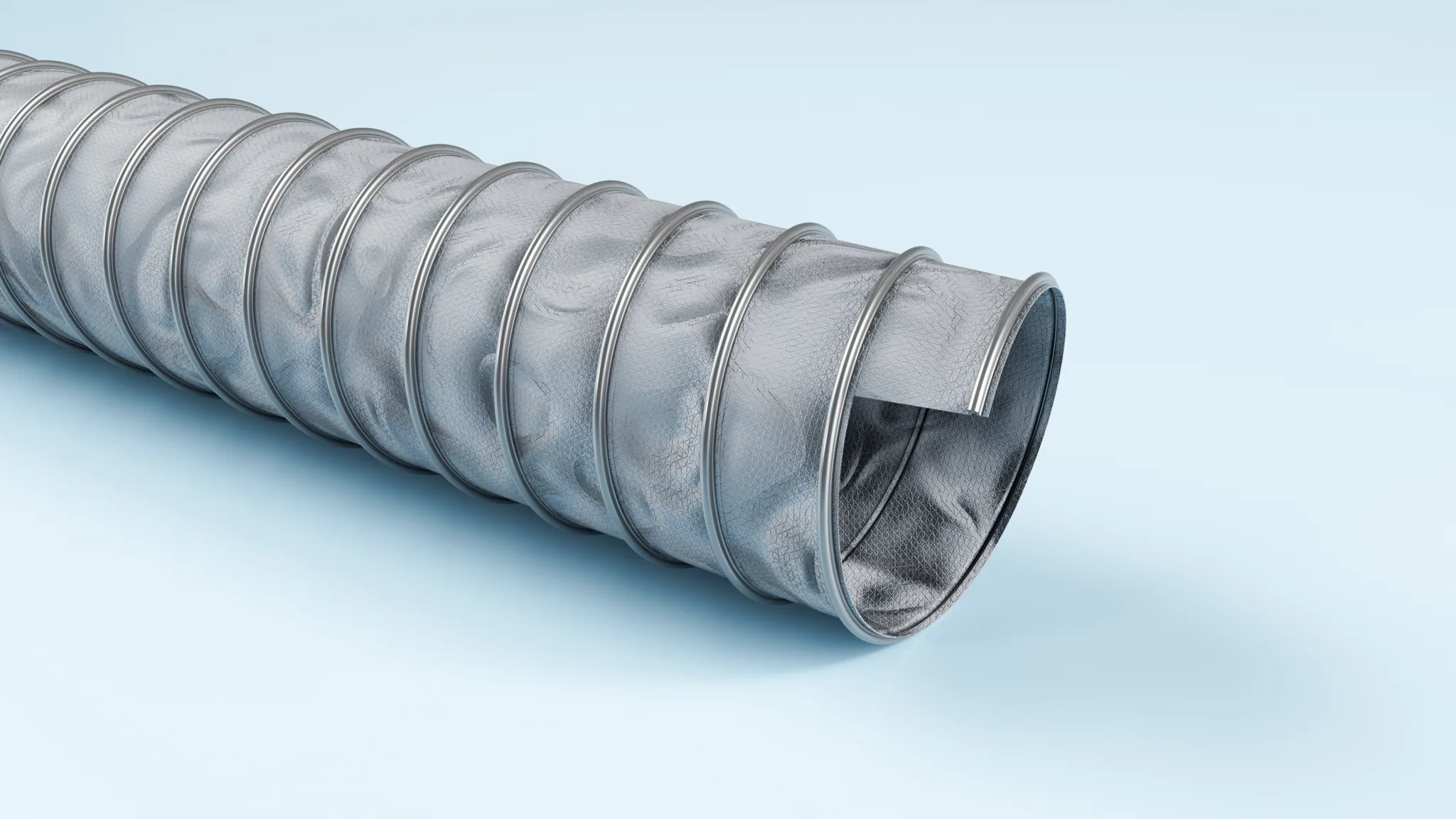

CP HiTex® 480

High-temperature clamp profile hose for smaller dimensions

Inner Ø: 38-1016 mm
Temp: -60 to +280 °C

up to +400 °C

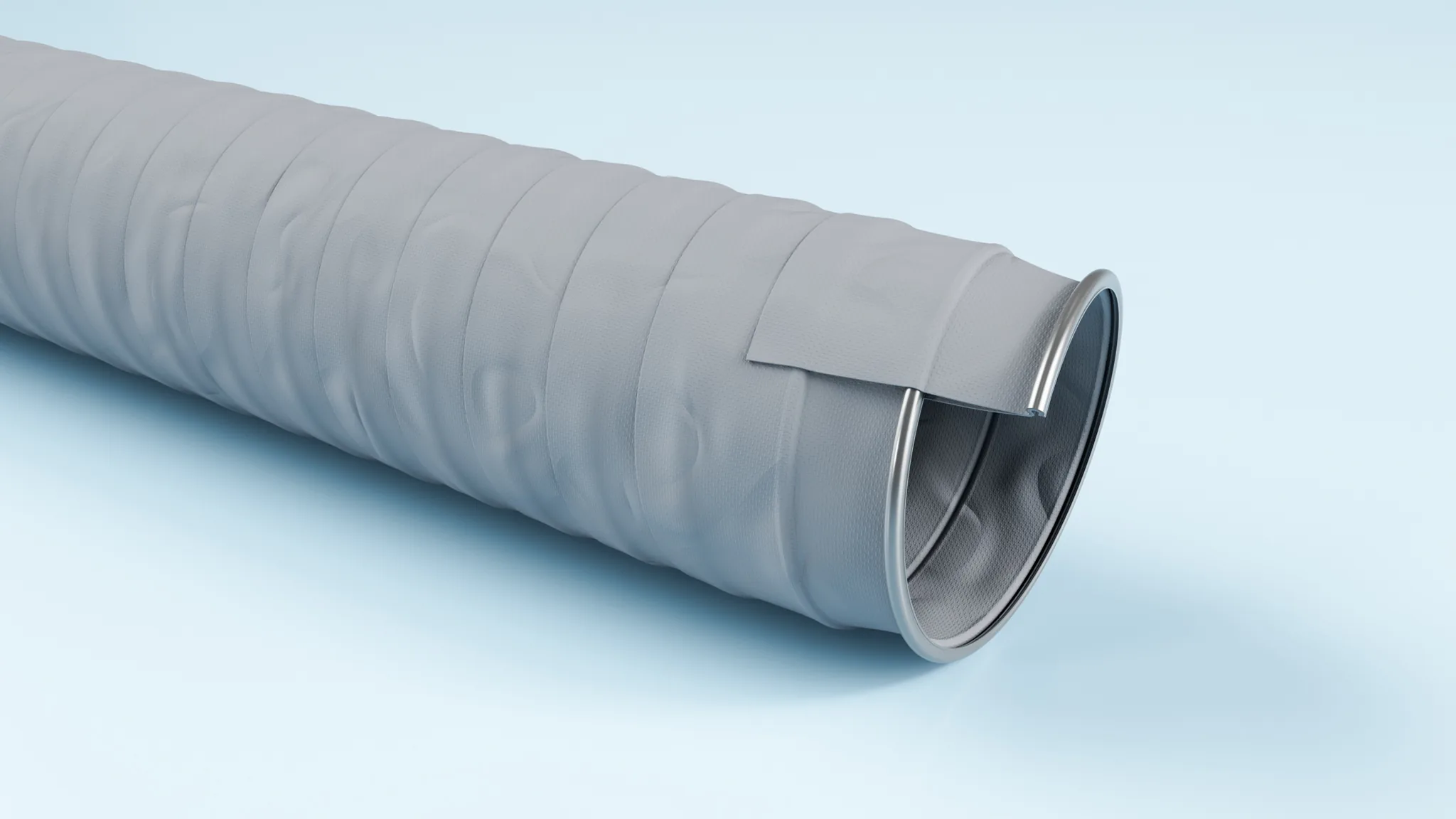

CP HiTex® 485

High-temperature clamp profile hose for medium-sized installations

Inner Ø: 101.5-350 mm
Temp: -60 to +400 °C

up to +400 °C

CP HiTex® 486

High-temperature clamp profile hose for larger dimensions and high throughput

Inner Ø: 92-400 mm
Temp: -60 to +400 °C

up to +450 °C

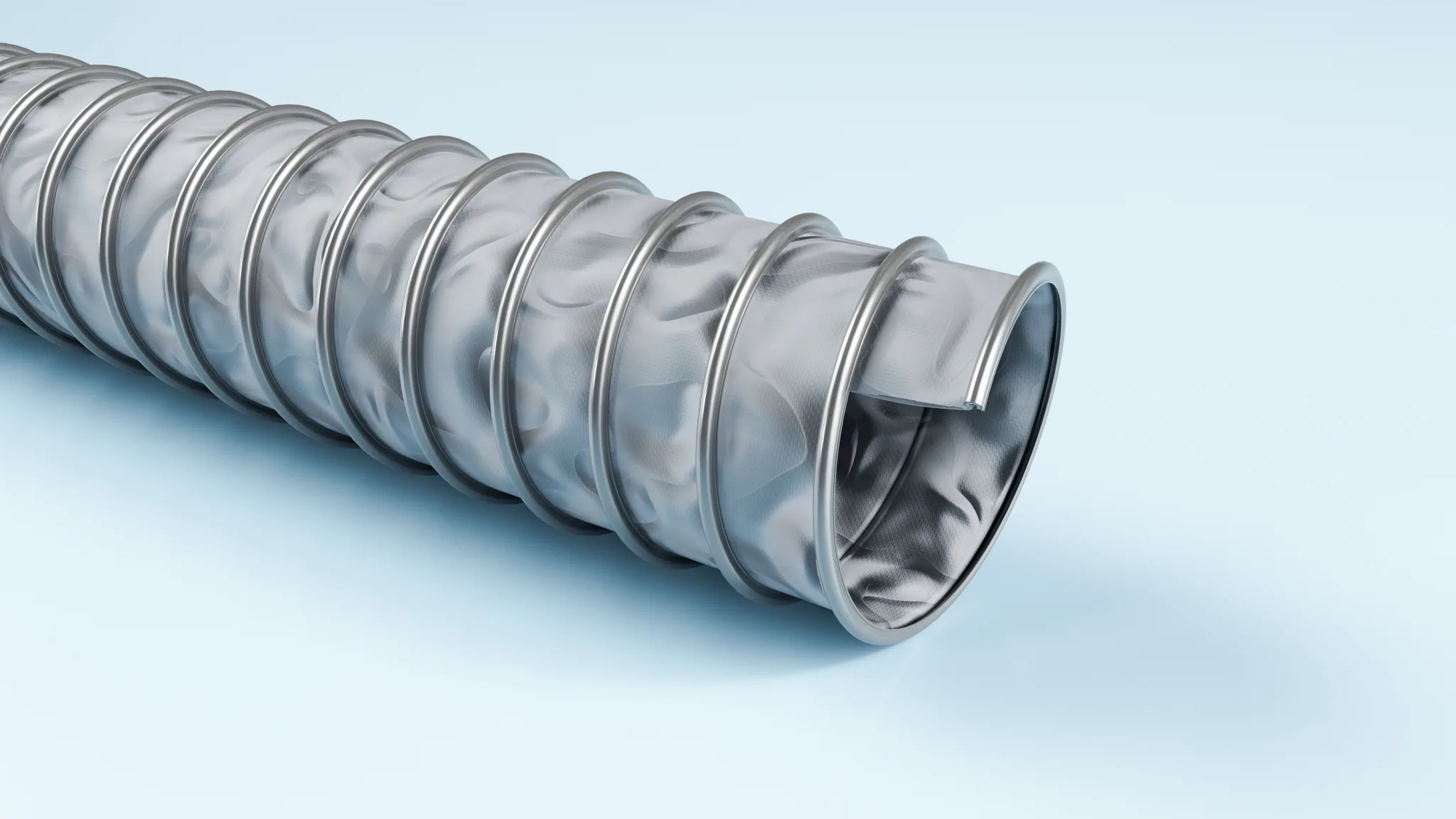

CP HiTex® 487

Highly flexible high-temperature hose with steel spiral and clamp profile

Inner Ø: 75.6-450 mm
Temp: -60 to +450 °C

Chemical-resistant

CP PTFE-INOX 475 EC

ATEX-approved PTFE-INOX clamp hose — conductive, up to +250 °C, for extraction arms and ATEX zones

Inner Ø: 50.5-325 mm
Temp: -150 to +250 °C
Standards: REACH, RoHS

Chemical-resistant

CP PTFE-INOX 475 FOOD

PTFE food hose — up to +270 °C, extreme chemical resistance, for pharma and food

Inner Ø: 50.5-600 mm
Temp: -40 to +250 °C
Standards: REACH, RoHS

Chemical-resistant

CP PTFE/GLASS-INOX 471

Double-layer clamp profile PTFE/glass-INOX hose — anti-adhesive, up to +270 °C, chemical-resistant

Inner Ø: 50.5-700 mm
Temp: 0 to +260 °C
Standards: REACH, RoHS

Chemical-resistant

CP PTFE/GLASS-INOX 471 EC

ATEX-approved PTFE/glass-INOX double-layer hose — conductive, up to +250 °C, for vapour recovery

Inner Ø: 50.5-300 mm
Temp: -150 to +250 °C
Standards: REACH, RoHS

Chemical-resistant

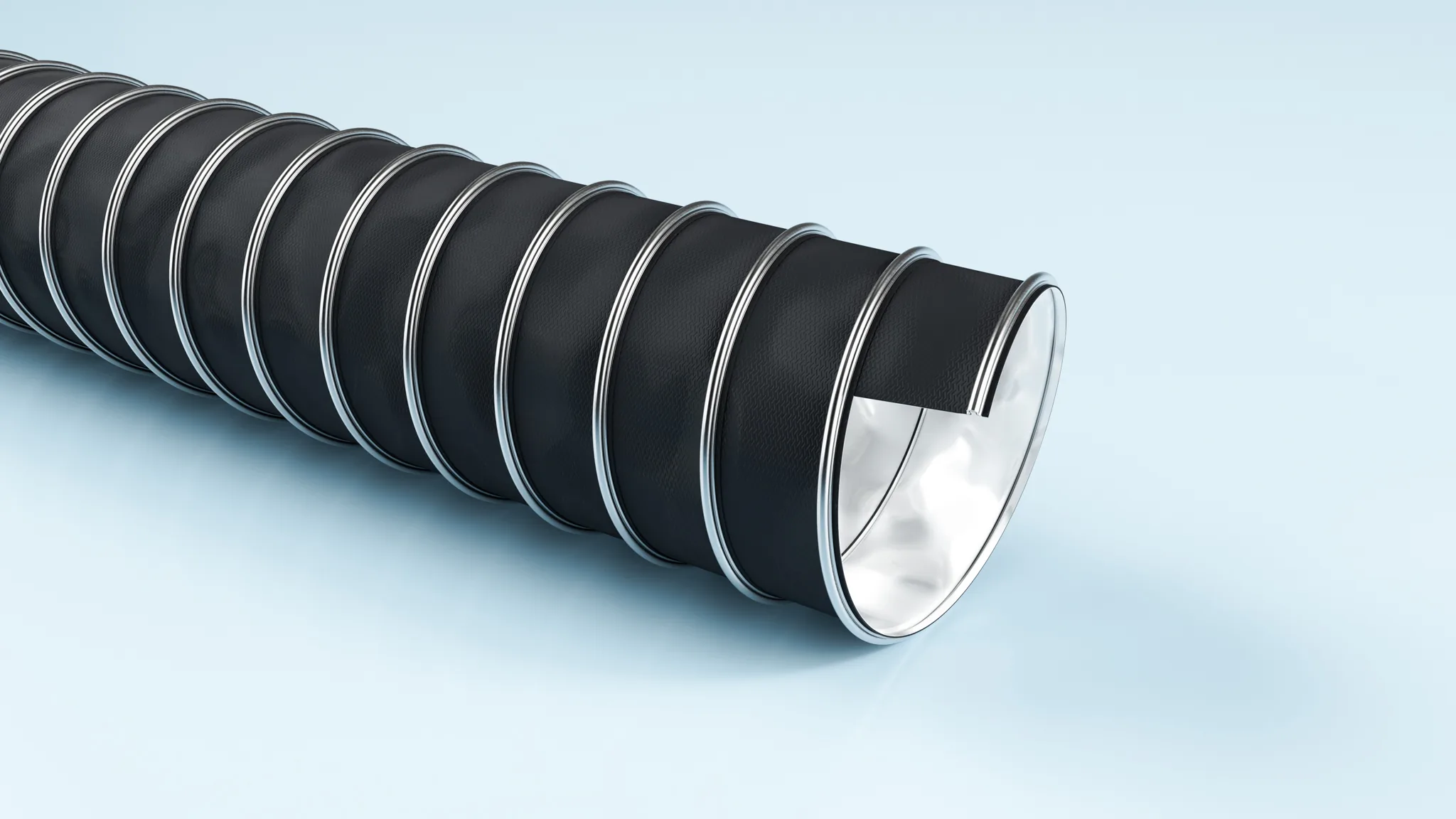

CP PTFE/HYP-INOX 472

PTFE/HYP-INOX double-layer clamp hose — anti-adhesive, up to +170 °C, chemical-resistant

Inner Ø: 50.5-500 mm
Temp: 0 to +170 °C
Standards: REACH, RoHS

Chemical-resistant

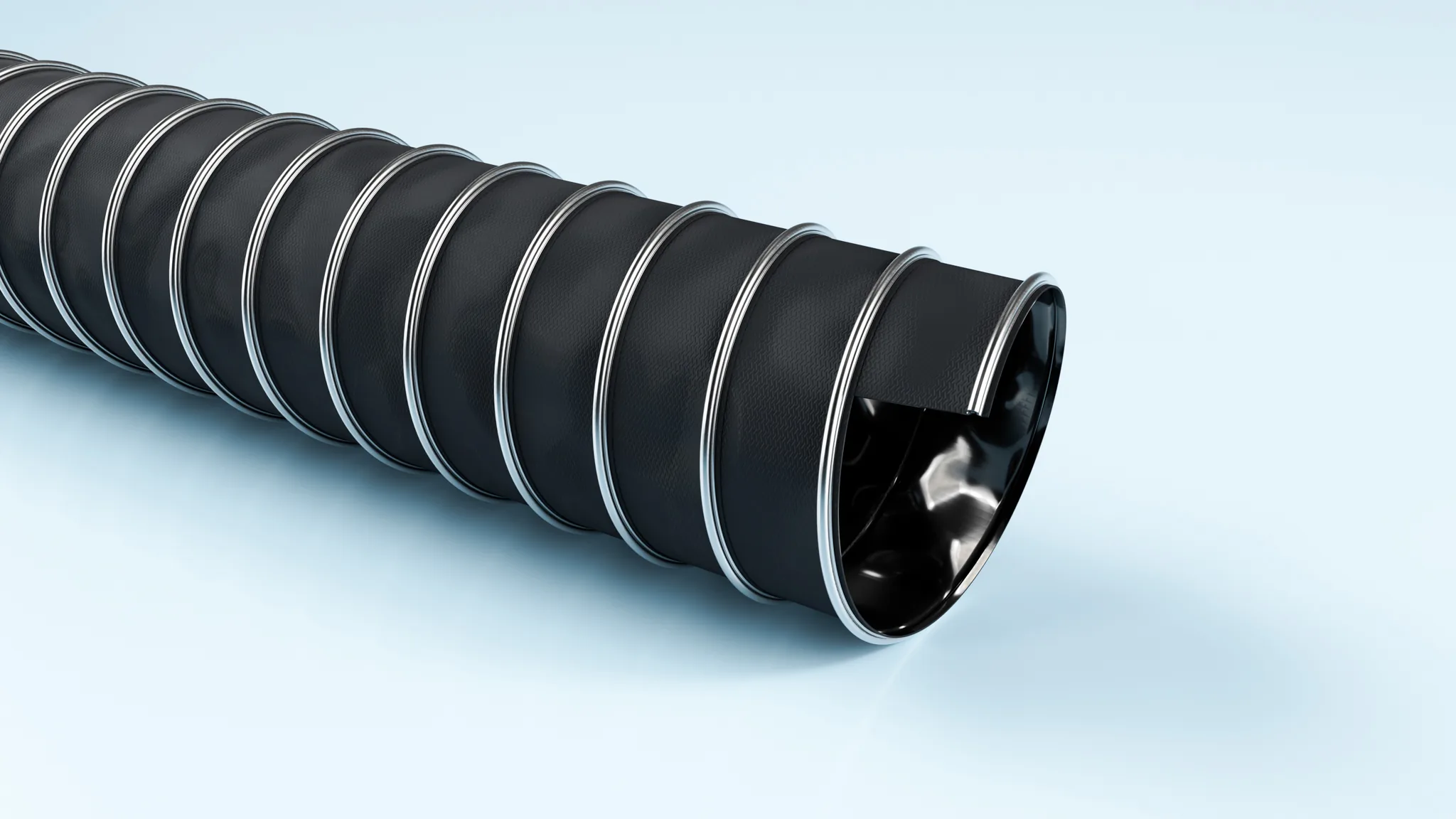

CP PTFE/HYP-INOX 472 EC

ATEX-approved PTFE/HYP-INOX clamp hose — conductive, up to +170 °C, for explosion hazard zones

Inner Ø: 50.5-600 mm
Temp: -40 to +170 °C
Standards: REACH, RoHS

CP PVC 465

Flame-retardant clamp profile hose — fabric-reinforced, chemical-resistant, for extraction arms and welding fume

Inner Ø: 38-900 mm
Temp: -10 to +80 °C

CP PVC 466 HT

High-temperature clamp profile PVC hose — flame-retardant NF P 92-503 M1, up to +110 °C

Inner Ø: 38-700 mm
Temp: -10 to +110 °C

Chemical-resistant

CP SIL 460

Silicone clamp profile hose — flame-retardant, heat-resistant up to +280 °C

Inner Ø: 50.5-750 mm
Temp: -30 to +250 °C
Standards: REACH, RoHS

Chemical-resistant

CP VITON® 459 EC

Conductive Viton®-lined hose for extreme chemicals at high temperatures

Inner Ø: 38-712 mm
Temp: -40 to +200 °C
Standards: REACH, RoHS

Abrasion-resistant

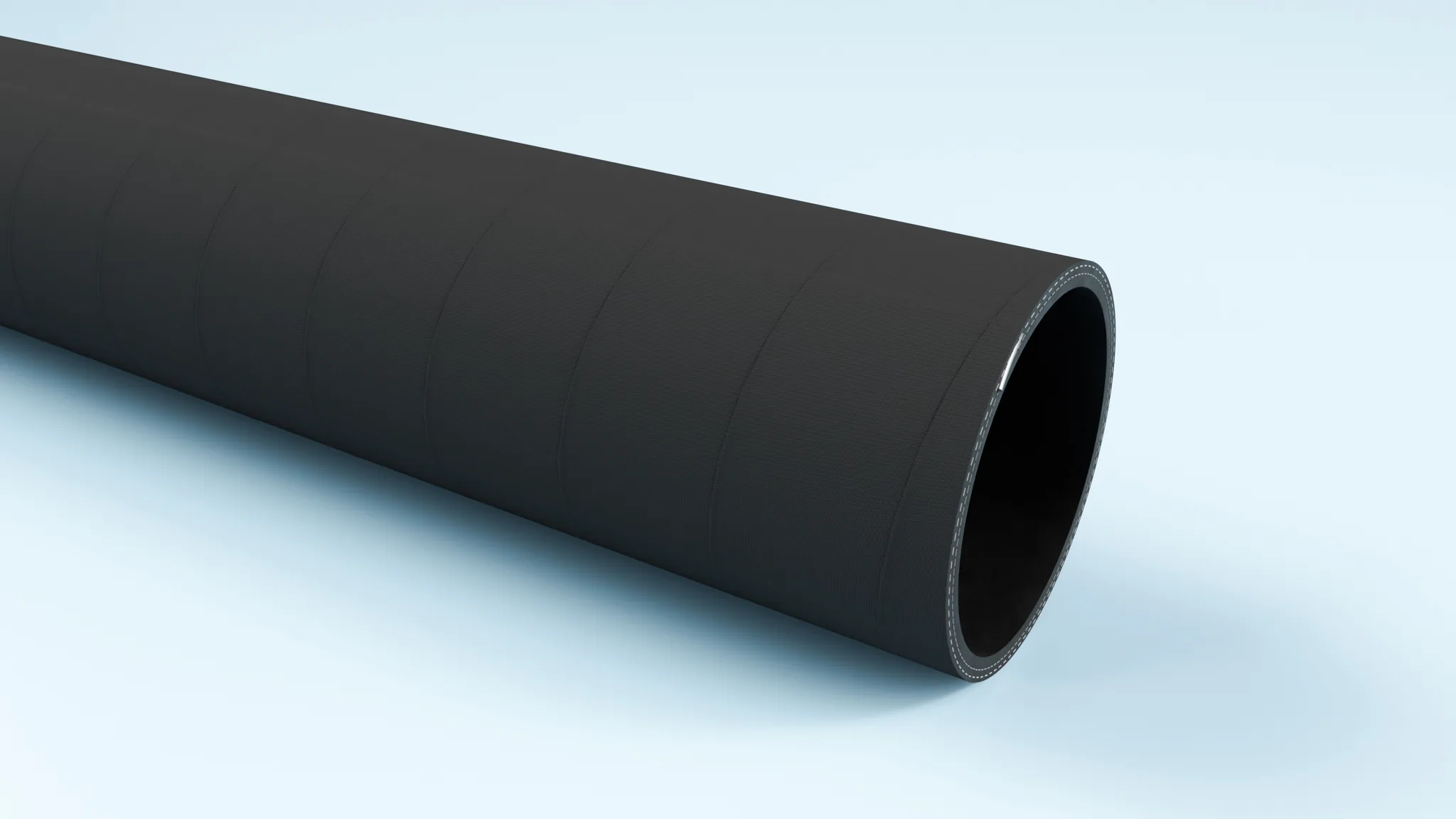

HEDUFLEX

Heavy-duty suction and pressure hose for water and slurry in industry, construction and agriculture

Inner Ø: 19-305 mm
Temp: -30 to +80 °C

up to +70 °C

INDUCORD®

Abrasion-resistant industrial water hose — for water, slurry and light chemicals in agriculture and industry

Inner Ø: 22-254 mm
Temp: -20 to +70 °C

ISODUC ALU-PES 368

Highly flexible HVAC hose in aluminium-polyester laminate

Inner Ø: 76-610 mm
Temp: -30 to +140 °C

ISODUC ALU-PES 368 Anti-Bacterial

Antibacterial HVAC hose for hospitals and laboratories

Inner Ø: 76-610 mm
Temp: -30 to +140 °C

ISODUC ALU-PES 368 SE

Reinforced ALU-PES variant with extra coil density

Inner Ø: 76-610 mm
Temp: -30 to +140 °C

ISODUC ALU-PES 368 Sound Insulation

Sound-damping HVAC hose for fans and cooling units

Temp: -30 to +140 °C

LAVAFORM/EXTRA

Thermoplastic water hose for hot-water applications in washing machines and pumps

Inner Ø: 10-13 mm
Temp: -20 to +95 °C

up to +400 °C

METAL HOSE 101 AD

Highly flexible metal protection conduit — cable protection up to 400 °C

Inner Ø: 8-51 mm
Temp: 0 to +400 °C

up to +400 °C

METAL HOSE 375 HT

Heat-resistant metal hose — up to +400 °C, conductive, ATEX-approved for Zone 20-22

Inner Ø: 20-500 mm
Temp: 0 to +400 °C

up to +300 °C

METAL HOSE ALU 377 - ALUFLEX

Self-locking aluminium hose — flame-retardant, for air conditioning and extraction hoods

Inner Ø: 75-400 mm
Temp: 0 to +300 °C

up to +90 °C

METAL HOSE Agraff PUR 151 AD

Robust agraff metal hose with PUR coating - cable protection rated IP 68

Inner Ø: 13-22 mm
Temp: -40 to +90 °C

up to +600 °C

METAL HOSE Agraff VA 150 AD

Stainless steel agraff hose for cable protection up to 600 C

Inner Ø: 5-23 mm
Temp: -40 to +600 °C

up to +600 °C

METAL HOSE INOX 376

Stainless steel suction hose — up to +600 °C, abrasion-resistant, ATEX Zone 20·21·22 inside

Inner Ø: 20-300 mm
Temp: 0 to +600 °C

up to +90 °C

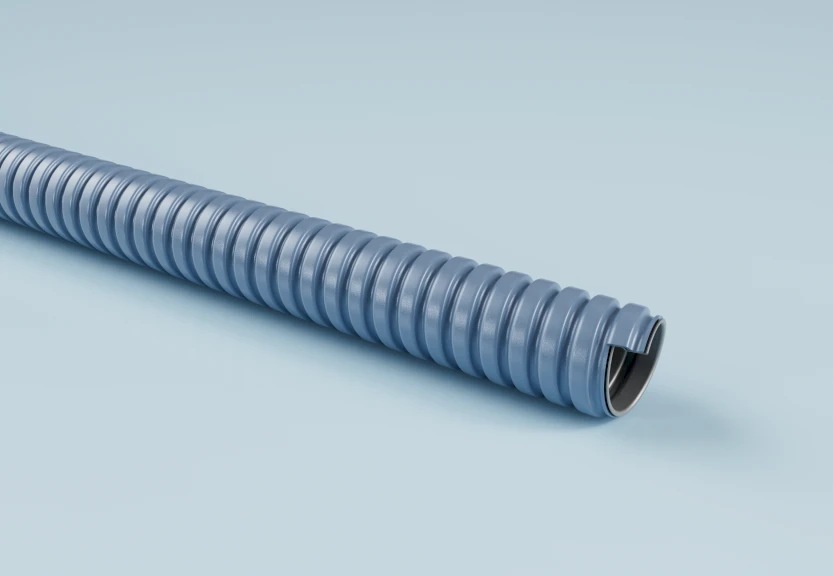

METAL HOSE PUR 105 AD

Very robust PU-coated metal protection conduit — liquid-tight, IP 68, for cable protection

Inner Ø: 7-22 mm
Temp: -40 to +90 °C

up to +70 °C

METAL HOSE PVC 102 AD

PVC-coated metal hose for cable protection in chemically exposed zones with IP 68

Inner Ø: 7-22 mm
Temp: -20 to +70 °C

up to +600 °C

METAL HOSE VA 108 AD

Stainless steel hose for cable protection up to 600 C

Inner Ø: 5-23 mm
Temp: -40 to +600 °C

up to +150 °C

NEO 390 ONE

Single-layered neoprene hose for hot and cold gases up to 150 C

Inner Ø: 13-305 mm
Temp: -40 to +150 °C

up to +150 °C

NEO 390 TWO

Double-layered neoprene hose with increased pressure and abrasion resistance

Inner Ø: 13-305 mm
Temp: -40 to +150 °C

up to +180 °C

NORFLEX SIL 408 special wall 1.5 mm

High-temperature food-grade silicone 1.5 mm wall, -60 to +180 C

Inner Ø: 3-5 mm
Temp: -60 to +180 °C

up to +180 °C

NORFLEX SIL 408 special wall 2 mm

Food-approved silicone hose for precise liquid transfers up to 180 C

Inner Ø: 2-3 mm
Temp: -60 to +180 °C

up to +180 °C

NORFLEX SIL 408 special wall 2.5 mm

High-temperature food-grade silicone 2.5 mm wall, -60 to +180 C

Inner Ø: 10-10 mm
Temp: -60 to +180 °C

up to +180 °C

NORFLEX SIL 408 special wall 3 mm

High-temperature food-grade silicone 3 mm wall, -60 to +180 C

Inner Ø: 8-12 mm
Temp: -60 to +180 °C

up to +180 °C

NORFLEX SIL 448

Textile-reinforced silicone pressure hose, up to 16 bar, -60 to +180 C

Inner Ø: 3-19 mm
Temp: -60 to +180 °C

EU 10/2011

NORFLEX® PTFE 407

Highly flexible PTFE hose — food-grade, extremely chemical-resistant, for pharma

Inner Ø: 2-14 mm
Temp: -60 to +200 °C
Standards: EU 10/2011

Food-grade

NORFLEX® SIL 408

Food-grade silicone hose — −60 to +180 °C, transparent, for pharma and food production

Inner Ø: 2-25 mm
Temp: -60 to +180 °C

Abrasion-resistant

PROTAPE TPE 326 MEMORY

Crush-resistant TPE hose for hot exhaust gas up to 200 C with shape recovery

Inner Ø: 50.5-202.3 mm
Temp: -40 to +200 °C

PROTAPE® ALU-PES 369

Highly flexible air conditioning hose — flame-retardant, up to +140 °C, alu-pes-based

Inner Ø: 75-610 mm
Temp: -40 to +140 °C

PROTAPE® ALU-PVC 369

Highly flexible air conditioning hose — flame-retardant, up to +140 °C, alu-pvc-based

Inner Ø: 76-610 mm
Temp: -40 to +140 °C

PROTAPE® PVC 371 (LD)

Flame-retardant PVC ventilation hose — the lightest (LD) variant of PROTAPE® PVC 371

Inner Ø: 40-508 mm
Temp: -10 to +80 °C

PROTAPE® PVC 371 (MD)

Flame-retardant ventilation hose — flexible, fabric-reinforced, for hot air and welding fume

Inner Ø: 50-600 mm
Temp: -10 to +80 °C

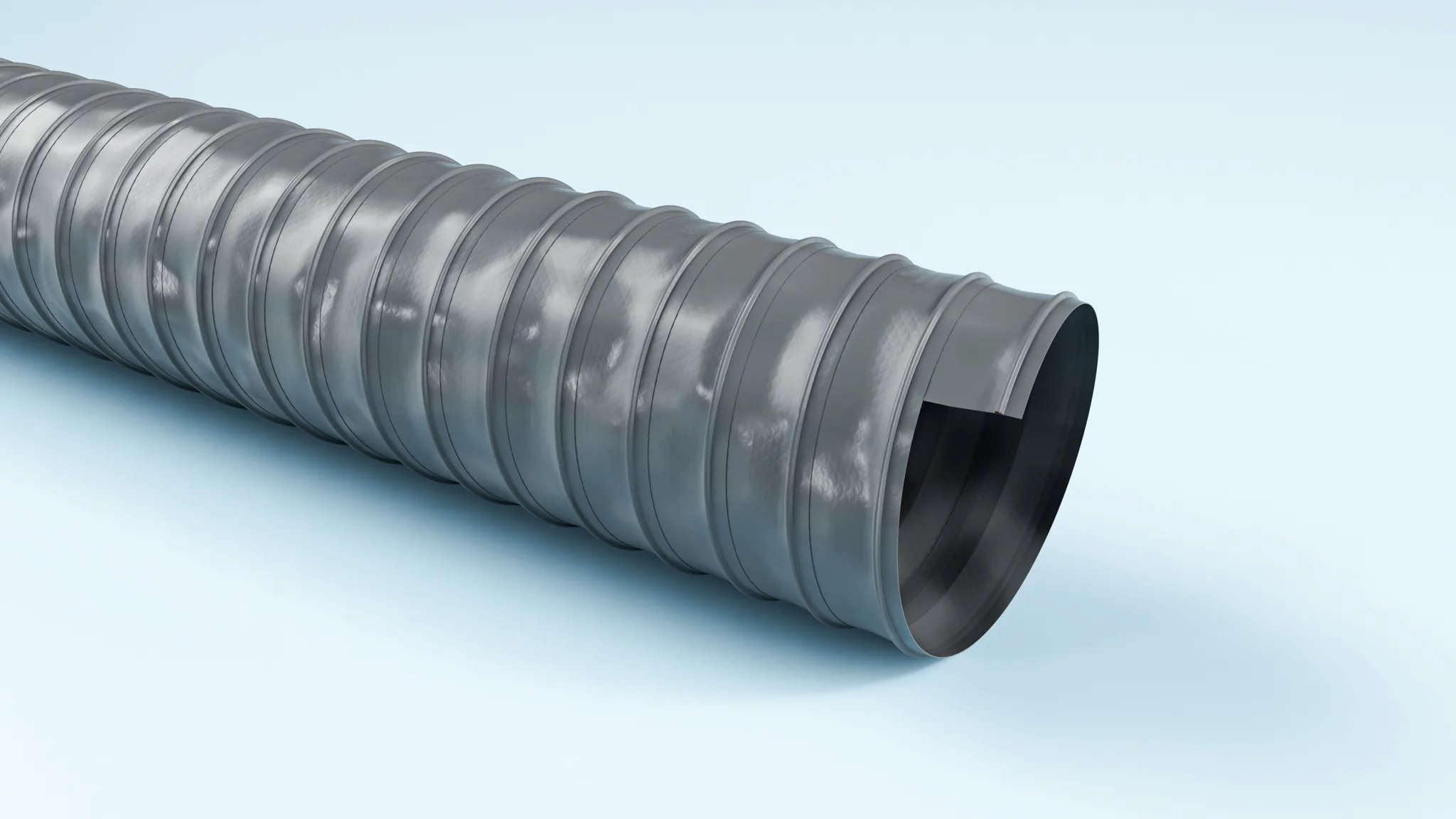

PROTAPE® PVC 371 HT (LD)

Flame-retardant PVC ventilation hose — the high-temperature (HT) variant with M1 fire class, up to +110 °C continuous

Inner Ø: 50.5-305 mm
Temp: -10 to +110 °C

Antistatic

PROTAPE® TPE 320 AS (XLD)

Antistatic TPE hose — chemical- and heat-resistant in extra-light-duty construction

Inner Ø: 25-250 mm
Temp: -40 to +125 °C

PYROFLAT

Layflat firefighting hose, EPDM/PU, seawater-resistant

Inner Ø: 38-102 mm
Temp: -40 to +80 °C

up to +100 °C

RADIACORD

EPDM cooling water hose with antifreeze resistance for closed cooling circuits

Inner Ø: 10-110 mm
Temp: -30 to +100 °C

up to +130 °C

RADIACORD®/DIN

Cooling water hose — per DIN 73411, for hot and cold water applications

Inner Ø: 10-120 mm
Temp: -30 to +130 °C

up to +280 °C

SIL 391 ONE

Single-layered silicone hose for hot and cold gases up to 280 C

Inner Ø: 19-305 mm
Temp: -40 to +280 °C

up to +280 °C

SIL 391 TWO

Double-layered silicone hose with increased robustness and 280 C capacity

Inner Ø: 13-305 mm
Temp: -40 to +280 °C

up to +210 °C

STEAMFLEX/EN/ISO

Standardised EPDM steam hose for 18 bar saturated steam and 55 bar hot water per EN ISO 6134:2017

Inner Ø: 13-51 mm
Temp: -40 to +210 °C

up to +100 °C

TEMPERFORM/BLUE

Extremely flexible EPDM cooling hose for temperature control up to 100 C

Inner Ø: 9.5-12.7 mm
Temp: -20 to +100 °C

up to +100 °C

TEMPERFORM/RED

Extremely flexible EPDM cooling hose (red) for temperature control up to 100 C

Inner Ø: 9.5-12.7 mm
Temp: -20 to +100 °C

TUBIMAR/LLOYDS

Lloyd's-certified marine exhaust hose for yachts up to 24 m

Inner Ø: 40-127 mm
Temp: -30 to +100 °C

up to +164 °C

VAPORCORD

Flexible steam hose for hot water up to 95 C and saturated steam up to 164 C

Inner Ø: 10-76 mm
Temp: -35 to +164 °C

up to +120 °C

VENTILAZIONE/CALOR

Corrugated heat-resistant ventilation hose for 120 C continuous operation

Inner Ø: 51-203 mm
Temp: -40 to +120 °C

Material choice is driven by the thermal profile, not by the peak number

Most failures we see on high-temperature installations are not about the hose being unable to handle the temperature. They are about the hose being able to handle it sometimes, but not 24/7. The material grows tired from repeated thermal cycling and from sustained exposure close to the peak limit.

Silicone

Standard silicone typically handles -60 °C to +200 °C continuously and short-term peaks up to 250 °C. It is flexible, has good chemical resistance and is cost-effective. The limit is exhaust temperatures or direct flame exposure, where the material degrades quickly.

Glass-fibre-reinforced silicone and glass-fibre-insulated hose

For temperatures from 250 °C up to around 600 °C, glass fibre serves as the thermal barrier. The hose may be glass-fibre-reinforced internally or wrapped in a glass-fibre cover externally. The internal medium temperature and the external surface temperature can differ markedly — that is what the insulation is for.

Metal hose

Corrugated stainless steel (typically AISI 316) handles continuous service up to 700-1000 °C, depending on alloy. It is stiffer than silicone, conducts vibrations and requires mechanical decoupling where that matters. In return, it is unavoidable where temperature exceeds silicone's peak, or where the hose is exposed to sparks.

Fire ratings: what B1 and V2 mean

DIN 4102-B1 and UL94-V2 are both fire classifications for flame-retardant materials. They state that the material does not support sustained flame after the ignition source is removed. They are NOT the same as "fire-stopping" or "non-combustible". Areas with direct flame exposure typically require metal hose or specialist products beyond these ratings.

Questions we are asked often

What is the difference between continuous and peak temperature?

Continuous service temperature is the maximum the hose can handle 24/7 throughout its lifetime. Peak (or short-term) temperature is the higher limit it can handle for a limited time — typically minutes to a few hours. Running close to peak for hours degrades the material faster than expected, even though the peak number is higher than the actual temperature.

Can silicone hoses be used for exhaust?

Standard silicone typically handles up to 250 °C continuously. Vehicle exhaust gas is often 400-700 °C at the manifold, which is too hot for plain silicone. For exhaust, use glass-fibre-reinforced silicone, glass-fibre-insulated hose, or metal hose. Check the manifold temperature before choosing material.

How do I prevent kinking at high temperature?

Materials soften at high temperature, and bend radius worsens. Use embedded helix (steel or glass fibre) to keep the hose open, or pick a construction with extra wall thickness. The factsheet specifies minimum bend radius — that figure applies at nominal temperature, not at peak.

What does DIN 4102-B1 mean?

DIN 4102-B1 is the German fire classification for building materials that are flame-retardant (schwer entflammbar). A class B1 material must not support sustained flame after the ignition source is removed. UL94-V2 is the US equivalent. Both ratings matter where a hose must be fire-resistant, though not necessarily fire-stopping.

Should I choose silicone or metal?

Silicone is flexible, lighter and easier to install — good for vibrations and lower temperatures. Metal hose (typically corrugated stainless steel) handles higher temperatures (700-1000 °C) but is stiffer and conducts vibrations. Pick metal when temperature exceeds silicone's peak, or where the hose is exposed to direct flame.

High-temperature hoses

Products

AIRDUC® PUR 351 HT (MD)

AIRDUC® PUR 355 HT (HD)

AIRDUC® PUR 356 HT (XHD)

AIRDUC® TPE 363 (MD)

CALORFORM

CP ARAMID 461

CP ARAMID 461 PROTECT

CP HYP 450

CP HYP 450 PROTECT

CP HiTex 481

CP HiTex 483

CP HiTex® 467 WELDING

CP HiTex® 480

CP HiTex® 485

CP HiTex® 486

CP HiTex® 487

CP PTFE-INOX 475 EC

CP PTFE-INOX 475 FOOD

CP PTFE/GLASS-INOX 471

CP PTFE/GLASS-INOX 471 EC

CP PTFE/HYP-INOX 472

CP PTFE/HYP-INOX 472 EC

CP PVC 465

CP PVC 466 HT

CP SIL 460

CP VITON® 459 EC

HEDUFLEX

INDUCORD®

ISODUC ALU-PES 368

ISODUC ALU-PES 368 Anti-Bacterial

ISODUC ALU-PES 368 SE

ISODUC ALU-PES 368 Sound Insulation

LAVAFORM/EXTRA

METAL HOSE 101 AD

METAL HOSE 375 HT

METAL HOSE ALU 377 - ALUFLEX

METAL HOSE Agraff PUR 151 AD

METAL HOSE Agraff VA 150 AD

METAL HOSE INOX 376

METAL HOSE PUR 105 AD

METAL HOSE PVC 102 AD

METAL HOSE VA 108 AD

NEO 390 ONE

NEO 390 TWO

NORFLEX SIL 408 special wall 1.5 mm

NORFLEX SIL 408 special wall 2 mm

NORFLEX SIL 408 special wall 2.5 mm

NORFLEX SIL 408 special wall 3 mm

NORFLEX SIL 448

NORFLEX® PTFE 407

NORFLEX® SIL 408

PROTAPE TPE 326 MEMORY

PROTAPE® ALU-PES 369

PROTAPE® ALU-PVC 369

PROTAPE® PVC 371 (LD)

PROTAPE® PVC 371 (MD)

PROTAPE® PVC 371 HT (LD)

PROTAPE® TPE 320 AS (XLD)

PYROFLAT

RADIACORD

RADIACORD®/DIN

SIL 391 ONE

SIL 391 TWO

STEAMFLEX/EN/ISO

TEMPERFORM/BLUE

TEMPERFORM/RED

TUBIMAR/LLOYDS

VAPORCORD

VENTILAZIONE/CALOR

Material choice is driven by the thermal profile, not by the peak number

Silicone

Glass-fibre-reinforced silicone and glass-fibre-insulated hose

Metal hose

Fire ratings: what B1 and V2 mean

Questions we are asked often

See also
