ATEX Combi vacuums

ATEX Combi

Tiger-Vac EXP1-5 (4W) RE HEPA

Single-phase TEFC · 224 m³/h · 152 mbar · 12.9 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac EXP1-10 (4W) BASE MODEL

Single-phase TEFC · 224 m³/h · 152 mbar · 22.7 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac EXP1-15 (TC) RE HEPA

Single-phase TEFC · 224 m³/h · 152 mbar · 38 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348 DT/LC

ATEX Combi

Tiger-Vac EXP1-40L (4W) RE HEPA (FR-P) DRY

Single-phase TEFC · 224 m³/h · 152 mbar · 38 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac EXP1-40L (4W) RE HEPA (FR-P) W&D

Single-phase TEFC · 224 m³/h · 152 mbar · 38 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

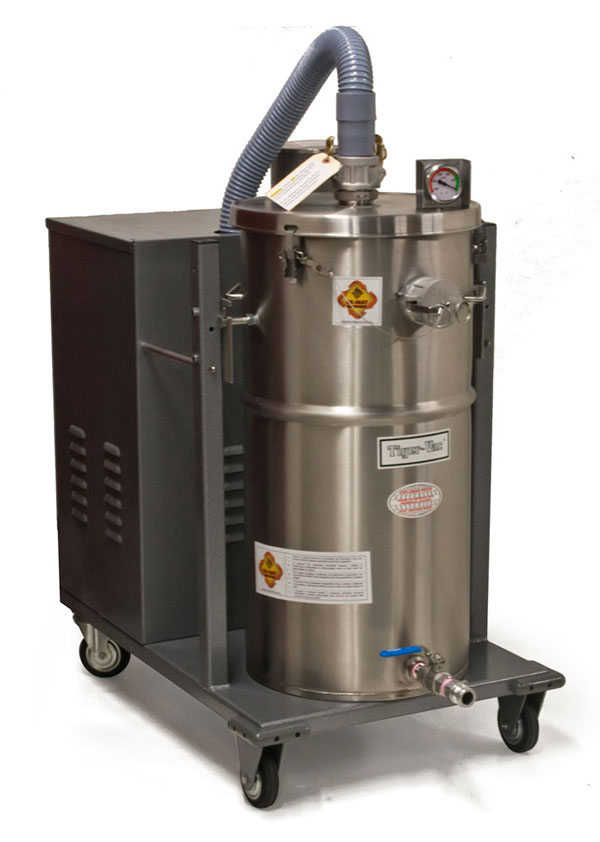

Tiger-Vac CD-63L EX (W&D) Z1-2-21-22 -- single-phase

Single-phase TEFC · 212 m³/h · 249 mbar · 56.8 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT/LC -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party

ATEX Combi

Tiger-Vac EXP1-20L (DT) RE HEPA (MFS)

Single-phase TEFC · 224 m³/h · 152 mbar · 25 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac EXP1-10 (25L) DT RE HEPA MFS (SS-FOD CART)

Single-phase TEFC · 224 m³/h · 152 mbar · 25 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac EXP1-25 (TC) RE HEPA

Single-phase TEFC · 224 m³/h · 152 mbar · 56.8 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348 DT/LC

ATEX Combi

Tiger-Vac EXP1-10 (4W) RE HEPA (MRAC)

Single-phase TEFC · 224 m³/h · 152 mbar · 22.7 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac EXP1-35L (DT) RE HEPA (MFS)

Single-phase TEFC · 224 m³/h · 152 mbar · 35 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac EXP1-55 (TC) RE HEPA

Single-phase TEFC · 224 m³/h · 152 mbar · 151 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348 DT/LC

ATEX Combi

Tiger-Vac EXP1-20 DT (PRS-HEC) RE HEPA

Single-phase TEFC · 224 m³/h · 152 mbar · 25 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348 DT

ATEX Combi

Tiger-Vac EXP1-35L (DT) RE HEPA (MRP)

Single-phase TEFC · 224 m³/h · 152 mbar · 35 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac CD-230V EX CFB HEPA

Single-phase TEFC · 212 m³/h · 249 mbar · 50 L

II 1/2GD Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP65 -- Intern: Ex h IIC T6 Ga / Ex h IIIC T50°C Da -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- EN 17348

ATEX Combi

Tiger-Vac CD-230V EX MRPFT HEPA

Single-phase TEFC · 212 m³/h · 249 mbar · 50 L

II 1/2GD Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP65 -- Intern: Ex h IIC T6 Ga / Ex h IIIC T50°C Da -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- EN 17348

ATEX Combi

Tiger-Vac CD-230V EX (CFB) PHARMA

Single-phase TEFC · 212 m³/h · 249 mbar · 50 L

II 1/2GD Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP65 -- Intern: Ex h IIC T6 Ga / Ex h IIIC T50°C Da -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- EN 17348 DT

ATEX Combi

Tiger-Vac EXP1-55L DT EXTENDED (MFS) RE HEPA

Single-phase TEFC · 224 m³/h · 152 mbar · 55 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac EXP1-10/15 (4W) RE

Single-phase TEFC · 224 m³/h · 152 mbar · 22.7 L

II 2GD Ex d IIA T3 Gb / Ex t IIIC T200°C Db IP6X -- LCIE 03 ATEX 6297 -- EN 17348

ATEX Combi

Tiger-Vac CD-63L EX (W&D) Z1-2-21-22 -- three-phase

Three-phase TEFC · 212 m³/h · 249 mbar · 56.8 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT/LC -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party

ATEX Combi

Delfin MTL 4533 Z2/22

Three-phase side-channel · 318 m³/h · 314 mbar · 45 L

II 3D Ex h IIIC T135°C Dc -- II 3G Ex h IIB + H2 T4 Gc

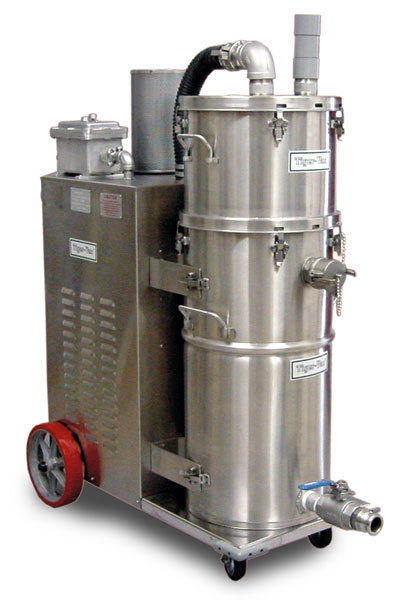

ATEX Combi

Tiger-Vac CD-3 EX ULPA (W & D) Z1-2-21-22

Three-phase TEFC · 299 m³/h · 331 mbar · 56.8 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT/LC -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- ISO Class 4 cleanroom-compatible -- mindre end 10 ohm modstand

ATEX Combi

Tiger-Vac CD-3 EX ULPA (MRAC) Z1-2-21-22

Three-phase TEFC · 299 m³/h · 331 mbar · 56.8 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT/LC -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- ISO Class 4 cleanroom-compatible -- mindre end 10 ohm modstand

ATEX Combi

Delfin DG 50 EXP Z2/22

Three-phase side-channel · 420 m³/h · 314 mbar · 100 L

II 3D Ex h IIIC T135°C Dc -- II 3G Ex h IIB + H2 T4 Gc

ATEX Combi

Delfin DG 70 EXP Z2/22

Three-phase side-channel · 530 m³/h · 353 mbar · 100 L

II 3D Ex h IIIC T135°C Dc -- II 3G Ex h IIB + H2 T4 Gc

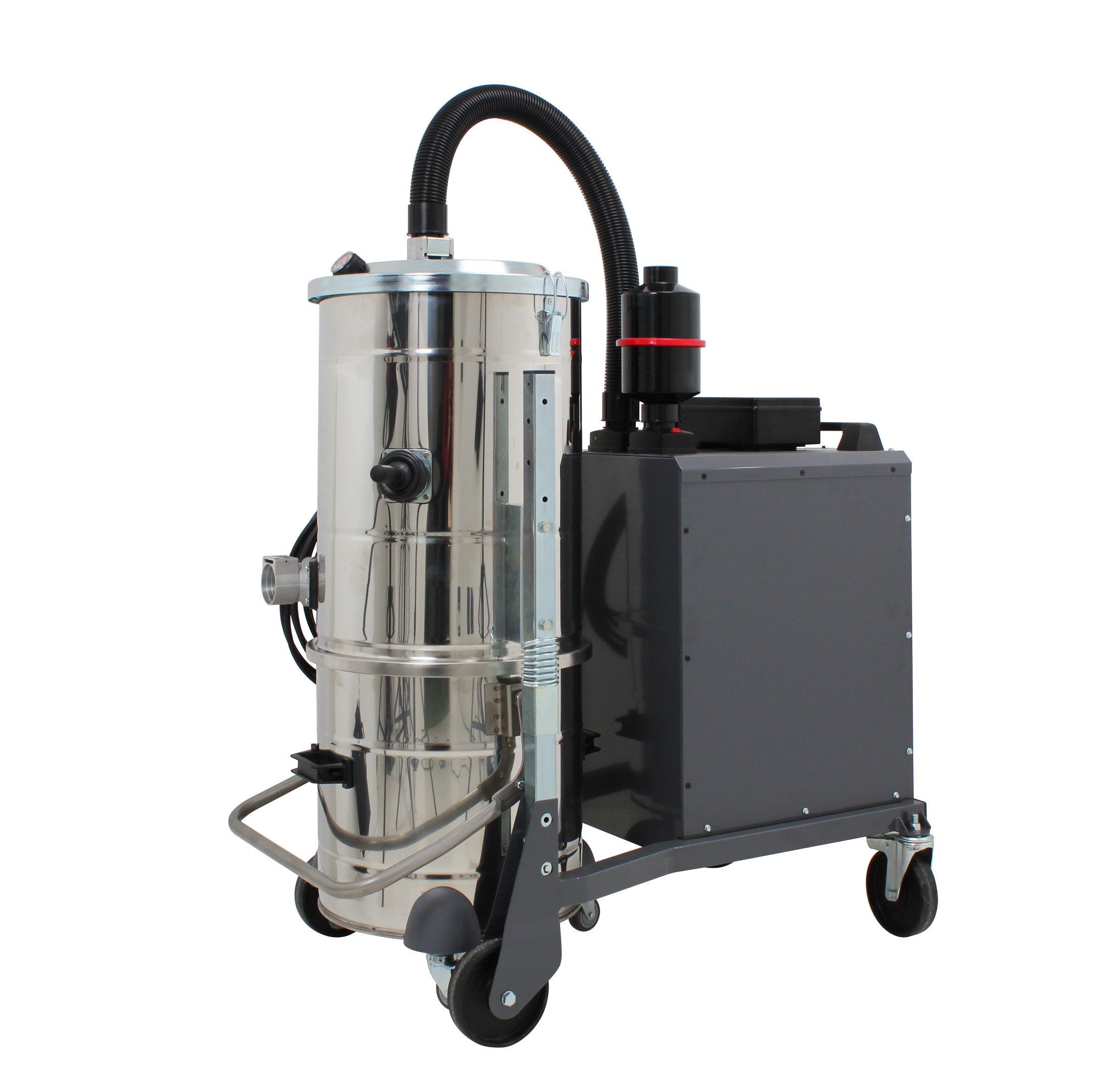

ATEX Combi

Tiger-Vac CD-15 (DT) EX (MFS) Z22

Three-phase TEFC · 320 m³/h · 320 mbar · 55 L

II 3GD Ex h tc IIIC T125 C Dc IP65 -- -5 C <= Ta <= +37 C -- EN 17348 DT -- ATEX 1st party certified

ATEX Combi

Tiger-Vac CD-25L EX DT (MFS)

Three-phase TEFC · 212 m³/h · 249 mbar · 25 L

II 1/2GD Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP65 -- Intern: Ex h IIC T6 Ga / Ex h IIIC T50°C Da -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- EN 17348 DT

ATEX Combi

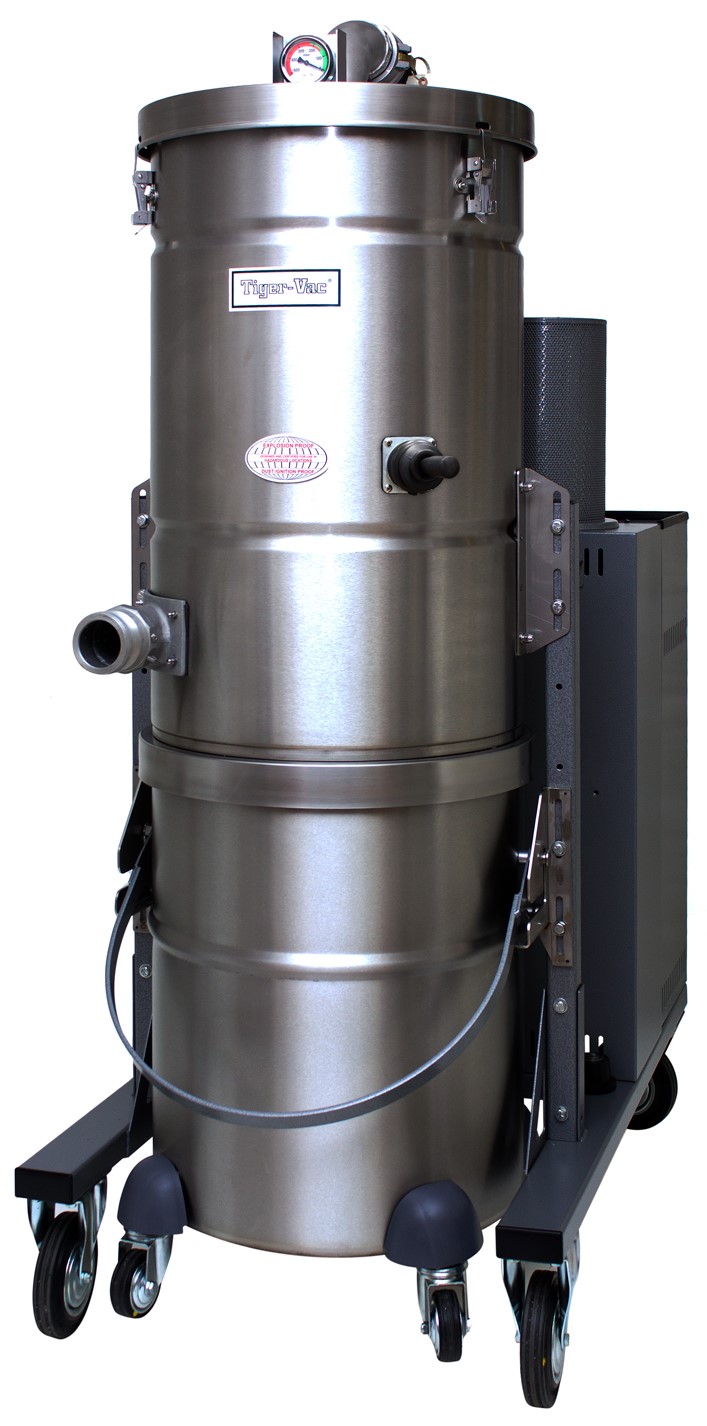

Tiger-Vac CD-100L (DT) EX (MFS) CAT. 2GD Z1-21 -- 4 kW

Three-phase TEFC · 299 m³/h · 331 mbar · 100 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- 2.5" CAMLOCK 63,5 mm sugeport

ATEX Combi

Tiger-Vac CD-100L (DT) EX (MFS) CAT. 2GD Z1-21 -- 7.5 kW

Three-phase TEFC · 450 m³/h · 230 mbar · 100 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- 2.5" CAMLOCK 63,5 mm sugeport

ATEX Combi

Tiger-Vac CD-36L EX DT (MRP) ULPA WITH SS CART 1/2GD

Three-phase TEFC · 212 m³/h · 249 mbar · 36 L

II 1/2GD Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP65 -- Intern: Ex h IIC T6 Ga / Ex h IIIC T50°C Da -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- EN 17348 DT

ATEX Combi

Tiger-Vac CD-36L EX DT (MFS) ULPA WITH SS CART

Three-phase TEFC · 212 m³/h · 249 mbar · 36 L

II 1/2GD Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP65 -- Intern: Ex h IIC T6 Ga / Ex h IIIC T50°C Da -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- EN 17348 DT

ATEX Combi

Tiger-Vac CD-36L EX DT (MFS) HEPA

Three-phase TEFC · 212 m³/h · 249 mbar · 36 L

II 1/2GD Ex db h IIB T4 Gb / Ex h tb IIIC T135°C Db IP65 -- Intern: Ex h IIC T6 Ga / Ex h IIIC T50°C Da -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- EN 17348 DT

ATEX Combi

Tiger-Vac CD/EUR-50L EX DT (MFS) CAT. 2D Z21

Three-phase TEFC · 299 m³/h · 331 mbar · 50 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- variant: Z21 cert (111611B1) m/MFS

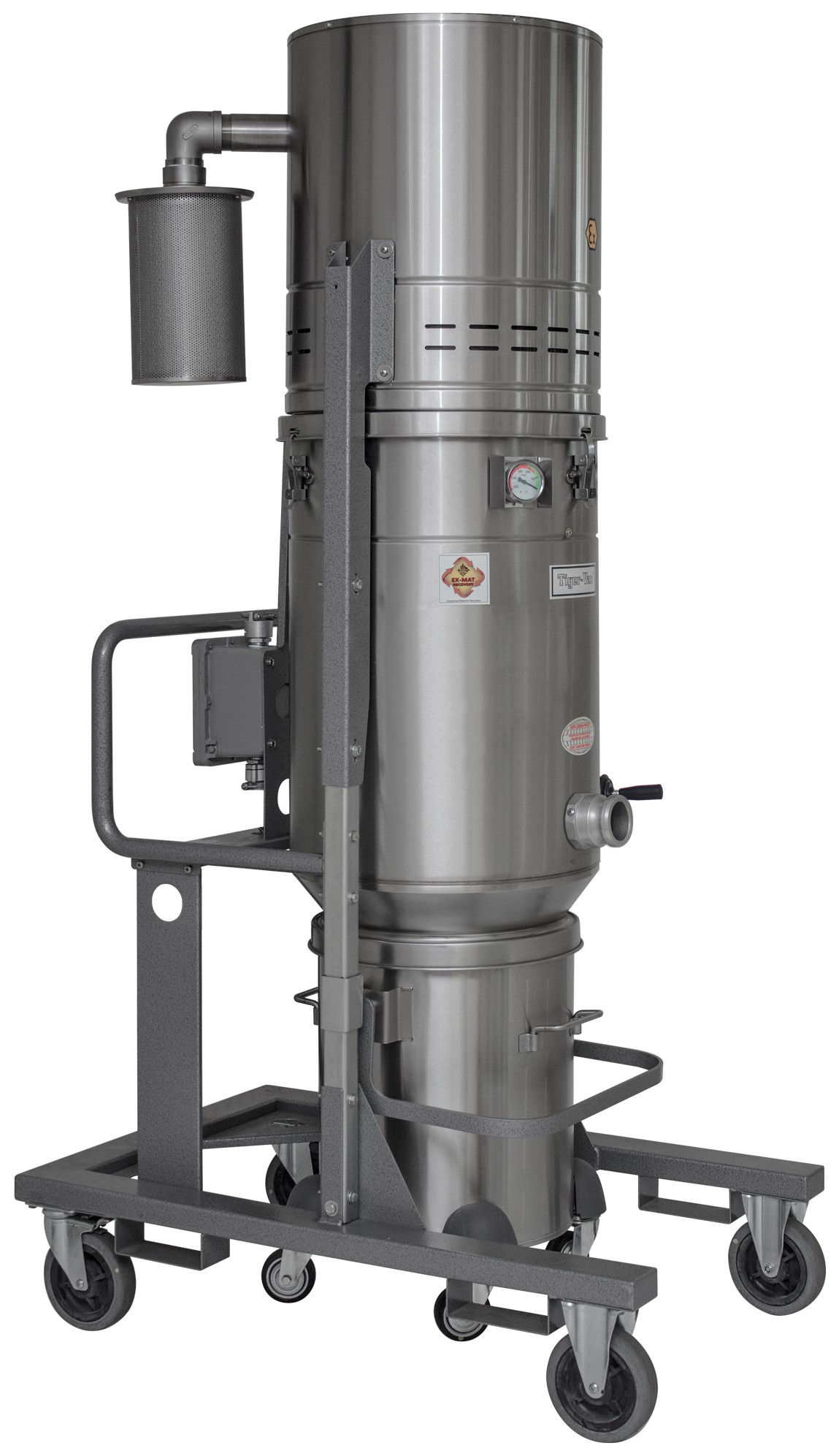

ATEX Combi

Tiger-Vac CD/EUR-50L EX DT (MFS) CAT. 2GD Z1-21

Three-phase TEFC · 299 m³/h · 331 mbar · 50 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- variant: Z1-2-21-22 kombi cert (111610B1) m/MFS

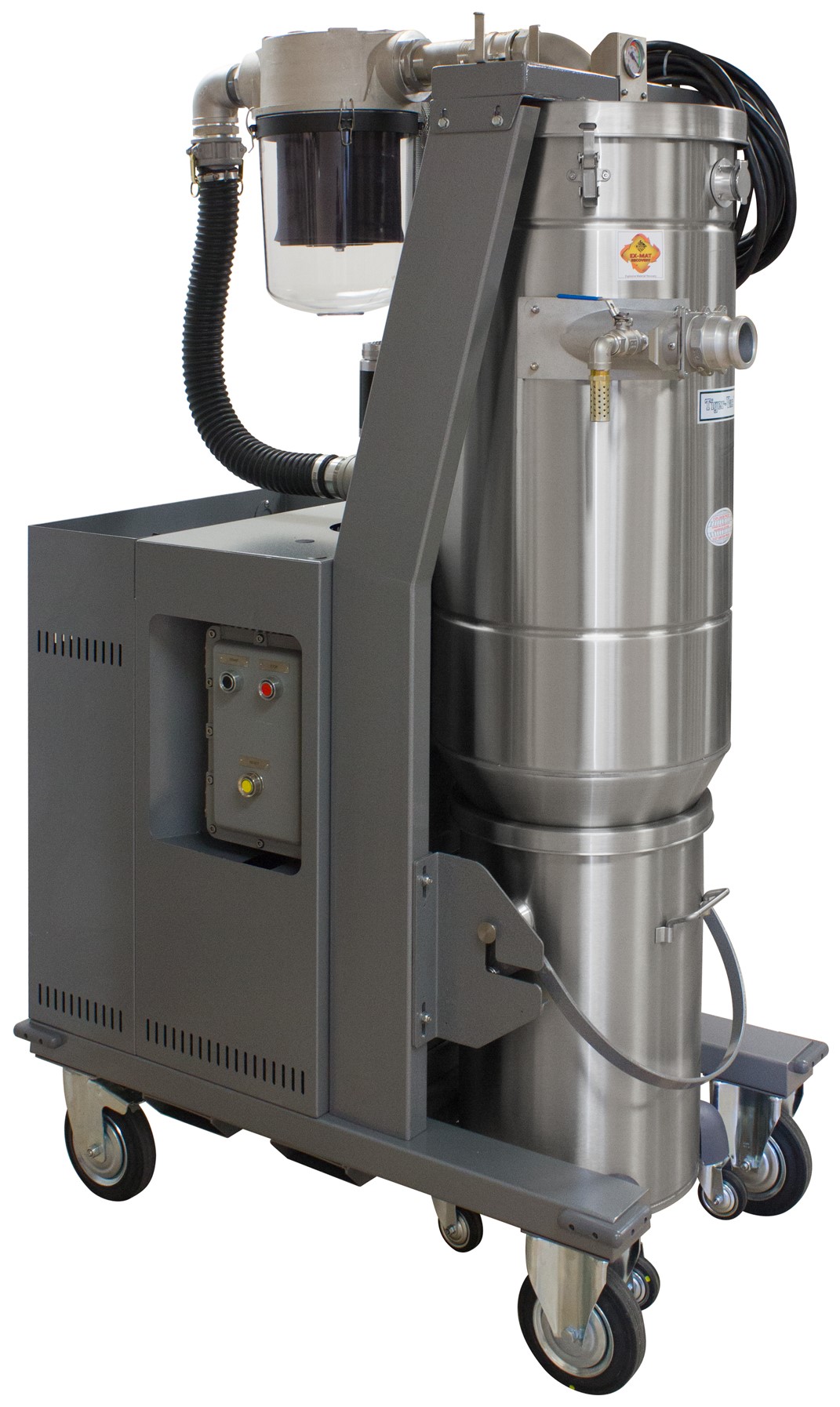

ATEX Combi

Tiger-Vac CD-10/7 EX (MRP-EXTENDED) 2GD Z1-2-21-22

Three-phase TEFC · 500 m³/h · 249 mbar · 56.8 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- EXTENDED Middle Ring konstruktion -- AISI 304 stainless steel

ATEX Combi

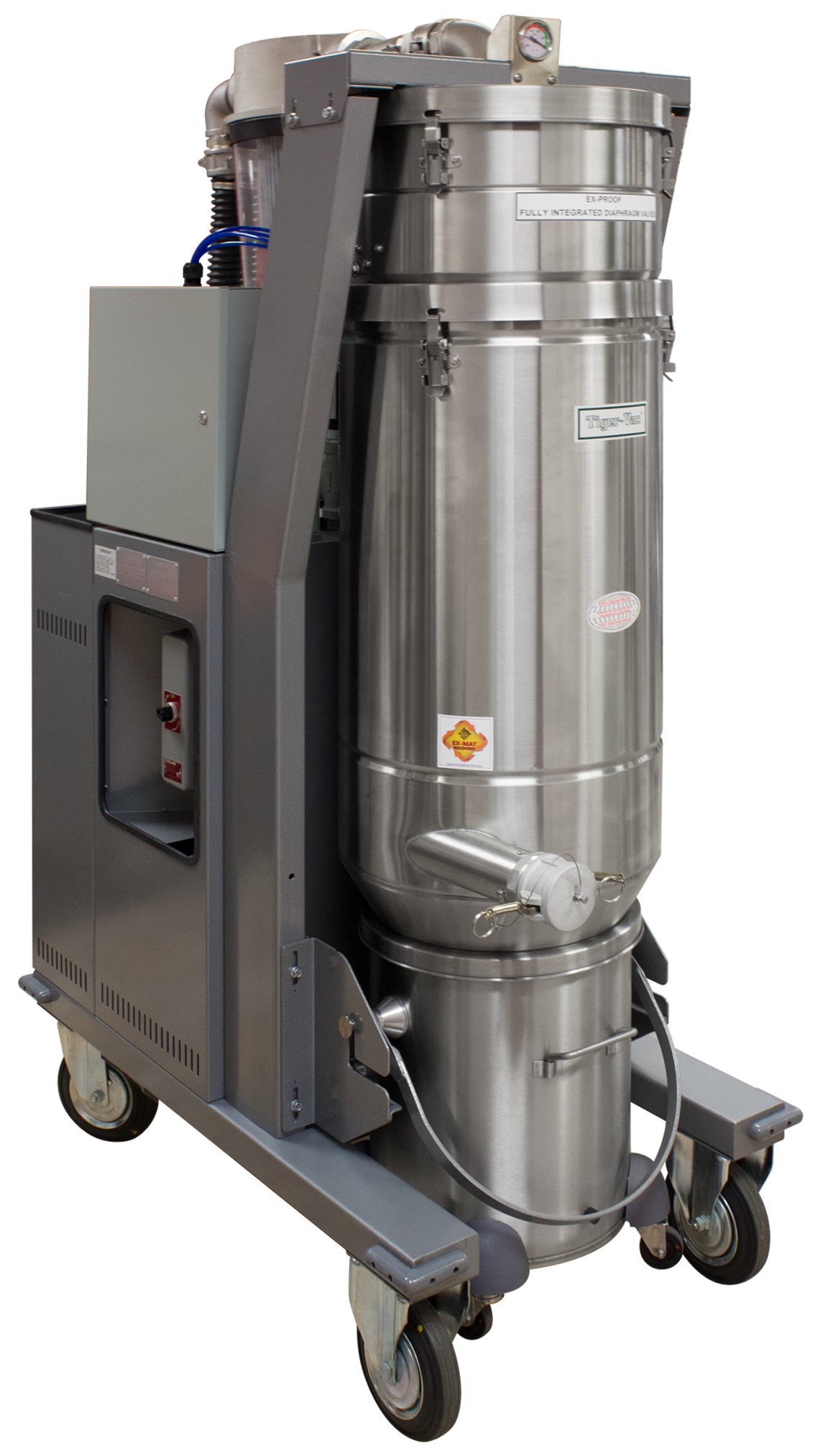

Tiger-Vac CD-10/7 EX (APS-EXTENDED) 2GD Z1-2-21-22

Three-phase TEFC · 500 m³/h · 249 mbar · 56.8 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- EXTENDED Middle Ring konstruktion -- AISI 304 stainless steel -- Automatic Purge System

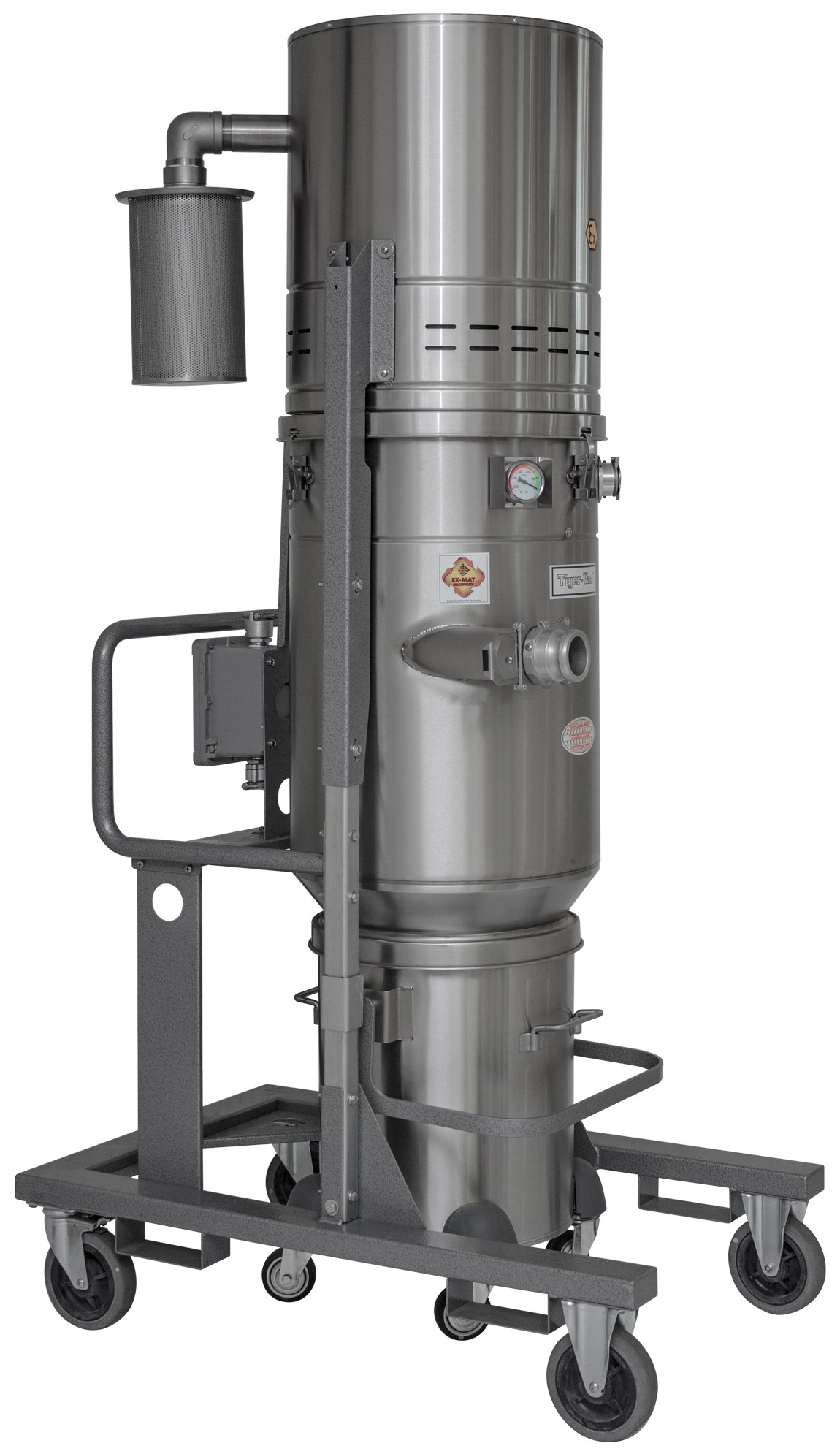

ATEX Combi

Tiger-Vac CD/EUR-50L EX DT (MRP) ULPA Z22

Three-phase TEFC · 299 m³/h · 331 mbar · 50 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- variant: Z22 cert (111625B1)

ATEX Combi

Tiger-Vac CD/EUR-50L EX DT (MRP) ULPA Z21

Three-phase TEFC · 299 m³/h · 331 mbar · 50 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- variant: Z21 cert (111629B1)

ATEX Combi

Tiger-Vac CD/EUR-50L EX DT (MRP) ULPA Z1-2-21-22

Three-phase TEFC · 299 m³/h · 331 mbar · 50 L

II 1/2GD External: Ex db h IIB T4 Gb -- Ex h tb IIIC T135 C Db IP65 -- Internal: Ex h IIC T6 Ga -- Ex h IIIC T50 C Da -- -5 C <= Ta <= +37 C -- EN 17348 DT -- LCIE 03 ATEX 6295 X -- IECEx LCI 10.0040X -- ATEX 3rd party -- variant: Z1-2-21-22 kombi cert (111633B1)

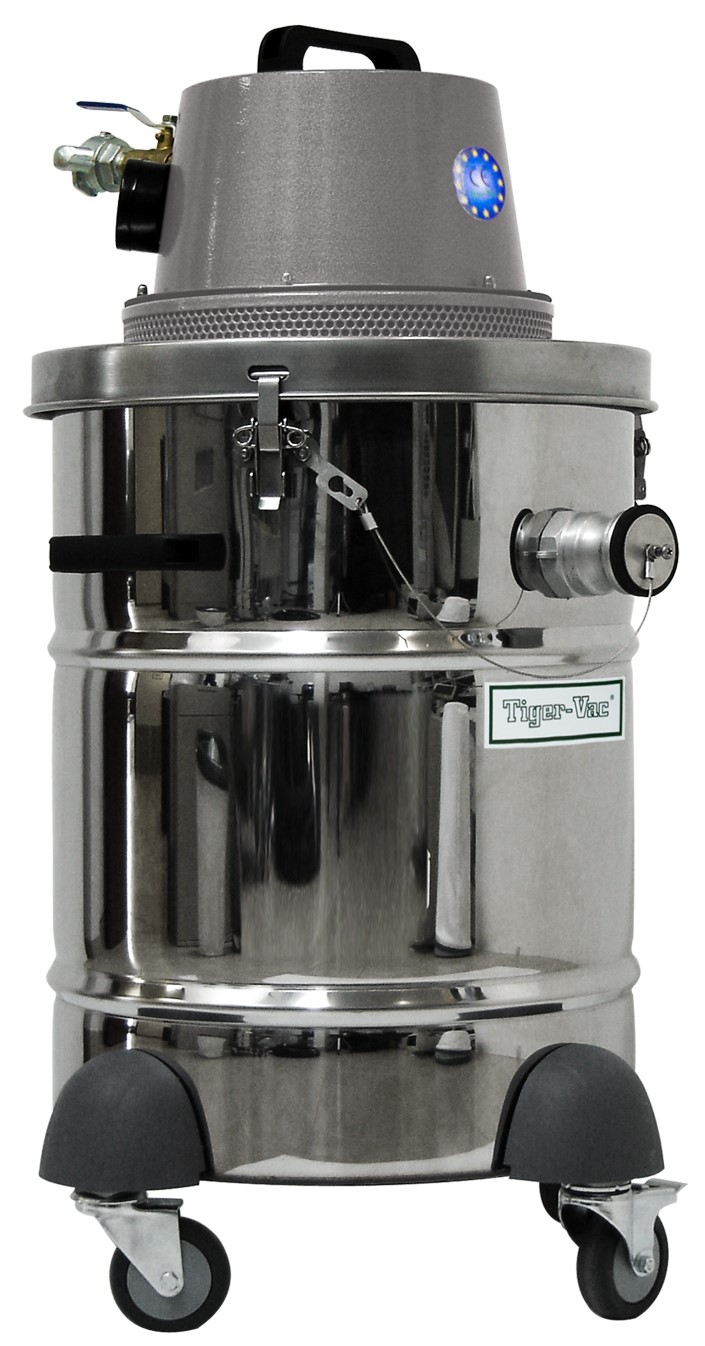

ATEX Combi

Tiger-Vac ATEX-12A (4W)

Pneumatic venturi · 187 m³/h · 274 mbar · 38 L

II 2GD Ex h IIC T6 Gb Ex h IIIC T85 C Db -4 C <= Ta <= +37 C EN 17348 DT

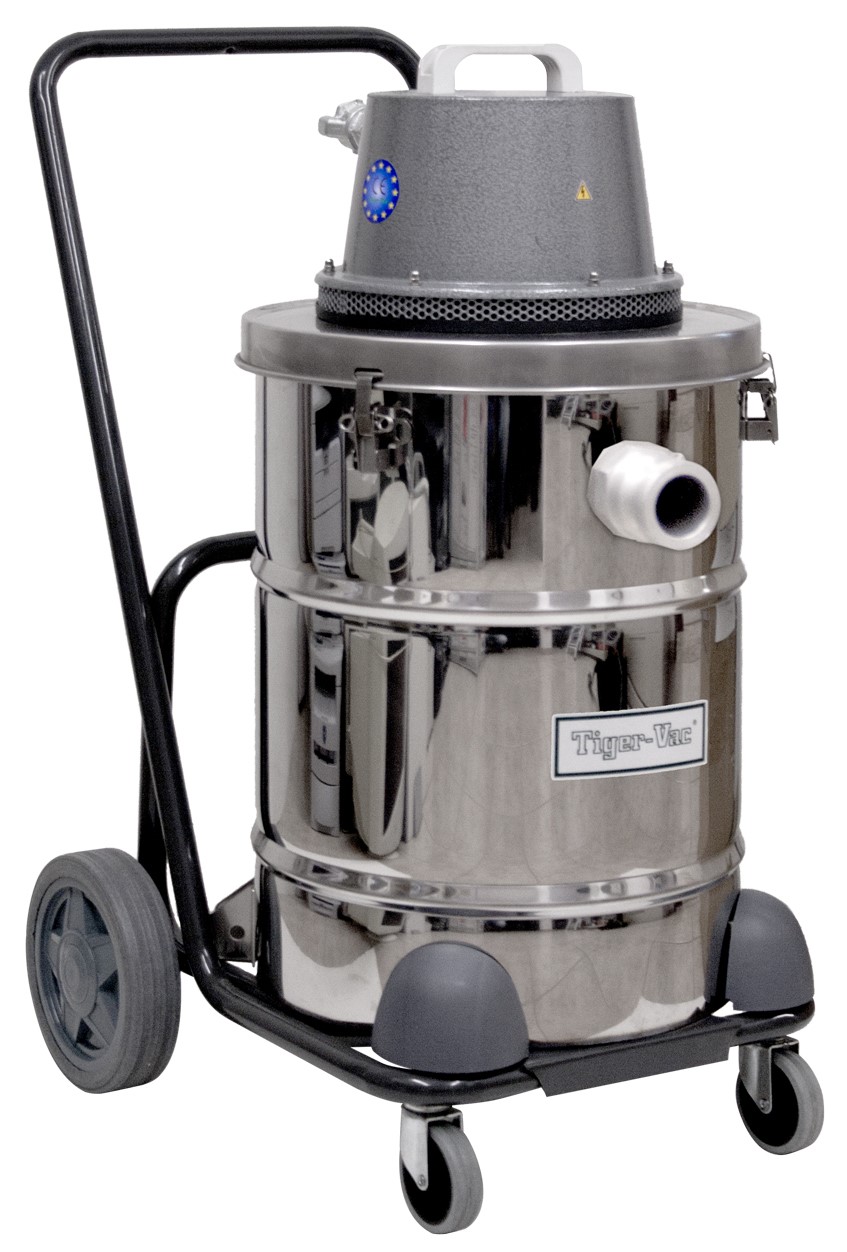

ATEX Combi

Tiger-Vac ATEX-12A (2+2W)

Pneumatic venturi · 187 m³/h · 274 mbar · 38 L

II 2GD Ex h IIC T6 Gb Ex h IIIC T85 C Db -4 C <= Ta <= +37 C EN 17348 DT

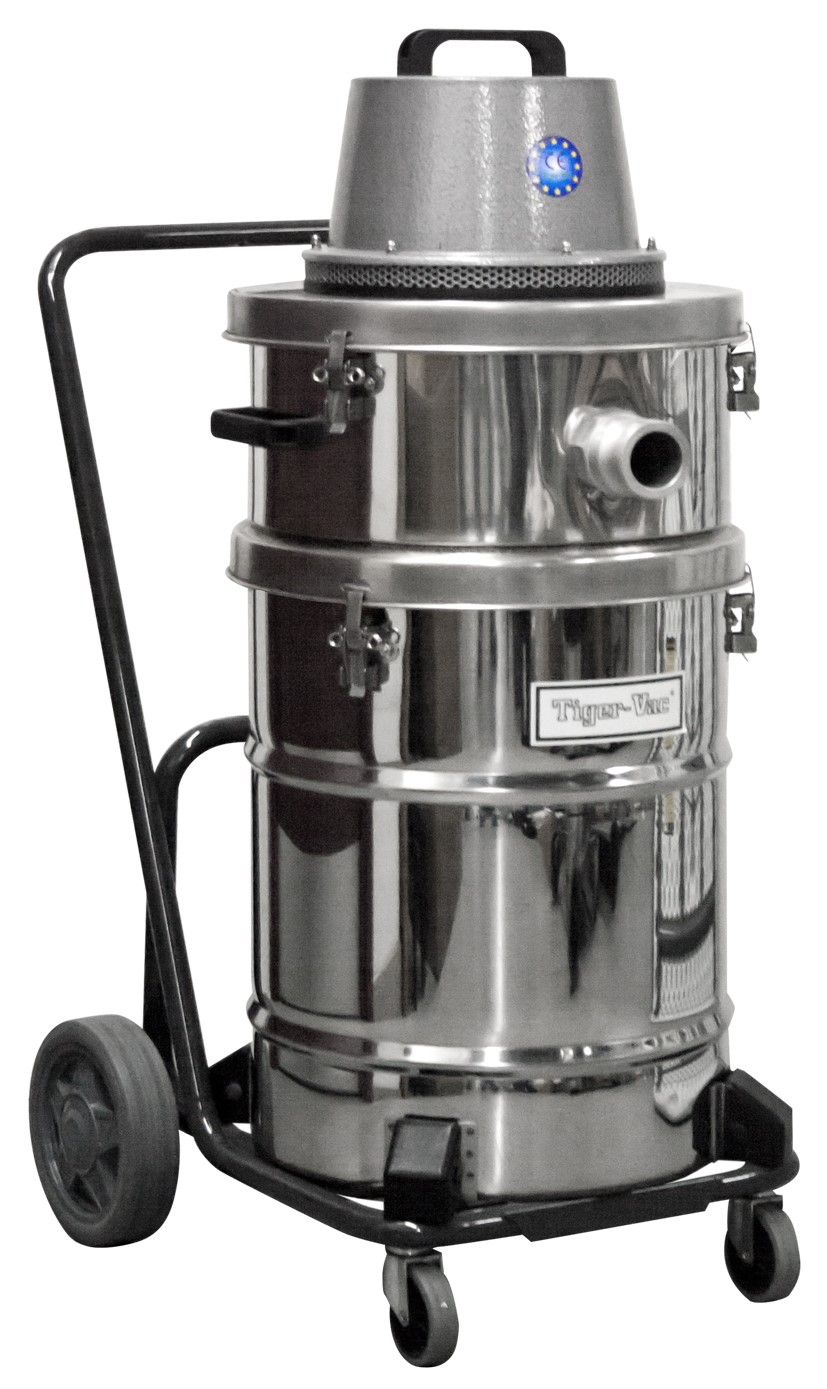

ATEX Combi

Tiger-Vac ATEX-12A (2+2W) MR

Pneumatic venturi · 187 m³/h · 274 mbar · 38 L

II 2GD Ex h IIC T6 Gb Ex h IIIC T85 C Db -4 C <= Ta <= +37 C EN 17348 DT

ATEX Combi

Delfin 802 WD AIREX 1/2D-2/2G 7V

Pneumatic venturi · 150 m³/h · 363 mbar · 80 L

II 1/2D Ex h IIIC T85°C Da/Db -- II 2/2G Ex h IIB T6 Gb/Gb

ATEX Combi

Delfin 802 WD AIREX 1/2D-2/2G 14V

Pneumatic venturi · 300 m³/h · 363 mbar · 80 L

II 1/2D Ex h IIIC T85°C Da/Db -- II 2/2G Ex h IIB T6 Gb/Gb

ATEX Combi

Depureco MINIAIR 2V Z2/22

Pneumatic venturi · 300 m³/h · 500 mbar · 45 L

II 3D Ex h IIIC T140°C Dc -- II 3G Ex h IIB T3 Gc

ATEX Combi

Depureco AC 65 Z2/22

Pneumatic venturi · 480 m³/h · 500 mbar · 65 L

II 3D Ex h IIIC T140°C Dc -- II 3G Ex h IIB T3 Gc

ATEX Combi

Depureco AC 100 Z2/22

Pneumatic venturi · 480 m³/h · 500 mbar · 100 L

II 3D Ex h IIIC T140°C Dc -- II 3G Ex h IIB T3 Gc

ATEX Combi

Delfin 452 AIREX 1/2D-2/2G INERT 7V

Pneumatic venturi · 150 m³/h · 363 mbar · 15 L

II 1/2D Ex h IIIC T85°C Da/Db -- II 2/2G Ex h IIB T6 Gb/Gb

ATEX Combi

Delfin 452 AIREX 1/2D-2/2G INERT 14V

Pneumatic venturi · 300 m³/h · 363 mbar · 15 L

II 1/2D Ex h IIIC T85°C Da/Db -- II 2/2G Ex h IIB T6 Gb/Gb

ATEX Combi

Delfin DM AIREX 19V 1/2D - 2/2G

Pneumatic venturi · 465 m³/h · 490 mbar · 100 L

II 1/2D Ex h IIIC T85°C Da/Db -- II 2/2G Ex h IIC T6 Gb/Gb

ATEX Combi

Delfin DM AIREX 25V 1/2D - 2/2G

Pneumatic venturi · 590 m³/h · 490 mbar · 100 L

II 1/2D Ex h IIIC T85°C Da/Db -- II 2/2G Ex h IIC T6 Gb/Gb

ATEX Combi

Delfin DM AIREX 1/2D-2/2G INERT 19V

Pneumatic venturi · 465 m³/h · 490 mbar · 44 L

II 1/2D Ex h IIIC T85°C Da/Db -- II 2/2G Ex h IIB T6 Gb/Gb

ATEX Combi

Delfin DM AIREX 1/2D-2/2G INERT 25V

Pneumatic venturi · 590 m³/h · 490 mbar · 44 L

II 1/2D Ex h IIIC T85°C Da/Db -- II 2/2G Ex h IIB T6 Gb/Gb
